1028 Series Outgoing Connector Pyramid Cap Box Profile Caps

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 10.28
Material and Color Options (V)
10.28.A.V1 - ST37 - RAL 9019
W-L Width (W) Length (L)
30*30 30 30 10.28.A.V1.1
40*40 40 40 10.28.A.V1.2
50*50 50 50 10.28.A.V1.3
60*60 60 60 10.28.A.V1.4
80*80 80 80 10.28.A.V1.5
100*100 100 100 10.28.A.V1.6
120*120 120 120 10.28.A.V1.7
150*150 150 150 10.28.A.V1.8
200*200 200 200 10.28.A.V1.9
20*30 20 30 10.28.A.V1.10
20*40 20 40 10.28.A.V1.11
30*40 30 40 10.28.A.V1.12
30*50 30 50 10.28.A.V1.13
30*60 30 60 10.28.A.V1.14
40*60 40 60 10.28.A.V1.15
40*80 40 80 10.28.A.V1.16
50*100 50 100 10.28.A.V1.17

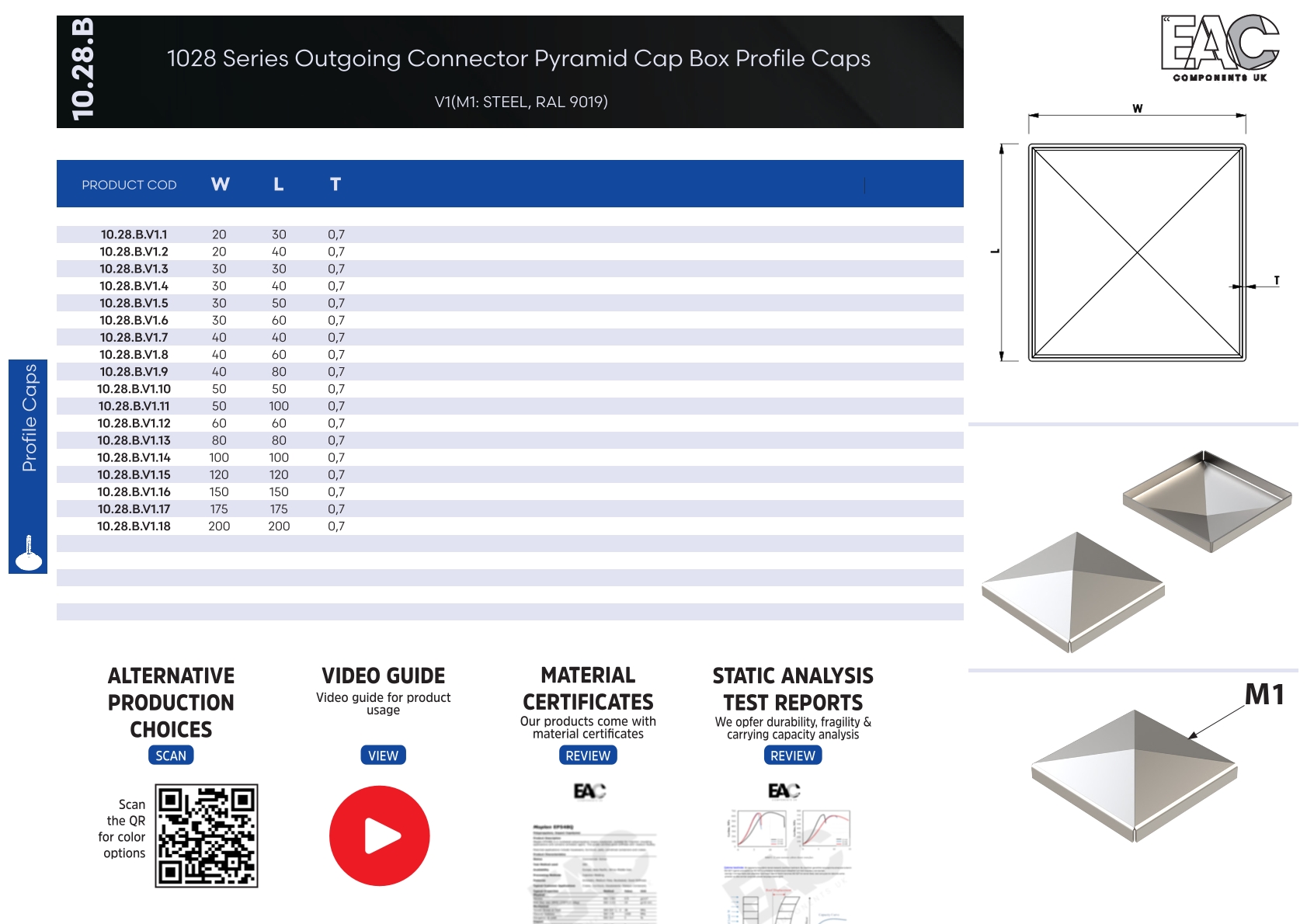

10.28.B.V1 - ST37 - RAL 9019
W-L Width (W) Length (L)
20*30 20 30 10.28.B.V1.1
20*40 20 40 10.28.B.V1.2
30*30 30 30 10.28.B.V1.3
30*40 30 40 10.28.B.V1.4
30*50 30 50 10.28.B.V1.5
30*60 30 60 10.28.B.V1.6
40*40 40 40 10.28.B.V1.7
40*60 40 60 10.28.B.V1.8
40*80 40 80 10.28.B.V1.9
50*50 50 50 10.28.B.V1.10
50*100 50 100 10.28.B.V1.11
60*60 60 60 10.28.B.V1.12
80*80 80 80 10.28.B.V1.13
100*100 100 100 10.28.B.V1.14
120*120 120 120 10.28.B.V1.15
150*150 150 150 10.28.B.V1.16
175*175 175 175 10.28.B.V1.17
200*200 200 200 10.28.B.V1.18

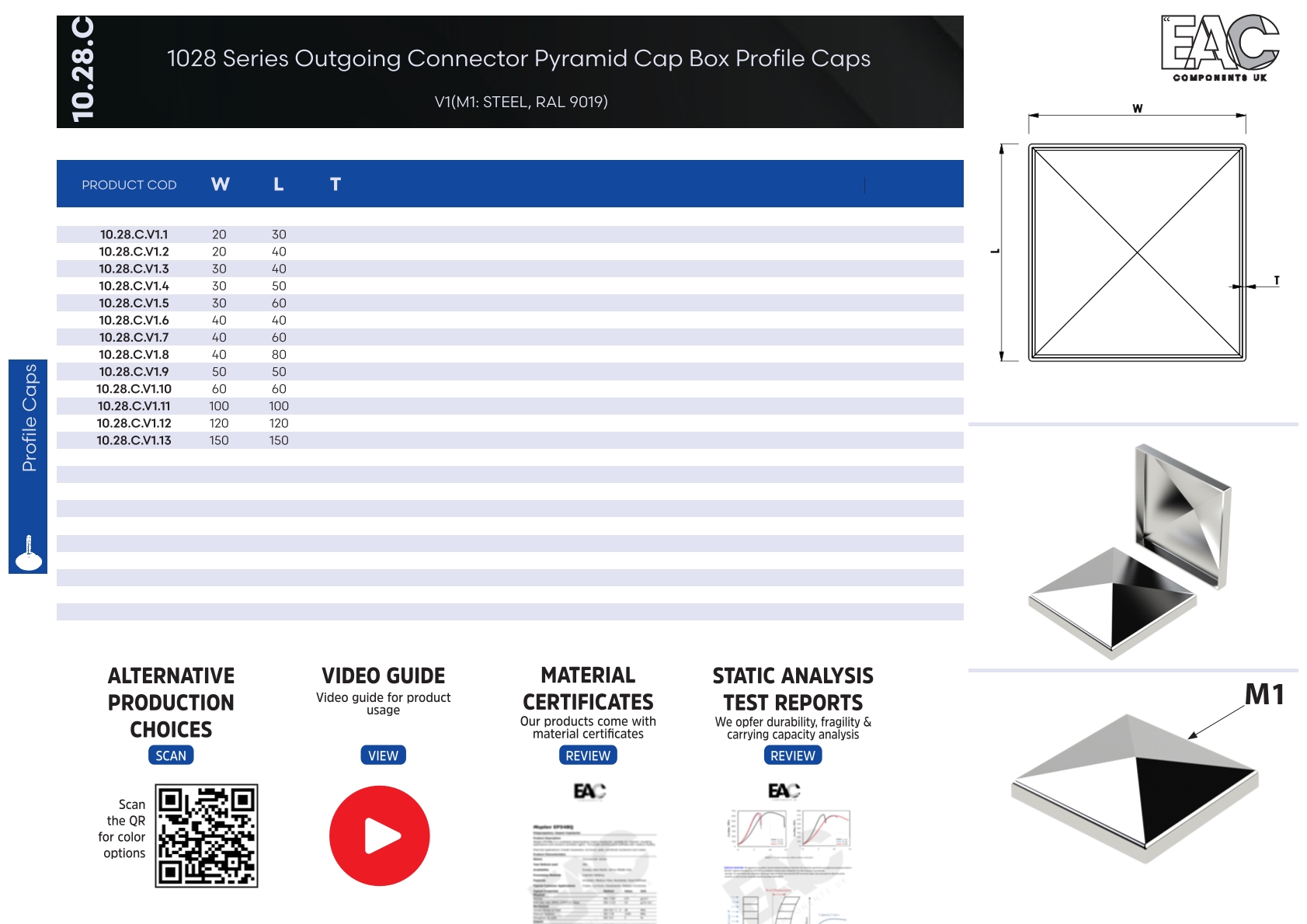

10.28.C.V1 - ST37 - RAL 9019
W-L Width (W) Length (L)
50*50 50 50 10.28.C.V1.1
40*40 40 40 10.28.C.V1.2
60*60 60 60 10.28.C.V1.3
100*100 100 100 10.28.C.V1.4
20*30 20 30 10.28.C.V1.5
20*40 20 40 10.28.C.V1.6
30*40 30 40 10.28.C.V1.7
30*50 30 50 10.28.C.V1.8
30*60 30 60 10.28.C.V1.9
40*60 40 60 10.28.C.V1.10
40*80 40 80 10.28.C.V1.11
120*120 120 120 10.28.C.V1.12
150*150 150 150 10.28.C.V1.13
Technical Drawing
