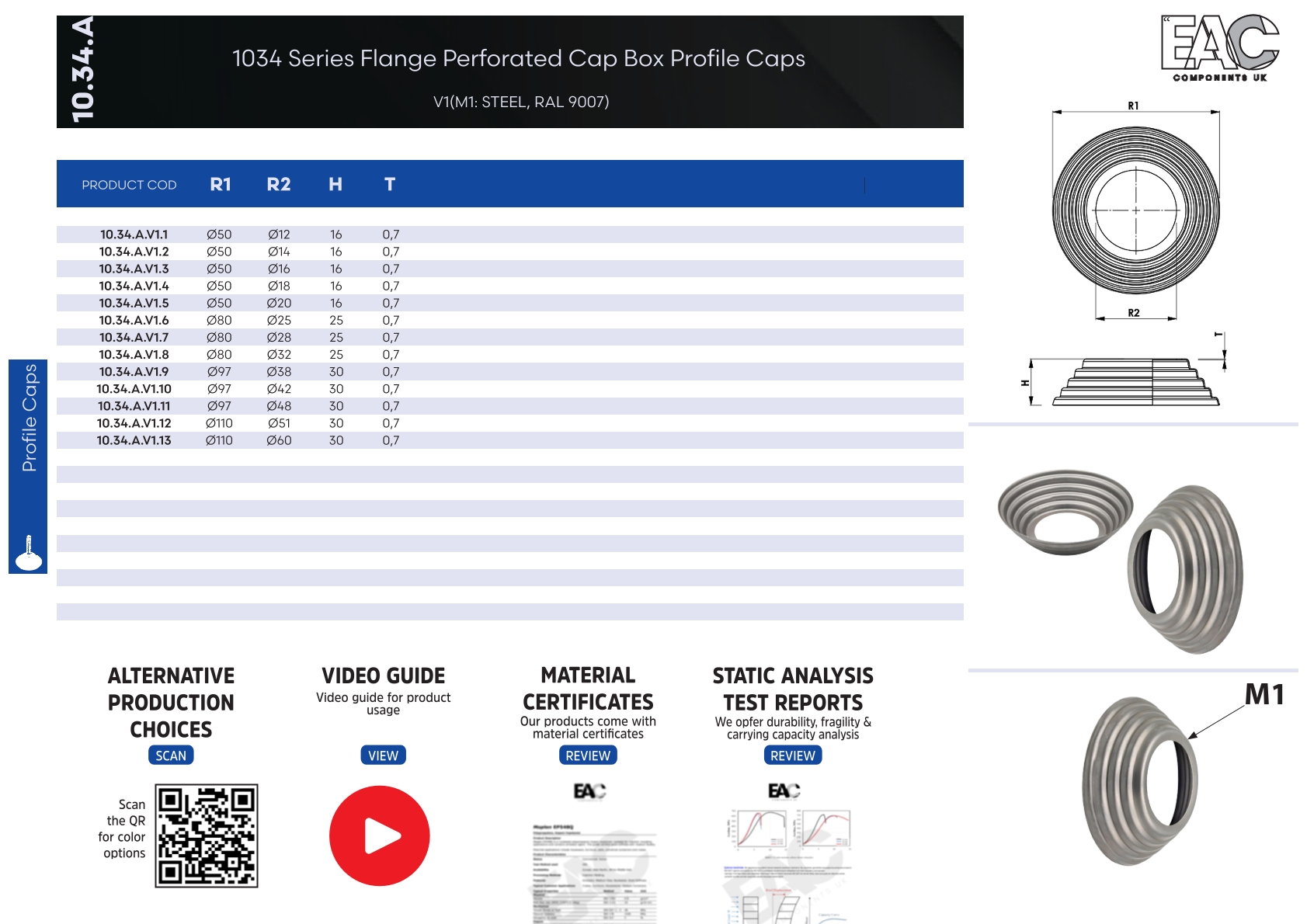

1034 Series Flange Perforated Cap Box Profile Caps

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 10.34
Material and Color Options (V)
10.34.A.V1 - ST37 - RAL 9007
Diameter (Ø1) Diameter (Ø2)
Ø50 Ø12 10.34.A.V1.1
Ø50 Ø14 10.34.A.V1.2
Ø50 Ø16 10.34.A.V1.3
Ø50 Ø18 10.34.A.V1.4
Ø50 Ø20 10.34.A.V1.5
Ø80 Ø25 10.34.A.V1.6
Ø80 Ø28 10.34.A.V1.7
Ø80 Ø32 10.34.A.V1.8
Ø97 Ø38 10.34.A.V1.9
Ø97 Ø42 10.34.A.V1.10
Ø97 Ø48 10.34.A.V1.11
Ø110 Ø51 10.34.A.V1.12
Ø110 Ø60 10.34.A.V1.13
Technical Drawing
