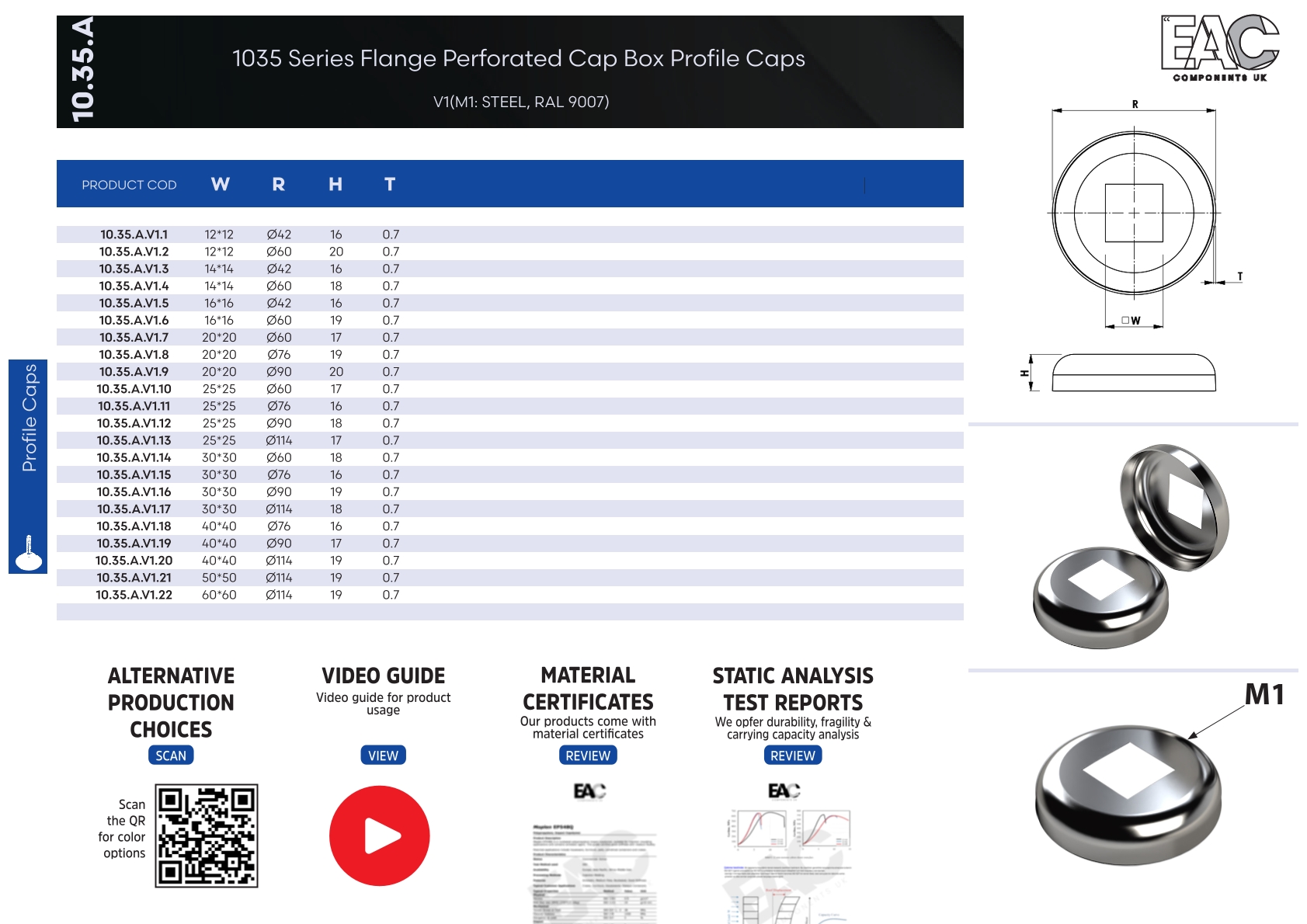

1035 Series Flange Perforated Cap Box Profile Caps

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 10.35
Material and Color Options (V)
10.35.A.V1 - STEEL - RAL 9007
Diameter (Ø) Width (W)
Ø42 12 10.35.A.V1.1
Ø60 12 10.35.A.V1.2
Ø42 14 10.35.A.V1.3
Ø60 14 10.35.A.V1.4
Ø42 16 10.35.A.V1.5
Ø60 16 10.35.A.V1.6
Ø60 20 10.35.A.V1.7
Ø76 20 10.35.A.V1.8
Ø90 20 10.35.A.V1.9
Ø60 25 10.35.A.V1.10
Ø76 25 10.35.A.V1.11
Ø90 25 10.35.A.V1.12
Ø114 25 10.35.A.V1.13
Ø60 30 10.35.A.V1.14
Ø76 30 10.35.A.V1.15
Ø90 30 10.35.A.V1.16
Ø114 30 10.35.A.V1.17
Ø76 40 10.35.A.V1.18
Ø90 40 10.35.A.V1.19
Ø114 40 10.35.A.V1.20
Ø114 50 10.35.A.V1.21
Ø114 60 10.35.A.V1.22
Technical Drawing
