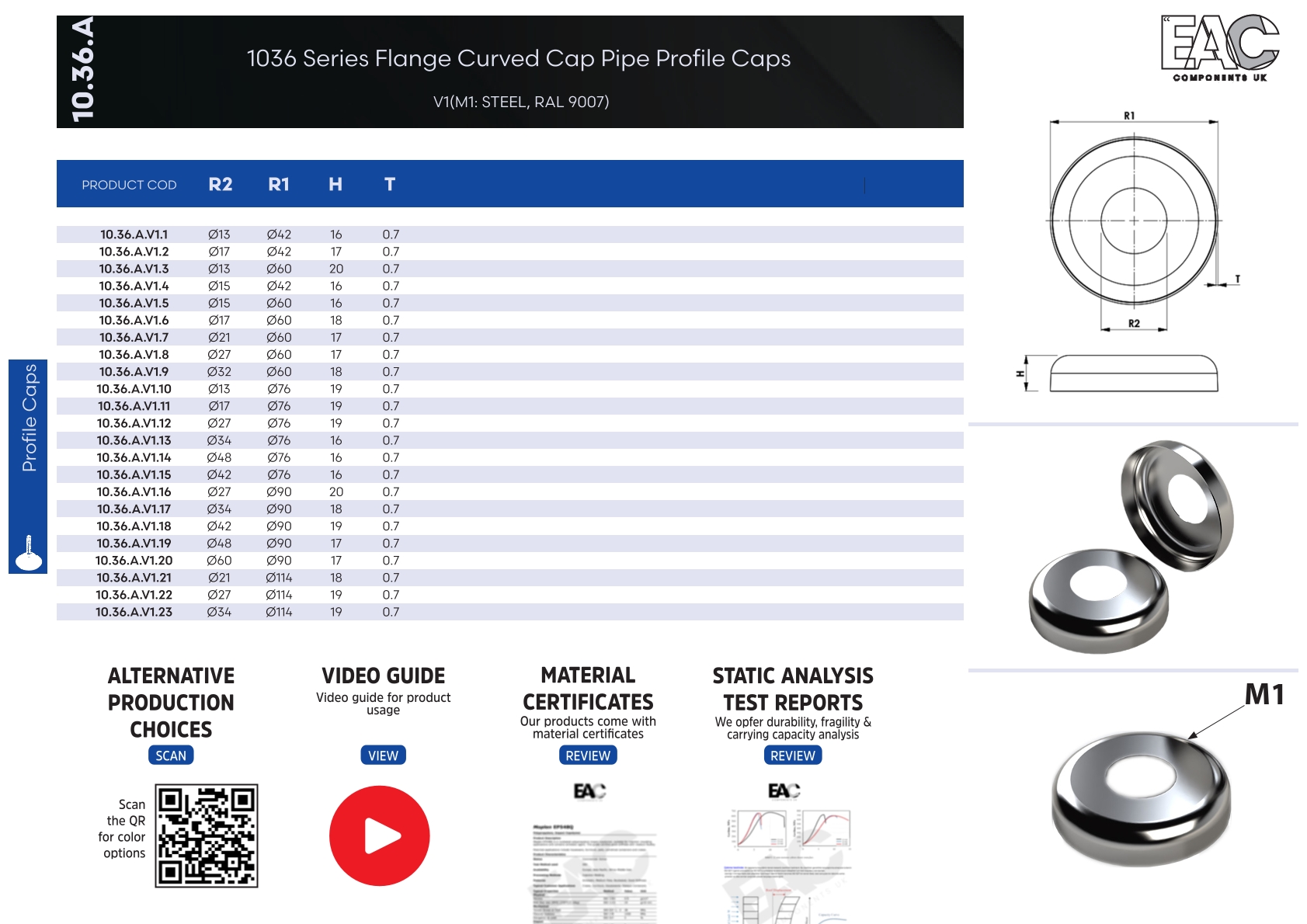

1036 Series Flange Curved Cap Pipe Profile Caps

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 10.36
Material and Color Options (V)
10.36.A.V1 - ST37 - RAL 9007
Diameter (Ø1) Diameter (Ø2)
Ø42 Ø13 10.36.A.V1.1
Ø60 Ø13 10.36.A.V1.2
Ø76 Ø13 10.36.A.V1.3
Ø42 Ø15 10.36.A.V1.4
Ø60 Ø15 10.36.A.V1.5
Ø42 Ø17 10.36.A.V1.6
Ø60 Ø17 10.36.A.V1.7
Ø76 Ø17 10.36.A.V1.8
Ø60 Ø21 10.36.A.V1.9
Ø114 Ø21 10.36.A.V1.10
Ø60 Ø27 10.36.A.V1.11
Ø76 Ø27 10.36.A.V1.12
Ø90 Ø27 10.36.A.V1.13
Ø114 Ø27 10.36.A.V1.14
Ø60 Ø32 10.36.A.V1.15
Ø76 Ø34 10.36.A.V1.16
Ø90 Ø34 10.36.A.V1.17
Ø114 Ø34 10.36.A.V1.18
Ø76 Ø42 10.36.A.V1.19
Ø90 Ø42 10.36.A.V1.20
Ø114 Ø42 10.36.A.V1.21
Ø76 Ø48 10.36.A.V1.22
Ø90 Ø48 10.36.A.V1.23
Ø114 Ø50 10.36.A.V1.24
Ø90 Ø60 10.36.A.V1.25
Technical Drawing
