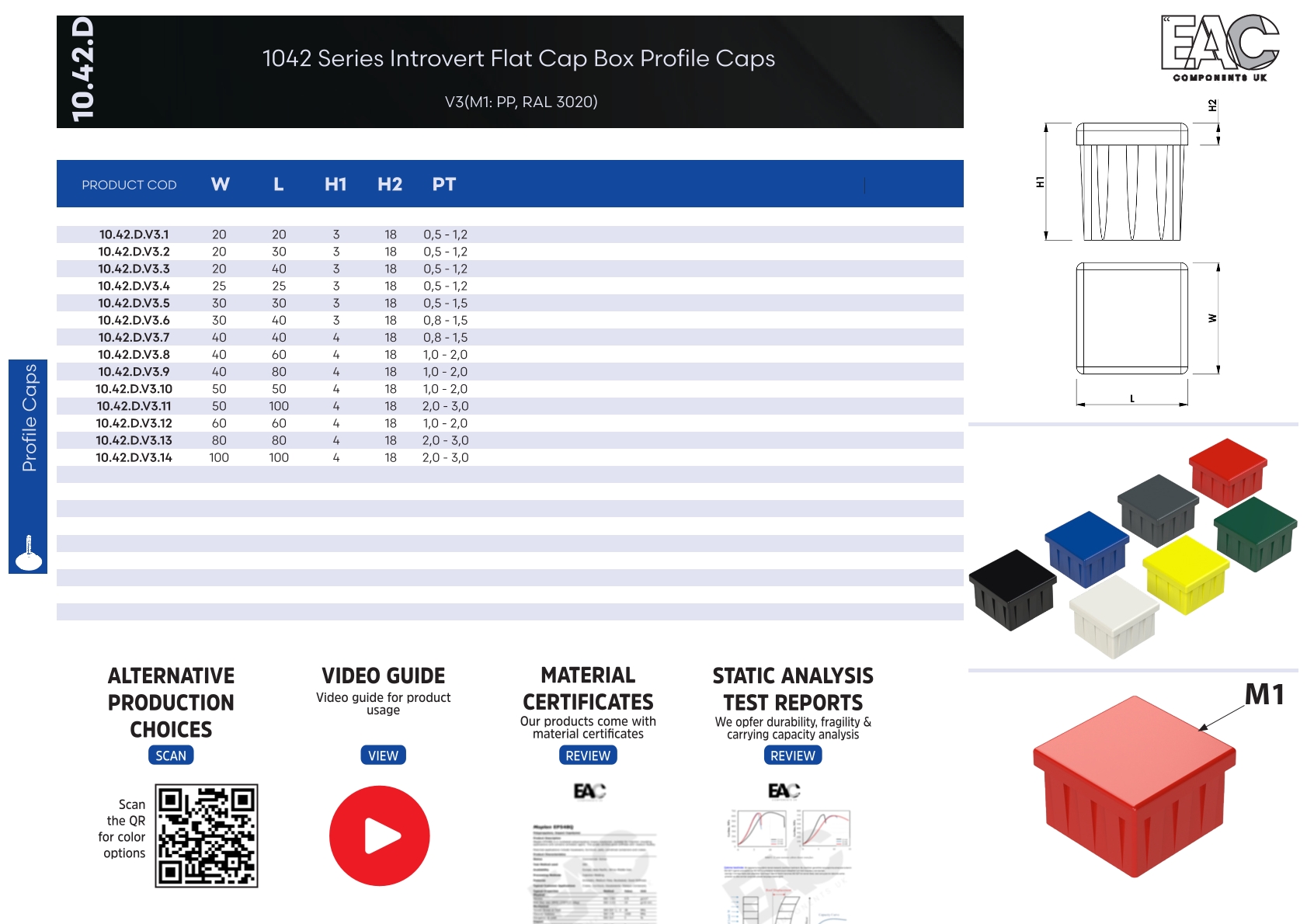

1042 Series Introvert Flat Cap Box Profile Caps

1042 Series Introvert Flat Cap Box Profile Caps

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 10.42
Product Request
Contact Now
Product Raw Material Certificate
Technical Detail
Product Quality and Analysis Certificates
Technical Drawing
Montage Video
Category Introduction
3D Modelling
Material and Color Options (V)

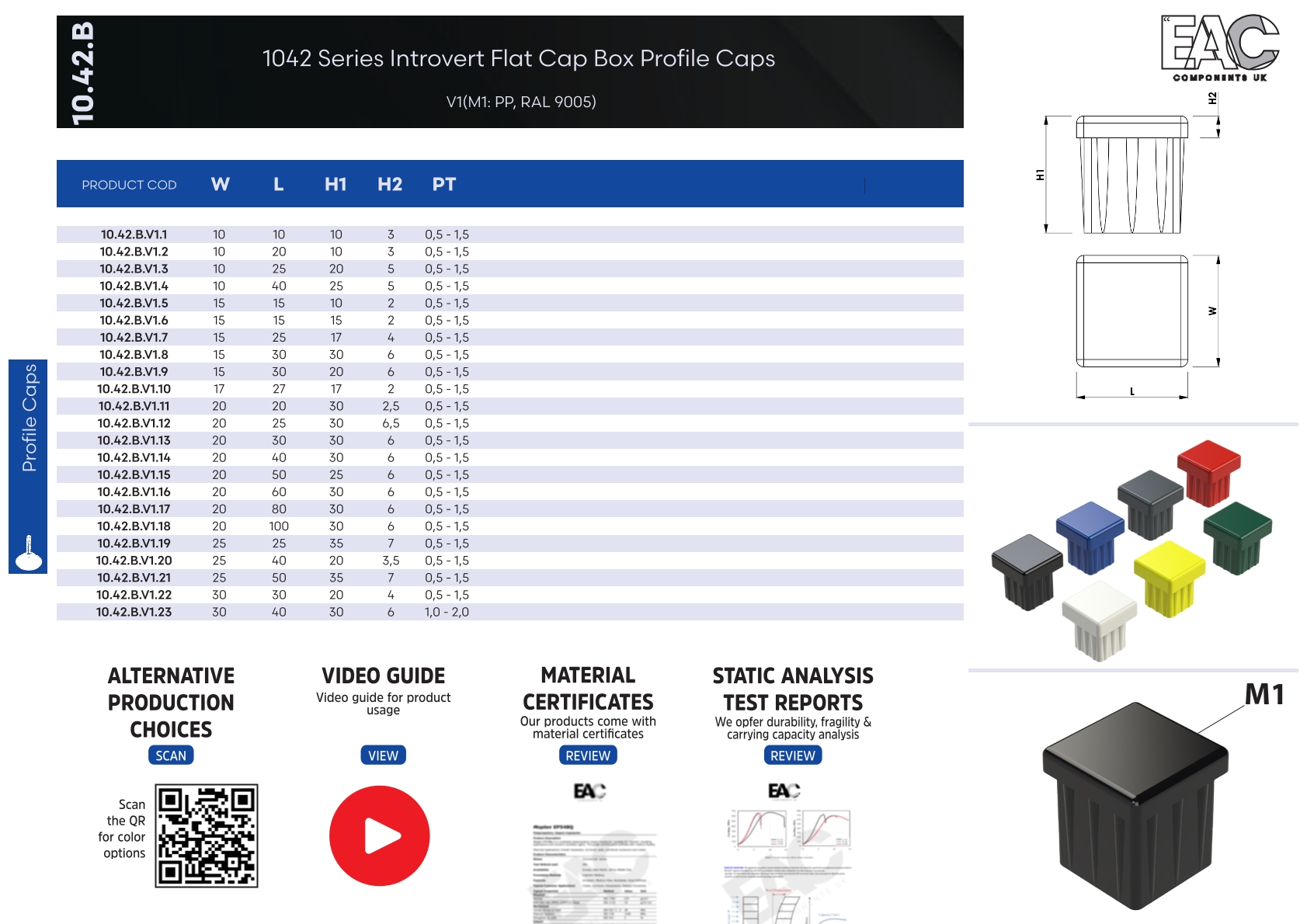

10.42.B.V1 PP RAL 9005
10.42.B.V10 PP RAL 9022
10.42.B.V11 PP RAL 7005
10.42.B.V12 PP RAL 6000
10.42.B.V13 PP RAL 6005
10.42.B.V14 PP RAL 1026

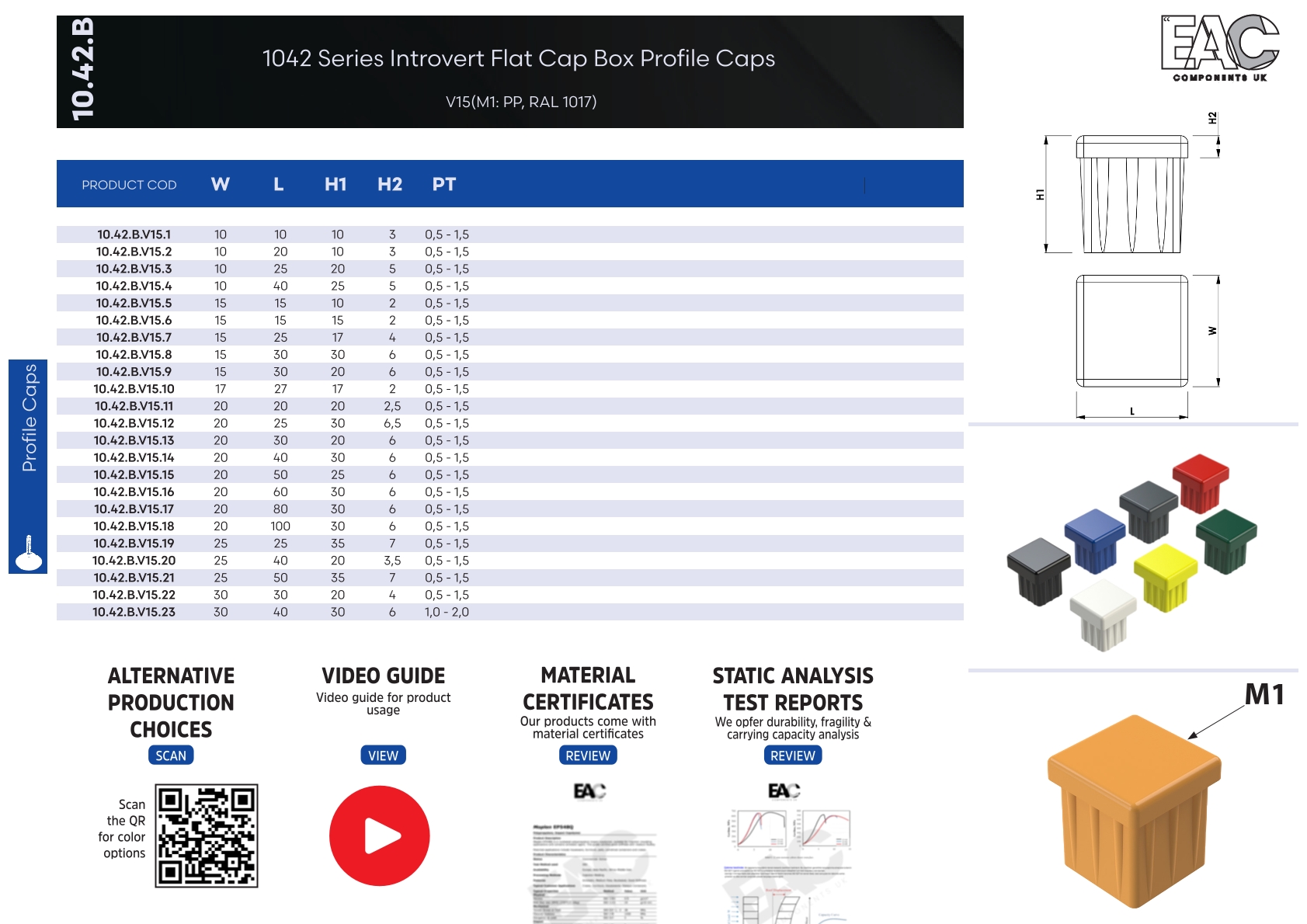

10.42.B.V15 PP RAL 1017
10.42.B.V16 PP RAL 7048

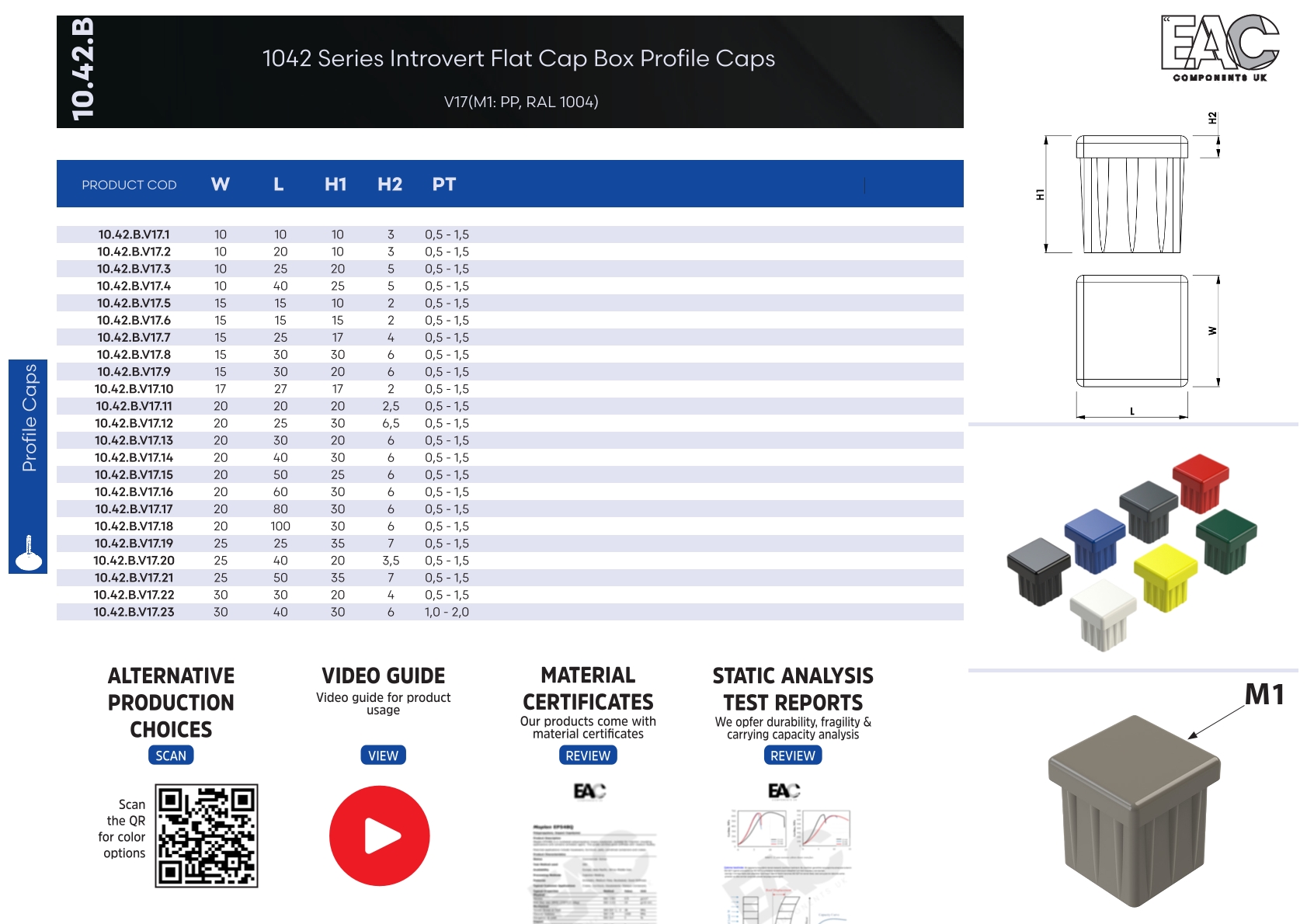

10.42.B.V17 PP RAL 1004
10.42.B.V18 PP RAL 7016

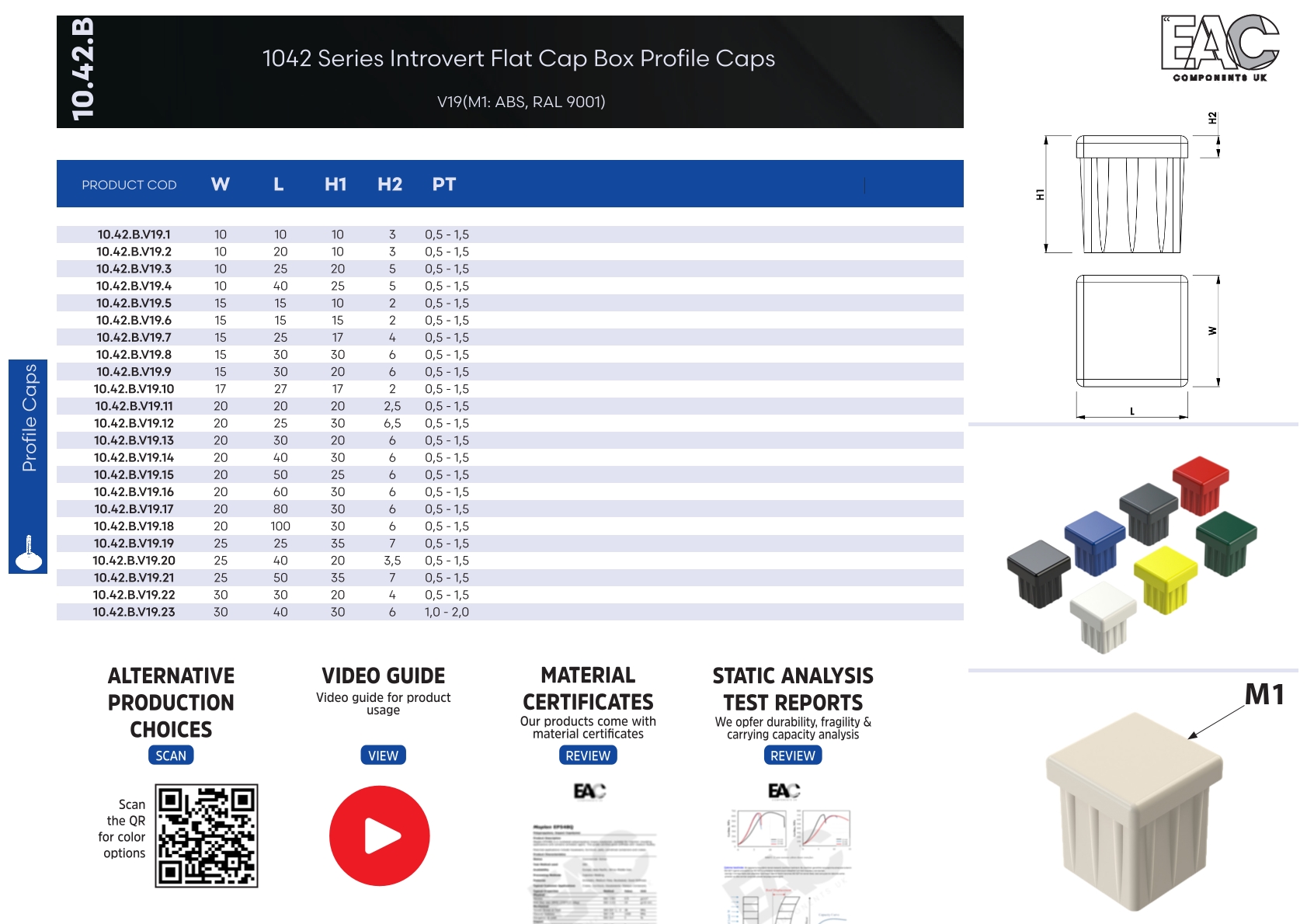

10.42.B.V19 ABS RAL 9001
10.42.B.V2 PP RAL 7039

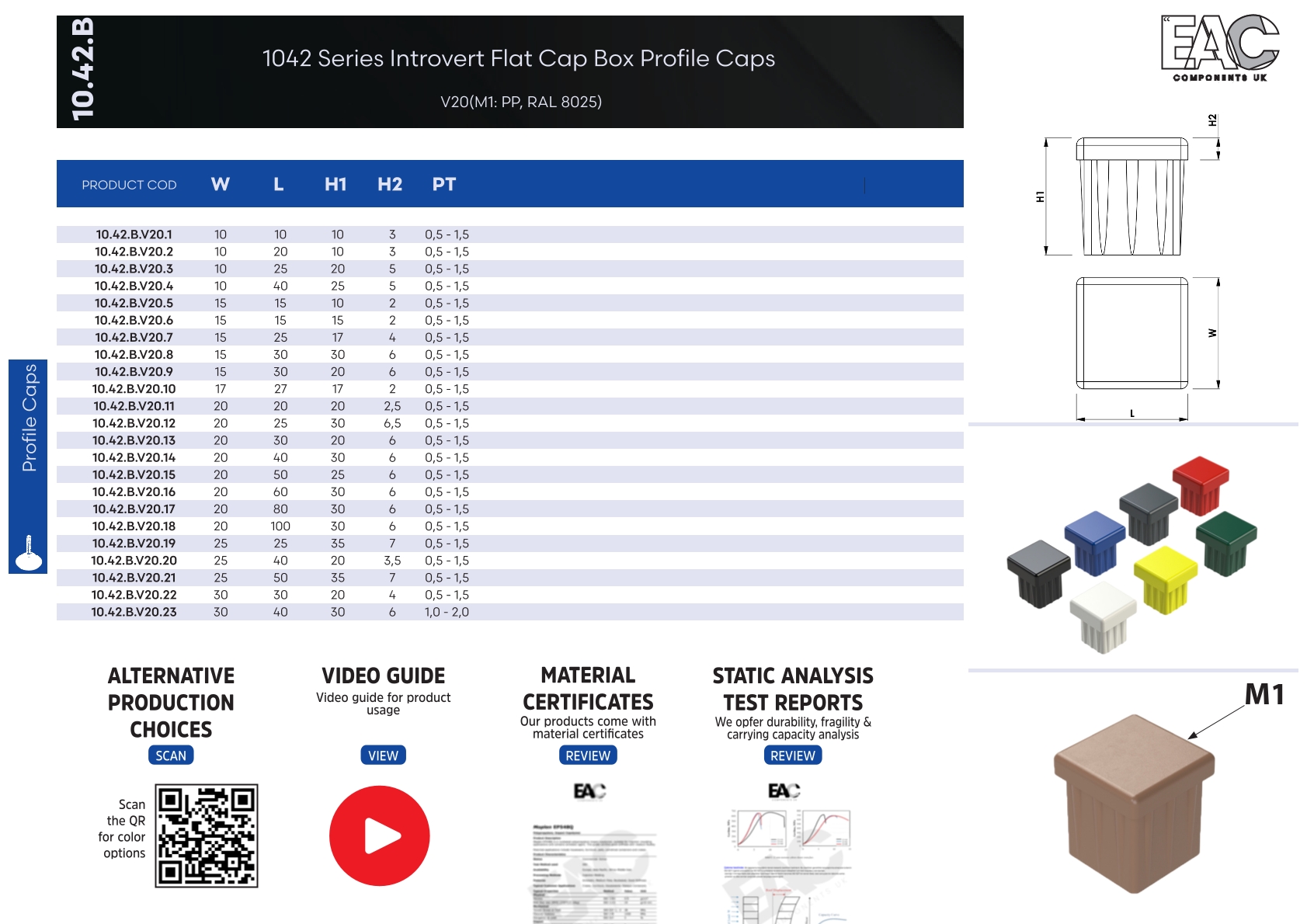

10.42.B.V20 PP RAL 8025
10.42.B.V21 PP RAL 8014
10.42.B.V22 PP RAL 3009

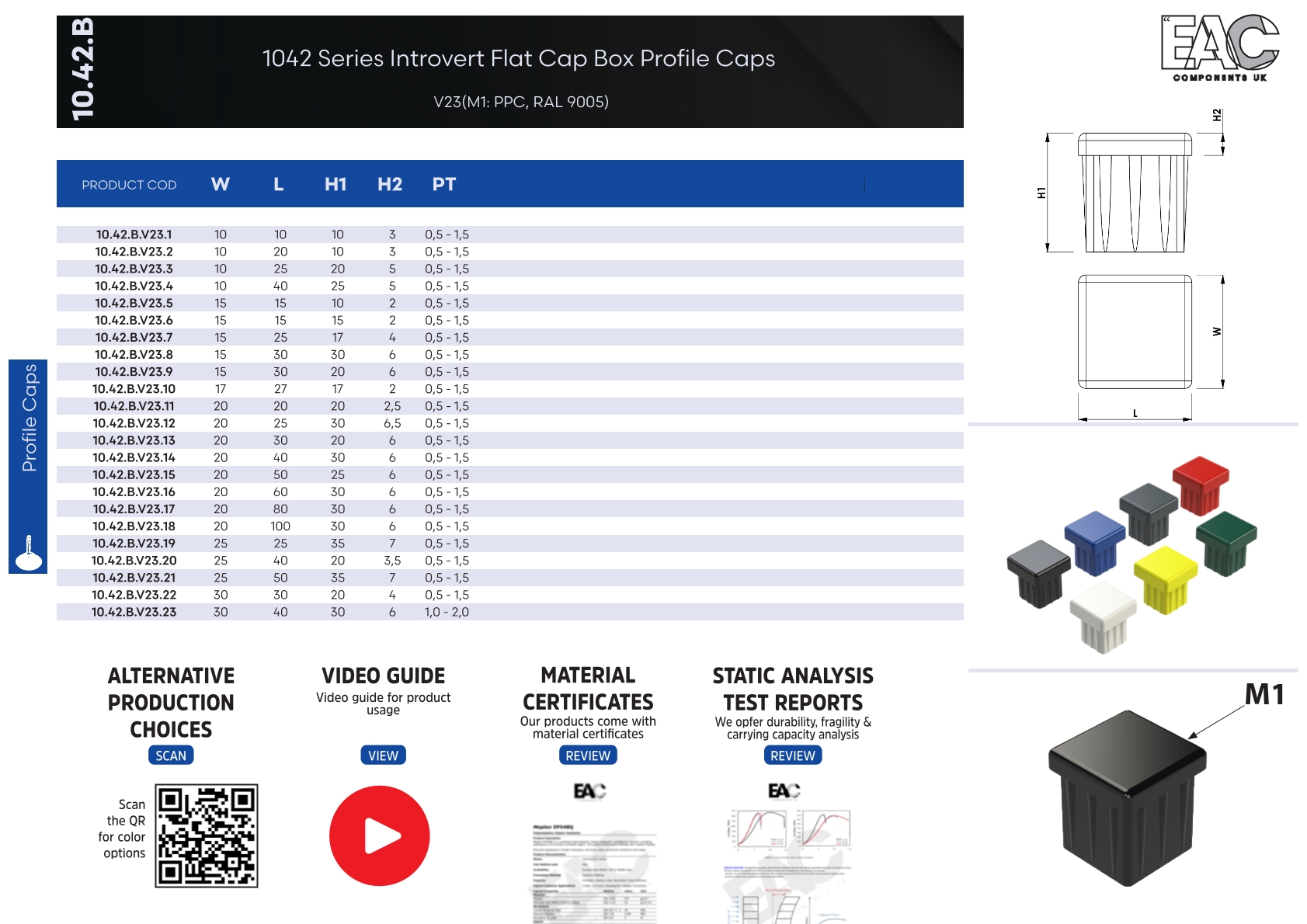

10.42.B.V23 PPC RAL 9005

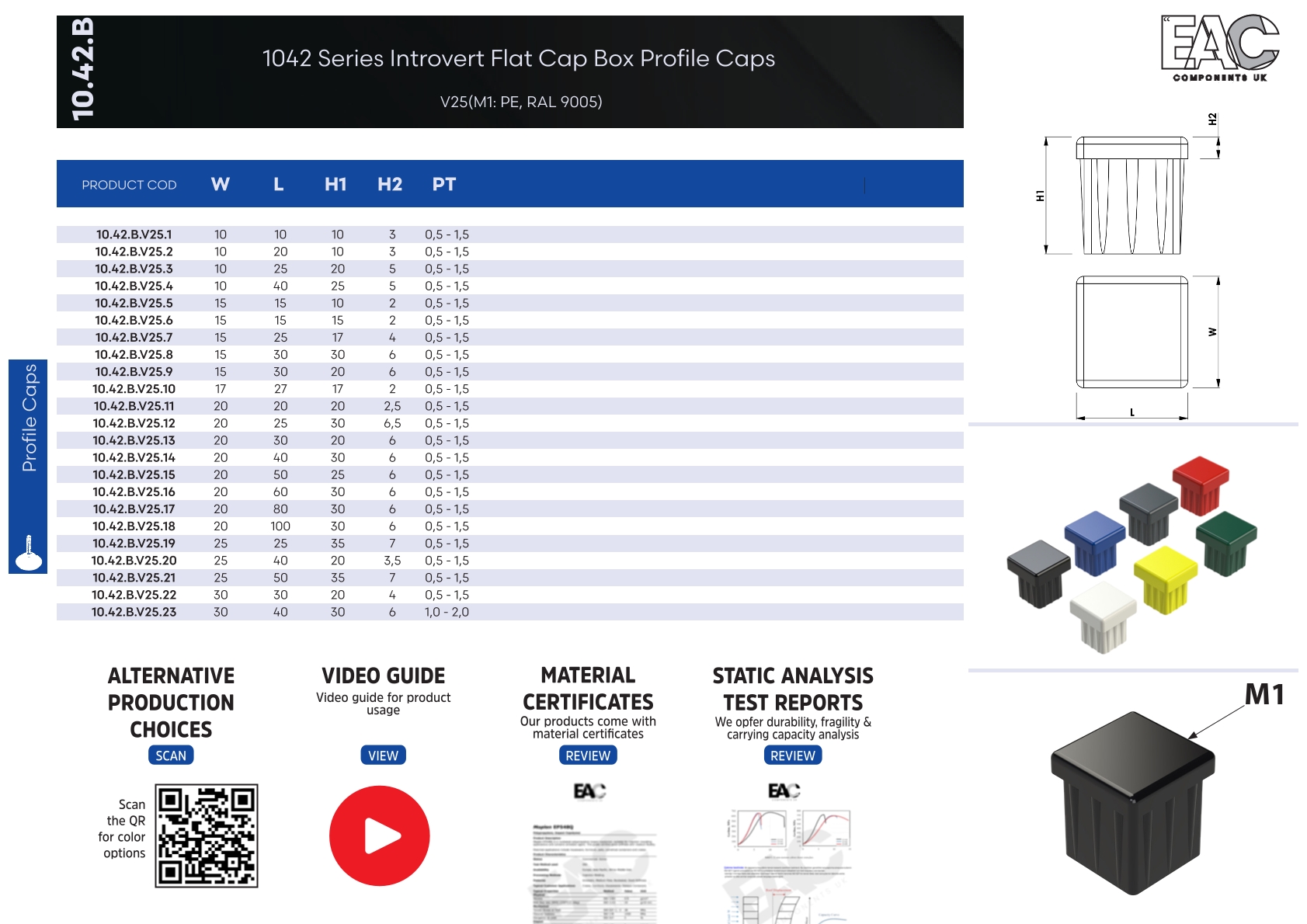

10.42.B.V25 PE RAL 9005

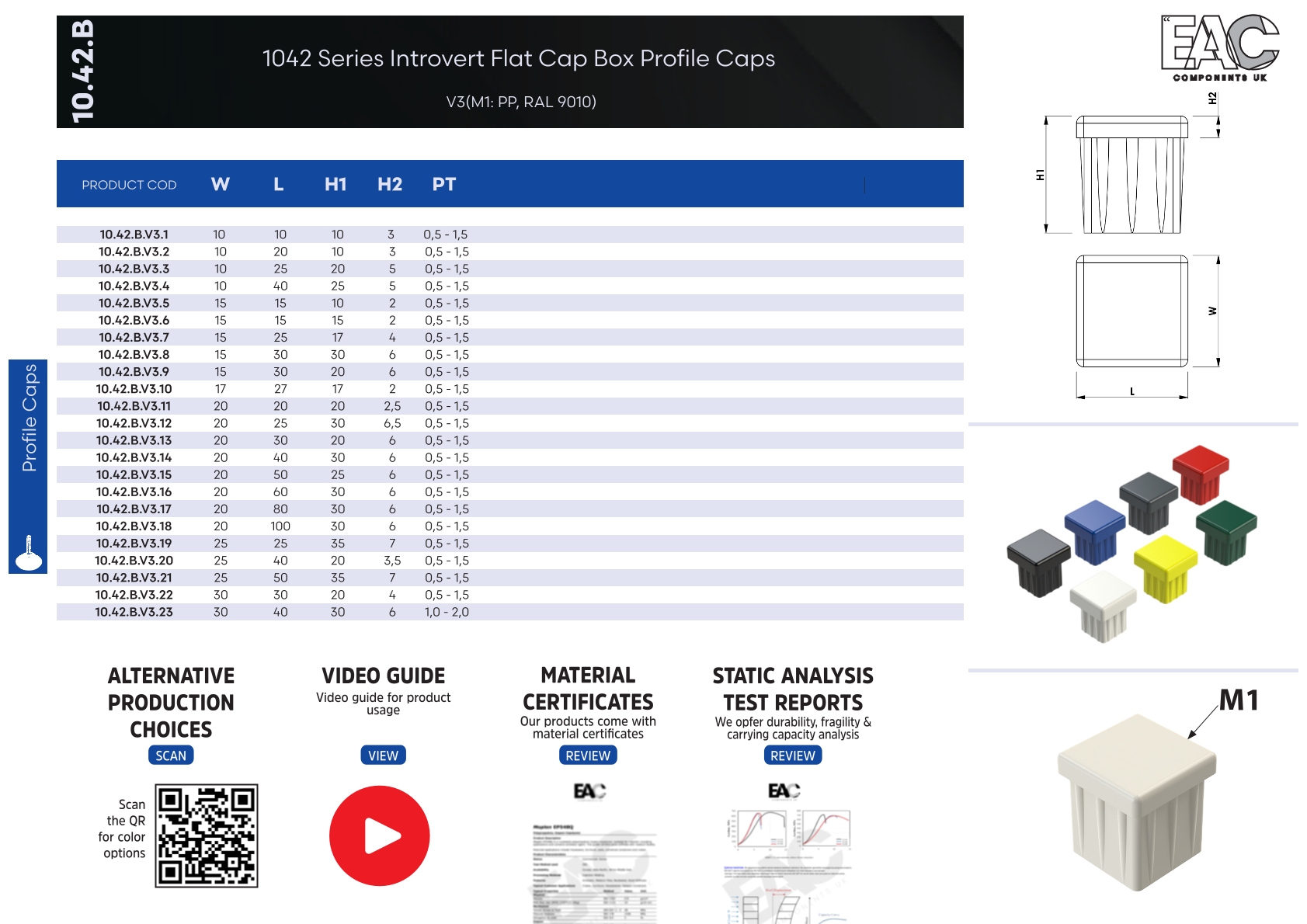

10.42.B.V3 PP RAL 9010

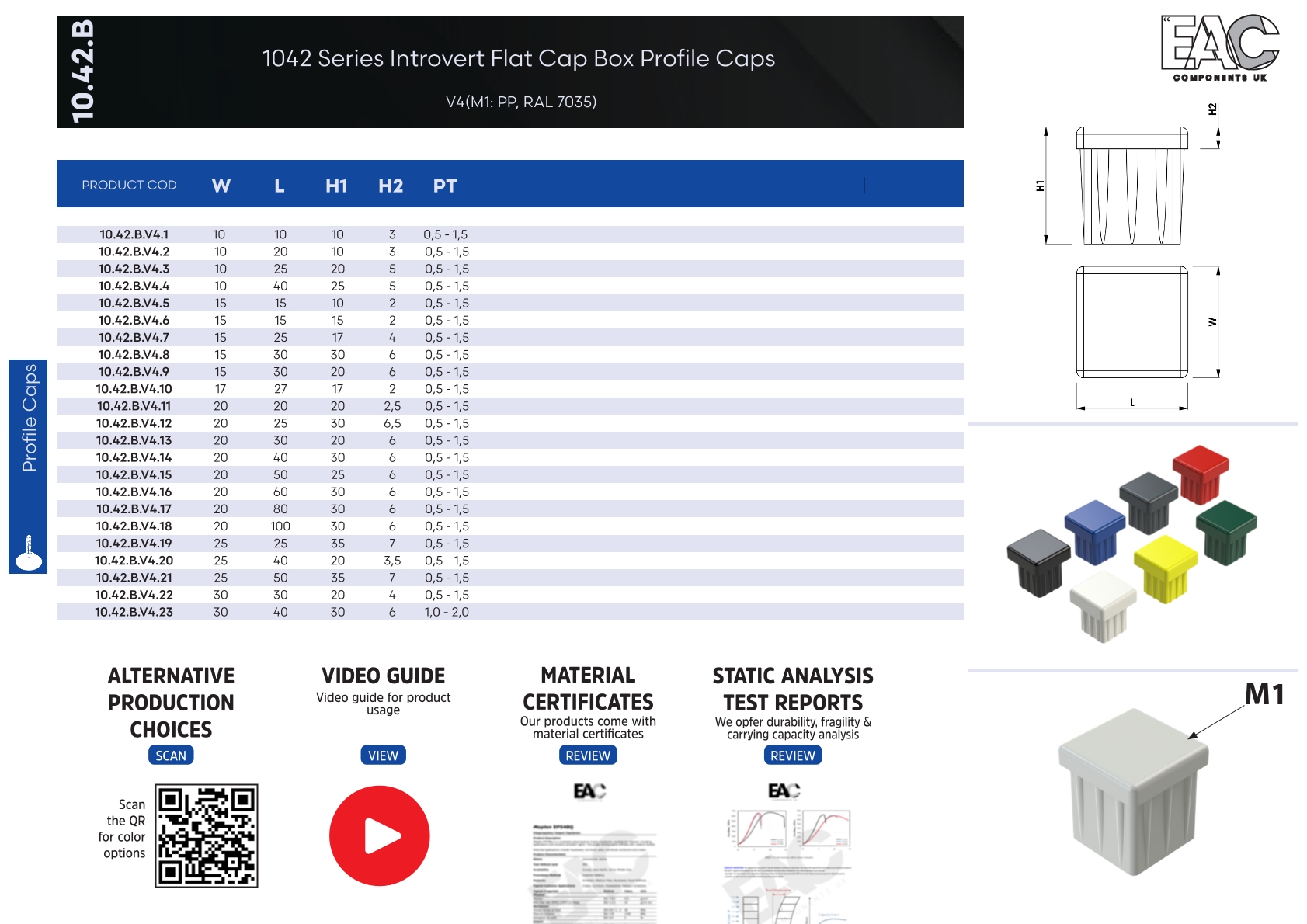

10.42.B.V4 PP RAL 7035
10.42.B.V5 PP RAL 9001

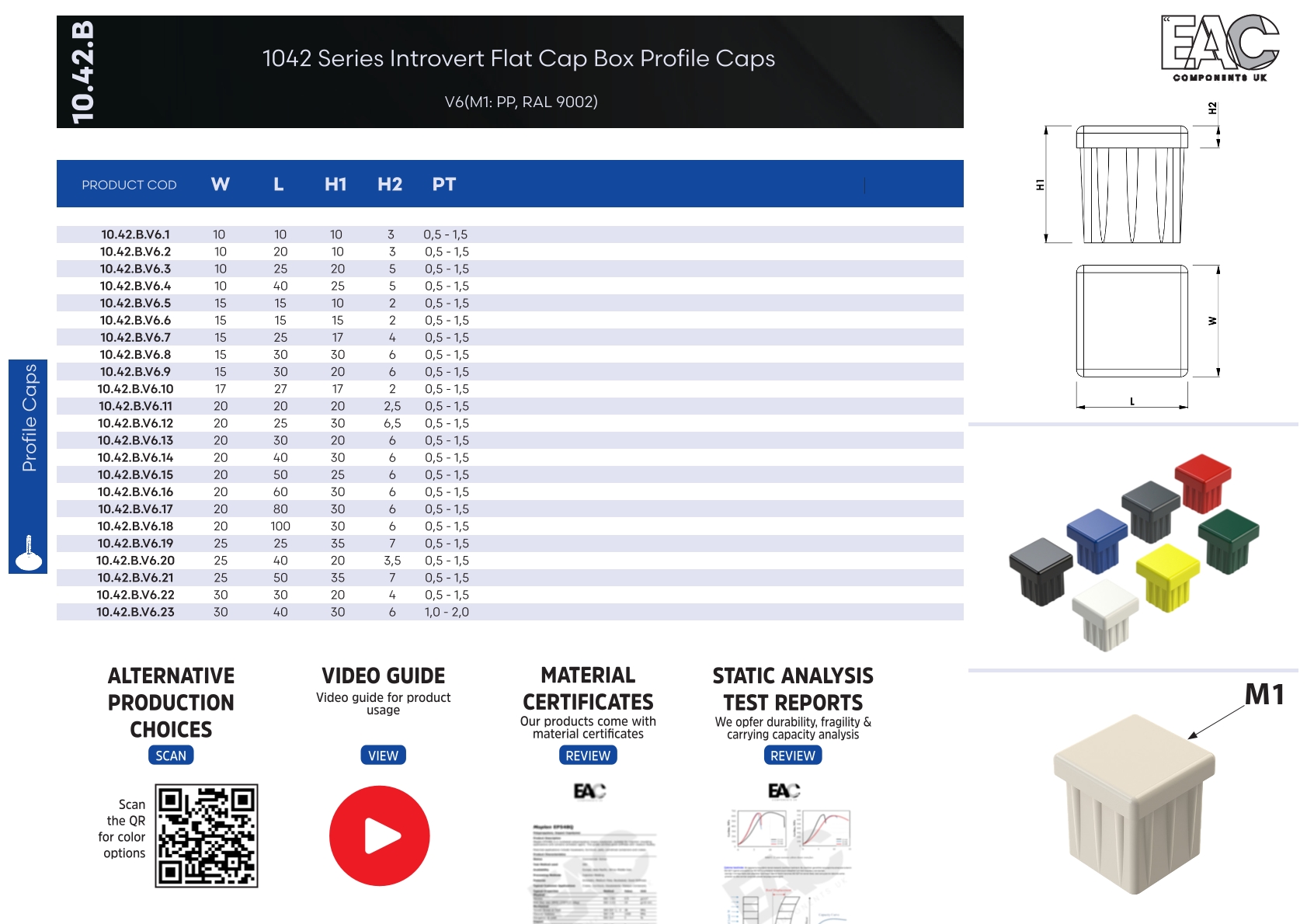

10.42.B.V6 PP RAL 9002

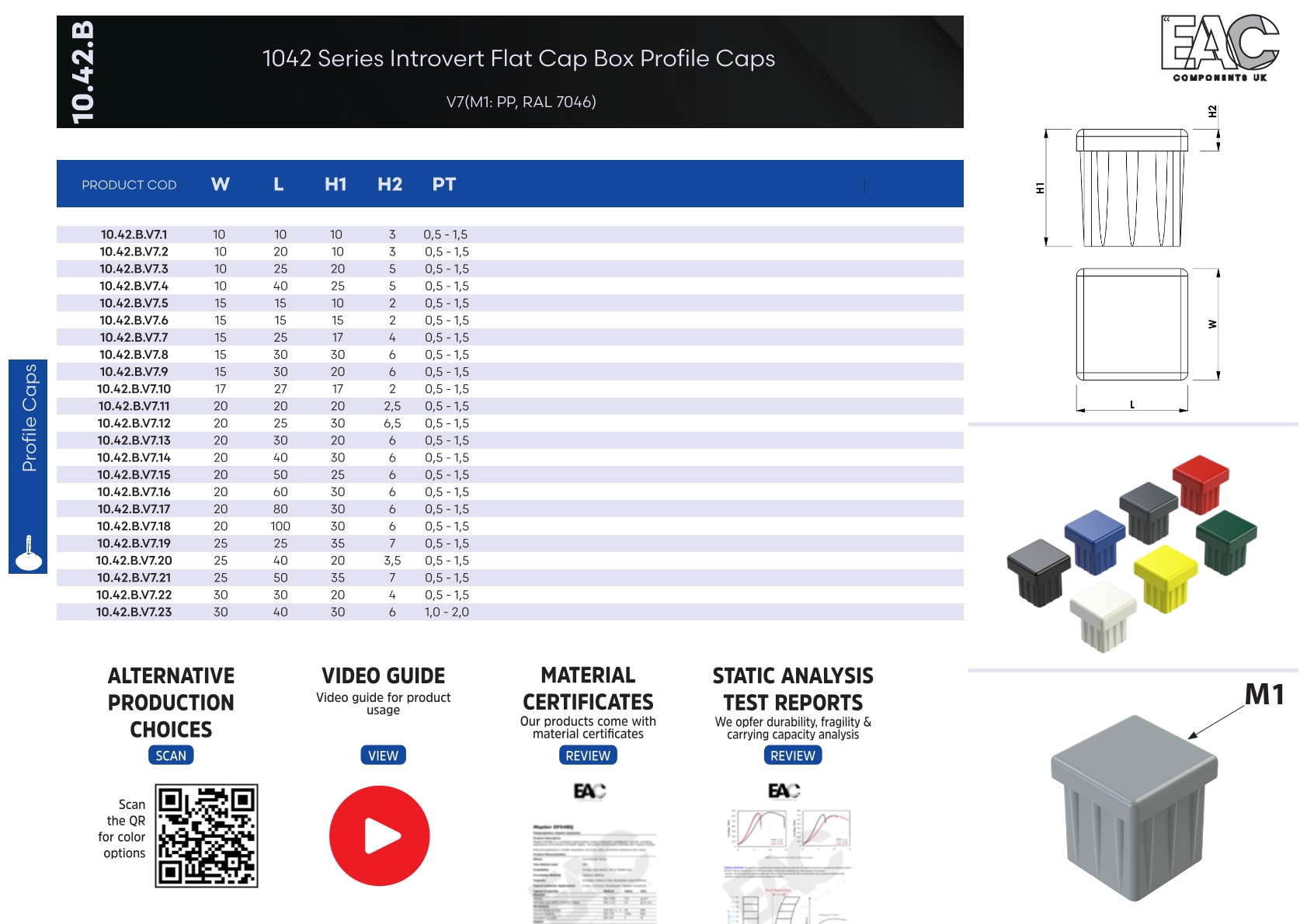

10.42.B.V7 PP RAL 7046

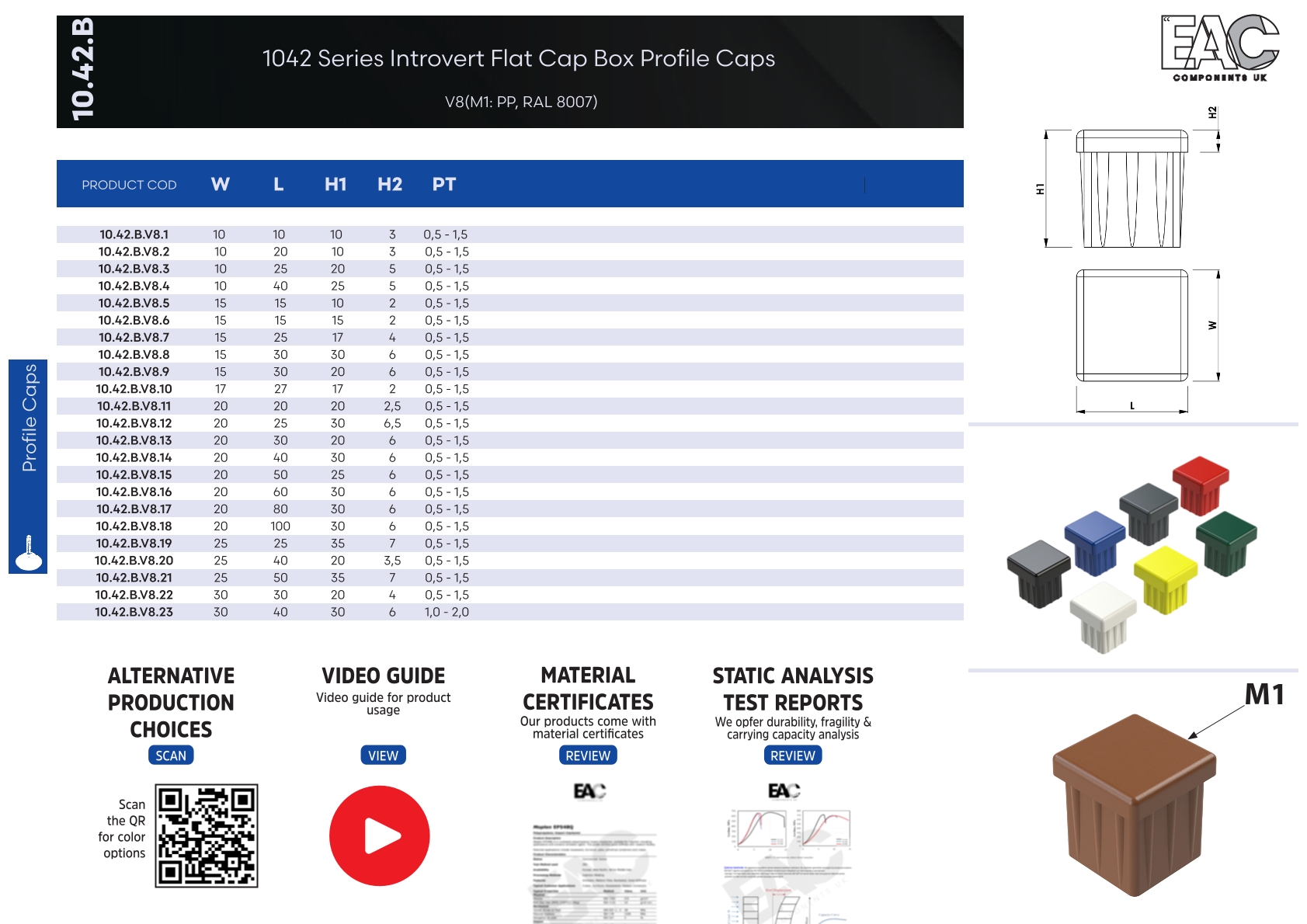

10.42.B.V8 PP RAL 8007

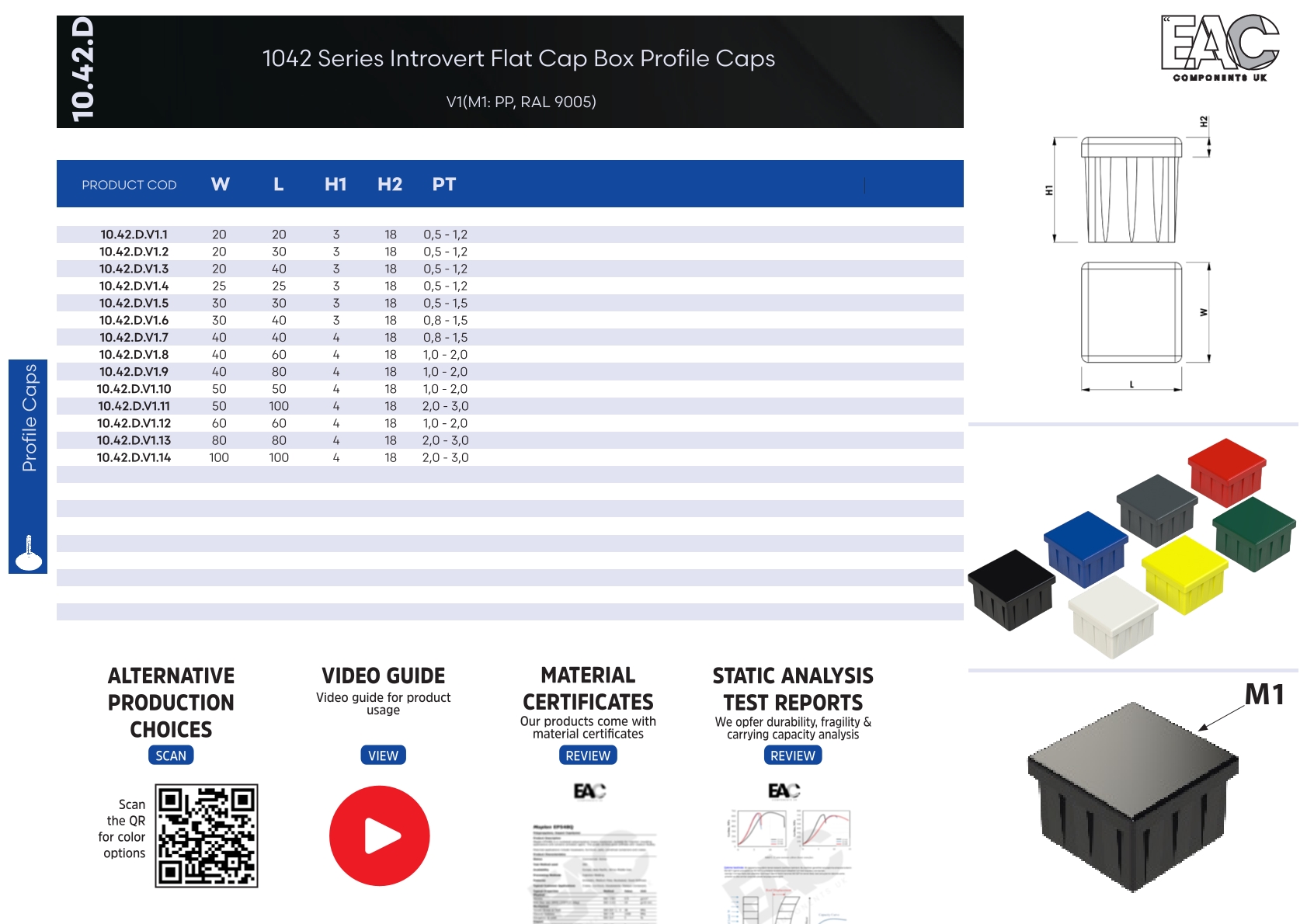

10.42.D.V1 PP RAL 9005

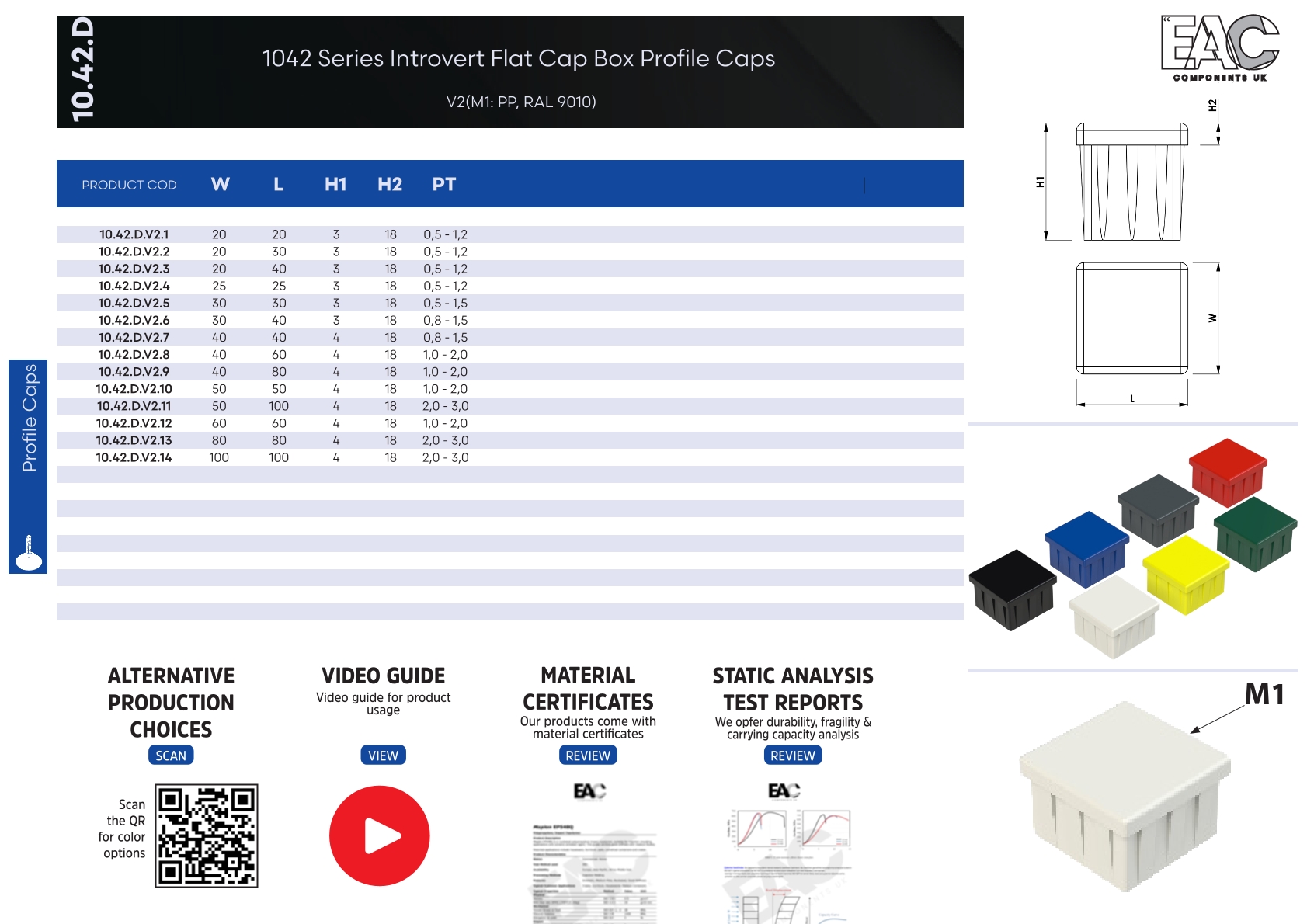

10.42.D.V2 PP RAL 9010
10.42.D.V3 PP RAL 3020
10.42.B.V1 - PP - RAL 9005
Width (W) Length (L) Profile Thickness (PT)
10 10 0,5 - 1,5 10.42.B.V1.1
10 20 0,5 - 1,5 10.42.B.V1.2
10 25 0,5 - 1,5 10.42.B.V1.3
10 40 0,5 - 1,5 10.42.B.V1.4
15 15 0,5 - 1,5 10.42.B.V1.5
15 15 0,5 - 1,5 10.42.B.V1.6
15 25 0,5 - 1,5 10.42.B.V1.7
15 30 0,5 - 1,5 10.42.B.V1.8
15 30 0,5 - 1,5 10.42.B.V1.9
17 27 0,5 - 1,5 10.42.B.V1.10
20 20 0,5 - 1,5 10.42.B.V1.11
20 25 0,5 - 1,5 10.42.B.V1.12
20 30 0,5 - 1,5 10.42.B.V1.13
20 40 0,5 - 1,5 10.42.B.V1.14
20 50 0,5 - 1,5 10.42.B.V1.15
20 60 0,5 - 1,5 10.42.B.V1.16
20 80 0,5 - 1,5 10.42.B.V1.17
20 100 0,5 - 1,5 10.42.B.V1.18
25 25 0,5 - 1,5 10.42.B.V1.19
25 40 0,5 - 1,5 10.42.B.V1.20
25 50 0,5 - 1,5 10.42.B.V1.21
30 30 0,5 - 1,5 10.42.B.V1.22
30 40 1,0 - 2,0 10.42.B.V1.23
30 50 1,0 - 2,0 10.42.B.V1.24
30 60 1,0 - 2,0 10.42.B.V1.25
30 70 1,0 - 2,0 10.42.B.V1.26
35 35 1,0 - 2,0 10.42.B.V1.27
40 40 1,5 - 2,0 10.42.B.V1.28
40 40 1,0 - 2,0 10.42.B.V1.29
40 50 1,0 - 2,0 10.42.B.V1.30
40 60 1,5 - 2,5 10.42.B.V1.31
40 60 Profile Thickness (PT) 10.42.B.V1.32
40 80 1,5 - 2,5 10.42.B.V1.33
40 80 Profile Thickness (PT) 10.42.B.V1.34
40 100 1,5 - 2,5 10.42.B.V1.35
40 110 1,5 - 2,5 10.42.B.V1.36
40 120 Profile Thickness (PT) 10.42.B.V1.37
40 130 1,5 - 2,5 10.42.B.V1.38
40 150 1,5 - 2,5 10.42.B.V1.39
45 45 1,5 - 2,5 10.42.B.V1.40
50 50 1,5 - 2,5 10.42.B.V1.41
50 50 4,0 - 5,0 10.42.B.V1.42
50 80 2,0 - 3,0 10.42.B.V1.43
50 90 2,0 - 3,0 10.42.B.V1.44
50 100 2,0 - 3,0 10.42.B.V1.45
50 100 4,0 - 6,0 10.42.B.V1.46
55 55 2,0 - 3,0 10.42.B.V1.47
60 60 2,0 - 3,0 10.42.B.V1.48
60 60 4,0 - 5,0 10.42.B.V1.49
60 80 2,0 - 3,0 10.42.B.V1.50
60 120 2,0 - 3,0 10.42.B.V1.51
60 120 2,0 - 3,0 10.42.B.V1.52
70 70 2,0 - 3,0 10.42.B.V1.53
80 80 2,0 - 3,0 10.42.B.V1.54
80 80 Profile Thickness (PT) 10.42.B.V1.55
80 120 2,0 - 3,0 10.42.B.V1.56
80 160 2,0 - 3,0 10.42.B.V1.57
90 90 1,5 - 2,0 10.42.B.V1.58
100 100 2,0 - 3,0 10.42.B.V1.59
100 100 4,0 - 5,0 10.42.B.V1.60
100 150 3,0 - 4,0 10.42.B.V1.61
120 120 3,0 - 4,0 10.42.B.V1.62
150 150 3,0 - 4,0 10.42.B.V1.63

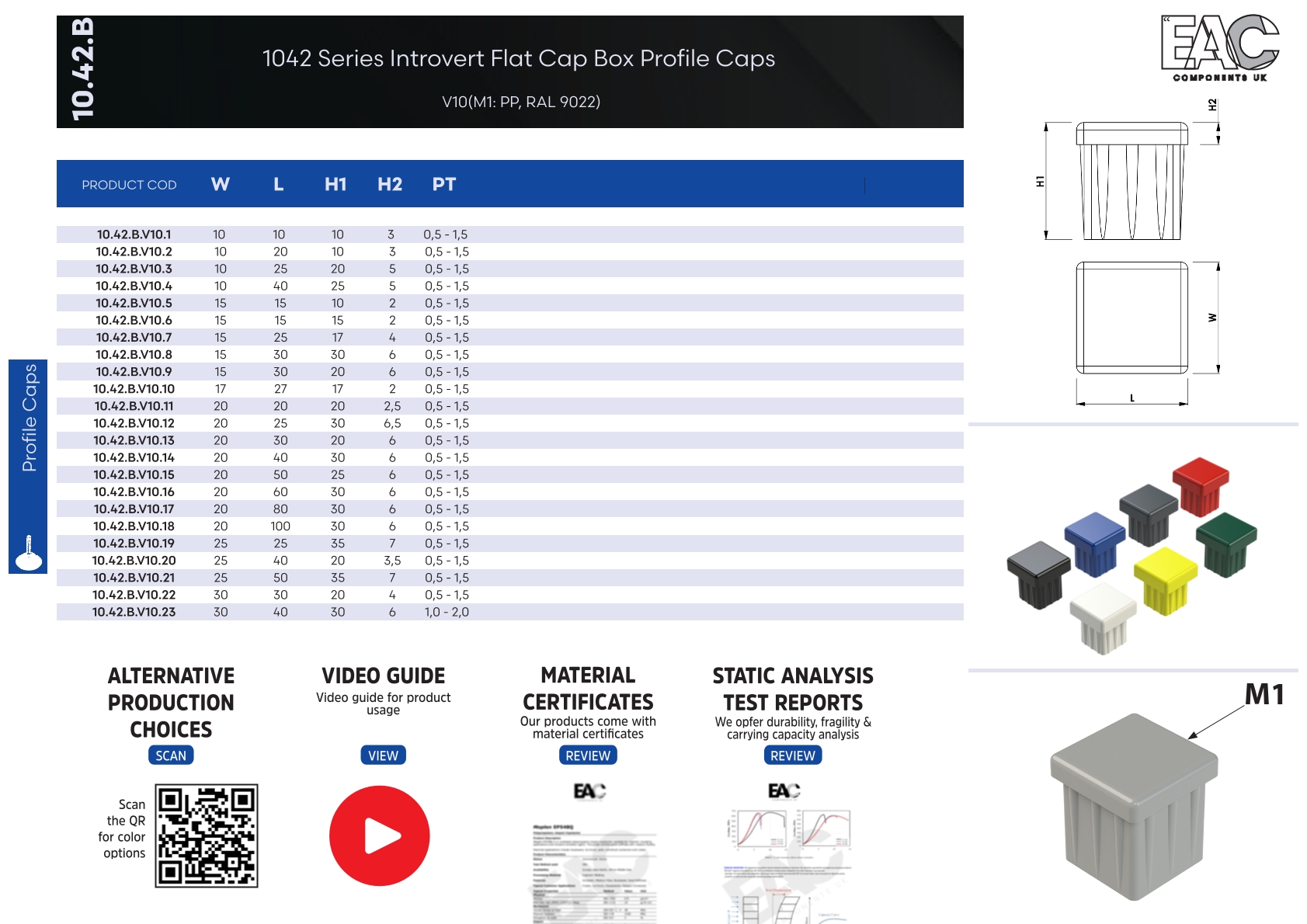

10.42.B.V10 - PP - RAL 9022
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V10.15
40 50 1,0 - 2,0 10.42.B.V10.30
40 40 1,0 - 2,0 10.42.B.V10.29
40 40 1,5 - 2,0 10.42.B.V10.28
35 35 1,0 - 2,0 10.42.B.V10.27
30 70 1,0 - 2,0 10.42.B.V10.26
30 60 1,0 - 2,0 10.42.B.V10.25
30 50 1,0 - 2,0 10.42.B.V10.24
30 40 1,0 - 2,0 10.42.B.V10.23
30 30 0,5 - 1,5 10.42.B.V10.22
25 50 0,5 - 1,5 10.42.B.V10.21
25 40 0,5 - 1,5 10.42.B.V10.20
25 25 0,5 - 1,5 10.42.B.V10.19
20 100 0,5 - 1,5 10.42.B.V10.18
10 10 0,5 - 1,5 10.42.B.V10.1
15 30 0,5 - 1,5 10.42.B.V10.9
10 20 0,5 - 1,5 10.42.B.V10.2
10 25 0,5 - 1,5 10.42.B.V10.3
10 40 0,5 - 1,5 10.42.B.V10.4
15 15 0,5 - 1,5 10.42.B.V10.5
15 15 0,5 - 1,5 10.42.B.V10.6
20 80 0,5 - 1,5 10.42.B.V10.17
15 30 0,5 - 1,5 10.42.B.V10.8
20 60 0,5 - 1,5 10.42.B.V10.16
17 27 0,5 - 1,5 10.42.B.V10.10
20 20 0,5 - 1,5 10.42.B.V10.11
20 25 0,5 - 1,5 10.42.B.V10.12
20 30 0,5 - 1,5 10.42.B.V10.13
20 40 0,5 - 1,5 10.42.B.V10.14
40 80 1,5 - 2,5 10.42.B.V10.33
15 25 0,5 - 1,5 10.42.B.V10.7
80 120 2,0 - 3,0 10.42.B.V10.56
40 60 1,5 - 2,5 10.42.B.V10.31
60 80 2,0 - 3,0 10.42.B.V10.50
60 120 2,0 - 3,0 10.42.B.V10.51
60 120 2,0 - 3,0 10.42.B.V10.52
70 70 2,0 - 3,0 10.42.B.V10.53
60 60 2,0 - 3,0 10.42.B.V10.48
80 80 Profile Thickness (PT) 10.42.B.V10.55
55 55 2,0 - 3,0 10.42.B.V10.47
80 160 2,0 - 3,0 10.42.B.V10.57
90 90 1,5 - 2,0 10.42.B.V10.58
100 100 2,0 - 3,0 10.42.B.V10.59
100 100 4,0 - 5,0 10.42.B.V10.60
100 150 3,0 - 4,0 10.42.B.V10.61
120 120 3,0 - 4,0 10.42.B.V10.62
80 80 2,0 - 3,0 10.42.B.V10.54
45 45 1,5 - 2,5 10.42.B.V10.40
150 150 3,0 - 4,0 10.42.B.V10.63
40 80 Profile Thickness (PT) 10.42.B.V10.34
40 100 1,5 - 2,5 10.42.B.V10.35
40 110 1,5 - 2,5 10.42.B.V10.36
40 120 Profile Thickness (PT) 10.42.B.V10.37
60 60 4,0 - 5,0 10.42.B.V10.49
40 150 1,5 - 2,5 10.42.B.V10.39
40 60 Profile Thickness (PT) 10.42.B.V10.32
50 50 1,5 - 2,5 10.42.B.V10.41
50 50 4,0 - 5,0 10.42.B.V10.42
50 80 2,0 - 3,0 10.42.B.V10.43
50 90 2,0 - 3,0 10.42.B.V10.44
50 100 2,0 - 3,0 10.42.B.V10.45
50 100 4,0 - 6,0 10.42.B.V10.46
40 130 1,5 - 2,5 10.42.B.V10.38
10.42.B.V11 - PP - RAL 7005
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V11.15
40 50 1,0 - 2,0 10.42.B.V11.30
40 40 1,0 - 2,0 10.42.B.V11.29
40 40 1,5 - 2,0 10.42.B.V11.28
35 35 1,0 - 2,0 10.42.B.V11.27
30 70 1,0 - 2,0 10.42.B.V11.26
30 60 1,0 - 2,0 10.42.B.V11.25
30 50 1,0 - 2,0 10.42.B.V11.24
30 40 1,0 - 2,0 10.42.B.V11.23
30 30 0,5 - 1,5 10.42.B.V11.22
25 50 0,5 - 1,5 10.42.B.V11.21
25 40 0,5 - 1,5 10.42.B.V11.20
25 25 0,5 - 1,5 10.42.B.V11.19
20 100 0,5 - 1,5 10.42.B.V11.18
10 10 0,5 - 1,5 10.42.B.V11.1
15 30 0,5 - 1,5 10.42.B.V11.9
10 20 0,5 - 1,5 10.42.B.V11.2
10 25 0,5 - 1,5 10.42.B.V11.3
10 40 0,5 - 1,5 10.42.B.V11.4
15 15 0,5 - 1,5 10.42.B.V11.5
15 15 0,5 - 1,5 10.42.B.V11.6
20 80 0,5 - 1,5 10.42.B.V11.17
15 30 0,5 - 1,5 10.42.B.V11.8
20 60 0,5 - 1,5 10.42.B.V11.16
17 27 0,5 - 1,5 10.42.B.V11.10
20 20 0,5 - 1,5 10.42.B.V11.11
20 25 0,5 - 1,5 10.42.B.V11.12
20 30 0,5 - 1,5 10.42.B.V11.13
20 40 0,5 - 1,5 10.42.B.V11.14
40 80 1,5 - 2,5 10.42.B.V11.33
15 25 0,5 - 1,5 10.42.B.V11.7
80 120 2,0 - 3,0 10.42.B.V11.56
40 60 1,5 - 2,5 10.42.B.V11.31
60 80 2,0 - 3,0 10.42.B.V11.50
60 120 2,0 - 3,0 10.42.B.V11.51
60 120 2,0 - 3,0 10.42.B.V11.52
70 70 2,0 - 3,0 10.42.B.V11.53
60 60 2,0 - 3,0 10.42.B.V11.48
80 80 Profile Thickness (PT) 10.42.B.V11.55
55 55 2,0 - 3,0 10.42.B.V11.47
80 160 2,0 - 3,0 10.42.B.V11.57
90 90 1,5 - 2,0 10.42.B.V11.58
100 100 2,0 - 3,0 10.42.B.V11.59
100 100 4,0 - 5,0 10.42.B.V11.60
100 150 3,0 - 4,0 10.42.B.V11.61
120 120 3,0 - 4,0 10.42.B.V11.62
80 80 2,0 - 3,0 10.42.B.V11.54
45 45 1,5 - 2,5 10.42.B.V11.40
150 150 3,0 - 4,0 10.42.B.V11.63
40 80 Profile Thickness (PT) 10.42.B.V11.34
40 100 1,5 - 2,5 10.42.B.V11.35
40 110 1,5 - 2,5 10.42.B.V11.36
40 120 Profile Thickness (PT) 10.42.B.V11.37
60 60 4,0 - 5,0 10.42.B.V11.49
40 150 1,5 - 2,5 10.42.B.V11.39
40 60 Profile Thickness (PT) 10.42.B.V11.32
50 50 1,5 - 2,5 10.42.B.V11.41
50 50 4,0 - 5,0 10.42.B.V11.42
50 80 2,0 - 3,0 10.42.B.V11.43
50 90 2,0 - 3,0 10.42.B.V11.44
50 100 2,0 - 3,0 10.42.B.V11.45
50 100 4,0 - 6,0 10.42.B.V11.46
40 130 1,5 - 2,5 10.42.B.V11.38

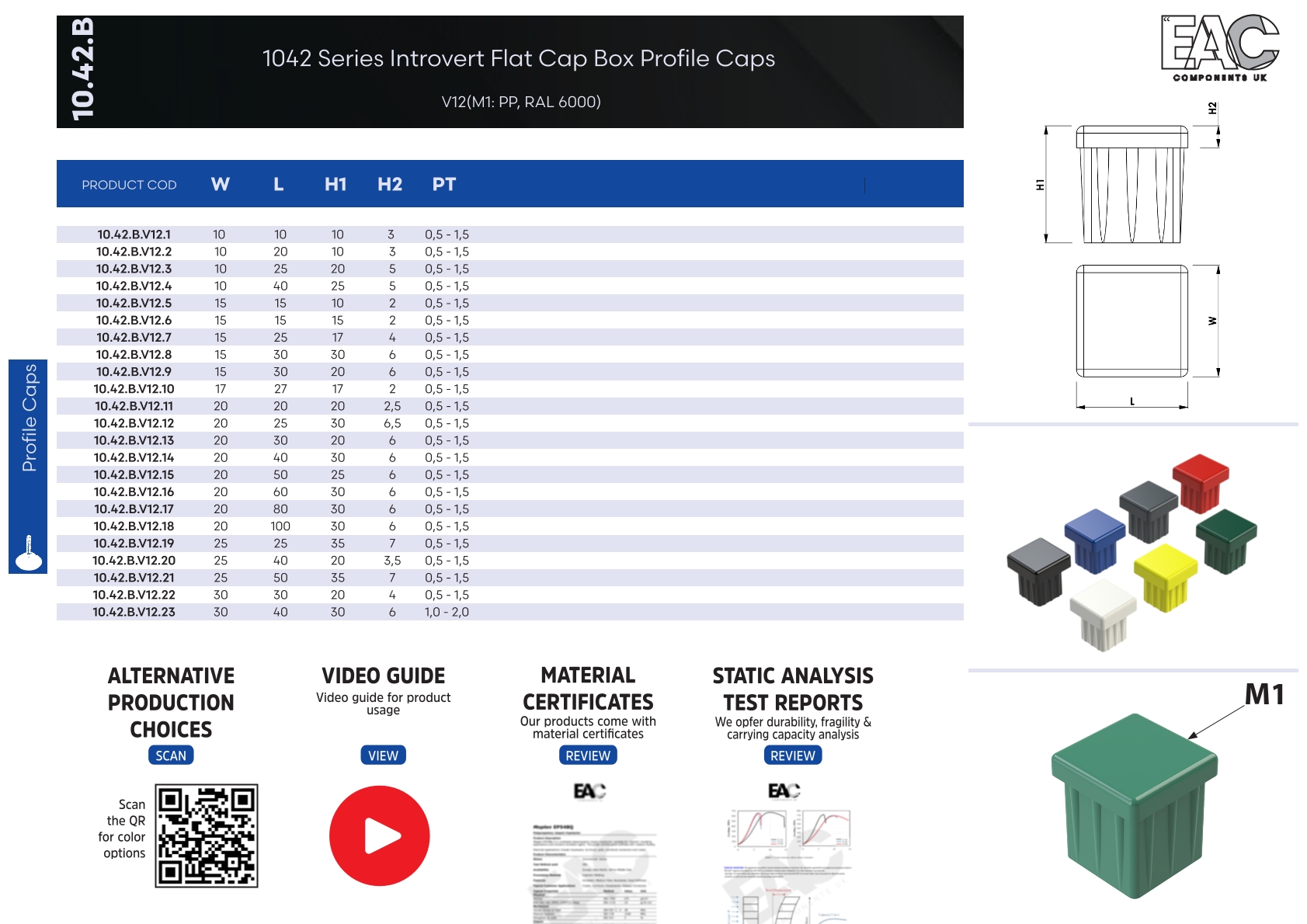

10.42.B.V12 - PP - RAL 6000
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V12.15
40 50 1,0 - 2,0 10.42.B.V12.30
40 40 1,0 - 2,0 10.42.B.V12.29
40 40 1,5 - 2,0 10.42.B.V12.28
35 35 1,0 - 2,0 10.42.B.V12.27
30 70 1,0 - 2,0 10.42.B.V12.26
30 60 1,0 - 2,0 10.42.B.V12.25
30 50 1,0 - 2,0 10.42.B.V12.24
30 40 1,0 - 2,0 10.42.B.V12.23
30 30 0,5 - 1,5 10.42.B.V12.22
25 50 0,5 - 1,5 10.42.B.V12.21
25 40 0,5 - 1,5 10.42.B.V12.20
25 25 0,5 - 1,5 10.42.B.V12.19
20 100 0,5 - 1,5 10.42.B.V12.18
10 10 0,5 - 1,5 10.42.B.V12.1
15 30 0,5 - 1,5 10.42.B.V12.9
10 20 0,5 - 1,5 10.42.B.V12.2
10 25 0,5 - 1,5 10.42.B.V12.3
10 40 0,5 - 1,5 10.42.B.V12.4
15 15 0,5 - 1,5 10.42.B.V12.5
15 15 0,5 - 1,5 10.42.B.V12.6
20 80 0,5 - 1,5 10.42.B.V12.17
15 30 0,5 - 1,5 10.42.B.V12.8
20 60 0,5 - 1,5 10.42.B.V12.16
17 27 0,5 - 1,5 10.42.B.V12.10
20 20 0,5 - 1,5 10.42.B.V12.11
20 25 0,5 - 1,5 10.42.B.V12.12
20 30 0,5 - 1,5 10.42.B.V12.13
20 40 0,5 - 1,5 10.42.B.V12.14
40 80 1,5 - 2,5 10.42.B.V12.33
15 25 0,5 - 1,5 10.42.B.V12.7
80 120 2,0 - 3,0 10.42.B.V12.56
40 60 1,5 - 2,5 10.42.B.V12.31
60 80 2,0 - 3,0 10.42.B.V12.50
60 120 2,0 - 3,0 10.42.B.V12.51
60 120 2,0 - 3,0 10.42.B.V12.52
70 70 2,0 - 3,0 10.42.B.V12.53
60 60 2,0 - 3,0 10.42.B.V12.48
80 80 Profile Thickness (PT) 10.42.B.V12.55
55 55 2,0 - 3,0 10.42.B.V12.47
80 160 2,0 - 3,0 10.42.B.V12.57
90 90 1,5 - 2,0 10.42.B.V12.58
100 100 2,0 - 3,0 10.42.B.V12.59
100 100 4,0 - 5,0 10.42.B.V12.60
100 150 3,0 - 4,0 10.42.B.V12.61
120 120 3,0 - 4,0 10.42.B.V12.62
80 80 2,0 - 3,0 10.42.B.V12.54
45 45 1,5 - 2,5 10.42.B.V12.40
150 150 3,0 - 4,0 10.42.B.V12.63
40 80 Profile Thickness (PT) 10.42.B.V12.34
40 100 1,5 - 2,5 10.42.B.V12.35
40 110 1,5 - 2,5 10.42.B.V12.36
40 120 Profile Thickness (PT) 10.42.B.V12.37
60 60 4,0 - 5,0 10.42.B.V12.49
40 150 1,5 - 2,5 10.42.B.V12.39
40 60 Profile Thickness (PT) 10.42.B.V12.32
50 50 1,5 - 2,5 10.42.B.V12.41
50 50 4,0 - 5,0 10.42.B.V12.42
50 80 2,0 - 3,0 10.42.B.V12.43
50 90 2,0 - 3,0 10.42.B.V12.44
50 100 2,0 - 3,0 10.42.B.V12.45
50 100 4,0 - 6,0 10.42.B.V12.46
40 130 1,5 - 2,5 10.42.B.V12.38
10.42.B.V13 - PP - RAL 6005
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V13.15
40 50 1,0 - 2,0 10.42.B.V13.30
40 40 1,0 - 2,0 10.42.B.V13.29
40 40 1,5 - 2,0 10.42.B.V13.28
35 35 1,0 - 2,0 10.42.B.V13.27
30 70 1,0 - 2,0 10.42.B.V13.26
30 60 1,0 - 2,0 10.42.B.V13.25
30 50 1,0 - 2,0 10.42.B.V13.24
30 40 1,0 - 2,0 10.42.B.V13.23
30 30 0,5 - 1,5 10.42.B.V13.22
25 50 0,5 - 1,5 10.42.B.V13.21
25 40 0,5 - 1,5 10.42.B.V13.20
25 25 0,5 - 1,5 10.42.B.V13.19
20 100 0,5 - 1,5 10.42.B.V13.18
10 10 0,5 - 1,5 10.42.B.V13.1
15 30 0,5 - 1,5 10.42.B.V13.9
10 20 0,5 - 1,5 10.42.B.V13.2
10 25 0,5 - 1,5 10.42.B.V13.3
10 40 0,5 - 1,5 10.42.B.V13.4
15 15 0,5 - 1,5 10.42.B.V13.5
15 15 0,5 - 1,5 10.42.B.V13.6
20 80 0,5 - 1,5 10.42.B.V13.17
15 30 0,5 - 1,5 10.42.B.V13.8
20 60 0,5 - 1,5 10.42.B.V13.16
17 27 0,5 - 1,5 10.42.B.V13.10
20 20 0,5 - 1,5 10.42.B.V13.11
20 25 0,5 - 1,5 10.42.B.V13.12
20 30 0,5 - 1,5 10.42.B.V13.13
20 40 0,5 - 1,5 10.42.B.V13.14
40 80 1,5 - 2,5 10.42.B.V13.33
15 25 0,5 - 1,5 10.42.B.V13.7
80 120 2,0 - 3,0 10.42.B.V13.56
40 60 1,5 - 2,5 10.42.B.V13.31
60 80 2,0 - 3,0 10.42.B.V13.50
60 120 2,0 - 3,0 10.42.B.V13.51
60 120 2,0 - 3,0 10.42.B.V13.52
70 70 2,0 - 3,0 10.42.B.V13.53
60 60 2,0 - 3,0 10.42.B.V13.48
80 80 Profile Thickness (PT) 10.42.B.V13.55
55 55 2,0 - 3,0 10.42.B.V13.47
80 160 2,0 - 3,0 10.42.B.V13.57
90 90 1,5 - 2,0 10.42.B.V13.58
100 100 2,0 - 3,0 10.42.B.V13.59
100 100 4,0 - 5,0 10.42.B.V13.60
100 150 3,0 - 4,0 10.42.B.V13.61
120 120 3,0 - 4,0 10.42.B.V13.62
80 80 2,0 - 3,0 10.42.B.V13.54
45 45 1,5 - 2,5 10.42.B.V13.40
150 150 3,0 - 4,0 10.42.B.V13.63
40 80 Profile Thickness (PT) 10.42.B.V13.34
40 100 1,5 - 2,5 10.42.B.V13.35
40 110 1,5 - 2,5 10.42.B.V13.36
40 120 Profile Thickness (PT) 10.42.B.V13.37
60 60 4,0 - 5,0 10.42.B.V13.49
40 150 1,5 - 2,5 10.42.B.V13.39
40 60 Profile Thickness (PT) 10.42.B.V13.32
50 50 1,5 - 2,5 10.42.B.V13.41
50 50 4,0 - 5,0 10.42.B.V13.42
50 80 2,0 - 3,0 10.42.B.V13.43
50 90 2,0 - 3,0 10.42.B.V13.44
50 100 2,0 - 3,0 10.42.B.V13.45
50 100 4,0 - 6,0 10.42.B.V13.46
40 130 1,5 - 2,5 10.42.B.V13.38
10.42.B.V14 - PP - RAL 1026
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V14.15
40 50 1,0 - 2,0 10.42.B.V14.30
40 40 1,0 - 2,0 10.42.B.V14.29
40 40 1,5 - 2,0 10.42.B.V14.28
35 35 1,0 - 2,0 10.42.B.V14.27
30 70 1,0 - 2,0 10.42.B.V14.26
30 60 1,0 - 2,0 10.42.B.V14.25
30 50 1,0 - 2,0 10.42.B.V14.24
30 40 1,0 - 2,0 10.42.B.V14.23
30 30 0,5 - 1,5 10.42.B.V14.22
25 50 0,5 - 1,5 10.42.B.V14.21
25 40 0,5 - 1,5 10.42.B.V14.20
25 25 0,5 - 1,5 10.42.B.V14.19
20 100 0,5 - 1,5 10.42.B.V14.18
10 10 0,5 - 1,5 10.42.B.V14.1
15 30 0,5 - 1,5 10.42.B.V14.9
10 20 0,5 - 1,5 10.42.B.V14.2
10 25 0,5 - 1,5 10.42.B.V14.3
10 40 0,5 - 1,5 10.42.B.V14.4
15 15 0,5 - 1,5 10.42.B.V14.5
15 15 0,5 - 1,5 10.42.B.V14.6
20 80 0,5 - 1,5 10.42.B.V14.17
15 30 0,5 - 1,5 10.42.B.V14.8
20 60 0,5 - 1,5 10.42.B.V14.16
17 27 0,5 - 1,5 10.42.B.V14.10
20 20 0,5 - 1,5 10.42.B.V14.11
20 25 0,5 - 1,5 10.42.B.V14.12
20 30 0,5 - 1,5 10.42.B.V14.13
20 40 0,5 - 1,5 10.42.B.V14.14
40 80 1,5 - 2,5 10.42.B.V14.33
15 25 0,5 - 1,5 10.42.B.V14.7
80 120 2,0 - 3,0 10.42.B.V14.56
40 60 1,5 - 2,5 10.42.B.V14.31
60 80 2,0 - 3,0 10.42.B.V14.50
60 120 2,0 - 3,0 10.42.B.V14.51
60 120 2,0 - 3,0 10.42.B.V14.52
70 70 2,0 - 3,0 10.42.B.V14.53
60 60 2,0 - 3,0 10.42.B.V14.48
80 80 Profile Thickness (PT) 10.42.B.V14.55
55 55 2,0 - 3,0 10.42.B.V14.47
80 160 2,0 - 3,0 10.42.B.V14.57
90 90 1,5 - 2,0 10.42.B.V14.58
100 100 2,0 - 3,0 10.42.B.V14.59
100 100 4,0 - 5,0 10.42.B.V14.60
100 150 3,0 - 4,0 10.42.B.V14.61
120 120 3,0 - 4,0 10.42.B.V14.62
80 80 2,0 - 3,0 10.42.B.V14.54
45 45 1,5 - 2,5 10.42.B.V14.40
150 150 3,0 - 4,0 10.42.B.V14.63
40 80 Profile Thickness (PT) 10.42.B.V14.34
40 100 1,5 - 2,5 10.42.B.V14.35
40 110 1,5 - 2,5 10.42.B.V14.36
40 120 Profile Thickness (PT) 10.42.B.V14.37
60 60 4,0 - 5,0 10.42.B.V14.49
40 150 1,5 - 2,5 10.42.B.V14.39
40 60 Profile Thickness (PT) 10.42.B.V14.32
50 50 1,5 - 2,5 10.42.B.V14.41
50 50 4,0 - 5,0 10.42.B.V14.42
50 80 2,0 - 3,0 10.42.B.V14.43
50 90 2,0 - 3,0 10.42.B.V14.44
50 100 2,0 - 3,0 10.42.B.V14.45
50 100 4,0 - 6,0 10.42.B.V14.46
40 130 1,5 - 2,5 10.42.B.V14.38
10.42.B.V15 - PP - RAL 1017
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V15.15
40 50 1,0 - 2,0 10.42.B.V15.30
40 40 1,0 - 2,0 10.42.B.V15.29
40 40 1,5 - 2,0 10.42.B.V15.28
35 35 1,0 - 2,0 10.42.B.V15.27
30 70 1,0 - 2,0 10.42.B.V15.26
30 60 1,0 - 2,0 10.42.B.V15.25
30 50 1,0 - 2,0 10.42.B.V15.24
30 40 1,0 - 2,0 10.42.B.V15.23
30 30 0,5 - 1,5 10.42.B.V15.22
25 50 0,5 - 1,5 10.42.B.V15.21
25 40 0,5 - 1,5 10.42.B.V15.20
25 25 0,5 - 1,5 10.42.B.V15.19
20 100 0,5 - 1,5 10.42.B.V15.18
10 10 0,5 - 1,5 10.42.B.V15.1
15 30 0,5 - 1,5 10.42.B.V15.9
10 20 0,5 - 1,5 10.42.B.V15.2
10 25 0,5 - 1,5 10.42.B.V15.3
10 40 0,5 - 1,5 10.42.B.V15.4
15 15 0,5 - 1,5 10.42.B.V15.5
15 15 0,5 - 1,5 10.42.B.V15.6
20 80 0,5 - 1,5 10.42.B.V15.17
15 30 0,5 - 1,5 10.42.B.V15.8
20 60 0,5 - 1,5 10.42.B.V15.16
17 27 0,5 - 1,5 10.42.B.V15.10
20 20 0,5 - 1,5 10.42.B.V15.11
20 25 0,5 - 1,5 10.42.B.V15.12
20 30 0,5 - 1,5 10.42.B.V15.13
20 40 0,5 - 1,5 10.42.B.V15.14
40 80 1,5 - 2,5 10.42.B.V15.33
15 25 0,5 - 1,5 10.42.B.V15.7
80 120 2,0 - 3,0 10.42.B.V15.56
40 60 1,5 - 2,5 10.42.B.V15.31
60 80 2,0 - 3,0 10.42.B.V15.50
60 120 2,0 - 3,0 10.42.B.V15.51
60 120 2,0 - 3,0 10.42.B.V15.52
70 70 2,0 - 3,0 10.42.B.V15.53
60 60 2,0 - 3,0 10.42.B.V15.48
80 80 Profile Thickness (PT) 10.42.B.V15.55
55 55 2,0 - 3,0 10.42.B.V15.47
80 160 2,0 - 3,0 10.42.B.V15.57
90 90 1,5 - 2,0 10.42.B.V15.58
100 100 2,0 - 3,0 10.42.B.V15.59
100 100 4,0 - 5,0 10.42.B.V15.60
100 150 3,0 - 4,0 10.42.B.V15.61
120 120 3,0 - 4,0 10.42.B.V15.62
80 80 2,0 - 3,0 10.42.B.V15.54
45 45 1,5 - 2,5 10.42.B.V15.40
150 150 3,0 - 4,0 10.42.B.V15.63
40 80 Profile Thickness (PT) 10.42.B.V15.34
40 100 1,5 - 2,5 10.42.B.V15.35
40 110 1,5 - 2,5 10.42.B.V15.36
40 120 Profile Thickness (PT) 10.42.B.V15.37
60 60 4,0 - 5,0 10.42.B.V15.49
40 150 1,5 - 2,5 10.42.B.V15.39
40 60 Profile Thickness (PT) 10.42.B.V15.32
50 50 1,5 - 2,5 10.42.B.V15.41
50 50 4,0 - 5,0 10.42.B.V15.42
50 80 2,0 - 3,0 10.42.B.V15.43
50 90 2,0 - 3,0 10.42.B.V15.44
50 100 2,0 - 3,0 10.42.B.V15.45
50 100 4,0 - 6,0 10.42.B.V15.46
40 130 1,5 - 2,5 10.42.B.V15.38
10.42.B.V16 - PP - RAL 7048
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V16.15
40 50 1,0 - 2,0 10.42.B.V16.30
40 40 1,0 - 2,0 10.42.B.V16.29
40 40 1,5 - 2,0 10.42.B.V16.28
35 35 1,0 - 2,0 10.42.B.V16.27
30 70 1,0 - 2,0 10.42.B.V16.26
30 60 1,0 - 2,0 10.42.B.V16.25
30 50 1,0 - 2,0 10.42.B.V16.24
30 40 1,0 - 2,0 10.42.B.V16.23
30 30 0,5 - 1,5 10.42.B.V16.22
25 50 0,5 - 1,5 10.42.B.V16.21
25 40 0,5 - 1,5 10.42.B.V16.20
25 25 0,5 - 1,5 10.42.B.V16.19
20 100 0,5 - 1,5 10.42.B.V16.18
10 10 0,5 - 1,5 10.42.B.V16.1
15 30 0,5 - 1,5 10.42.B.V16.9
10 20 0,5 - 1,5 10.42.B.V16.2
10 25 0,5 - 1,5 10.42.B.V16.3
10 40 0,5 - 1,5 10.42.B.V16.4
15 15 0,5 - 1,5 10.42.B.V16.5
15 15 0,5 - 1,5 10.42.B.V16.6
20 80 0,5 - 1,5 10.42.B.V16.17
15 30 0,5 - 1,5 10.42.B.V16.8
20 60 0,5 - 1,5 10.42.B.V16.16
17 27 0,5 - 1,5 10.42.B.V16.10
20 20 0,5 - 1,5 10.42.B.V16.11
20 25 0,5 - 1,5 10.42.B.V16.12
20 30 0,5 - 1,5 10.42.B.V16.13
20 40 0,5 - 1,5 10.42.B.V16.14
40 80 1,5 - 2,5 10.42.B.V16.33
15 25 0,5 - 1,5 10.42.B.V16.7
80 120 2,0 - 3,0 10.42.B.V16.56
40 60 1,5 - 2,5 10.42.B.V16.31
60 80 2,0 - 3,0 10.42.B.V16.50
60 120 2,0 - 3,0 10.42.B.V16.51
60 120 2,0 - 3,0 10.42.B.V16.52
70 70 2,0 - 3,0 10.42.B.V16.53
60 60 2,0 - 3,0 10.42.B.V16.48
80 80 Profile Thickness (PT) 10.42.B.V16.55
55 55 2,0 - 3,0 10.42.B.V16.47
80 160 2,0 - 3,0 10.42.B.V16.57
90 90 1,5 - 2,0 10.42.B.V16.58
100 100 2,0 - 3,0 10.42.B.V16.59
100 100 4,0 - 5,0 10.42.B.V16.60
100 150 3,0 - 4,0 10.42.B.V16.61
120 120 3,0 - 4,0 10.42.B.V16.62
80 80 2,0 - 3,0 10.42.B.V16.54
45 45 1,5 - 2,5 10.42.B.V16.40
150 150 3,0 - 4,0 10.42.B.V16.63
40 80 Profile Thickness (PT) 10.42.B.V16.34
40 100 1,5 - 2,5 10.42.B.V16.35
40 110 1,5 - 2,5 10.42.B.V16.36
40 120 Profile Thickness (PT) 10.42.B.V16.37
60 60 4,0 - 5,0 10.42.B.V16.49
40 150 1,5 - 2,5 10.42.B.V16.39
40 60 Profile Thickness (PT) 10.42.B.V16.32
50 50 1,5 - 2,5 10.42.B.V16.41
50 50 4,0 - 5,0 10.42.B.V16.42
50 80 2,0 - 3,0 10.42.B.V16.43
50 90 2,0 - 3,0 10.42.B.V16.44
50 100 2,0 - 3,0 10.42.B.V16.45
50 100 4,0 - 6,0 10.42.B.V16.46
40 130 1,5 - 2,5 10.42.B.V16.38
10.42.B.V17 - PP - RAL 1004
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V17.15
40 50 1,0 - 2,0 10.42.B.V17.30
40 40 1,0 - 2,0 10.42.B.V17.29
40 40 1,5 - 2,0 10.42.B.V17.28
35 35 1,0 - 2,0 10.42.B.V17.27
30 70 1,0 - 2,0 10.42.B.V17.26
30 60 1,0 - 2,0 10.42.B.V17.25
30 50 1,0 - 2,0 10.42.B.V17.24
30 40 1,0 - 2,0 10.42.B.V17.23
30 30 0,5 - 1,5 10.42.B.V17.22
25 50 0,5 - 1,5 10.42.B.V17.21
25 40 0,5 - 1,5 10.42.B.V17.20
25 25 0,5 - 1,5 10.42.B.V17.19
20 100 0,5 - 1,5 10.42.B.V17.18
10 10 0,5 - 1,5 10.42.B.V17.1
15 30 0,5 - 1,5 10.42.B.V17.9
10 20 0,5 - 1,5 10.42.B.V17.2
10 25 0,5 - 1,5 10.42.B.V17.3
10 40 0,5 - 1,5 10.42.B.V17.4
15 15 0,5 - 1,5 10.42.B.V17.5
15 15 0,5 - 1,5 10.42.B.V17.6
20 80 0,5 - 1,5 10.42.B.V17.17
15 30 0,5 - 1,5 10.42.B.V17.8
20 60 0,5 - 1,5 10.42.B.V17.16
17 27 0,5 - 1,5 10.42.B.V17.10
20 20 0,5 - 1,5 10.42.B.V17.11
20 25 0,5 - 1,5 10.42.B.V17.12
20 30 0,5 - 1,5 10.42.B.V17.13
20 40 0,5 - 1,5 10.42.B.V17.14
40 80 1,5 - 2,5 10.42.B.V17.33
15 25 0,5 - 1,5 10.42.B.V17.7
80 120 2,0 - 3,0 10.42.B.V17.56
40 60 1,5 - 2,5 10.42.B.V17.31
60 80 2,0 - 3,0 10.42.B.V17.50
60 120 2,0 - 3,0 10.42.B.V17.51
60 120 2,0 - 3,0 10.42.B.V17.52
70 70 2,0 - 3,0 10.42.B.V17.53
60 60 2,0 - 3,0 10.42.B.V17.48
80 80 Profile Thickness (PT) 10.42.B.V17.55
55 55 2,0 - 3,0 10.42.B.V17.47
80 160 2,0 - 3,0 10.42.B.V17.57
90 90 1,5 - 2,0 10.42.B.V17.58
100 100 2,0 - 3,0 10.42.B.V17.59
100 100 4,0 - 5,0 10.42.B.V17.60
100 150 3,0 - 4,0 10.42.B.V17.61
120 120 3,0 - 4,0 10.42.B.V17.62
80 80 2,0 - 3,0 10.42.B.V17.54
45 45 1,5 - 2,5 10.42.B.V17.40
150 150 3,0 - 4,0 10.42.B.V17.63
40 80 Profile Thickness (PT) 10.42.B.V17.34
40 100 1,5 - 2,5 10.42.B.V17.35
40 110 1,5 - 2,5 10.42.B.V17.36
40 120 Profile Thickness (PT) 10.42.B.V17.37
60 60 4,0 - 5,0 10.42.B.V17.49
40 150 1,5 - 2,5 10.42.B.V17.39
40 60 Profile Thickness (PT) 10.42.B.V17.32
50 50 1,5 - 2,5 10.42.B.V17.41
50 50 4,0 - 5,0 10.42.B.V17.42
50 80 2,0 - 3,0 10.42.B.V17.43
50 90 2,0 - 3,0 10.42.B.V17.44
50 100 2,0 - 3,0 10.42.B.V17.45
50 100 4,0 - 6,0 10.42.B.V17.46
40 130 1,5 - 2,5 10.42.B.V17.38
10.42.B.V18 - PP - RAL 7016
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V18.15
40 50 1,0 - 2,0 10.42.B.V18.30
40 40 1,0 - 2,0 10.42.B.V18.29
40 40 1,5 - 2,0 10.42.B.V18.28
35 35 1,0 - 2,0 10.42.B.V18.27
30 70 1,0 - 2,0 10.42.B.V18.26
30 60 1,0 - 2,0 10.42.B.V18.25
30 50 1,0 - 2,0 10.42.B.V18.24
30 40 1,0 - 2,0 10.42.B.V18.23
30 30 0,5 - 1,5 10.42.B.V18.22
25 50 0,5 - 1,5 10.42.B.V18.21
25 40 0,5 - 1,5 10.42.B.V18.20
25 25 0,5 - 1,5 10.42.B.V18.19
20 100 0,5 - 1,5 10.42.B.V18.18
10 10 0,5 - 1,5 10.42.B.V18.1
15 30 0,5 - 1,5 10.42.B.V18.9
10 20 0,5 - 1,5 10.42.B.V18.2
10 25 0,5 - 1,5 10.42.B.V18.3
10 40 0,5 - 1,5 10.42.B.V18.4
15 15 0,5 - 1,5 10.42.B.V18.5
15 15 0,5 - 1,5 10.42.B.V18.6
20 80 0,5 - 1,5 10.42.B.V18.17
15 30 0,5 - 1,5 10.42.B.V18.8
20 60 0,5 - 1,5 10.42.B.V18.16
17 27 0,5 - 1,5 10.42.B.V18.10
20 20 0,5 - 1,5 10.42.B.V18.11
20 25 0,5 - 1,5 10.42.B.V18.12
20 30 0,5 - 1,5 10.42.B.V18.13
20 40 0,5 - 1,5 10.42.B.V18.14
40 80 1,5 - 2,5 10.42.B.V18.33
15 25 0,5 - 1,5 10.42.B.V18.7
80 120 2,0 - 3,0 10.42.B.V18.56
40 60 1,5 - 2,5 10.42.B.V18.31
60 80 2,0 - 3,0 10.42.B.V18.50
60 120 2,0 - 3,0 10.42.B.V18.51
60 120 2,0 - 3,0 10.42.B.V18.52
70 70 2,0 - 3,0 10.42.B.V18.53
60 60 2,0 - 3,0 10.42.B.V18.48
80 80 Profile Thickness (PT) 10.42.B.V18.55
55 55 2,0 - 3,0 10.42.B.V18.47
80 160 2,0 - 3,0 10.42.B.V18.57
90 90 1,5 - 2,0 10.42.B.V18.58
100 100 2,0 - 3,0 10.42.B.V18.59
100 100 4,0 - 5,0 10.42.B.V18.60
100 150 3,0 - 4,0 10.42.B.V18.61
120 120 3,0 - 4,0 10.42.B.V18.62
80 80 2,0 - 3,0 10.42.B.V18.54
45 45 1,5 - 2,5 10.42.B.V18.40
150 150 3,0 - 4,0 10.42.B.V18.63
40 80 Profile Thickness (PT) 10.42.B.V18.34
40 100 1,5 - 2,5 10.42.B.V18.35
40 110 1,5 - 2,5 10.42.B.V18.36
40 120 Profile Thickness (PT) 10.42.B.V18.37
60 60 4,0 - 5,0 10.42.B.V18.49
40 150 1,5 - 2,5 10.42.B.V18.39
40 60 Profile Thickness (PT) 10.42.B.V18.32
50 50 1,5 - 2,5 10.42.B.V18.41
50 50 4,0 - 5,0 10.42.B.V18.42
50 80 2,0 - 3,0 10.42.B.V18.43
50 90 2,0 - 3,0 10.42.B.V18.44
50 100 2,0 - 3,0 10.42.B.V18.45
50 100 4,0 - 6,0 10.42.B.V18.46
40 130 1,5 - 2,5 10.42.B.V18.38
10.42.B.V19 - ABS - RAL 9001
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V19.15
40 50 1,0 - 2,0 10.42.B.V19.30
40 40 1,0 - 2,0 10.42.B.V19.29
40 40 1,5 - 2,0 10.42.B.V19.28
35 35 1,0 - 2,0 10.42.B.V19.27
30 70 1,0 - 2,0 10.42.B.V19.26
30 60 1,0 - 2,0 10.42.B.V19.25
30 50 1,0 - 2,0 10.42.B.V19.24
30 40 1,0 - 2,0 10.42.B.V19.23
30 30 0,5 - 1,5 10.42.B.V19.22
25 50 0,5 - 1,5 10.42.B.V19.21
25 40 0,5 - 1,5 10.42.B.V19.20
25 25 0,5 - 1,5 10.42.B.V19.19
20 100 0,5 - 1,5 10.42.B.V19.18
10 10 0,5 - 1,5 10.42.B.V19.1
15 30 0,5 - 1,5 10.42.B.V19.9
10 20 0,5 - 1,5 10.42.B.V19.2
10 25 0,5 - 1,5 10.42.B.V19.3
10 40 0,5 - 1,5 10.42.B.V19.4
15 15 0,5 - 1,5 10.42.B.V19.5
15 15 0,5 - 1,5 10.42.B.V19.6
20 80 0,5 - 1,5 10.42.B.V19.17
15 30 0,5 - 1,5 10.42.B.V19.8
20 60 0,5 - 1,5 10.42.B.V19.16
17 27 0,5 - 1,5 10.42.B.V19.10
20 20 0,5 - 1,5 10.42.B.V19.11
20 25 0,5 - 1,5 10.42.B.V19.12
20 30 0,5 - 1,5 10.42.B.V19.13
20 40 0,5 - 1,5 10.42.B.V19.14
40 80 1,5 - 2,5 10.42.B.V19.33
15 25 0,5 - 1,5 10.42.B.V19.7
80 120 2,0 - 3,0 10.42.B.V19.56
40 60 1,5 - 2,5 10.42.B.V19.31
60 80 2,0 - 3,0 10.42.B.V19.50
60 120 2,0 - 3,0 10.42.B.V19.51
60 120 2,0 - 3,0 10.42.B.V19.52
70 70 2,0 - 3,0 10.42.B.V19.53
60 60 2,0 - 3,0 10.42.B.V19.48
80 80 Profile Thickness (PT) 10.42.B.V19.55
55 55 2,0 - 3,0 10.42.B.V19.47
80 160 2,0 - 3,0 10.42.B.V19.57
90 90 1,5 - 2,0 10.42.B.V19.58
100 100 2,0 - 3,0 10.42.B.V19.59
100 100 4,0 - 5,0 10.42.B.V19.60
100 150 3,0 - 4,0 10.42.B.V19.61
120 120 3,0 - 4,0 10.42.B.V19.62
80 80 2,0 - 3,0 10.42.B.V19.54
45 45 1,5 - 2,5 10.42.B.V19.40
150 150 3,0 - 4,0 10.42.B.V19.63
40 80 Profile Thickness (PT) 10.42.B.V19.34
40 100 1,5 - 2,5 10.42.B.V19.35
40 110 1,5 - 2,5 10.42.B.V19.36
40 120 Profile Thickness (PT) 10.42.B.V19.37
60 60 4,0 - 5,0 10.42.B.V19.49
40 150 1,5 - 2,5 10.42.B.V19.39
40 60 Profile Thickness (PT) 10.42.B.V19.32
50 50 1,5 - 2,5 10.42.B.V19.41
50 50 4,0 - 5,0 10.42.B.V19.42
50 80 2,0 - 3,0 10.42.B.V19.43
50 90 2,0 - 3,0 10.42.B.V19.44
50 100 2,0 - 3,0 10.42.B.V19.45
50 100 4,0 - 6,0 10.42.B.V19.46
40 130 1,5 - 2,5 10.42.B.V19.38
10.42.B.V2 - PP - RAL 7039
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V2.15
40 50 1,0 - 2,0 10.42.B.V2.30
40 40 1,0 - 2,0 10.42.B.V2.29
40 40 1,5 - 2,0 10.42.B.V2.28
35 35 1,0 - 2,0 10.42.B.V2.27
30 70 1,0 - 2,0 10.42.B.V2.26
30 60 1,0 - 2,0 10.42.B.V2.25
30 50 1,0 - 2,0 10.42.B.V2.24
30 40 1,0 - 2,0 10.42.B.V2.23
30 30 0,5 - 1,5 10.42.B.V2.22
25 50 0,5 - 1,5 10.42.B.V2.21
25 40 0,5 - 1,5 10.42.B.V2.20
25 25 0,5 - 1,5 10.42.B.V2.19
20 100 0,5 - 1,5 10.42.B.V2.18
10 10 0,5 - 1,5 10.42.B.V2.1
15 30 0,5 - 1,5 10.42.B.V2.9
10 20 0,5 - 1,5 10.42.B.V2.2
10 25 0,5 - 1,5 10.42.B.V2.3
10 40 0,5 - 1,5 10.42.B.V2.4
15 15 0,5 - 1,5 10.42.B.V2.5
15 15 0,5 - 1,5 10.42.B.V2.6
20 80 0,5 - 1,5 10.42.B.V2.17
15 30 0,5 - 1,5 10.42.B.V2.8
20 60 0,5 - 1,5 10.42.B.V2.16
17 27 0,5 - 1,5 10.42.B.V2.10
20 20 0,5 - 1,5 10.42.B.V2.11
20 25 0,5 - 1,5 10.42.B.V2.12
20 30 0,5 - 1,5 10.42.B.V2.13
20 40 0,5 - 1,5 10.42.B.V2.14
40 80 1,5 - 2,5 10.42.B.V2.33
15 25 0,5 - 1,5 10.42.B.V2.7
80 120 2,0 - 3,0 10.42.B.V2.56
40 60 1,5 - 2,5 10.42.B.V2.31
60 80 2,0 - 3,0 10.42.B.V2.50
60 120 2,0 - 3,0 10.42.B.V2.51
60 120 2,0 - 3,0 10.42.B.V2.52
70 70 2,0 - 3,0 10.42.B.V2.53
60 60 2,0 - 3,0 10.42.B.V2.48
80 80 Profile Thickness (PT) 10.42.B.V2.55
55 55 2,0 - 3,0 10.42.B.V2.47
80 160 2,0 - 3,0 10.42.B.V2.57
90 90 1,5 - 2,0 10.42.B.V2.58
100 100 2,0 - 3,0 10.42.B.V2.59
100 100 4,0 - 5,0 10.42.B.V2.60
100 150 3,0 - 4,0 10.42.B.V2.61
120 120 3,0 - 4,0 10.42.B.V2.62
80 80 2,0 - 3,0 10.42.B.V2.54
45 45 1,5 - 2,5 10.42.B.V2.40
150 150 3,0 - 4,0 10.42.B.V2.63
40 80 Profile Thickness (PT) 10.42.B.V2.34
40 100 1,5 - 2,5 10.42.B.V2.35
40 110 1,5 - 2,5 10.42.B.V2.36
40 120 Profile Thickness (PT) 10.42.B.V2.37
60 60 4,0 - 5,0 10.42.B.V2.49
40 150 1,5 - 2,5 10.42.B.V2.39
40 60 Profile Thickness (PT) 10.42.B.V2.32
50 50 1,5 - 2,5 10.42.B.V2.41
50 50 4,0 - 5,0 10.42.B.V2.42
50 80 2,0 - 3,0 10.42.B.V2.43
50 90 2,0 - 3,0 10.42.B.V2.44
50 100 2,0 - 3,0 10.42.B.V2.45
50 100 4,0 - 6,0 10.42.B.V2.46
40 130 1,5 - 2,5 10.42.B.V2.38
10.42.B.V20 - PP - RAL 8025
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V20.15
40 50 1,0 - 2,0 10.42.B.V20.30
40 40 1,0 - 2,0 10.42.B.V20.29
40 40 1,5 - 2,0 10.42.B.V20.28
35 35 1,0 - 2,0 10.42.B.V20.27
30 70 1,0 - 2,0 10.42.B.V20.26
30 60 1,0 - 2,0 10.42.B.V20.25
30 50 1,0 - 2,0 10.42.B.V20.24
30 40 1,0 - 2,0 10.42.B.V20.23
30 30 0,5 - 1,5 10.42.B.V20.22
25 50 0,5 - 1,5 10.42.B.V20.21
25 40 0,5 - 1,5 10.42.B.V20.20
25 25 0,5 - 1,5 10.42.B.V20.19
20 100 0,5 - 1,5 10.42.B.V20.18
10 10 0,5 - 1,5 10.42.B.V20.1
15 30 0,5 - 1,5 10.42.B.V20.9
10 20 0,5 - 1,5 10.42.B.V20.2
10 25 0,5 - 1,5 10.42.B.V20.3
10 40 0,5 - 1,5 10.42.B.V20.4
15 15 0,5 - 1,5 10.42.B.V20.5
15 15 0,5 - 1,5 10.42.B.V20.6
20 80 0,5 - 1,5 10.42.B.V20.17
15 30 0,5 - 1,5 10.42.B.V20.8
20 60 0,5 - 1,5 10.42.B.V20.16
17 27 0,5 - 1,5 10.42.B.V20.10
20 20 0,5 - 1,5 10.42.B.V20.11
20 25 0,5 - 1,5 10.42.B.V20.12
20 30 0,5 - 1,5 10.42.B.V20.13
20 40 0,5 - 1,5 10.42.B.V20.14
40 80 1,5 - 2,5 10.42.B.V20.33
15 25 0,5 - 1,5 10.42.B.V20.7
80 120 2,0 - 3,0 10.42.B.V20.56
40 60 1,5 - 2,5 10.42.B.V20.31
60 80 2,0 - 3,0 10.42.B.V20.50
60 120 2,0 - 3,0 10.42.B.V20.51
60 120 2,0 - 3,0 10.42.B.V20.52
70 70 2,0 - 3,0 10.42.B.V20.53
60 60 2,0 - 3,0 10.42.B.V20.48
80 80 Profile Thickness (PT) 10.42.B.V20.55
55 55 2,0 - 3,0 10.42.B.V20.47
80 160 2,0 - 3,0 10.42.B.V20.57
90 90 1,5 - 2,0 10.42.B.V20.58
100 100 2,0 - 3,0 10.42.B.V20.59
100 100 4,0 - 5,0 10.42.B.V20.60
100 150 3,0 - 4,0 10.42.B.V20.61
120 120 3,0 - 4,0 10.42.B.V20.62
80 80 2,0 - 3,0 10.42.B.V20.54
45 45 1,5 - 2,5 10.42.B.V20.40
150 150 3,0 - 4,0 10.42.B.V20.63
40 80 Profile Thickness (PT) 10.42.B.V20.34
40 100 1,5 - 2,5 10.42.B.V20.35
40 110 1,5 - 2,5 10.42.B.V20.36
40 120 Profile Thickness (PT) 10.42.B.V20.37
60 60 4,0 - 5,0 10.42.B.V20.49
40 150 1,5 - 2,5 10.42.B.V20.39
40 60 Profile Thickness (PT) 10.42.B.V20.32
50 50 1,5 - 2,5 10.42.B.V20.41
50 50 4,0 - 5,0 10.42.B.V20.42
50 80 2,0 - 3,0 10.42.B.V20.43
50 90 2,0 - 3,0 10.42.B.V20.44
50 100 2,0 - 3,0 10.42.B.V20.45
50 100 4,0 - 6,0 10.42.B.V20.46
40 130 1,5 - 2,5 10.42.B.V20.38
10.42.B.V21 - PP - RAL 8014
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V21.15
40 50 1,0 - 2,0 10.42.B.V21.30
40 40 1,0 - 2,0 10.42.B.V21.29
40 40 1,5 - 2,0 10.42.B.V21.28
35 35 1,0 - 2,0 10.42.B.V21.27
30 70 1,0 - 2,0 10.42.B.V21.26
30 60 1,0 - 2,0 10.42.B.V21.25
30 50 1,0 - 2,0 10.42.B.V21.24
30 40 1,0 - 2,0 10.42.B.V21.23
30 30 0,5 - 1,5 10.42.B.V21.22
25 50 0,5 - 1,5 10.42.B.V21.21
25 40 0,5 - 1,5 10.42.B.V21.20
25 25 0,5 - 1,5 10.42.B.V21.19
20 100 0,5 - 1,5 10.42.B.V21.18
10 10 0,5 - 1,5 10.42.B.V21.1
15 30 0,5 - 1,5 10.42.B.V21.9
10 20 0,5 - 1,5 10.42.B.V21.2
10 25 0,5 - 1,5 10.42.B.V21.3
10 40 0,5 - 1,5 10.42.B.V21.4
15 15 0,5 - 1,5 10.42.B.V21.5
15 15 0,5 - 1,5 10.42.B.V21.6
20 80 0,5 - 1,5 10.42.B.V21.17
15 30 0,5 - 1,5 10.42.B.V21.8
20 60 0,5 - 1,5 10.42.B.V21.16
17 27 0,5 - 1,5 10.42.B.V21.10
20 20 0,5 - 1,5 10.42.B.V21.11
20 25 0,5 - 1,5 10.42.B.V21.12
20 30 0,5 - 1,5 10.42.B.V21.13
20 40 0,5 - 1,5 10.42.B.V21.14
40 80 1,5 - 2,5 10.42.B.V21.33
15 25 0,5 - 1,5 10.42.B.V21.7
80 120 2,0 - 3,0 10.42.B.V21.56
40 60 1,5 - 2,5 10.42.B.V21.31
60 80 2,0 - 3,0 10.42.B.V21.50
60 120 2,0 - 3,0 10.42.B.V21.51
60 120 2,0 - 3,0 10.42.B.V21.52
70 70 2,0 - 3,0 10.42.B.V21.53
60 60 2,0 - 3,0 10.42.B.V21.48
80 80 Profile Thickness (PT) 10.42.B.V21.55
55 55 2,0 - 3,0 10.42.B.V21.47
80 160 2,0 - 3,0 10.42.B.V21.57
90 90 1,5 - 2,0 10.42.B.V21.58
100 100 2,0 - 3,0 10.42.B.V21.59
100 100 4,0 - 5,0 10.42.B.V21.60
100 150 3,0 - 4,0 10.42.B.V21.61
120 120 3,0 - 4,0 10.42.B.V21.62
80 80 2,0 - 3,0 10.42.B.V21.54
45 45 1,5 - 2,5 10.42.B.V21.40
150 150 3,0 - 4,0 10.42.B.V21.63
40 80 Profile Thickness (PT) 10.42.B.V21.34
40 100 1,5 - 2,5 10.42.B.V21.35
40 110 1,5 - 2,5 10.42.B.V21.36
40 120 Profile Thickness (PT) 10.42.B.V21.37
60 60 4,0 - 5,0 10.42.B.V21.49
40 150 1,5 - 2,5 10.42.B.V21.39
40 60 Profile Thickness (PT) 10.42.B.V21.32
50 50 1,5 - 2,5 10.42.B.V21.41
50 50 4,0 - 5,0 10.42.B.V21.42
50 80 2,0 - 3,0 10.42.B.V21.43
50 90 2,0 - 3,0 10.42.B.V21.44
50 100 2,0 - 3,0 10.42.B.V21.45
50 100 4,0 - 6,0 10.42.B.V21.46
40 130 1,5 - 2,5 10.42.B.V21.38
10.42.B.V22 - PP - RAL 3009
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V22.15
40 50 1,0 - 2,0 10.42.B.V22.30
40 40 1,0 - 2,0 10.42.B.V22.29
40 40 1,5 - 2,0 10.42.B.V22.28
35 35 1,0 - 2,0 10.42.B.V22.27
30 70 1,0 - 2,0 10.42.B.V22.26
30 60 1,0 - 2,0 10.42.B.V22.25
30 50 1,0 - 2,0 10.42.B.V22.24
30 40 1,0 - 2,0 10.42.B.V22.23
30 30 0,5 - 1,5 10.42.B.V22.22
25 50 0,5 - 1,5 10.42.B.V22.21
25 40 0,5 - 1,5 10.42.B.V22.20
25 25 0,5 - 1,5 10.42.B.V22.19
20 100 0,5 - 1,5 10.42.B.V22.18
10 10 0,5 - 1,5 10.42.B.V22.1
15 30 0,5 - 1,5 10.42.B.V22.9
10 20 0,5 - 1,5 10.42.B.V22.2
10 25 0,5 - 1,5 10.42.B.V22.3
10 40 0,5 - 1,5 10.42.B.V22.4
15 15 0,5 - 1,5 10.42.B.V22.5
15 15 0,5 - 1,5 10.42.B.V22.6
20 80 0,5 - 1,5 10.42.B.V22.17
15 30 0,5 - 1,5 10.42.B.V22.8
20 60 0,5 - 1,5 10.42.B.V22.16
17 27 0,5 - 1,5 10.42.B.V22.10
20 20 0,5 - 1,5 10.42.B.V22.11
20 25 0,5 - 1,5 10.42.B.V22.12
20 30 0,5 - 1,5 10.42.B.V22.13
20 40 0,5 - 1,5 10.42.B.V22.14
40 80 1,5 - 2,5 10.42.B.V22.33
15 25 0,5 - 1,5 10.42.B.V22.7
80 120 2,0 - 3,0 10.42.B.V22.56
40 60 1,5 - 2,5 10.42.B.V22.31
60 80 2,0 - 3,0 10.42.B.V22.50
60 120 2,0 - 3,0 10.42.B.V22.51
60 120 2,0 - 3,0 10.42.B.V22.52
70 70 2,0 - 3,0 10.42.B.V22.53
60 60 2,0 - 3,0 10.42.B.V22.48
80 80 Profile Thickness (PT) 10.42.B.V22.55
55 55 2,0 - 3,0 10.42.B.V22.47
80 160 2,0 - 3,0 10.42.B.V22.57
90 90 1,5 - 2,0 10.42.B.V22.58
100 100 2,0 - 3,0 10.42.B.V22.59
100 100 4,0 - 5,0 10.42.B.V22.60
100 150 3,0 - 4,0 10.42.B.V22.61
120 120 3,0 - 4,0 10.42.B.V22.62
80 80 2,0 - 3,0 10.42.B.V22.54
45 45 1,5 - 2,5 10.42.B.V22.40
150 150 3,0 - 4,0 10.42.B.V22.63
40 80 Profile Thickness (PT) 10.42.B.V22.34
40 100 1,5 - 2,5 10.42.B.V22.35
40 110 1,5 - 2,5 10.42.B.V22.36
40 120 Profile Thickness (PT) 10.42.B.V22.37
60 60 4,0 - 5,0 10.42.B.V22.49
40 150 1,5 - 2,5 10.42.B.V22.39
40 60 Profile Thickness (PT) 10.42.B.V22.32
50 50 1,5 - 2,5 10.42.B.V22.41
50 50 4,0 - 5,0 10.42.B.V22.42
50 80 2,0 - 3,0 10.42.B.V22.43
50 90 2,0 - 3,0 10.42.B.V22.44
50 100 2,0 - 3,0 10.42.B.V22.45
50 100 4,0 - 6,0 10.42.B.V22.46
40 130 1,5 - 2,5 10.42.B.V22.38
10.42.B.V23 - PPC - RAL 9005
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V23.15
40 50 1,0 - 2,0 10.42.B.V23.30
40 40 1,0 - 2,0 10.42.B.V23.29
40 40 1,5 - 2,0 10.42.B.V23.28
35 35 1,0 - 2,0 10.42.B.V23.27
30 70 1,0 - 2,0 10.42.B.V23.26
30 60 1,0 - 2,0 10.42.B.V23.25
30 50 1,0 - 2,0 10.42.B.V23.24
30 40 1,0 - 2,0 10.42.B.V23.23
30 30 0,5 - 1,5 10.42.B.V23.22
25 50 0,5 - 1,5 10.42.B.V23.21
25 40 0,5 - 1,5 10.42.B.V23.20
25 25 0,5 - 1,5 10.42.B.V23.19
20 100 0,5 - 1,5 10.42.B.V23.18
10 10 0,5 - 1,5 10.42.B.V23.1
15 30 0,5 - 1,5 10.42.B.V23.9
10 20 0,5 - 1,5 10.42.B.V23.2
10 25 0,5 - 1,5 10.42.B.V23.3
10 40 0,5 - 1,5 10.42.B.V23.4
15 15 0,5 - 1,5 10.42.B.V23.5
15 15 0,5 - 1,5 10.42.B.V23.6
20 80 0,5 - 1,5 10.42.B.V23.17
15 30 0,5 - 1,5 10.42.B.V23.8
20 60 0,5 - 1,5 10.42.B.V23.16
17 27 0,5 - 1,5 10.42.B.V23.10
20 20 0,5 - 1,5 10.42.B.V23.11
20 25 0,5 - 1,5 10.42.B.V23.12
20 30 0,5 - 1,5 10.42.B.V23.13
20 40 0,5 - 1,5 10.42.B.V23.14
40 80 1,5 - 2,5 10.42.B.V23.33
15 25 0,5 - 1,5 10.42.B.V23.7
80 120 2,0 - 3,0 10.42.B.V23.56
40 60 1,5 - 2,5 10.42.B.V23.31
60 80 2,0 - 3,0 10.42.B.V23.50
60 120 2,0 - 3,0 10.42.B.V23.51
60 120 2,0 - 3,0 10.42.B.V23.52
70 70 2,0 - 3,0 10.42.B.V23.53
60 60 2,0 - 3,0 10.42.B.V23.48
80 80 Profile Thickness (PT) 10.42.B.V23.55
55 55 2,0 - 3,0 10.42.B.V23.47
80 160 2,0 - 3,0 10.42.B.V23.57
90 90 1,5 - 2,0 10.42.B.V23.58
100 100 2,0 - 3,0 10.42.B.V23.59
100 100 4,0 - 5,0 10.42.B.V23.60
100 150 3,0 - 4,0 10.42.B.V23.61
120 120 3,0 - 4,0 10.42.B.V23.62
80 80 2,0 - 3,0 10.42.B.V23.54
45 45 1,5 - 2,5 10.42.B.V23.40
150 150 3,0 - 4,0 10.42.B.V23.63
40 80 Profile Thickness (PT) 10.42.B.V23.34
40 100 1,5 - 2,5 10.42.B.V23.35
40 110 1,5 - 2,5 10.42.B.V23.36
40 120 Profile Thickness (PT) 10.42.B.V23.37
60 60 4,0 - 5,0 10.42.B.V23.49
40 150 1,5 - 2,5 10.42.B.V23.39
40 60 Profile Thickness (PT) 10.42.B.V23.32
50 50 1,5 - 2,5 10.42.B.V23.41
50 50 4,0 - 5,0 10.42.B.V23.42
50 80 2,0 - 3,0 10.42.B.V23.43
50 90 2,0 - 3,0 10.42.B.V23.44
50 100 2,0 - 3,0 10.42.B.V23.45
50 100 4,0 - 6,0 10.42.B.V23.46
40 130 1,5 - 2,5 10.42.B.V23.38
10.42.B.V25 - PE - RAL 9005
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V25.15
40 50 1,0 - 2,0 10.42.B.V25.30
40 40 1,0 - 2,0 10.42.B.V25.29
40 40 1,5 - 2,0 10.42.B.V25.28
35 35 1,0 - 2,0 10.42.B.V25.27
30 70 1,0 - 2,0 10.42.B.V25.26
30 60 1,0 - 2,0 10.42.B.V25.25
30 50 1,0 - 2,0 10.42.B.V25.24
30 40 1,0 - 2,0 10.42.B.V25.23
30 30 0,5 - 1,5 10.42.B.V25.22
25 50 0,5 - 1,5 10.42.B.V25.21
25 40 0,5 - 1,5 10.42.B.V25.20
25 25 0,5 - 1,5 10.42.B.V25.19
20 100 0,5 - 1,5 10.42.B.V25.18
10 10 0,5 - 1,5 10.42.B.V25.1
15 30 0,5 - 1,5 10.42.B.V25.9
10 20 0,5 - 1,5 10.42.B.V25.2
10 25 0,5 - 1,5 10.42.B.V25.3
10 40 0,5 - 1,5 10.42.B.V25.4
15 15 0,5 - 1,5 10.42.B.V25.5
15 15 0,5 - 1,5 10.42.B.V25.6
20 80 0,5 - 1,5 10.42.B.V25.17
15 30 0,5 - 1,5 10.42.B.V25.8
20 60 0,5 - 1,5 10.42.B.V25.16
17 27 0,5 - 1,5 10.42.B.V25.10
20 20 0,5 - 1,5 10.42.B.V25.11
20 25 0,5 - 1,5 10.42.B.V25.12
20 30 0,5 - 1,5 10.42.B.V25.13
20 40 0,5 - 1,5 10.42.B.V25.14
40 80 1,5 - 2,5 10.42.B.V25.33
15 25 0,5 - 1,5 10.42.B.V25.7
80 120 2,0 - 3,0 10.42.B.V25.56
40 60 1,5 - 2,5 10.42.B.V25.31
60 80 2,0 - 3,0 10.42.B.V25.50
60 120 2,0 - 3,0 10.42.B.V25.51
60 120 2,0 - 3,0 10.42.B.V25.52
70 70 2,0 - 3,0 10.42.B.V25.53
60 60 2,0 - 3,0 10.42.B.V25.48
80 80 Profile Thickness (PT) 10.42.B.V25.55
55 55 2,0 - 3,0 10.42.B.V25.47
80 160 2,0 - 3,0 10.42.B.V25.57
90 90 1,5 - 2,0 10.42.B.V25.58
100 100 2,0 - 3,0 10.42.B.V25.59
100 100 4,0 - 5,0 10.42.B.V25.60
100 150 3,0 - 4,0 10.42.B.V25.61
120 120 3,0 - 4,0 10.42.B.V25.62
80 80 2,0 - 3,0 10.42.B.V25.54
45 45 1,5 - 2,5 10.42.B.V25.40
150 150 3,0 - 4,0 10.42.B.V25.63
40 80 Profile Thickness (PT) 10.42.B.V25.34
40 100 1,5 - 2,5 10.42.B.V25.35
40 110 1,5 - 2,5 10.42.B.V25.36
40 120 Profile Thickness (PT) 10.42.B.V25.37
60 60 4,0 - 5,0 10.42.B.V25.49
40 150 1,5 - 2,5 10.42.B.V25.39
40 60 Profile Thickness (PT) 10.42.B.V25.32
50 50 1,5 - 2,5 10.42.B.V25.41
50 50 4,0 - 5,0 10.42.B.V25.42
50 80 2,0 - 3,0 10.42.B.V25.43
50 90 2,0 - 3,0 10.42.B.V25.44
50 100 2,0 - 3,0 10.42.B.V25.45
50 100 4,0 - 6,0 10.42.B.V25.46
40 130 1,5 - 2,5 10.42.B.V25.38
10.42.B.V3 - PP - RAL 9010
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V3.15
40 50 1,0 - 2,0 10.42.B.V3.30
40 40 1,0 - 2,0 10.42.B.V3.29
40 40 1,5 - 2,0 10.42.B.V3.28
35 35 1,0 - 2,0 10.42.B.V3.27
30 70 1,0 - 2,0 10.42.B.V3.26
30 60 1,0 - 2,0 10.42.B.V3.25
30 50 1,0 - 2,0 10.42.B.V3.24
30 40 1,0 - 2,0 10.42.B.V3.23
30 30 0,5 - 1,5 10.42.B.V3.22
25 50 0,5 - 1,5 10.42.B.V3.21
25 40 0,5 - 1,5 10.42.B.V3.20
25 25 0,5 - 1,5 10.42.B.V3.19
20 100 0,5 - 1,5 10.42.B.V3.18
10 10 0,5 - 1,5 10.42.B.V3.1
15 30 0,5 - 1,5 10.42.B.V3.9
10 20 0,5 - 1,5 10.42.B.V3.2
10 25 0,5 - 1,5 10.42.B.V3.3
10 40 0,5 - 1,5 10.42.B.V3.4
15 15 0,5 - 1,5 10.42.B.V3.5
15 15 0,5 - 1,5 10.42.B.V3.6
20 80 0,5 - 1,5 10.42.B.V3.17
15 30 0,5 - 1,5 10.42.B.V3.8
20 60 0,5 - 1,5 10.42.B.V3.16
17 27 0,5 - 1,5 10.42.B.V3.10
20 20 0,5 - 1,5 10.42.B.V3.11
20 25 0,5 - 1,5 10.42.B.V3.12
20 30 0,5 - 1,5 10.42.B.V3.13
20 40 0,5 - 1,5 10.42.B.V3.14
40 80 1,5 - 2,5 10.42.B.V3.33
15 25 0,5 - 1,5 10.42.B.V3.7
80 120 2,0 - 3,0 10.42.B.V3.56
40 60 1,5 - 2,5 10.42.B.V3.31
60 80 2,0 - 3,0 10.42.B.V3.50
60 120 2,0 - 3,0 10.42.B.V3.51
60 120 2,0 - 3,0 10.42.B.V3.52
70 70 2,0 - 3,0 10.42.B.V3.53
60 60 2,0 - 3,0 10.42.B.V3.48
80 80 Profile Thickness (PT) 10.42.B.V3.55
55 55 2,0 - 3,0 10.42.B.V3.47
80 160 2,0 - 3,0 10.42.B.V3.57
90 90 1,5 - 2,0 10.42.B.V3.58
100 100 2,0 - 3,0 10.42.B.V3.59
100 100 4,0 - 5,0 10.42.B.V3.60
100 150 3,0 - 4,0 10.42.B.V3.61
120 120 3,0 - 4,0 10.42.B.V3.62
80 80 2,0 - 3,0 10.42.B.V3.54
45 45 1,5 - 2,5 10.42.B.V3.40
150 150 3,0 - 4,0 10.42.B.V3.63
40 80 Profile Thickness (PT) 10.42.B.V3.34
40 100 1,5 - 2,5 10.42.B.V3.35
40 110 1,5 - 2,5 10.42.B.V3.36
40 120 Profile Thickness (PT) 10.42.B.V3.37
60 60 4,0 - 5,0 10.42.B.V3.49
40 150 1,5 - 2,5 10.42.B.V3.39
40 60 Profile Thickness (PT) 10.42.B.V3.32
50 50 1,5 - 2,5 10.42.B.V3.41
50 50 4,0 - 5,0 10.42.B.V3.42
50 80 2,0 - 3,0 10.42.B.V3.43
50 90 2,0 - 3,0 10.42.B.V3.44
50 100 2,0 - 3,0 10.42.B.V3.45
50 100 4,0 - 6,0 10.42.B.V3.46
40 130 1,5 - 2,5 10.42.B.V3.38
10.42.B.V4 - PP - RAL 7035
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V4.15
40 50 1,0 - 2,0 10.42.B.V4.30
40 40 1,0 - 2,0 10.42.B.V4.29
40 40 1,5 - 2,0 10.42.B.V4.28
35 35 1,0 - 2,0 10.42.B.V4.27
30 70 1,0 - 2,0 10.42.B.V4.26
30 60 1,0 - 2,0 10.42.B.V4.25
30 50 1,0 - 2,0 10.42.B.V4.24
30 40 1,0 - 2,0 10.42.B.V4.23
30 30 0,5 - 1,5 10.42.B.V4.22
25 50 0,5 - 1,5 10.42.B.V4.21
25 40 0,5 - 1,5 10.42.B.V4.20
25 25 0,5 - 1,5 10.42.B.V4.19
20 100 0,5 - 1,5 10.42.B.V4.18
10 10 0,5 - 1,5 10.42.B.V4.1
15 30 0,5 - 1,5 10.42.B.V4.9
10 20 0,5 - 1,5 10.42.B.V4.2
10 25 0,5 - 1,5 10.42.B.V4.3
10 40 0,5 - 1,5 10.42.B.V4.4
15 15 0,5 - 1,5 10.42.B.V4.5
15 15 0,5 - 1,5 10.42.B.V4.6
20 80 0,5 - 1,5 10.42.B.V4.17
15 30 0,5 - 1,5 10.42.B.V4.8
20 60 0,5 - 1,5 10.42.B.V4.16
17 27 0,5 - 1,5 10.42.B.V4.10
20 20 0,5 - 1,5 10.42.B.V4.11
20 25 0,5 - 1,5 10.42.B.V4.12
20 30 0,5 - 1,5 10.42.B.V4.13
20 40 0,5 - 1,5 10.42.B.V4.14
40 80 1,5 - 2,5 10.42.B.V4.33
15 25 0,5 - 1,5 10.42.B.V4.7
80 120 2,0 - 3,0 10.42.B.V4.56
40 60 1,5 - 2,5 10.42.B.V4.31
60 80 2,0 - 3,0 10.42.B.V4.50
60 120 2,0 - 3,0 10.42.B.V4.51
60 120 2,0 - 3,0 10.42.B.V4.52
70 70 2,0 - 3,0 10.42.B.V4.53
60 60 2,0 - 3,0 10.42.B.V4.48
80 80 Profile Thickness (PT) 10.42.B.V4.55
55 55 2,0 - 3,0 10.42.B.V4.47
80 160 2,0 - 3,0 10.42.B.V4.57
90 90 1,5 - 2,0 10.42.B.V4.58
100 100 2,0 - 3,0 10.42.B.V4.59
100 100 4,0 - 5,0 10.42.B.V4.60
100 150 3,0 - 4,0 10.42.B.V4.61
120 120 3,0 - 4,0 10.42.B.V4.62
80 80 2,0 - 3,0 10.42.B.V4.54
45 45 1,5 - 2,5 10.42.B.V4.40
150 150 3,0 - 4,0 10.42.B.V4.63
40 80 Profile Thickness (PT) 10.42.B.V4.34
40 100 1,5 - 2,5 10.42.B.V4.35
40 110 1,5 - 2,5 10.42.B.V4.36
40 120 Profile Thickness (PT) 10.42.B.V4.37
60 60 4,0 - 5,0 10.42.B.V4.49
40 150 1,5 - 2,5 10.42.B.V4.39
40 60 Profile Thickness (PT) 10.42.B.V4.32
50 50 1,5 - 2,5 10.42.B.V4.41
50 50 4,0 - 5,0 10.42.B.V4.42
50 80 2,0 - 3,0 10.42.B.V4.43
50 90 2,0 - 3,0 10.42.B.V4.44
50 100 2,0 - 3,0 10.42.B.V4.45
50 100 4,0 - 6,0 10.42.B.V4.46
40 130 1,5 - 2,5 10.42.B.V4.38
10.42.B.V5 - PP - RAL 9001
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V5.15
40 50 1,0 - 2,0 10.42.B.V5.30
40 40 1,0 - 2,0 10.42.B.V5.29
40 40 1,5 - 2,0 10.42.B.V5.28
35 35 1,0 - 2,0 10.42.B.V5.27
30 70 1,0 - 2,0 10.42.B.V5.26
30 60 1,0 - 2,0 10.42.B.V5.25
30 50 1,0 - 2,0 10.42.B.V5.24
30 40 1,0 - 2,0 10.42.B.V5.23
30 30 0,5 - 1,5 10.42.B.V5.22
25 50 0,5 - 1,5 10.42.B.V5.21
25 40 0,5 - 1,5 10.42.B.V5.20
25 25 0,5 - 1,5 10.42.B.V5.19
20 100 0,5 - 1,5 10.42.B.V5.18
10 10 0,5 - 1,5 10.42.B.V5.1
15 30 0,5 - 1,5 10.42.B.V5.9
10 20 0,5 - 1,5 10.42.B.V5.2
10 25 0,5 - 1,5 10.42.B.V5.3
10 40 0,5 - 1,5 10.42.B.V5.4
15 15 0,5 - 1,5 10.42.B.V5.5
15 15 0,5 - 1,5 10.42.B.V5.6
20 80 0,5 - 1,5 10.42.B.V5.17
15 30 0,5 - 1,5 10.42.B.V5.8
20 60 0,5 - 1,5 10.42.B.V5.16
17 27 0,5 - 1,5 10.42.B.V5.10
20 20 0,5 - 1,5 10.42.B.V5.11
20 25 0,5 - 1,5 10.42.B.V5.12
20 30 0,5 - 1,5 10.42.B.V5.13
20 40 0,5 - 1,5 10.42.B.V5.14
40 80 1,5 - 2,5 10.42.B.V5.33
15 25 0,5 - 1,5 10.42.B.V5.7
80 120 2,0 - 3,0 10.42.B.V5.56
40 60 1,5 - 2,5 10.42.B.V5.31
60 80 2,0 - 3,0 10.42.B.V5.50
60 120 2,0 - 3,0 10.42.B.V5.51
60 120 2,0 - 3,0 10.42.B.V5.52
70 70 2,0 - 3,0 10.42.B.V5.53
60 60 2,0 - 3,0 10.42.B.V5.48
80 80 Profile Thickness (PT) 10.42.B.V5.55
55 55 2,0 - 3,0 10.42.B.V5.47
80 160 2,0 - 3,0 10.42.B.V5.57
90 90 1,5 - 2,0 10.42.B.V5.58
100 100 2,0 - 3,0 10.42.B.V5.59
100 100 4,0 - 5,0 10.42.B.V5.60
100 150 3,0 - 4,0 10.42.B.V5.61
120 120 3,0 - 4,0 10.42.B.V5.62
80 80 2,0 - 3,0 10.42.B.V5.54
45 45 1,5 - 2,5 10.42.B.V5.40
150 150 3,0 - 4,0 10.42.B.V5.63
40 80 Profile Thickness (PT) 10.42.B.V5.34
40 100 1,5 - 2,5 10.42.B.V5.35
40 110 1,5 - 2,5 10.42.B.V5.36
40 120 Profile Thickness (PT) 10.42.B.V5.37
60 60 4,0 - 5,0 10.42.B.V5.49
40 150 1,5 - 2,5 10.42.B.V5.39
40 60 Profile Thickness (PT) 10.42.B.V5.32
50 50 1,5 - 2,5 10.42.B.V5.41
50 50 4,0 - 5,0 10.42.B.V5.42
50 80 2,0 - 3,0 10.42.B.V5.43
50 90 2,0 - 3,0 10.42.B.V5.44
50 100 2,0 - 3,0 10.42.B.V5.45
50 100 4,0 - 6,0 10.42.B.V5.46
40 130 1,5 - 2,5 10.42.B.V5.38
10.42.B.V6 - PP - RAL 9002
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V6.15
40 50 1,0 - 2,0 10.42.B.V6.30
40 40 1,0 - 2,0 10.42.B.V6.29
40 40 1,5 - 2,0 10.42.B.V6.28
35 35 1,0 - 2,0 10.42.B.V6.27
30 70 1,0 - 2,0 10.42.B.V6.26
30 60 1,0 - 2,0 10.42.B.V6.25
30 50 1,0 - 2,0 10.42.B.V6.24
30 40 1,0 - 2,0 10.42.B.V6.23
30 30 0,5 - 1,5 10.42.B.V6.22
25 50 0,5 - 1,5 10.42.B.V6.21
25 40 0,5 - 1,5 10.42.B.V6.20
25 25 0,5 - 1,5 10.42.B.V6.19
20 100 0,5 - 1,5 10.42.B.V6.18
10 10 0,5 - 1,5 10.42.B.V6.1
15 30 0,5 - 1,5 10.42.B.V6.9
10 20 0,5 - 1,5 10.42.B.V6.2
10 25 0,5 - 1,5 10.42.B.V6.3
10 40 0,5 - 1,5 10.42.B.V6.4
15 15 0,5 - 1,5 10.42.B.V6.5
15 15 0,5 - 1,5 10.42.B.V6.6
20 80 0,5 - 1,5 10.42.B.V6.17
15 30 0,5 - 1,5 10.42.B.V6.8
20 60 0,5 - 1,5 10.42.B.V6.16
17 27 0,5 - 1,5 10.42.B.V6.10
20 20 0,5 - 1,5 10.42.B.V6.11
20 25 0,5 - 1,5 10.42.B.V6.12
20 30 0,5 - 1,5 10.42.B.V6.13
20 40 0,5 - 1,5 10.42.B.V6.14
40 80 1,5 - 2,5 10.42.B.V6.33
15 25 0,5 - 1,5 10.42.B.V6.7
80 120 2,0 - 3,0 10.42.B.V6.56
40 60 1,5 - 2,5 10.42.B.V6.31
60 80 2,0 - 3,0 10.42.B.V6.50
60 120 2,0 - 3,0 10.42.B.V6.51
60 120 2,0 - 3,0 10.42.B.V6.52
70 70 2,0 - 3,0 10.42.B.V6.53
60 60 2,0 - 3,0 10.42.B.V6.48
80 80 Profile Thickness (PT) 10.42.B.V6.55
55 55 2,0 - 3,0 10.42.B.V6.47
80 160 2,0 - 3,0 10.42.B.V6.57
90 90 1,5 - 2,0 10.42.B.V6.58
100 100 2,0 - 3,0 10.42.B.V6.59
100 100 4,0 - 5,0 10.42.B.V6.60
100 150 3,0 - 4,0 10.42.B.V6.61
120 120 3,0 - 4,0 10.42.B.V6.62
80 80 2,0 - 3,0 10.42.B.V6.54
45 45 1,5 - 2,5 10.42.B.V6.40
150 150 3,0 - 4,0 10.42.B.V6.63
40 80 Profile Thickness (PT) 10.42.B.V6.34
40 100 1,5 - 2,5 10.42.B.V6.35
40 110 1,5 - 2,5 10.42.B.V6.36
40 120 Profile Thickness (PT) 10.42.B.V6.37
60 60 4,0 - 5,0 10.42.B.V6.49
40 150 1,5 - 2,5 10.42.B.V6.39
40 60 Profile Thickness (PT) 10.42.B.V6.32
50 50 1,5 - 2,5 10.42.B.V6.41
50 50 4,0 - 5,0 10.42.B.V6.42
50 80 2,0 - 3,0 10.42.B.V6.43
50 90 2,0 - 3,0 10.42.B.V6.44
50 100 2,0 - 3,0 10.42.B.V6.45
50 100 4,0 - 6,0 10.42.B.V6.46
40 130 1,5 - 2,5 10.42.B.V6.38
10.42.B.V7 - PP - RAL 7046
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V7.15
40 50 1,0 - 2,0 10.42.B.V7.30
40 40 1,0 - 2,0 10.42.B.V7.29
40 40 1,5 - 2,0 10.42.B.V7.28
35 35 1,0 - 2,0 10.42.B.V7.27
30 70 1,0 - 2,0 10.42.B.V7.26
30 60 1,0 - 2,0 10.42.B.V7.25
30 50 1,0 - 2,0 10.42.B.V7.24
30 40 1,0 - 2,0 10.42.B.V7.23
30 30 0,5 - 1,5 10.42.B.V7.22
25 50 0,5 - 1,5 10.42.B.V7.21
25 40 0,5 - 1,5 10.42.B.V7.20
25 25 0,5 - 1,5 10.42.B.V7.19
20 100 0,5 - 1,5 10.42.B.V7.18
10 10 0,5 - 1,5 10.42.B.V7.1
15 30 0,5 - 1,5 10.42.B.V7.9
10 20 0,5 - 1,5 10.42.B.V7.2
10 25 0,5 - 1,5 10.42.B.V7.3
10 40 0,5 - 1,5 10.42.B.V7.4
15 15 0,5 - 1,5 10.42.B.V7.5
15 15 0,5 - 1,5 10.42.B.V7.6
20 80 0,5 - 1,5 10.42.B.V7.17
15 30 0,5 - 1,5 10.42.B.V7.8
20 60 0,5 - 1,5 10.42.B.V7.16
17 27 0,5 - 1,5 10.42.B.V7.10
20 20 0,5 - 1,5 10.42.B.V7.11
20 25 0,5 - 1,5 10.42.B.V7.12
20 30 0,5 - 1,5 10.42.B.V7.13
20 40 0,5 - 1,5 10.42.B.V7.14
40 80 1,5 - 2,5 10.42.B.V7.33
15 25 0,5 - 1,5 10.42.B.V7.7
80 120 2,0 - 3,0 10.42.B.V7.56
40 60 1,5 - 2,5 10.42.B.V7.31
60 80 2,0 - 3,0 10.42.B.V7.50
60 120 2,0 - 3,0 10.42.B.V7.51
60 120 2,0 - 3,0 10.42.B.V7.52
70 70 2,0 - 3,0 10.42.B.V7.53
60 60 2,0 - 3,0 10.42.B.V7.48
80 80 Profile Thickness (PT) 10.42.B.V7.55
55 55 2,0 - 3,0 10.42.B.V7.47
80 160 2,0 - 3,0 10.42.B.V7.57
90 90 1,5 - 2,0 10.42.B.V7.58
100 100 2,0 - 3,0 10.42.B.V7.59
100 100 4,0 - 5,0 10.42.B.V7.60
100 150 3,0 - 4,0 10.42.B.V7.61
120 120 3,0 - 4,0 10.42.B.V7.62
80 80 2,0 - 3,0 10.42.B.V7.54
45 45 1,5 - 2,5 10.42.B.V7.40
150 150 3,0 - 4,0 10.42.B.V7.63
40 80 Profile Thickness (PT) 10.42.B.V7.34
40 100 1,5 - 2,5 10.42.B.V7.35
40 110 1,5 - 2,5 10.42.B.V7.36
40 120 Profile Thickness (PT) 10.42.B.V7.37
60 60 4,0 - 5,0 10.42.B.V7.49
40 150 1,5 - 2,5 10.42.B.V7.39
40 60 Profile Thickness (PT) 10.42.B.V7.32
50 50 1,5 - 2,5 10.42.B.V7.41
50 50 4,0 - 5,0 10.42.B.V7.42
50 80 2,0 - 3,0 10.42.B.V7.43
50 90 2,0 - 3,0 10.42.B.V7.44
50 100 2,0 - 3,0 10.42.B.V7.45
50 100 4,0 - 6,0 10.42.B.V7.46
40 130 1,5 - 2,5 10.42.B.V7.38
10.42.B.V8 - PP - RAL 8007
Width (W) Length (L) Profile Thickness (PT)
20 50 0,5 - 1,5 10.42.B.V8.15
40 50 1,0 - 2,0 10.42.B.V8.30
40 40 1,0 - 2,0 10.42.B.V8.29
40 40 1,5 - 2,0 10.42.B.V8.28
35 35 1,0 - 2,0 10.42.B.V8.27
30 70 1,0 - 2,0 10.42.B.V8.26
30 60 1,0 - 2,0 10.42.B.V8.25
30 50 1,0 - 2,0 10.42.B.V8.24
30 40 1,0 - 2,0 10.42.B.V8.23
30 30 0,5 - 1,5 10.42.B.V8.22
25 50 0,5 - 1,5 10.42.B.V8.21
25 40 0,5 - 1,5 10.42.B.V8.20
25 25 0,5 - 1,5 10.42.B.V8.19
20 100 0,5 - 1,5 10.42.B.V8.18
10 10 0,5 - 1,5 10.42.B.V8.1
15 30 0,5 - 1,5 10.42.B.V8.9
10 20 0,5 - 1,5 10.42.B.V8.2
10 25 0,5 - 1,5 10.42.B.V8.3
10 40 0,5 - 1,5 10.42.B.V8.4
15 15 0,5 - 1,5 10.42.B.V8.5
15 15 0,5 - 1,5 10.42.B.V8.6
20 80 0,5 - 1,5 10.42.B.V8.17
15 30 0,5 - 1,5 10.42.B.V8.8
20 60 0,5 - 1,5 10.42.B.V8.16
17 27 0,5 - 1,5 10.42.B.V8.10
20 20 0,5 - 1,5 10.42.B.V8.11
20 25 0,5 - 1,5 10.42.B.V8.12
20 30 0,5 - 1,5 10.42.B.V8.13
20 40 0,5 - 1,5 10.42.B.V8.14
40 80 1,5 - 2,5 10.42.B.V8.33
15 25 0,5 - 1,5 10.42.B.V8.7
80 120 2,0 - 3,0 10.42.B.V8.56
40 60 1,5 - 2,5 10.42.B.V8.31
60 80 2,0 - 3,0 10.42.B.V8.50
60 120 2,0 - 3,0 10.42.B.V8.51
60 120 2,0 - 3,0 10.42.B.V8.52
70 70 2,0 - 3,0 10.42.B.V8.53
60 60 2,0 - 3,0 10.42.B.V8.48
80 80 Profile Thickness (PT) 10.42.B.V8.55
55 55 2,0 - 3,0 10.42.B.V8.47
80 160 2,0 - 3,0 10.42.B.V8.57
90 90 1,5 - 2,0 10.42.B.V8.58
100 100 2,0 - 3,0 10.42.B.V8.59
100 100 4,0 - 5,0 10.42.B.V8.60
100 150 3,0 - 4,0 10.42.B.V8.61
120 120 3,0 - 4,0 10.42.B.V8.62
80 80 2,0 - 3,0 10.42.B.V8.54
45 45 1,5 - 2,5 10.42.B.V8.40
150 150 3,0 - 4,0 10.42.B.V8.63
40 80 Profile Thickness (PT) 10.42.B.V8.34
40 100 1,5 - 2,5 10.42.B.V8.35
40 110 1,5 - 2,5 10.42.B.V8.36
40 120 Profile Thickness (PT) 10.42.B.V8.37
60 60 4,0 - 5,0 10.42.B.V8.49
40 150 1,5 - 2,5 10.42.B.V8.39
40 60 Profile Thickness (PT) 10.42.B.V8.32
50 50 1,5 - 2,5 10.42.B.V8.41
50 50 4,0 - 5,0 10.42.B.V8.42
50 80 2,0 - 3,0 10.42.B.V8.43
50 90 2,0 - 3,0 10.42.B.V8.44
50 100 2,0 - 3,0 10.42.B.V8.45
50 100 4,0 - 6,0 10.42.B.V8.46
40 130 1,5 - 2,5 10.42.B.V8.38
10.42.D.V1 - PP - RAL 9005
Width (W) Length (L) Profile Thickness (PT)
20 20 0,8 - 1,0 10.42.D.V1.1
20 30 0,8 - 1,0 10.42.D.V1.2
20 40 0,8 - 1,0 10.42.D.V1.3
25 25 0,8 - 1,0 10.42.D.V1.4
30 30 0,8 - 1,0 10.42.D.V1.5
30 40 0,8 - 1,0 10.42.D.V1.6
40 40 0,8 - 1,0 10.42.D.V1.7
40 60 0,8 - 1,0 10.42.D.V1.8
40 80 0,8 - 1,0 10.42.D.V1.9
50 50 0,8 - 1,0 10.42.D.V1.10
50 100 0,8 - 1,0 10.42.D.V1.11
60 60 0,8 - 1,0 10.42.D.V1.12
80 80 0,8 - 1,0 10.42.D.V1.13
100 100 0,8 - 1,0 10.42.D.V1.14
10.42.D.V2 - PP - RAL 9010
Width (W) Length (L) Profile Thickness (PT)
100 100 0,8 - 1,0 10.42.D.V2.14
80 80 0,8 - 1,0 10.42.D.V2.13
60 60 0,8 - 1,0 10.42.D.V2.12
50 100 0,8 - 1,0 10.42.D.V2.11
50 50 0,8 - 1,0 10.42.D.V2.10
40 80 0,8 - 1,0 10.42.D.V2.9
40 60 0,8 - 1,0 10.42.D.V2.8
40 40 0,8 - 1,0 10.42.D.V2.7
30 40 0,8 - 1,0 10.42.D.V2.6
30 30 0,8 - 1,0 10.42.D.V2.5
25 25 0,8 - 1,0 10.42.D.V2.4
20 40 0,8 - 1,0 10.42.D.V2.3
20 30 0,8 - 1,0 10.42.D.V2.2
20 20 0,8 - 1,0 10.42.D.V2.1
10.42.D.V3 - PP - RAL 3020
Width (W) Length (L) Profile Thickness (PT)
100 100 0,8 - 1,0 10.42.D.V3.14
80 80 0,8 - 1,0 10.42.D.V3.13
60 60 0,8 - 1,0 10.42.D.V3.12
50 100 0,8 - 1,0 10.42.D.V3.11
50 50 0,8 - 1,0 10.42.D.V3.10
40 80 0,8 - 1,0 10.42.D.V3.9
40 60 0,8 - 1,0 10.42.D.V3.8
40 40 0,8 - 1,0 10.42.D.V3.7
30 40 0,8 - 1,0 10.42.D.V3.6
30 30 0,8 - 1,0 10.42.D.V3.5
25 25 0,8 - 1,0 10.42.D.V3.4
20 40 0,8 - 1,0 10.42.D.V3.3
20 30 0,8 - 1,0 10.42.D.V3.2
20 20 0,8 - 1,0 10.42.D.V3.1
Technical Drawing
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Related Products
101 Series Introvert Flat Cap Box Profile Caps
101 Series Introvert Flat Cap Box Profile Caps
SKU: 10.1
102 Series Introvert Flat Cap Box Profile Caps
102 Series Introvert Flat Cap Box Profile Caps
SKU: 10.2
103 Series Introvert Flat Cap Box Profile Caps
103 Series Introvert Flat Cap Box Profile Caps
SKU: 10.3
104 Series Introvert Flat Cap Box Profile Caps
104 Series Introvert Flat Cap Box Profile Caps
SKU: 10.4
105 Series Outgoing Connector Flat Cap Box Profile Caps
105 Series Outgoing Connector Flat Cap Box Profile Caps
SKU: 10.5
108 Series Introvert Flat Cap Box Profile Caps
108 Series Introvert Flat Cap Box Profile Caps
SKU: 10.8
109 Series Introvert Flat Cap Box Profile Caps
109 Series Introvert Flat Cap Box Profile Caps
SKU: 10.9
1010 Series Introvert Convex Cap Pipe Profile Caps
1010 Series Introvert Convex Cap Pipe Profile Caps
SKU: 10.10
1011 Series Introvert Flat Cap Pipe Profile Caps
1011 Series Introvert Flat Cap Pipe Profile Caps
SKU: 10.11
1012 Series Introvert Convex Cap Pipe Profile Caps
1012 Series Introvert Convex Cap Pipe Profile Caps
SKU: 10.12
1013 Series Introvert Flat Cap Pipe Profile Caps
1013 Series Introvert Flat Cap Pipe Profile Caps
SKU: 10.13
1014 Series Outgoing Connector Flat Cap Pipe Profile Caps
1014 Series Outgoing Connector Flat Cap Pipe Profile Caps
SKU: 10.14
