14249 Series Aluminium Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 14.249
Material and Color Options (V)

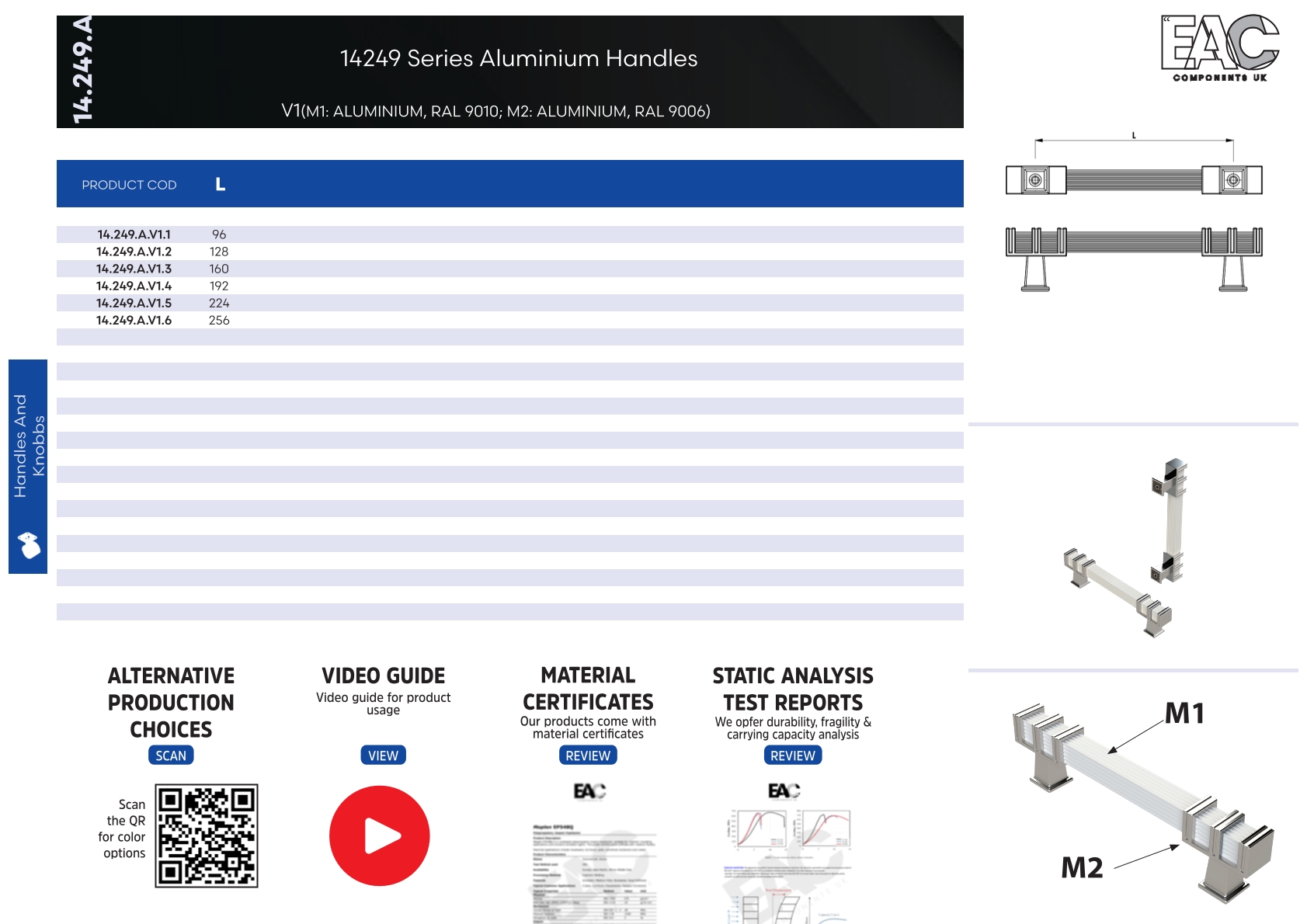

14.249.A.V1 - ALUMINIUM - RAL 9010
Hole Center (L)
96 14.249.A.V1.1
128 14.249.A.V1.2
160 14.249.A.V1.3
192 14.249.A.V1.4
224 14.249.A.V1.5
256 14.249.A.V1.6
14.249.A.V2 - ALUMINIUM - RAL 9010
Hole Center (L)
256 14.249.A.V2.1
224 14.249.A.V2.1
192 14.249.A.V2.1
160 14.249.A.V2.1
128 14.249.A.V2.1
96 14.249.A.V2.1
14.249.A.V3 - ALUMINIUM - RAL 9005
Hole Center (L)
256 14.249.A.V3.6
224 14.249.A.V3.5
192 14.249.A.V3.4
160 14.249.A.V3.3
128 14.249.A.V3.2
96 14.249.A.V3.1

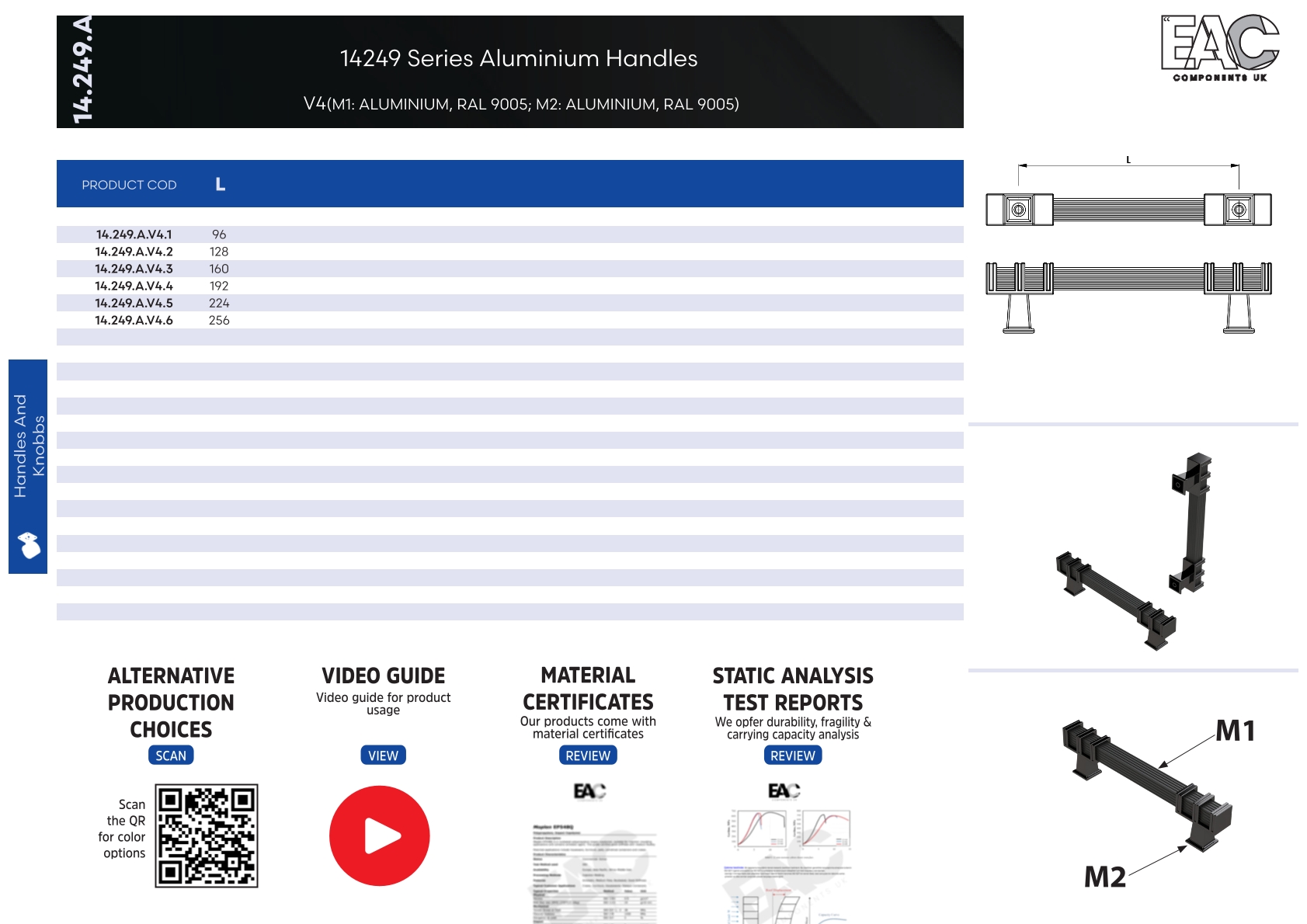

14.249.A.V4 - ALUMINIUM - RAL 9005
Hole Center (L)
256 14.249.A.V4.6
224 14.249.A.V4.5
192 14.249.A.V4.4
160 14.249.A.V4.3
128 14.249.A.V4.2
96 14.249.A.V4.1

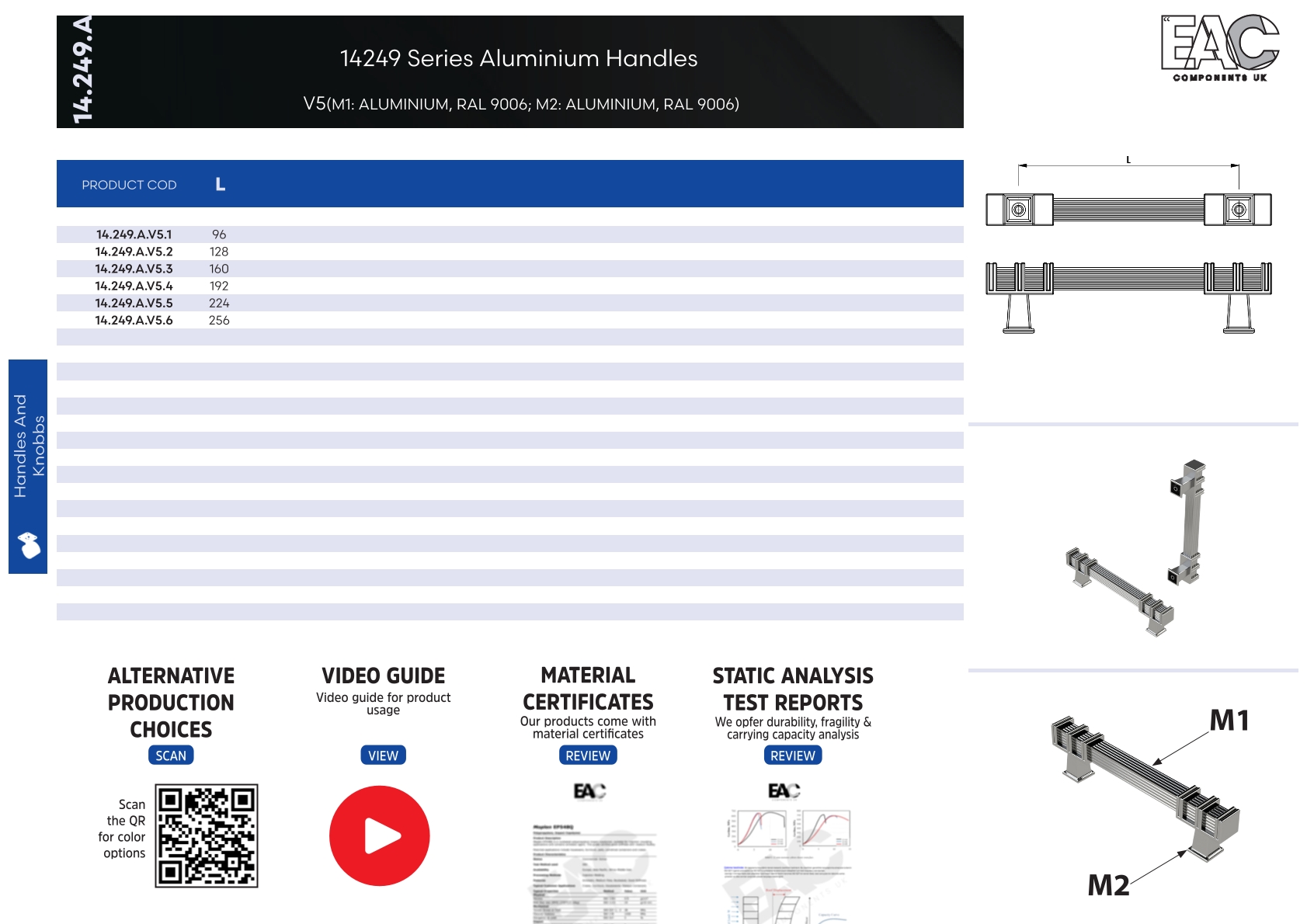

14.249.A.V5 - ALUMINIUM - RAL 9006
Hole Center (L)
256 14.249.A.V5.1
224 14.249.A.V5.1
192 14.249.A.V5.1
160 14.249.A.V5.1
128 14.249.A.V5.1
96 14.249.A.V5.1
14.249.A.V6 - ALUMINIUM - RAL 9005
Hole Center (L)
256 14.249.A.V6.1
224 14.249.A.V6.1
192 14.249.A.V6.1
160 14.249.A.V6.1
128 14.249.A.V6.1
96 14.249.A.V6.1
14.249.A.V7 - ALUMINIUM - RAL 1036
Hole Center (L)
256 14.249.A.V7.6
224 14.249.A.V7.5
192 14.249.A.V7.4
160 14.249.A.V7.3
128 14.249.A.V7.2
96 14.249.A.V7.1
Technical Drawing
