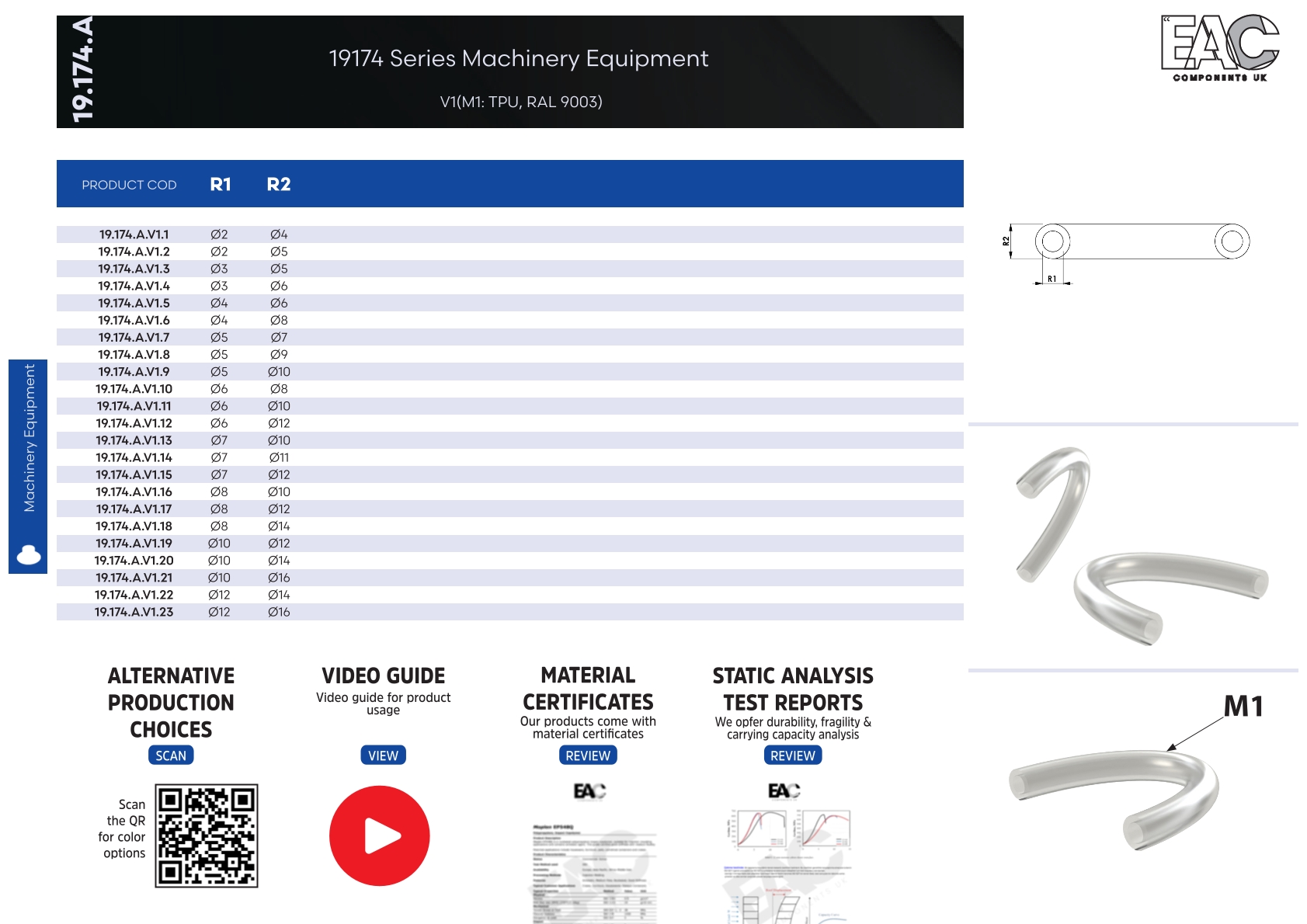

19174 Series Machinery Equipment

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 19.174
Material and Color Options (V)
19.174.A.V1 - TPU - RAL 9003
Diameter (Ø1) Diameter (Ø2) Height (H1)
Ø2 Ø4 Height (H1) 19.174.A.V1.1
Ø2 Ø5 Height (H1) 19.174.A.V1.2
Ø3 Ø5 Height (H1) 19.174.A.V1.3
Ø3 Ø6 Height (H1) 19.174.A.V1.4
Ø4 Ø6 Height (H1) 19.174.A.V1.5
Ø4 Ø8 Height (H1) 19.174.A.V1.6
Ø5 Ø7 Height (H1) 19.174.A.V1.7
Ø5 Ø9 Height (H1) 19.174.A.V1.8
Ø5 Ø10 Height (H1) 19.174.A.V1.9
Ø6 Ø8 Height (H1) 19.174.A.V1.10
Ø6 Ø10 Height (H1) 19.174.A.V1.11
Ø6 Ø12 Height (H1) 19.174.A.V1.12
Ø7 Ø10 Height (H1) 19.174.A.V1.13
Ø7 Ø11 Height (H1) 19.174.A.V1.14
Ø7 Ø12 Height (H1) 19.174.A.V1.15
Ø8 Ø10 Height (H1) 19.174.A.V1.16
Ø8 Ø12 Height (H1) 19.174.A.V1.17
Ø8 Ø14 Height (H1) 19.174.A.V1.18
Ø10 Ø12 Height (H1) 19.174.A.V1.19
Ø10 Ø14 Height (H1) 19.174.A.V1.20
Ø10 Ø16 Height (H1) 19.174.A.V1.21
Ø12 Ø14 Height (H1) 19.174.A.V1.22
Ø12 Ø16 Height (H1) 19.174.A.V1.23
Ø12 Ø18 Height (H1) 19.174.A.V1.24
Ø14 Ø18 Height (H1) 19.174.A.V1.25
Ø14 Ø20 Height (H1) 19.174.A.V1.26
Ø16 Ø20 Height (H1) 19.174.A.V1.27
Ø16 Ø22 Height (H1) 19.174.A.V1.28
Ø18 Ø22 Height (H1) 19.174.A.V1.29
Ø18 Ø24 Height (H1) 19.174.A.V1.30
Technical Drawing
