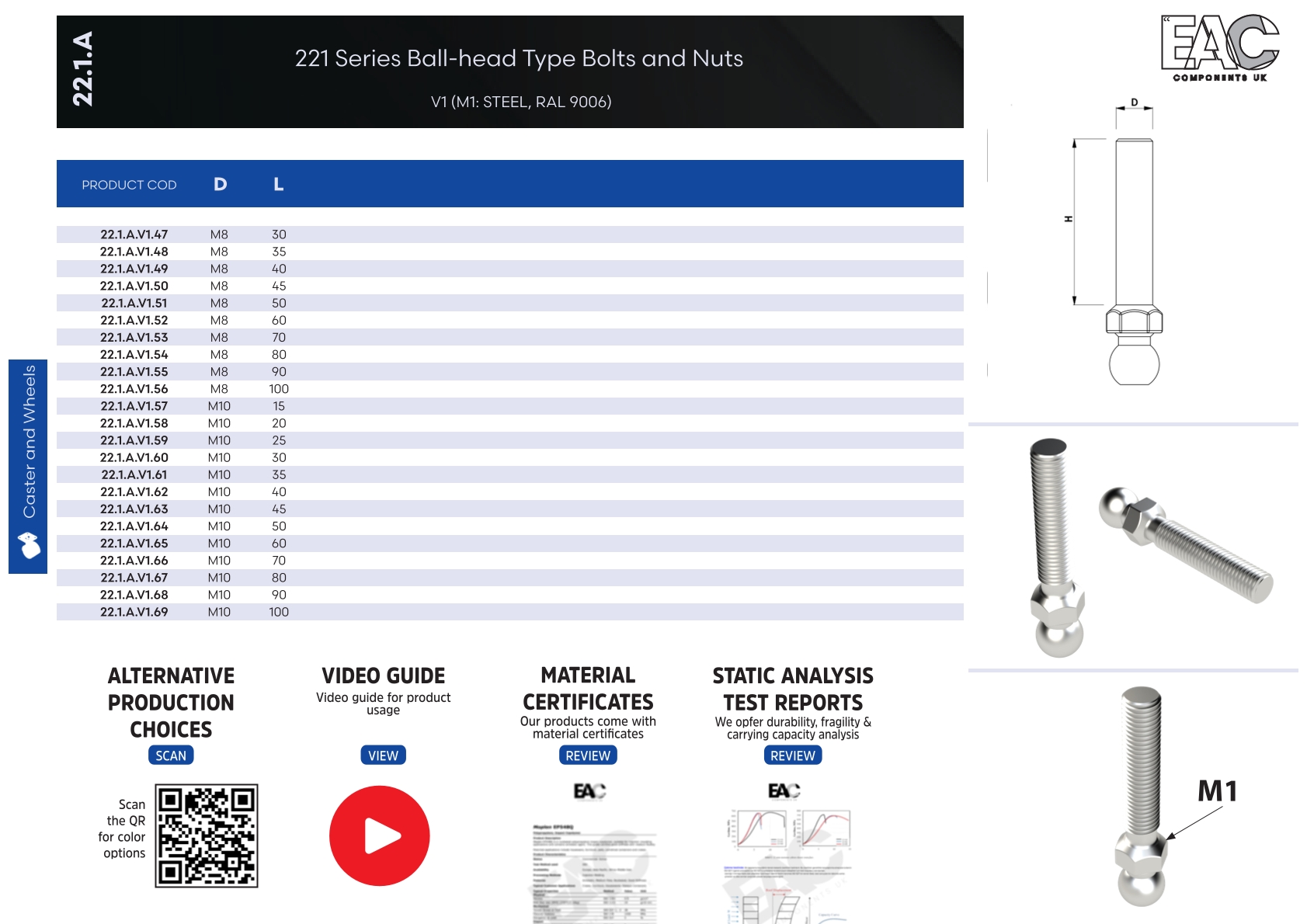

221 Series Ball-head Type Bolts and Nuts

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 22.1
Material and Color Options (V)
22.1.A.V1 - STEEL - RAL 9006
Metric (D) Length (L)
M4 10 STEEL RAL 9006 22.1.A.V1.1
M4 15 STEEL RAL 9006 22.1.A.V1.2
M4 20 STEEL RAL 9006 22.1.A.V1.3
M4 25 STEEL RAL 9006 22.1.A.V1.4
M4 30 STEEL RAL 9006 22.1.A.V1.5
M4 35 STEEL RAL 9006 22.1.A.V1.6
M4 40 STEEL RAL 9006 22.1.A.V1.7
M4 45 STEEL RAL 9006 22.1.A.V1.8
M4 50 STEEL RAL 9006 22.1.A.V1.9
M4 60 STEEL RAL 9006 22.1.A.V1.10
M4 70 STEEL RAL 9006 22.1.A.V1.11
M4 80 STEEL RAL 9006 22.1.A.V1.12
M4 90 STEEL RAL 9006 22.1.A.V1.13
M4 100 STEEL RAL 9006 22.1.A.V1.14
M5 10 STEEL RAL 9006 22.1.A.V1.15
M5 15 STEEL RAL 9006 22.1.A.V1.16
M5 20 STEEL RAL 9006 22.1.A.V1.17
M5 25 STEEL RAL 9006 22.1.A.V1.18
M5 30 STEEL RAL 9006 22.1.A.V1.19
M5 35 STEEL RAL 9006 22.1.A.V1.20
M5 40 STEEL RAL 9006 22.1.A.V1.21
M5 45 STEEL RAL 9006 22.1.A.V1.22
M5 50 STEEL RAL 9006 22.1.A.V1.23
M5 60 STEEL RAL 9006 22.1.A.V1.24
M5 70 STEEL RAL 9006 22.1.A.V1.25
M5 80 STEEL RAL 9006 22.1.A.V1.26
M5 90 STEEL RAL 9006 22.1.A.V1.27
M5 100 STEEL RAL 9006 22.1.A.V1.28
M6 10 STEEL RAL 9006 22.1.A.V1.29
M6 15 STEEL RAL 9006 22.1.A.V1.30
M6 20 STEEL RAL 9006 22.1.A.V1.31
M6 25 STEEL RAL 9006 22.1.A.V1.32
M6 30 STEEL RAL 9006 22.1.A.V1.33
M6 35 STEEL RAL 9006 22.1.A.V1.34
M6 40 STEEL RAL 9006 22.1.A.V1.35
M6 45 STEEL RAL 9006 22.1.A.V1.36
M6 50 STEEL RAL 9006 22.1.A.V1.37
M6 60 STEEL RAL 9006 22.1.A.V1.38
M6 70 STEEL RAL 9006 22.1.A.V1.39
M6 80 STEEL RAL 9006 22.1.A.V1.40
M6 90 STEEL RAL 9006 22.1.A.V1.41
M6 100 STEEL RAL 9006 22.1.A.V1.42
M8 10 STEEL RAL 9006 22.1.A.V1.43
M8 15 STEEL RAL 9006 22.1.A.V1.44
M8 20 STEEL RAL 9006 22.1.A.V1.45
M8 25 STEEL RAL 9006 22.1.A.V1.46
M8 30 STEEL RAL 9006 22.1.A.V1.47
M8 35 STEEL RAL 9006 22.1.A.V1.48
M8 40 STEEL RAL 9006 22.1.A.V1.49
M8 45 STEEL RAL 9006 22.1.A.V1.50
M8 50 STEEL RAL 9006 22.1.A.V1.51
M8 60 STEEL RAL 9006 22.1.A.V1.52
M8 70 STEEL RAL 9006 22.1.A.V1.53
M8 80 STEEL RAL 9006 22.1.A.V1.54
M8 90 STEEL RAL 9006 22.1.A.V1.55
M8 100 STEEL RAL 9006 22.1.A.V1.56
M10 15 STEEL RAL 9006 22.1.A.V1.57
M10 20 STEEL RAL 9006 22.1.A.V1.58
M10 25 STEEL RAL 9006 22.1.A.V1.59
M10 30 STEEL RAL 9006 22.1.A.V1.60
M10 35 STEEL RAL 9006 22.1.A.V1.61
M10 40 STEEL RAL 9006 22.1.A.V1.62
M10 45 STEEL RAL 9006 22.1.A.V1.63
M10 50 STEEL RAL 9006 22.1.A.V1.64
M10 60 STEEL RAL 9006 22.1.A.V1.65
M10 70 STEEL RAL 9006 22.1.A.V1.66
M10 80 STEEL RAL 9006 22.1.A.V1.67
M10 90 STEEL RAL 9006 22.1.A.V1.68
M10 100 STEEL RAL 9006 22.1.A.V1.69
M12 20 STEEL RAL 9006 22.1.A.V1.70
M12 25 STEEL RAL 9006 22.1.A.V1.71
M12 30 STEEL RAL 9006 22.1.A.V1.72
M12 35 STEEL RAL 9006 22.1.A.V1.73
M12 40 STEEL RAL 9006 22.1.A.V1.74
M12 45 STEEL RAL 9006 22.1.A.V1.75
M12 50 STEEL RAL 9006 22.1.A.V1.76
M12 60 STEEL RAL 9006 22.1.A.V1.77
M12 70 STEEL RAL 9006 22.1.A.V1.78
M12 80 STEEL RAL 9006 22.1.A.V1.79
M12 90 STEEL RAL 9006 22.1.A.V1.80
M12 100 STEEL RAL 9006 22.1.A.V1.81
M16 20 STEEL RAL 9006 22.1.A.V1.82
M16 25 STEEL RAL 9006 22.1.A.V1.83
M16 30 STEEL RAL 9006 22.1.A.V1.84
M16 35 STEEL RAL 9006 22.1.A.V1.85
M16 40 STEEL RAL 9006 22.1.A.V1.86
M16 45 STEEL RAL 9006 22.1.A.V1.87
M16 50 STEEL RAL 9006 22.1.A.V1.88
M16 60 STEEL RAL 9006 22.1.A.V1.89
M16 70 STEEL RAL 9006 22.1.A.V1.90
M16 80 STEEL RAL 9006 22.1.A.V1.91
M16 90 STEEL RAL 9006 22.1.A.V1.92
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
