21 Series Bushed Switchblade Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 2.1

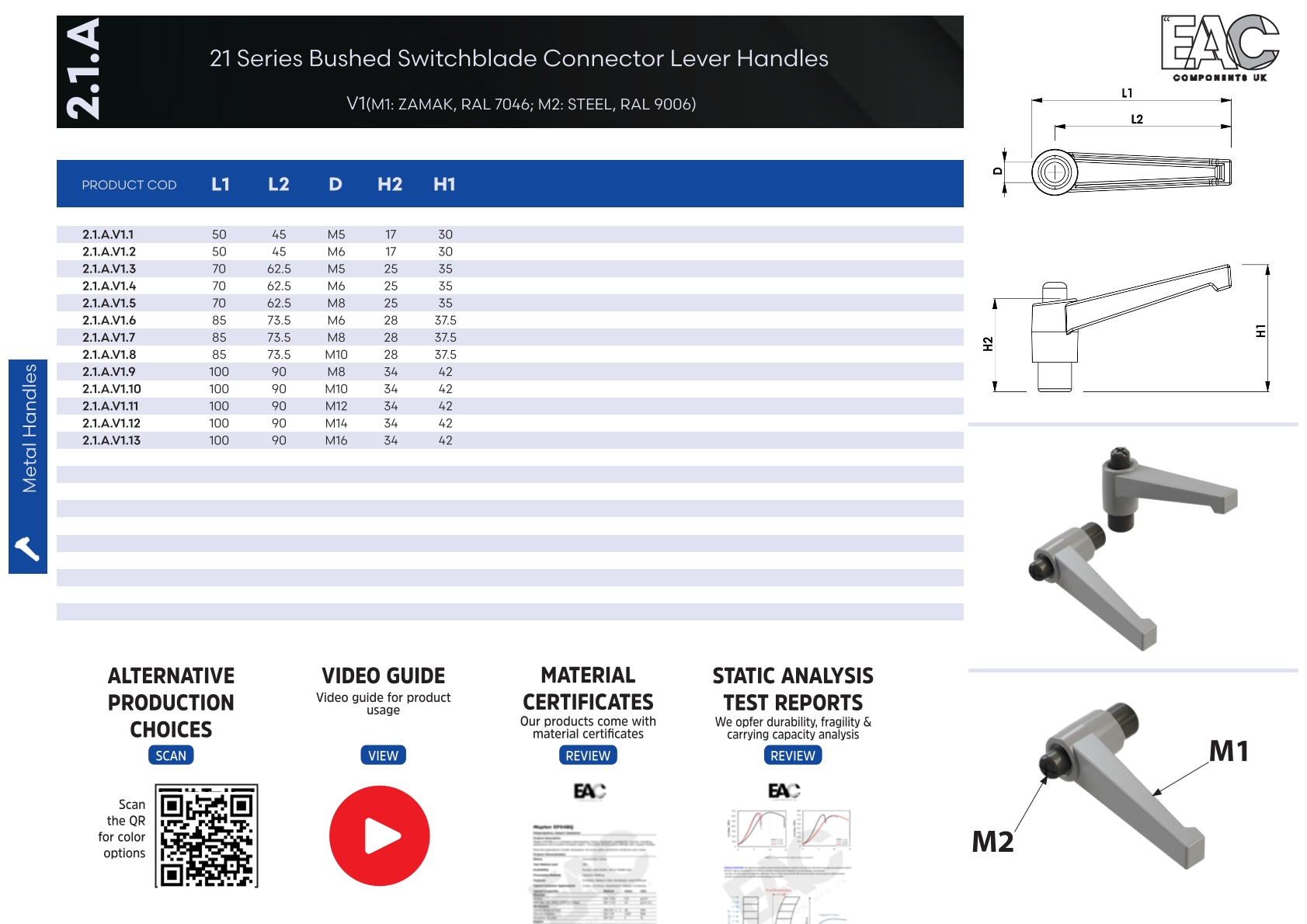

Material and Color Options (V)
2.1.A.V1 - ZAMAK - RAL 7046
Metric (D) Length (L)
M5 50 2.1.A.V1.1
M6 50 2.1.A.V1.2
M5 70 2.1.A.V1.3
M6 70 2.1.A.V1.4
M8 70 2.1.A.V1.5
M6 85 2.1.A.V1.6
M8 85 2.1.A.V1.7
M10 85 2.1.A.V1.8
M8 100 2.1.A.V1.9
M10 100 2.1.A.V1.10
M12 100 2.1.A.V1.11
M14 100 2.1.A.V1.12
M16 100 2.1.A.V1.13

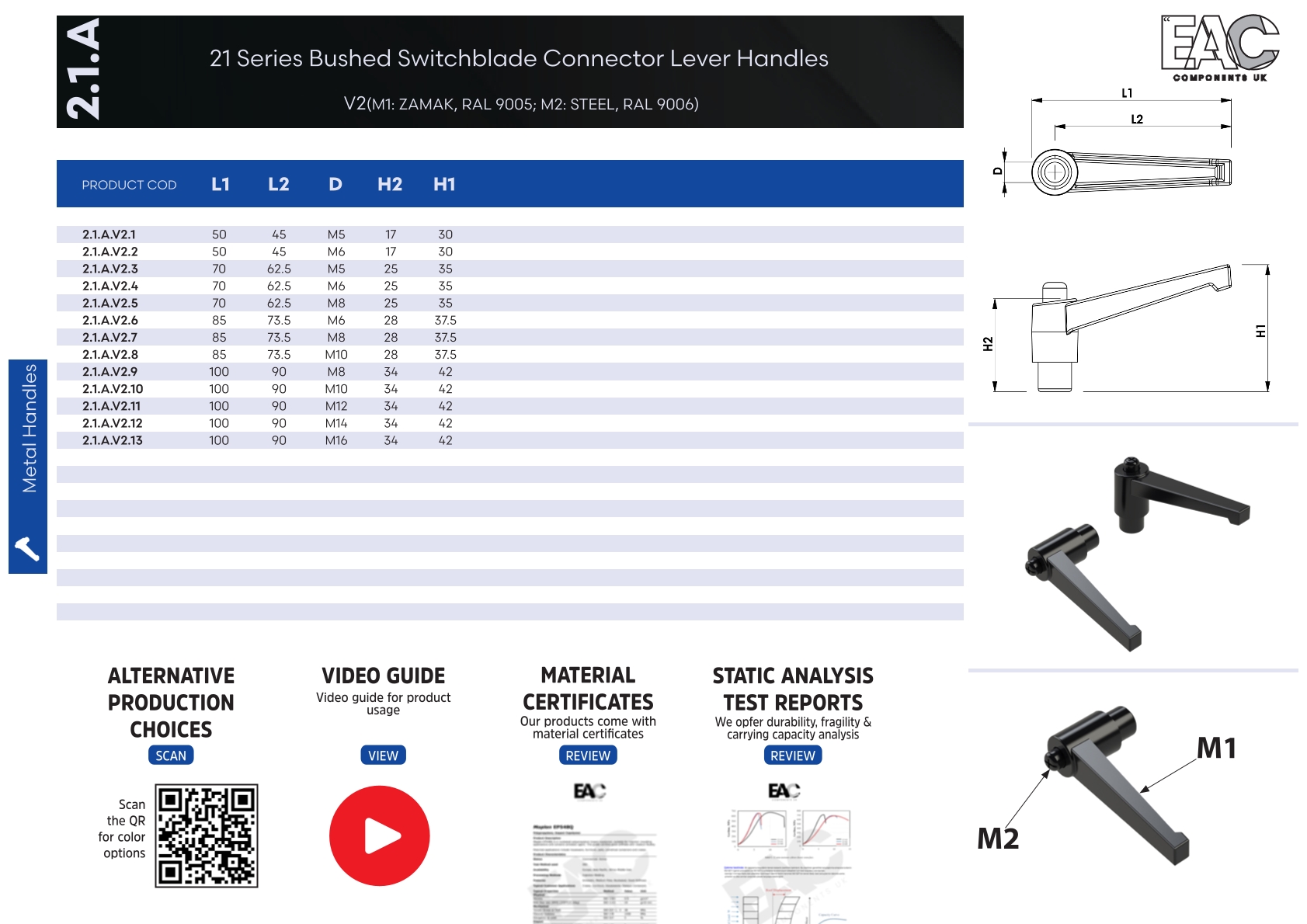

2.1.A.V2 - ZAMAK - RAL 9005
Metric (D) Length (L)
M16 100 2.1.A.V2.13
M14 100 2.1.A.V2.12
M12 100 2.1.A.V2.11
M10 100 2.1.A.V2.10
M8 100 2.1.A.V2.9
M10 85 2.1.A.V2.8
M8 85 2.1.A.V2.7
M6 85 2.1.A.V2.6
M8 70 2.1.A.V2.5
M6 70 2.1.A.V2.4
M5 70 2.1.A.V2.3
M6 50 2.1.A.V2.2
M5 50 2.1.A.V2.1

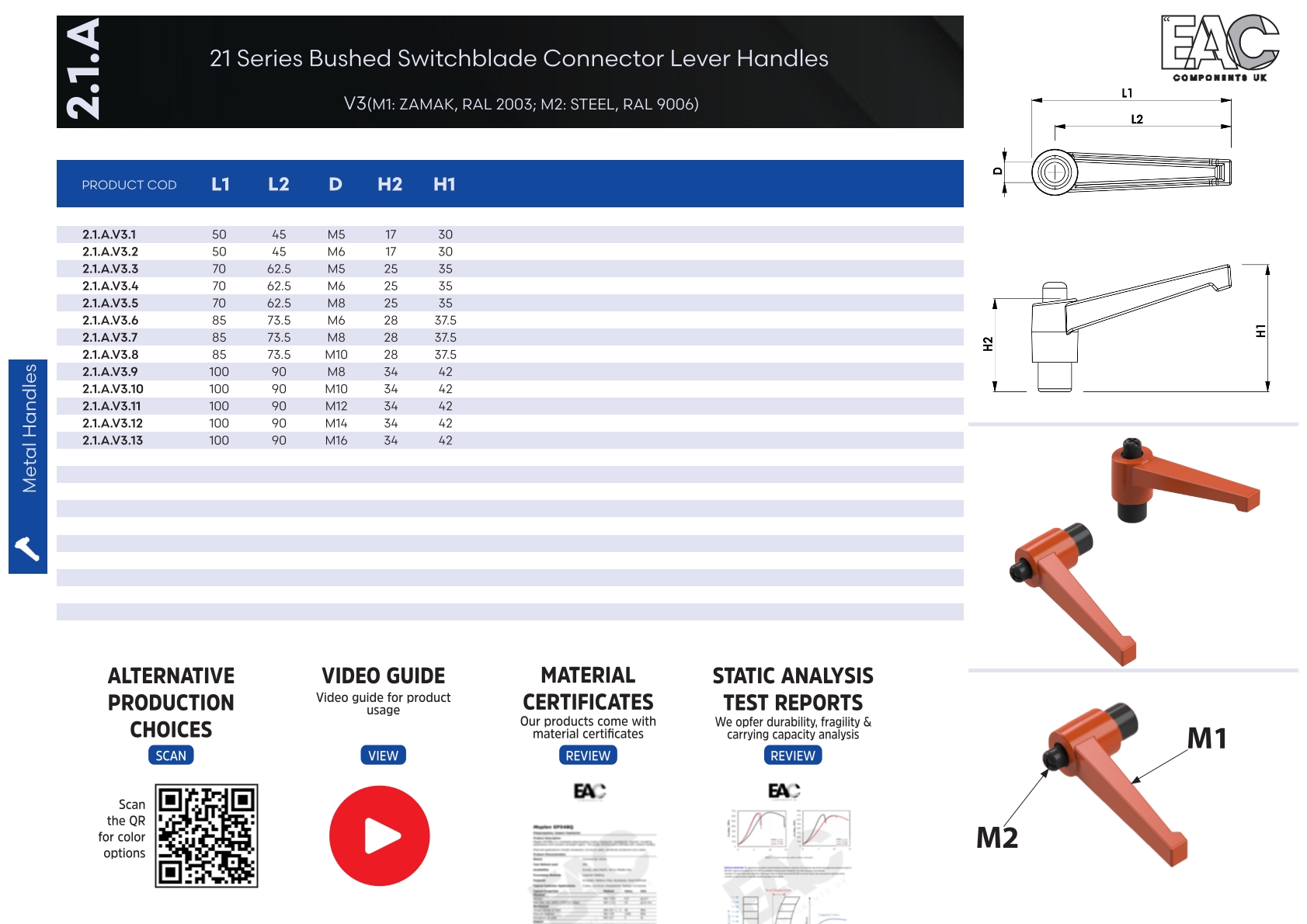

2.1.A.V3 - ZAMAK - RAL 2003
Metric (D) Length (L)
M16 100 2.1.A.V3.13
M14 100 2.1.A.V3.12
M12 100 2.1.A.V3.11
M10 100 2.1.A.V3.10
M8 100 2.1.A.V3.9
M10 85 2.1.A.V3.8
M8 85 2.1.A.V3.7
M6 85 2.1.A.V3.6
M8 70 2.1.A.V3.5
M6 70 2.1.A.V3.4
M5 70 2.1.A.V3.3
M6 50 2.1.A.V3.2
M5 50 2.1.A.V3.1
2.1.A.V4 - ZAMAK - RAL 9006
Metric (D) Length (L)
M16 100 2.1.A.V4.13
M14 100 2.1.A.V4.12
M12 100 2.1.A.V4.11
M10 100 2.1.A.V4.10
M8 100 2.1.A.V4.9
M10 85 2.1.A.V4.8
M8 85 2.1.A.V4.7
M6 85 2.1.A.V4.6
M8 70 2.1.A.V4.5
M6 70 2.1.A.V4.4
M5 70 2.1.A.V4.3
M6 50 2.1.A.V4.2
M5 50 2.1.A.V4.1
Technical Drawing
