22 Series Bolted Switchblade Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 2.2
Material and Color Options (V)
2.2.A.V1 - ZAMAK - RAL 7046
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M5 50 30 15 2.2.A.V1.1
M5 50 30 30 2.2.A.V1.2
M6 50 30 15 2.2.A.V1.3
M6 50 30 30 2.2.A.V1.4
M5 70 35 20 2.2.A.V1.5
M5 70 35 30 2.2.A.V1.6
M5 70 35 40 2.2.A.V1.7
M6 70 35 20 2.2.A.V1.8
M6 70 35 30 2.2.A.V1.9
M6 70 35 40 2.2.A.V1.10
M8 70 35 20 2.2.A.V1.11
M8 70 35 30 2.2.A.V1.12
M8 70 35 40 2.2.A.V1.13
M6 85 Height (H1) 25 2.2.A.V1.14
M6 85 Height (H1) 35 2.2.A.V1.15
M6 85 Height (H1) 50 2.2.A.V1.16
M8 85 Height (H1) 25 2.2.A.V1.17
M8 85 Height (H1) 35 2.2.A.V1.18
M8 85 Height (H1) 50 2.2.A.V1.19
M10 85 Height (H1) 25 2.2.A.V1.20
M10 85 Height (H1) 35 2.2.A.V1.21
M10 85 Height (H1) 50 2.2.A.V1.22
M8 100 42 30 2.2.A.V1.23
M8 100 34 45 2.2.A.V1.24
M8 100 34 60 2.2.A.V1.25
M10 100 34 30 2.2.A.V1.26
M10 100 34 45 2.2.A.V1.27
M10 100 34 60 2.2.A.V1.28
M12 100 34 30 2.2.A.V1.29
M12 100 34 45 2.2.A.V1.30
M12 100 34 60 2.2.A.V1.31
M14 100 34 35 2.2.A.V1.32
M14 100 34 50 2.2.A.V1.33
M16 100 34 35 2.2.A.V1.34
M16 100 34 50 2.2.A.V1.35
2.2.A.V2 - ZAMAK - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 70 35 20 2.2.A.V2.8
M6 85 Height (H1) 50 2.2.A.V2.16
M6 85 Height (H1) 35 2.2.A.V2.15
M6 85 Height (H1) 25 2.2.A.V2.14
M8 70 35 40 2.2.A.V2.13
M8 70 35 30 2.2.A.V2.12
M8 70 35 20 2.2.A.V2.11
M5 50 30 15 2.2.A.V2.1
M6 70 35 30 2.2.A.V2.9
M8 85 Height (H1) 50 2.2.A.V2.19
M5 70 35 40 2.2.A.V2.7
M5 70 35 30 2.2.A.V2.6
M5 70 35 20 2.2.A.V2.5
M6 50 30 30 2.2.A.V2.4
M6 50 30 15 2.2.A.V2.3
M5 50 30 30 2.2.A.V2.2
M6 70 35 40 2.2.A.V2.10
M10 100 34 30 2.2.A.V2.26
M16 100 34 35 2.2.A.V2.34
M14 100 34 50 2.2.A.V2.33
M14 100 34 35 2.2.A.V2.32
M12 100 34 60 2.2.A.V2.31
M12 100 34 45 2.2.A.V2.30
M12 100 34 30 2.2.A.V2.29
M8 85 Height (H1) 25 2.2.A.V2.17
M10 100 34 45 2.2.A.V2.27
M8 85 Height (H1) 35 2.2.A.V2.18
M8 100 34 60 2.2.A.V2.25
M8 100 34 45 2.2.A.V2.24
M8 100 42 30 2.2.A.V2.23
M10 85 Height (H1) 50 2.2.A.V2.22
M10 85 Height (H1) 35 2.2.A.V2.21
M10 85 Height (H1) 25 2.2.A.V2.20
M16 100 34 50 2.2.A.V2.35
M10 100 34 60 2.2.A.V2.28
2.2.A.V3 - ZAMAK - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 70 35 20 2.2.A.V3.8
M6 85 Height (H1) 50 2.2.A.V3.16
M6 85 Height (H1) 35 2.2.A.V3.15
M6 85 Height (H1) 25 2.2.A.V3.14
M8 70 35 40 2.2.A.V3.13
M8 70 35 30 2.2.A.V3.12
M8 70 35 20 2.2.A.V3.11
M5 50 30 15 2.2.A.V3.1
M6 70 35 30 2.2.A.V3.9
M8 85 Height (H1) 50 2.2.A.V3.19
M5 70 35 40 2.2.A.V3.7
M5 70 35 30 2.2.A.V3.6
M5 70 35 20 2.2.A.V3.5
M6 50 30 30 2.2.A.V3.4
M6 50 30 15 2.2.A.V3.3
M5 50 30 30 2.2.A.V3.2
M6 70 35 40 2.2.A.V3.10
M10 100 34 30 2.2.A.V3.26
M16 100 34 35 2.2.A.V3.34
M14 100 34 50 2.2.A.V3.33
M14 100 34 35 2.2.A.V3.32
M12 100 34 60 2.2.A.V3.31
M12 100 34 45 2.2.A.V3.30
M12 100 34 30 2.2.A.V3.29
M8 85 Height (H1) 25 2.2.A.V3.17
M10 100 34 45 2.2.A.V3.27
M8 85 Height (H1) 35 2.2.A.V3.18
M8 100 34 60 2.2.A.V3.25
M8 100 34 45 2.2.A.V3.24
M8 100 42 30 2.2.A.V3.23
M10 85 Height (H1) 50 2.2.A.V3.22
M10 85 Height (H1) 35 2.2.A.V3.21
M10 85 Height (H1) 25 2.2.A.V3.20
M16 100 34 50 2.2.A.V3.35
M10 100 34 60 2.2.A.V3.28
2.2.A.V4 - ZAMAK - RAL 9006
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 70 35 20 2.2.A.V4.8
M6 85 Height (H1) 50 2.2.A.V4.16
M6 85 Height (H1) 35 2.2.A.V4.15
M6 85 Height (H1) 25 2.2.A.V4.14
M8 70 35 40 2.2.A.V4.13
M8 70 35 30 2.2.A.V4.12
M8 70 35 20 2.2.A.V4.11
M5 50 30 15 2.2.A.V4.1
M6 70 35 30 2.2.A.V4.9
M8 85 Height (H1) 50 2.2.A.V4.19
M5 70 35 40 2.2.A.V4.7
M5 70 35 30 2.2.A.V4.6
M5 70 35 20 2.2.A.V4.5
M6 50 30 30 2.2.A.V4.4
M6 50 30 15 2.2.A.V4.3
M5 50 30 30 2.2.A.V4.2
M6 70 35 40 2.2.A.V4.10
M10 100 34 30 2.2.A.V4.26
M16 100 34 35 2.2.A.V4.34
M14 100 34 50 2.2.A.V4.33
M14 100 34 35 2.2.A.V4.32
M12 100 34 60 2.2.A.V4.31
M12 100 34 45 2.2.A.V4.30
M12 100 34 30 2.2.A.V4.29
M8 85 Height (H1) 25 2.2.A.V4.17
M10 100 34 45 2.2.A.V4.27
M8 85 Height (H1) 35 2.2.A.V4.18
M8 100 34 60 2.2.A.V4.25
M8 100 34 45 2.2.A.V4.24
M8 100 42 30 2.2.A.V4.23
M10 85 Height (H1) 50 2.2.A.V4.22
M10 85 Height (H1) 35 2.2.A.V4.21
M10 85 Height (H1) 25 2.2.A.V4.20
M16 100 34 50 2.2.A.V4.35
M10 100 34 60 2.2.A.V4.28

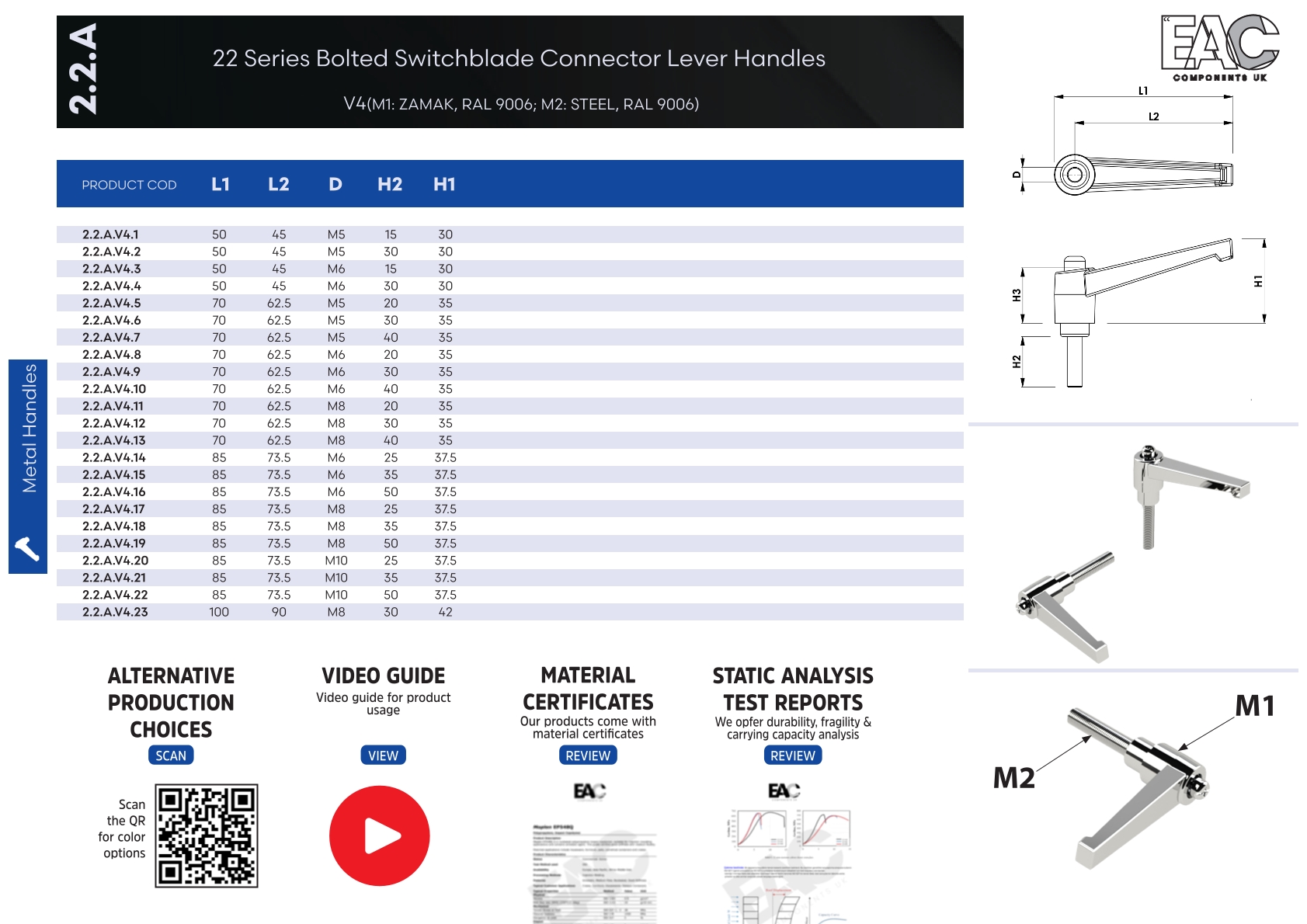

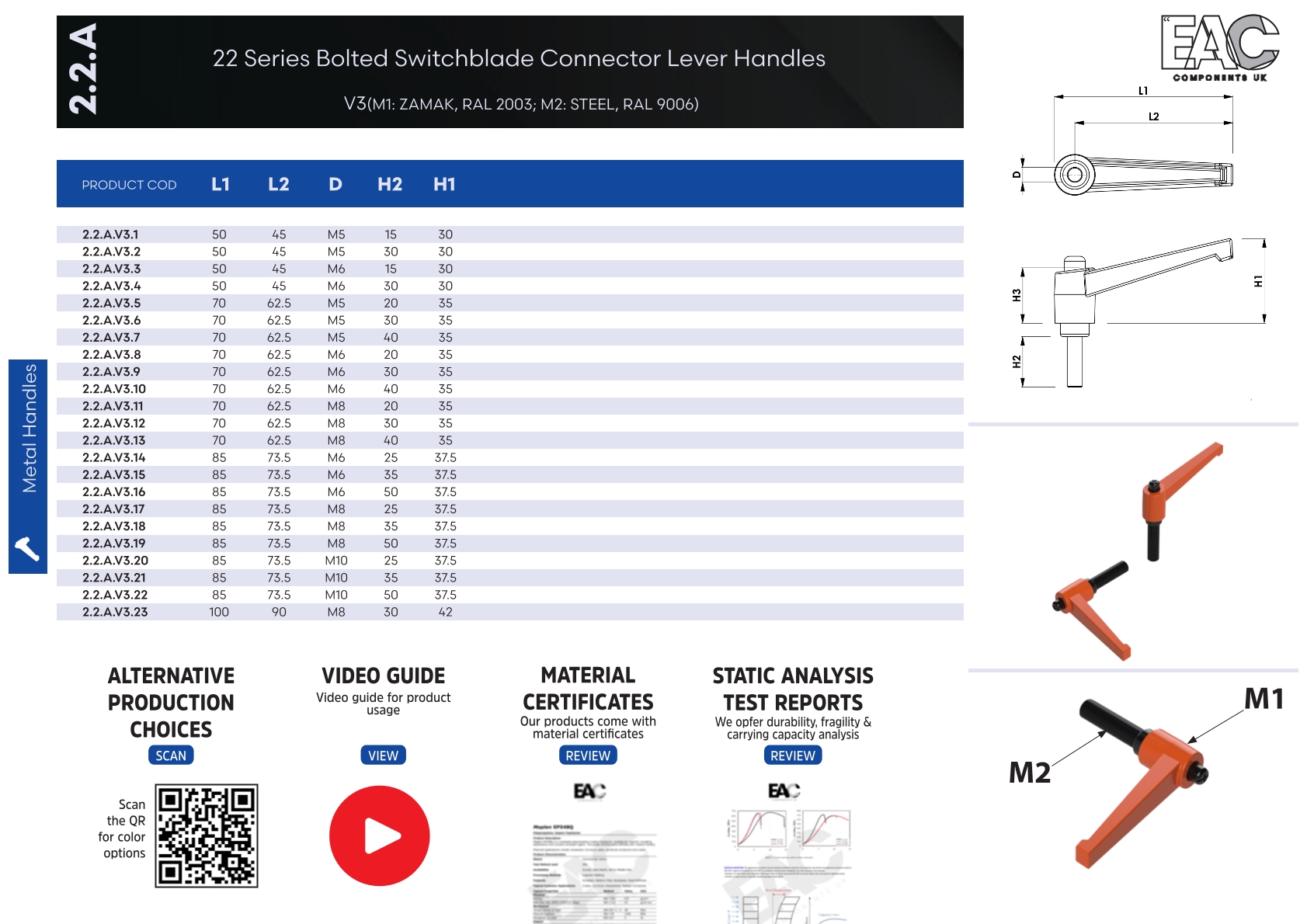

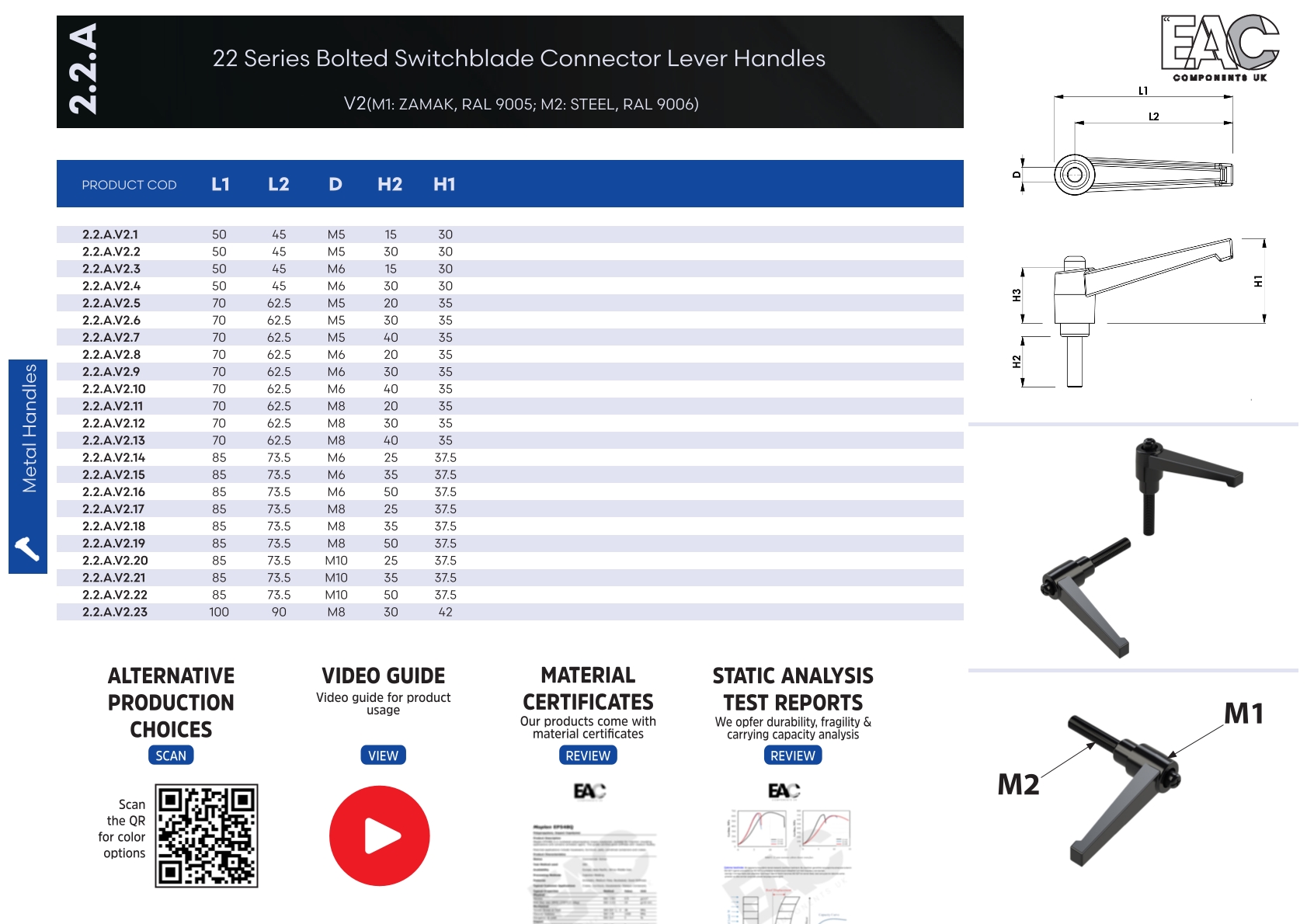

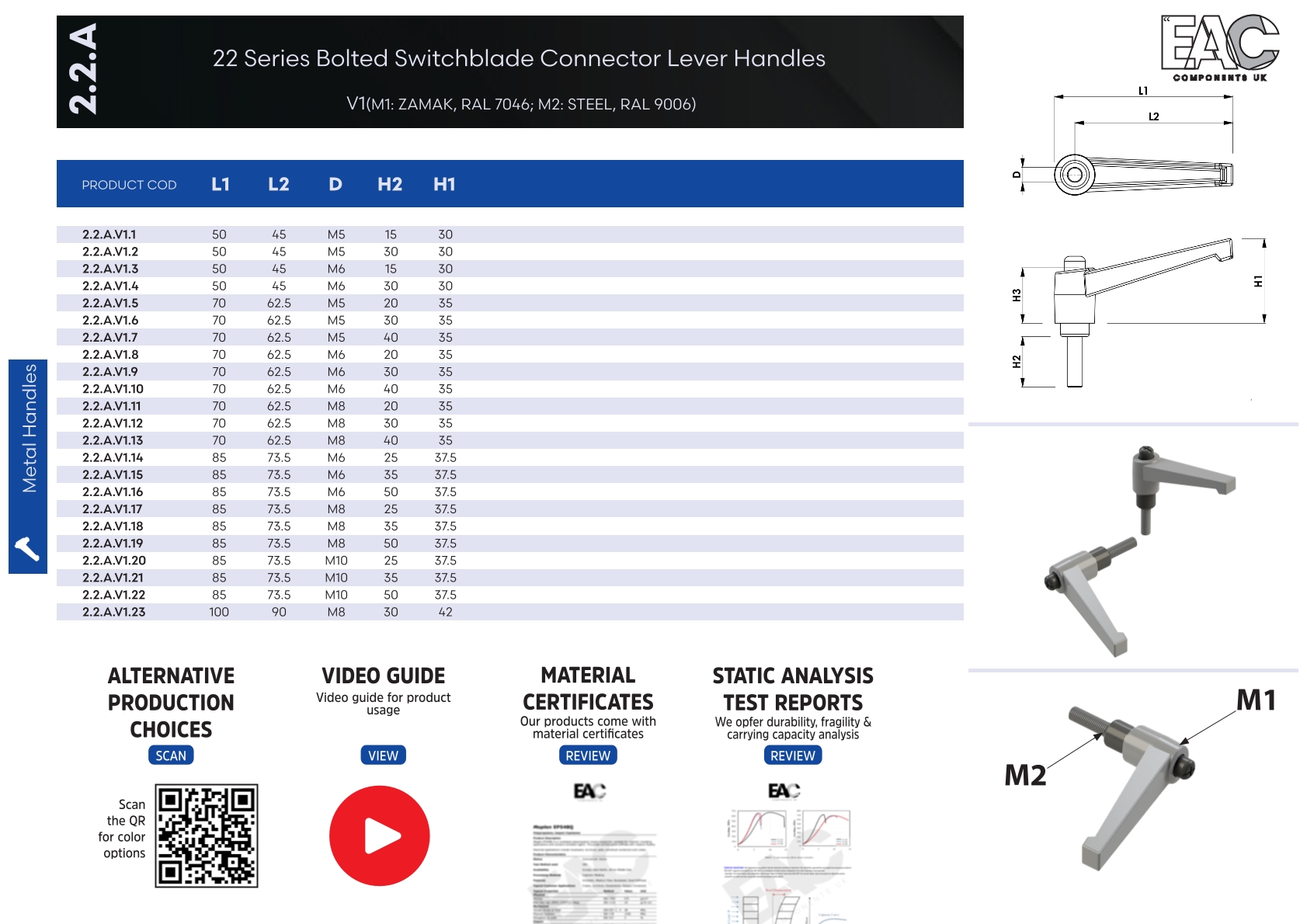

Technical Drawing
