24 Series Bushed Connector Handlewheel Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 2.4
Material and Color Options (V)

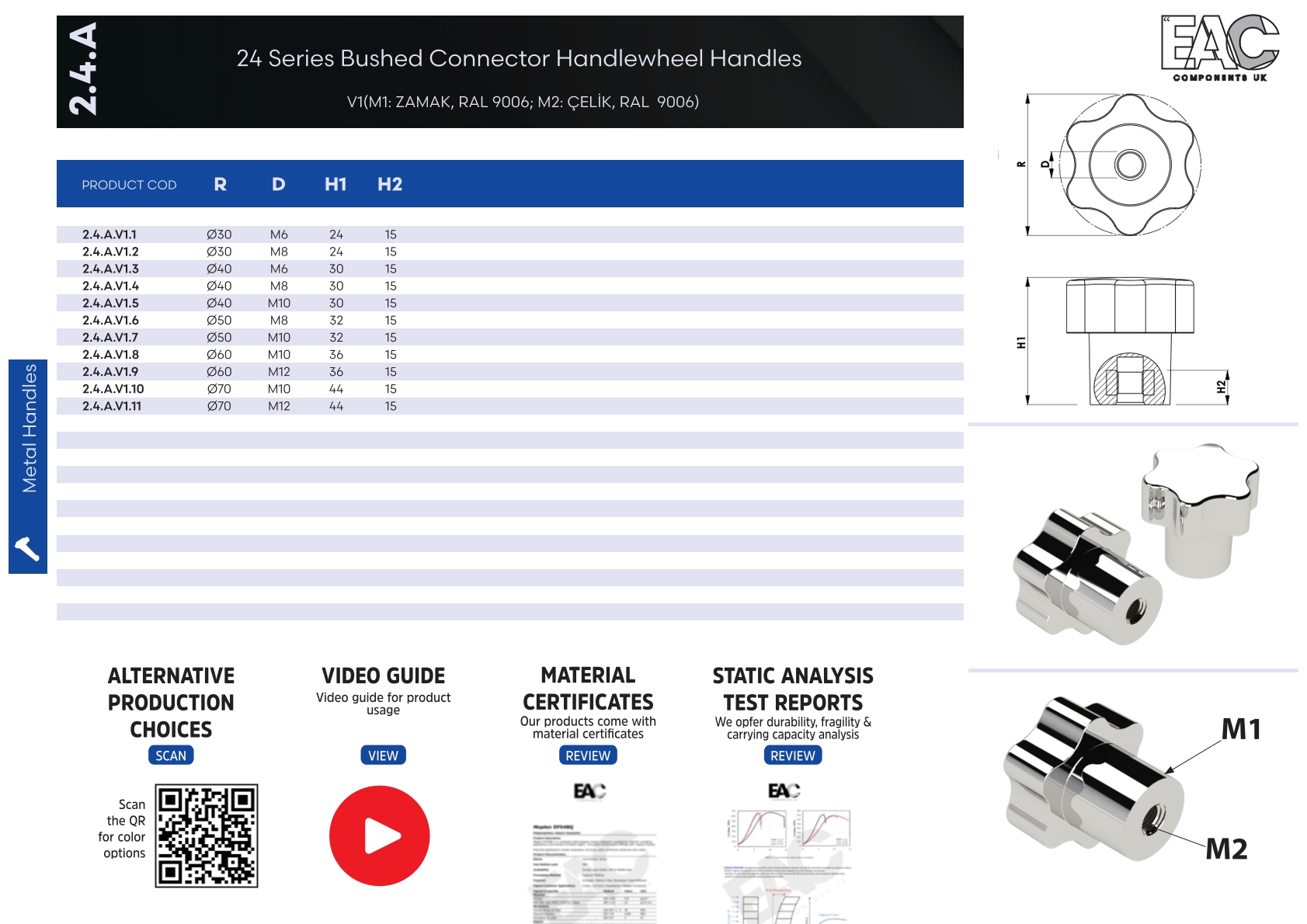

2.4.A.V1 - ZAMAK - RAL 9006
Knob Diameter (Ø) Bush Metric (D)
Ø30 M6 2.4.A.V1.1
Ø30 M8 2.4.A.V1.2
Ø40 M6 2.4.A.V1.3
Ø40 M8 2.4.A.V1.4
Ø40 M10 2.4.A.V1.5
Ø50 M8 2.4.A.V1.6
Ø50 M10 2.4.A.V1.7
Ø60 M10 2.4.A.V1.8
Ø60 M12 2.4.A.V1.9
Ø70 M10 2.4.A.V1.10
Ø70 M12 2.4.A.V1.11

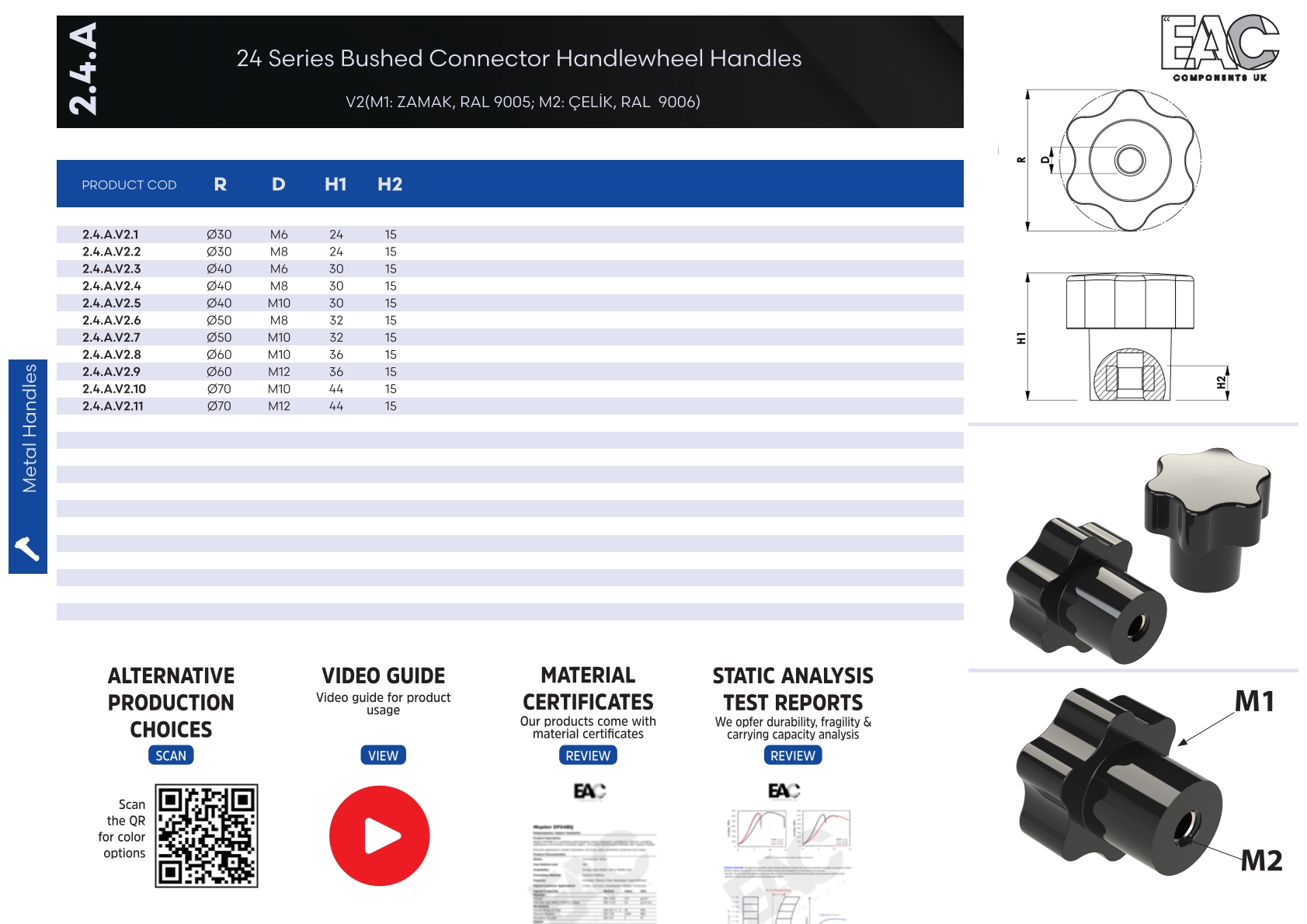

2.4.A.V2 - ZAMAK - RAL 9005
Knob Diameter (Ø) Bush Metric (D)
Ø70 M12 2.4.A.V2.11
Ø70 M10 2.4.A.V2.10
Ø60 M12 2.4.A.V2.9
Ø60 M10 2.4.A.V2.8
Ø50 M10 2.4.A.V2.7
Ø50 M8 2.4.A.V2.6
Ø40 M10 2.4.A.V2.5
Ø40 M8 2.4.A.V2.4
Ø40 M6 2.4.A.V2.3
Ø30 M8 2.4.A.V2.2
Ø30 M6 2.4.A.V2.1

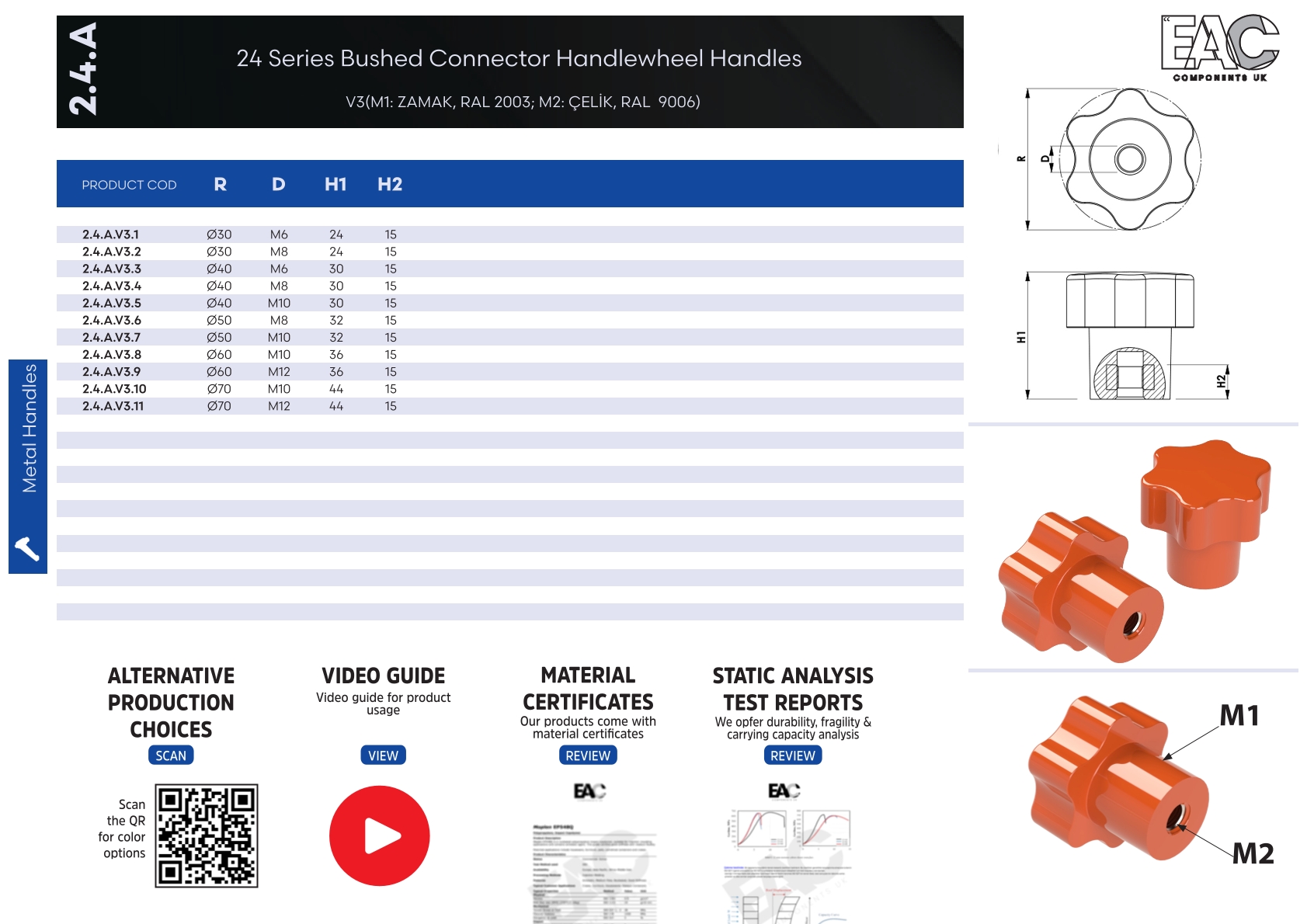

2.4.A.V3 - ZAMAK - RAL 2003
Knob Diameter (Ø) Bush Metric (D)
Ø70 M12 2.4.A.V3.11
Ø70 M10 2.4.A.V3.10
Ø60 M12 2.4.A.V3.9
Ø60 M10 2.4.A.V3.8
Ø50 M10 2.4.A.V3.7
Ø50 M8 2.4.A.V3.6
Ø40 M10 2.4.A.V3.5
Ø40 M8 2.4.A.V3.4
Ø40 M6 2.4.A.V3.3
Ø30 M8 2.4.A.V3.2
Ø30 M6 2.4.A.V3.1

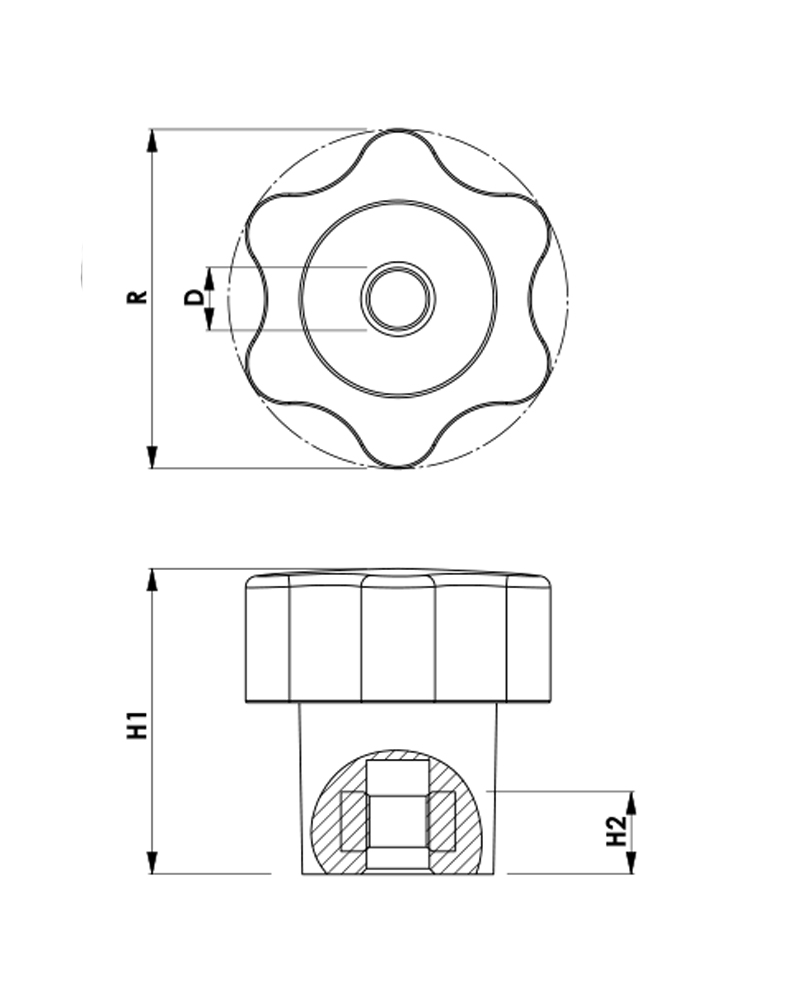

Technical Drawing
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
