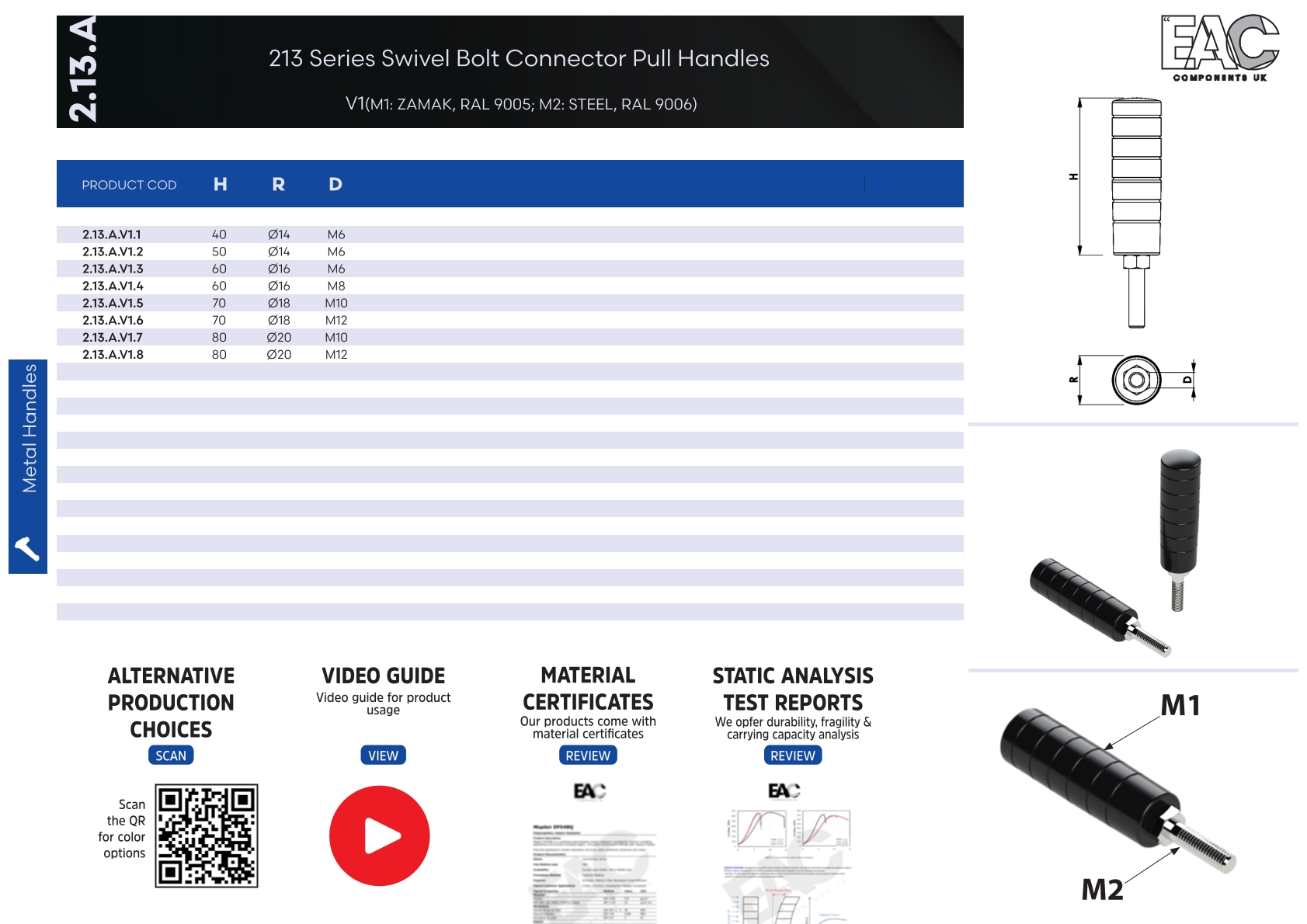

213 Series Swivel Bolt Connector Pull Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 2.13
Material and Color Options (V)
2.13.A.V1 - ZAMAK - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Height (H1) Bolt Length (H)
Ø14 M6 40 20 2.13.A.V1.1
Ø14 M6 50 20 2.13.A.V1.2
Ø16 M6 60 20 2.13.A.V1.3
Ø16 M8 60 20 2.13.A.V1.4
Ø18 M10 70 20 2.13.A.V1.5
Ø18 M12 70 20 2.13.A.V1.6
Ø20 M10 80 20 2.13.A.V1.7
Ø20 M12 80 20 2.13.A.V1.8
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
