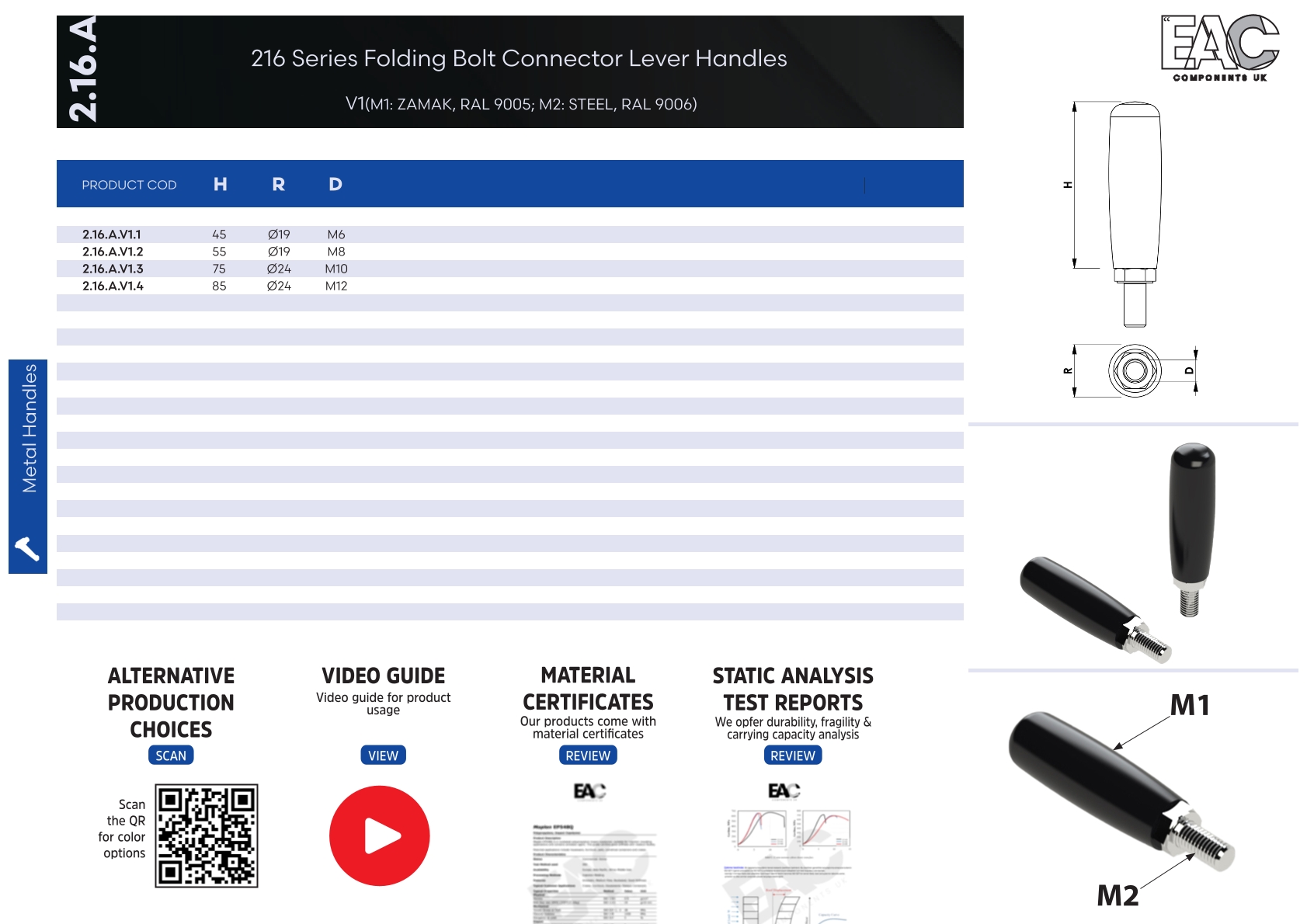

216 Series Folding Bolt Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 2.16
Material and Color Options (V)
2.16.A.V1 - ZAMAK - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Height (H1) Bolt Length (H)
Ø24 M12 85 20 2.16.A.V2.4
Ø24 M10 75 20 2.16.A.V2.3
Ø19 M8 55 20 2.16.A.V2.2
Ø19 M6 45 20 2.16.A.V2.1
Ø19 M6 45 20 2.16.A.V1.1
Ø19 M8 55 20 2.16.A.V1.2
Ø24 M10 75 20 2.16.A.V1.3
Ø24 M12 85 20 2.16.A.V1.4

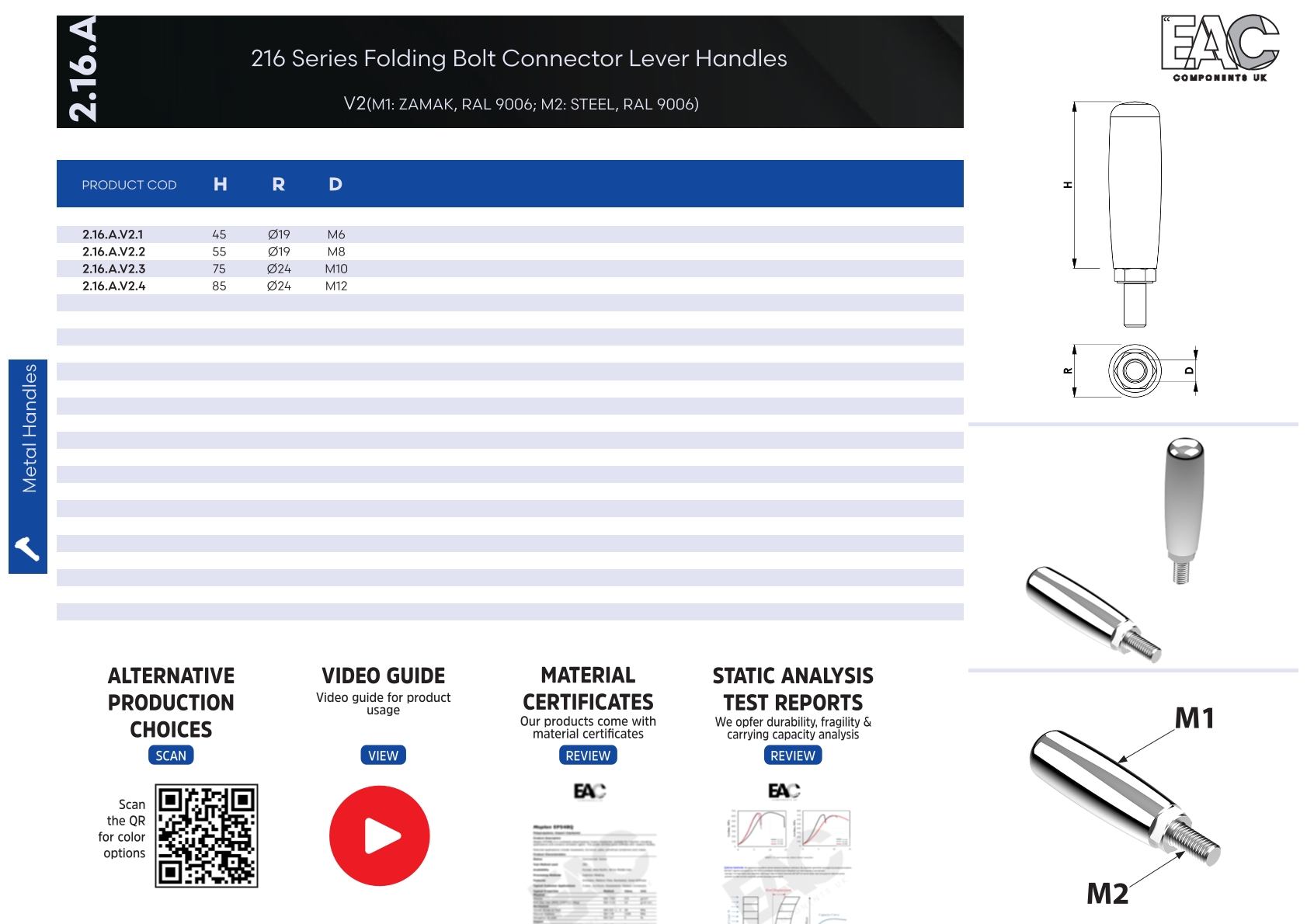

2.16.A.V1 - ZAMAK - RAL 9006
Product Diameter (Ø) Bolt Metric (D) Height (H1) Bolt Length (H)
Ø24 M12 85 20 2.16.A.V2.4
Ø24 M10 75 20 2.16.A.V2.3
Ø19 M8 55 20 2.16.A.V2.2
Ø19 M6 45 20 2.16.A.V2.1
Ø19 M6 45 20 2.16.A.V1.1
Ø19 M8 55 20 2.16.A.V1.2
Ø24 M10 75 20 2.16.A.V1.3
Ø24 M12 85 20 2.16.A.V1.4
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
