218 Series Bolted Switchblade Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 2.18
Material and Color Options (V)

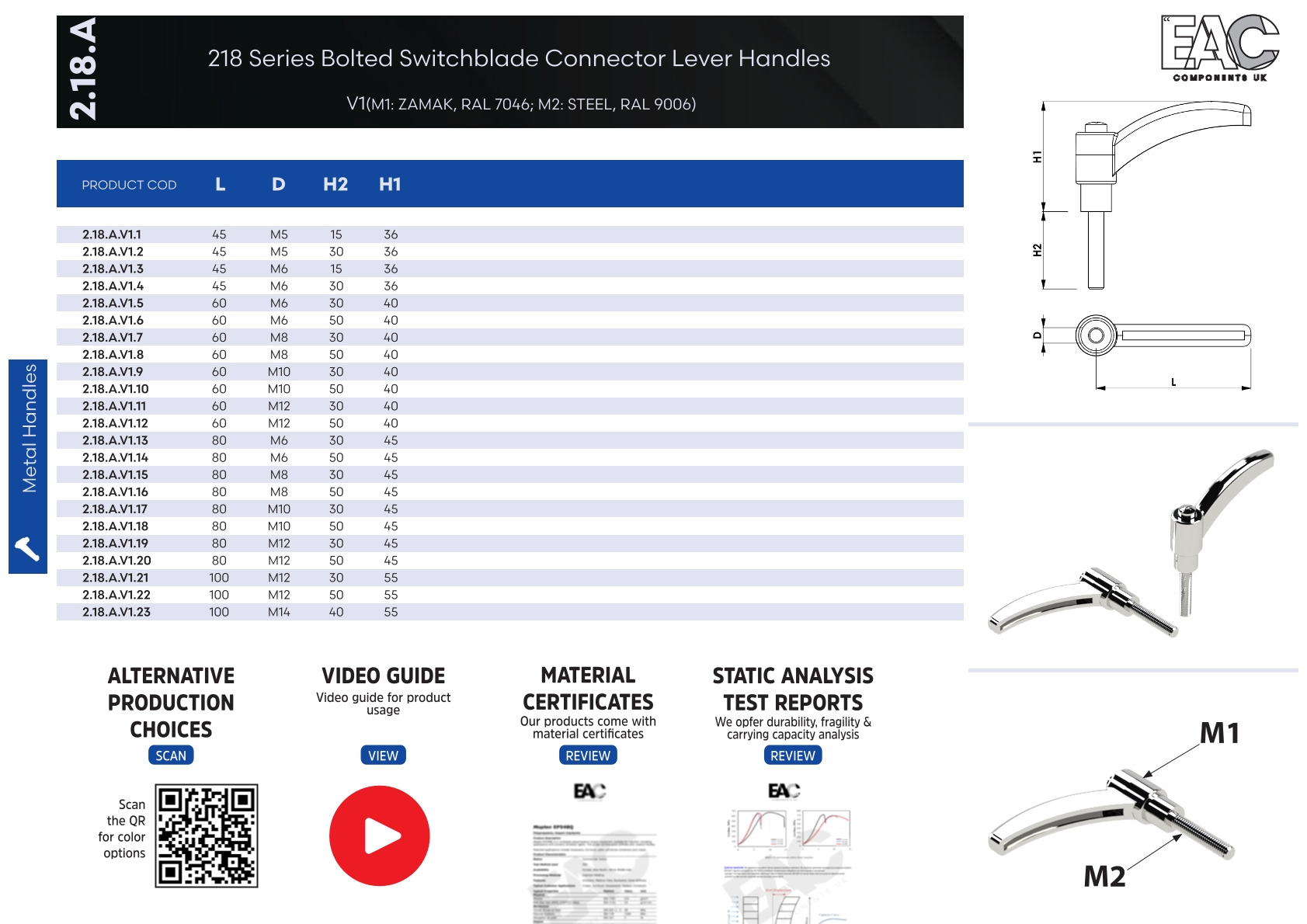

2.18.A.V1 - ZAMAK - RAL 7046
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M5 45 36 15 2.18.A.V1.1
M5 45 36 30 2.18.A.V1.2
M6 45 36 15 2.18.A.V1.3
M6 45 36 30 2.18.A.V1.4
M6 60 40 30 2.18.A.V1.5
M6 60 40 50 2.18.A.V1.6
M8 60 40 30 2.18.A.V1.7
M8 60 40 50 2.18.A.V1.8
M8 60 40 30 2.18.A.V1.9
M10 60 40 50 2.18.A.V1.10
M12 60 40 30 2.18.A.V1.11
M12 60 40 50 2.18.A.V1.12
M6 80 45 30 2.18.A.V1.13
M6 80 45 50 2.18.A.V1.14
M8 80 45 30 2.18.A.V1.15
M8 80 45 50 2.18.A.V1.16
M10 80 45 30 2.18.A.V1.17
M10 80 45 50 2.18.A.V1.18
M12 80 45 30 2.18.A.V1.19
M12 80 45 50 2.18.A.V1.20
M12 100 55 30 2.18.A.V1.21
M12 100 55 50 2.18.A.V1.22
M14 100 55 40 2.18.A.V1.23
M14 100 55 60 2.18.A.V1.24
M16 100 55 40 2.18.A.V1.25
M16 100 55 60 2.18.A.V1.26
2.18.A.V2 - ZAMAK - RAL 9006
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 80 45 50 2.18.A.V2.14
M5 45 36 30 2.18.A.V2.2
M6 45 36 15 2.18.A.V2.3
M6 45 36 30 2.18.A.V2.4
M6 60 40 30 2.18.A.V2.5
M6 60 40 50 2.18.A.V2.6
M8 60 40 30 2.18.A.V2.7
M8 60 40 50 2.18.A.V2.8
M8 60 40 30 2.18.A.V2.9
M10 60 40 50 2.18.A.V2.10
M12 60 40 30 2.18.A.V2.11
M5 45 36 15 2.18.A.V2.1
M6 80 45 30 2.18.A.V2.13
M16 100 55 60 2.18.A.V2.26
M8 80 45 30 2.18.A.V2.15
M8 80 45 50 2.18.A.V2.16
M10 80 45 30 2.18.A.V2.17
M10 80 45 50 2.18.A.V2.18
M12 80 45 30 2.18.A.V2.19
M12 80 45 50 2.18.A.V2.20
M12 100 55 30 2.18.A.V2.21
M12 100 55 50 2.18.A.V2.22
M14 100 55 40 2.18.A.V2.23
M14 100 55 60 2.18.A.V2.24
M16 100 55 40 2.18.A.V2.25
M12 60 40 50 2.18.A.V2.12
2.18.A.V3 - ZAMAK - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 80 45 50 2.18.A.V3.14
M5 45 36 30 2.18.A.V3.2
M6 45 36 15 2.18.A.V3.3
M6 45 36 30 2.18.A.V3.4
M6 60 40 30 2.18.A.V3.5
M6 60 40 50 2.18.A.V3.6
M8 60 40 30 2.18.A.V3.7
M8 60 40 50 2.18.A.V3.8
M8 60 40 30 2.18.A.V3.9
M10 60 40 50 2.18.A.V3.10
M12 60 40 30 2.18.A.V3.11
M5 45 36 15 2.18.A.V3.1
M6 80 45 30 2.18.A.V3.13
M16 100 55 60 2.18.A.V3.26
M8 80 45 30 2.18.A.V3.15
M8 80 45 50 2.18.A.V3.16
M10 80 45 30 2.18.A.V3.17
M10 80 45 50 2.18.A.V3.18
M12 80 45 30 2.18.A.V3.19
M12 80 45 50 2.18.A.V3.20
M12 100 55 30 2.18.A.V3.21
M12 100 55 50 2.18.A.V3.22
M14 100 55 40 2.18.A.V3.23
M14 100 55 60 2.18.A.V3.24
M16 100 55 40 2.18.A.V3.25
M12 60 40 50 2.18.A.V3.12
Technical Drawing
Technical Drawing
3D Modelling
3D Modelling
