712 Series Nut Connection Box Profile Ball Joint Tops

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

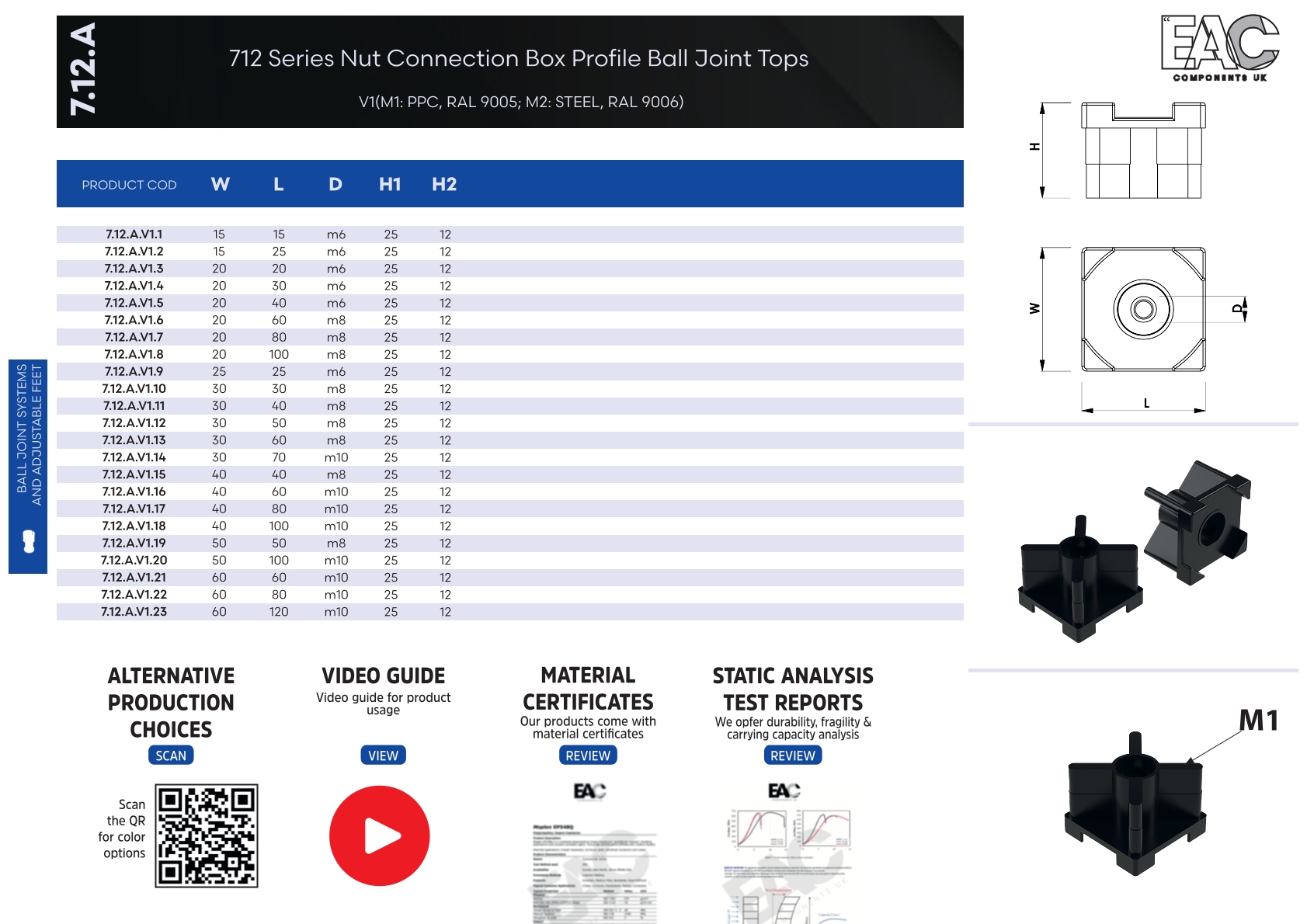

Catalogue Code: 7.12
Material and Color Options (V)
7.12.A.V1 - PPC - RAL 9005
Width (W) Bush Metric (D) Length (L)
15 M6 15 7.12.A.V1.1
15 M6 25 7.12.A.V1.2
20 M6 20 7.12.A.V1.3
20 M6 30 7.12.A.V1.4
20 M6 40 7.12.A.V1.5
20 M8 60 7.12.A.V1.6
20 M8 80 7.12.A.V1.7
20 M8 100 7.12.A.V1.8
25 M6 25 7.12.A.V1.9
30 M8 30 7.12.A.V1.10
30 M8 40 7.12.A.V1.11
30 M8 50 7.12.A.V1.12
30 M8 60 7.12.A.V1.13
30 M10 70 7.12.A.V1.14
40 M8 40 7.12.A.V1.15
40 M10 60 7.12.A.V1.16
40 M10 80 7.12.A.V1.17
40 M10 100 7.12.A.V1.18
50 M8 50 7.12.A.V1.19
50 M10 100 7.12.A.V1.20
60 M10 60 7.12.A.V1.21
60 M10 80 7.12.A.V1.22
60 M10 120 7.12.A.V1.23

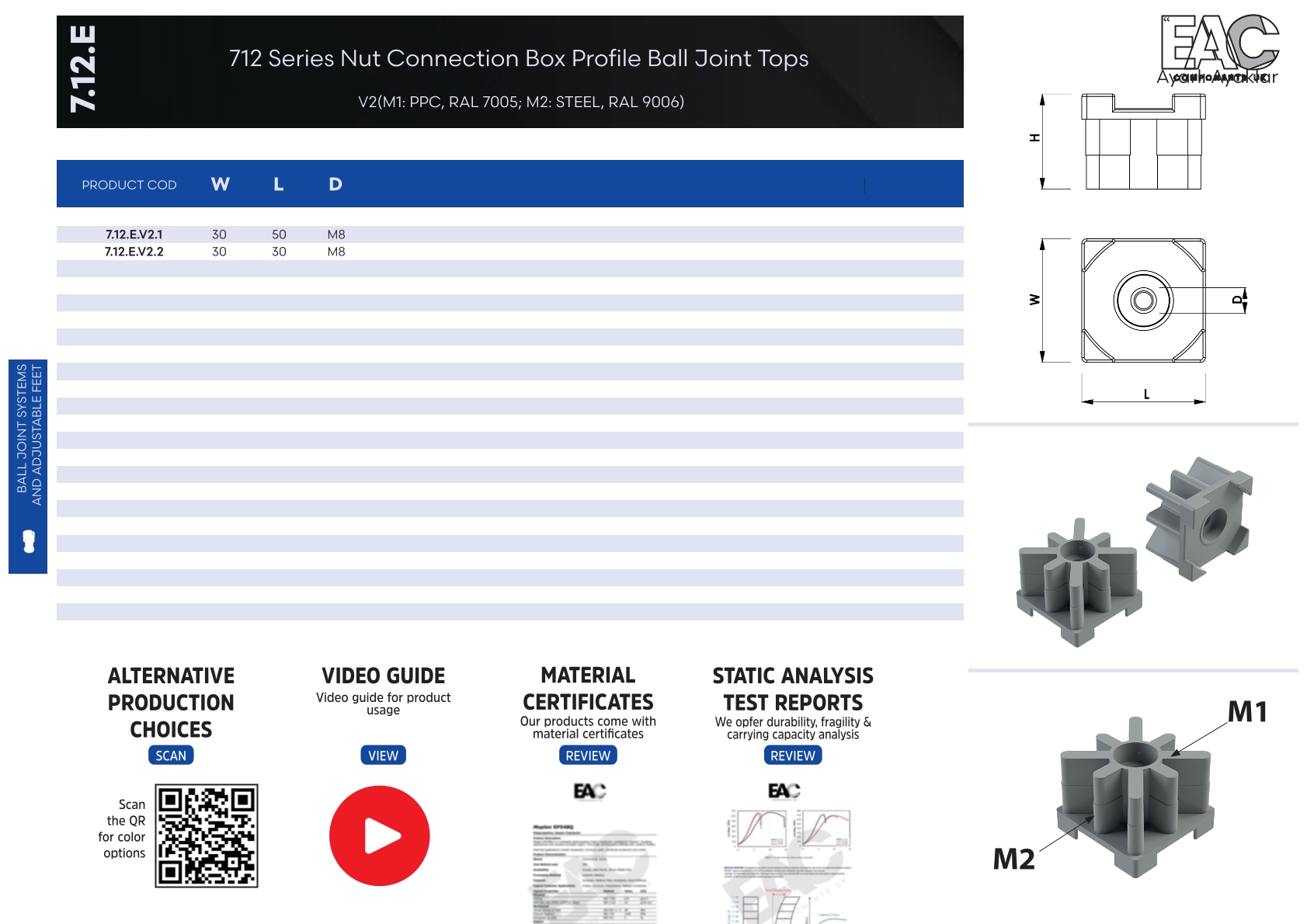

7.12.A.V2 - PPC - RAL 7005
Width (W) Bush Metric (D) Length (L)
30 M8 30 7.12.E.V2.2
30 M8 50 7.12.E.V2.1
30 M8 50 7.12.E.V1.1
30 M8 30 7.12.E.V1.2

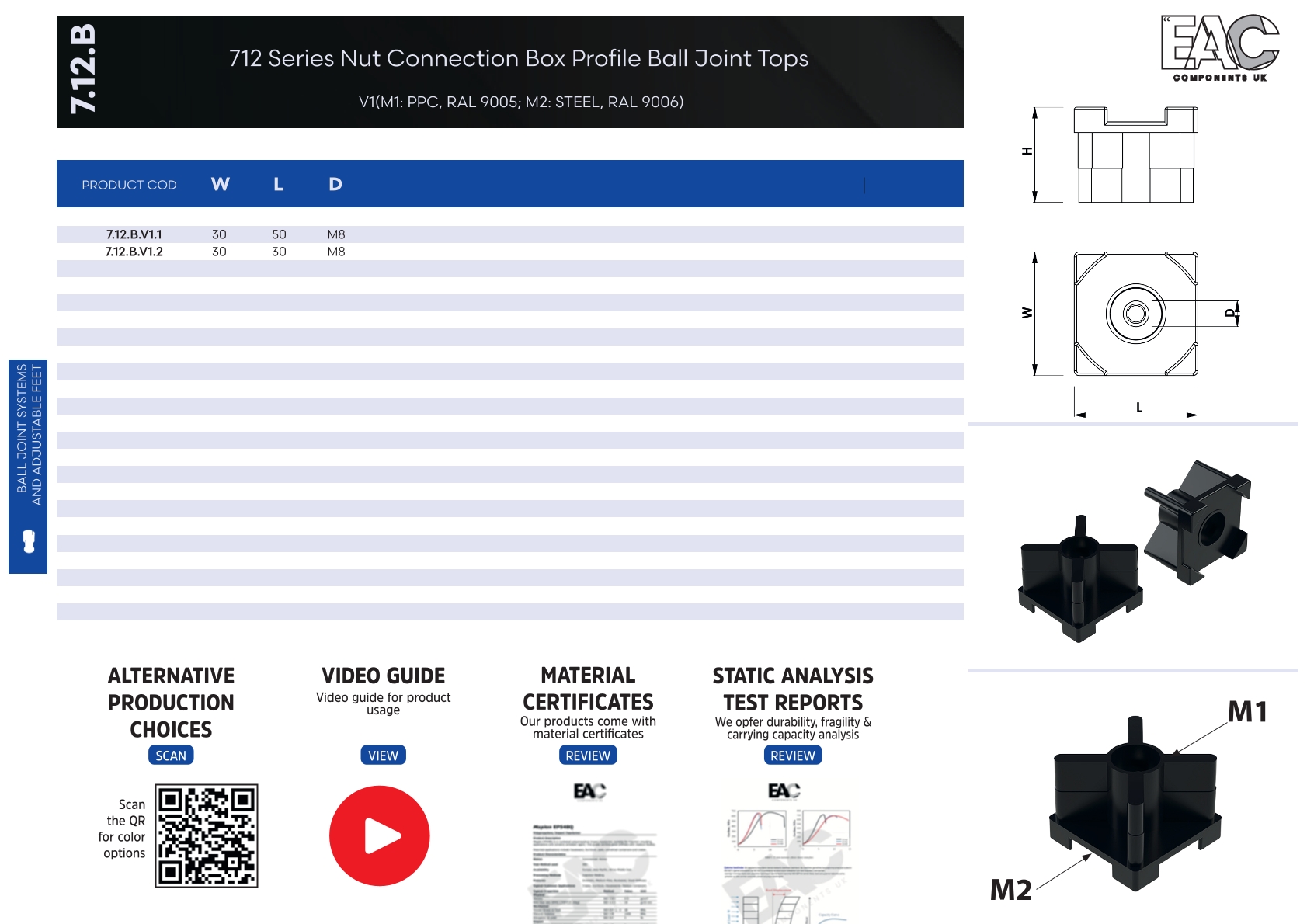

7.12.B.V1 - PPC - RAL 9005
Width (W) Bush Metric (D) Length (L)
30 M8 50 7.12.B.V1.1
30 M8 30 7.12.B.V1.2

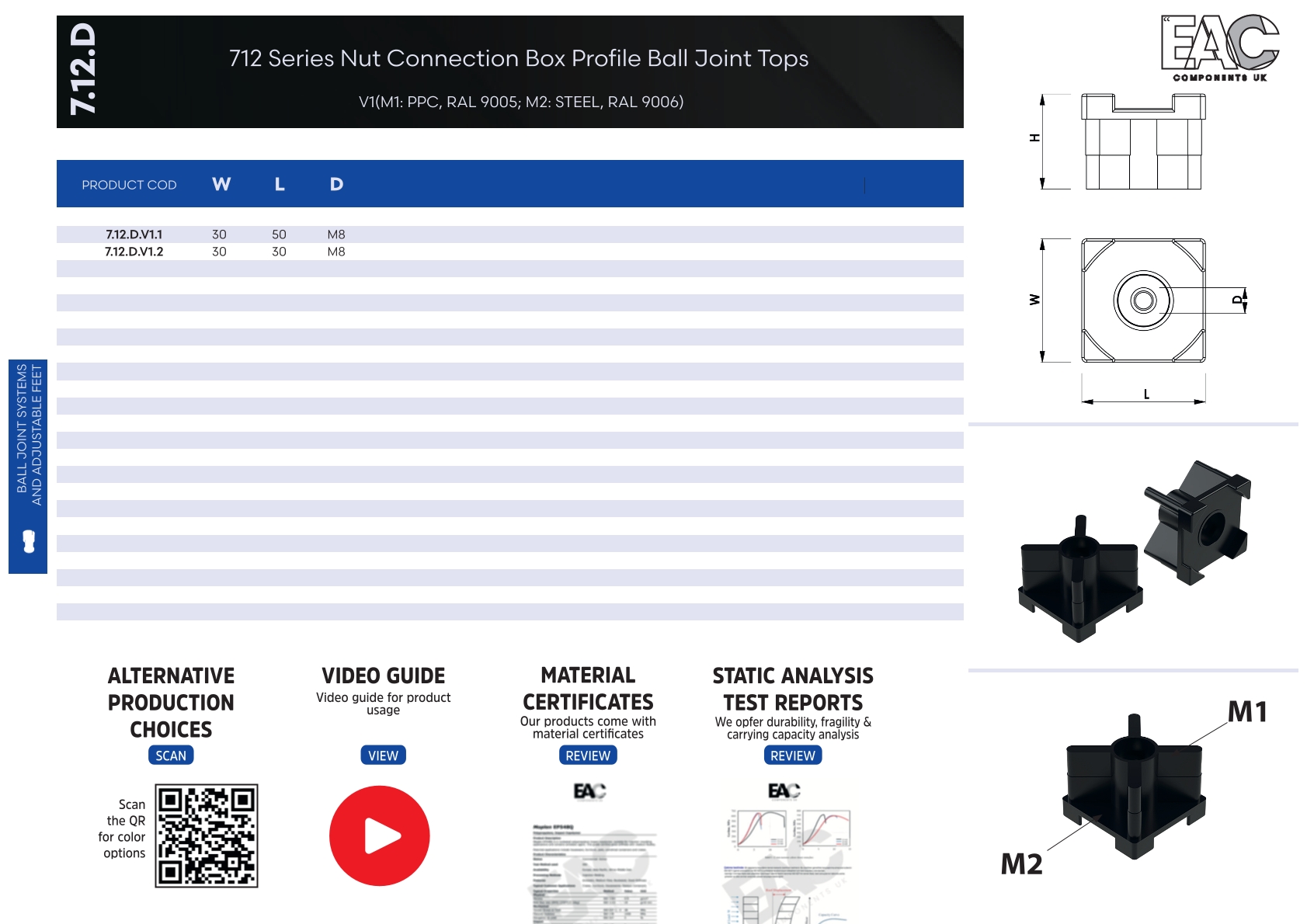

7.12.D.V1 - PPC - RAL 9005
Width (W) Bush Metric (D) Length (L)
30 M8 50 7.12.D.V1.1
30 M8 30 7.12.D.V1.2
7.12.D.V2 - PPC - RAL 7005
Width (W) Bush Metric (D) Length (L)
30 M8 30 7.12.D.V2.2
30 M8 50 7.12.D.V2.1

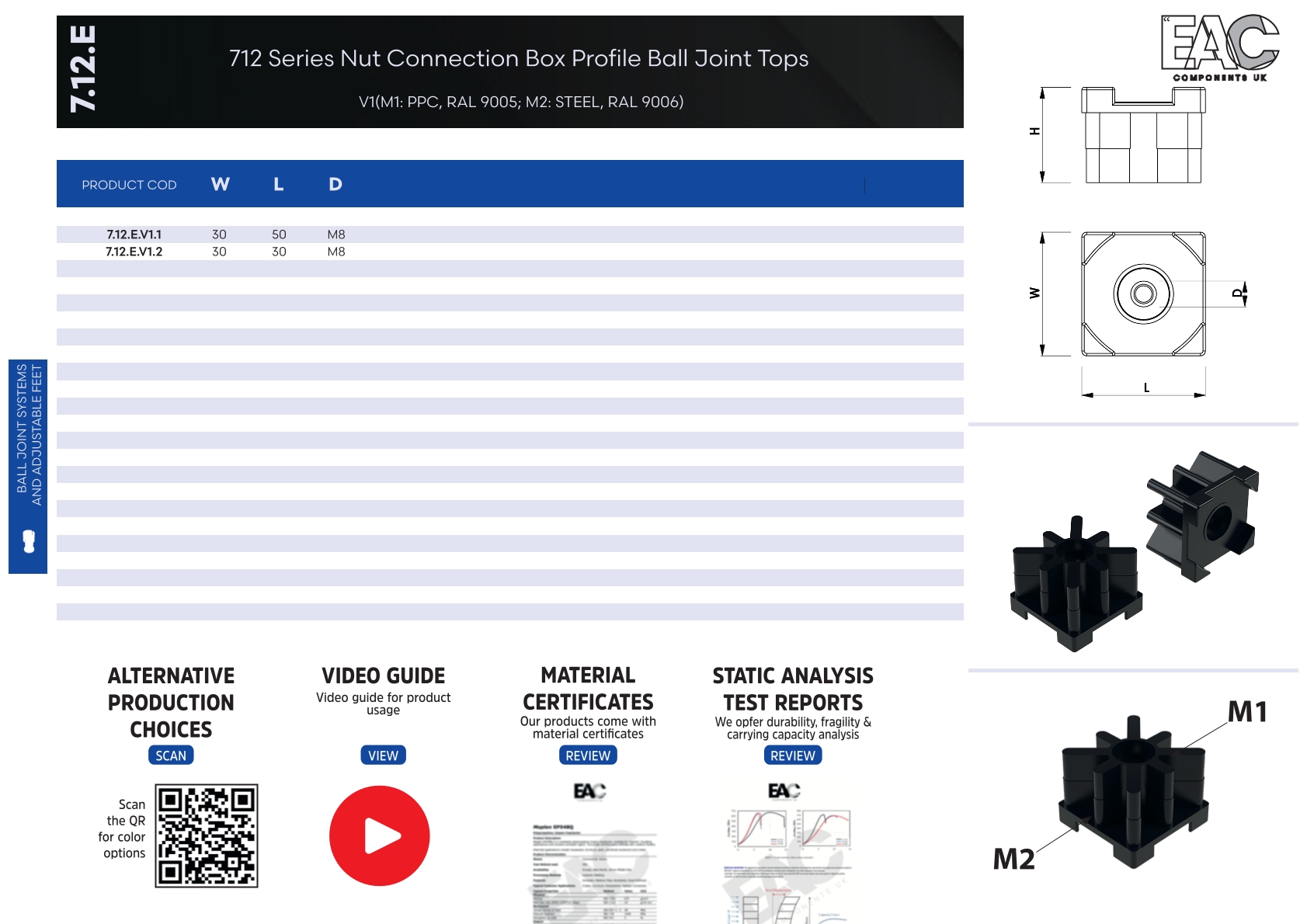

7.12.E.V1 - PPC - RAL 9005
Width (W) Bush Metric (D) Length (L)
30 M8 30 7.12.E.V2.2
30 M8 50 7.12.E.V2.1
30 M8 50 7.12.E.V1.1
30 M8 30 7.12.E.V1.2
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
