75 Series Nut Connection Pipe Profile Ball Joint Tops

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 7.5

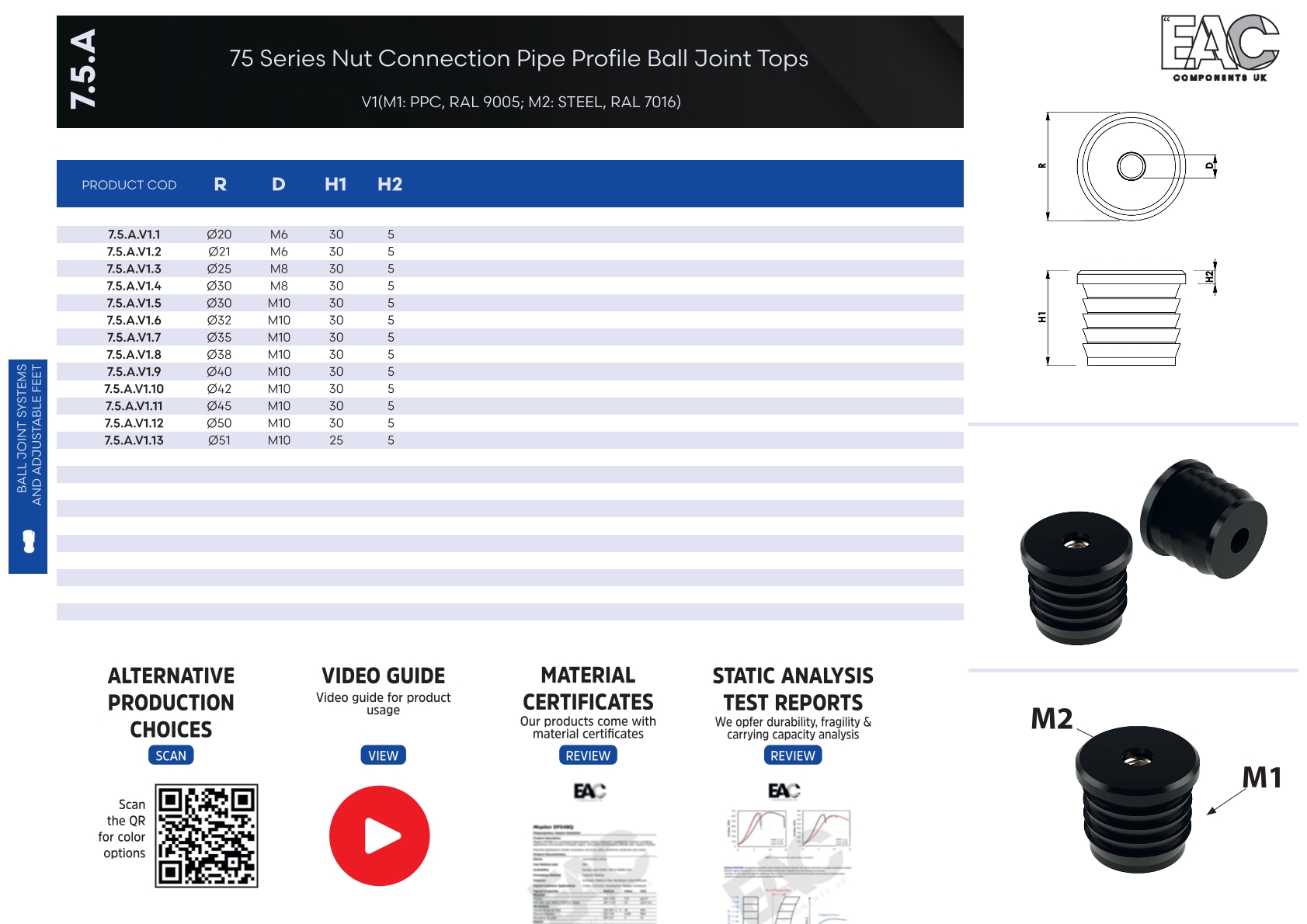

Material and Color Options (V)
7.5.A.V1 - PPC - RAL 9005
Dimension (Ø) Bush Metric (D) Profile Thickness (PT)
Ø20 M6 0,5 - 1,5 7.5.A.V1.1
Ø21 M6 0,5 - 1,5 7.5.A.V1.2
Ø25 M8 0,5 - 1,5 7.5.A.V1.3
Ø30 M8 0,5 - 1,5 7.5.A.V1.4
Ø30 M10 0,5 - 1,5 7.5.A.V1.5
Ø32 M10 0,5 - 1,5 7.5.A.V1.6
Ø35 M10 1,0 - 2,0 7.5.A.V1.7
Ø38 M10 1,0 - 2,0 7.5.A.V1.8
Ø40 M10 1,0 - 2,0 7.5.A.V1.9
Ø42 M10 1,0 - 2,0 7.5.A.V1.10
Ø45 M10 1,0 - 2,0 7.5.A.V1.11
Ø50 M10 1,0 - 2,0 7.5.A.V1.12
Ø51 M10 1,0 - 2,0 7.5.A.V1.13

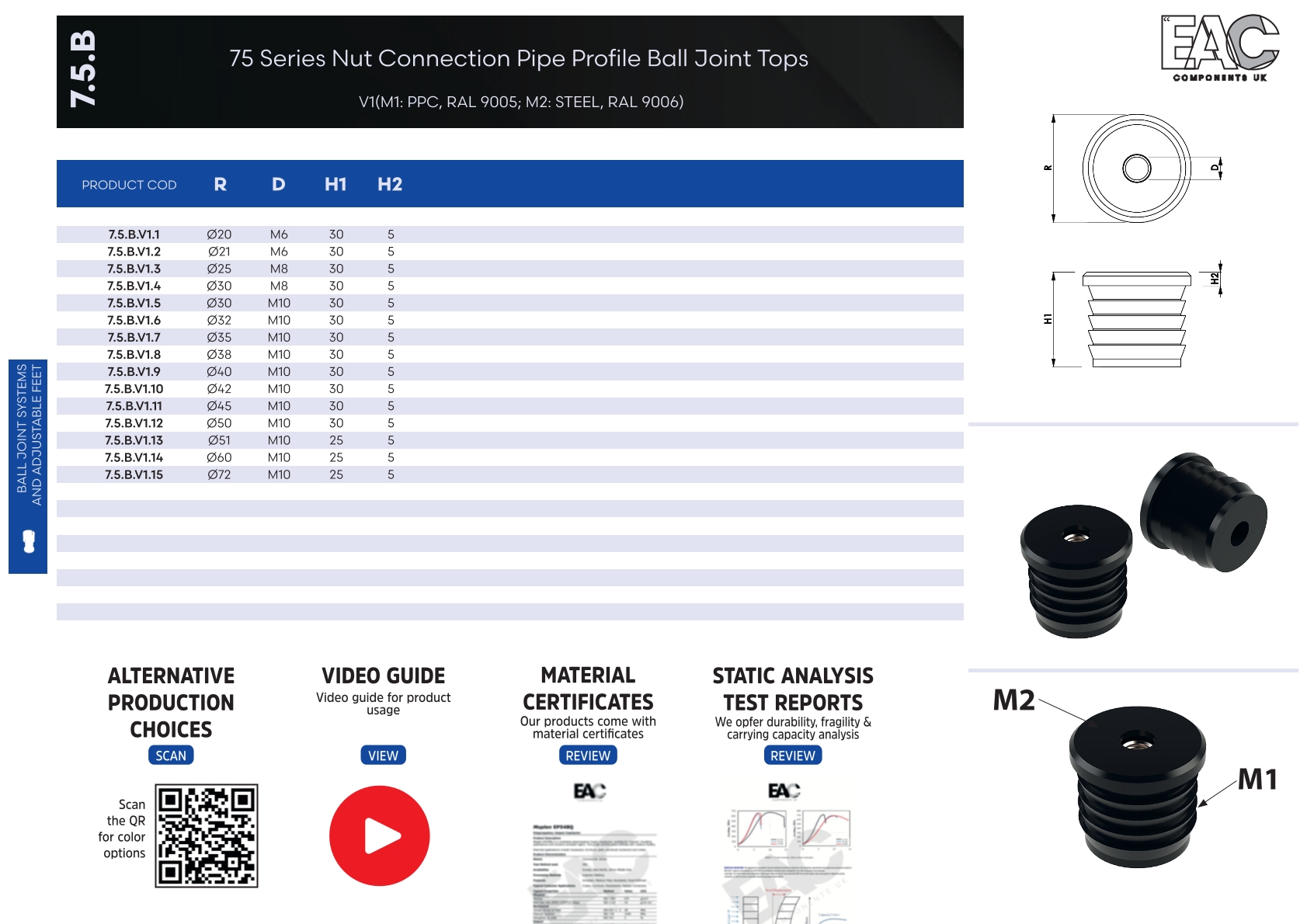

7.5.B.V1 - PPC - RAL 9005
Dimension (Ø) Bush Metric (D) Profile Thickness (PT)
Ø20 M6 0,5 - 1,5 7.5.B.V1.1
Ø21 M6 0,5 - 1,5 7.5.B.V1.2
Ø25 M8 0,5 - 1,5 7.5.B.V1.3
Ø30 M8 0,5 - 1,5 7.5.B.V1.4
Ø30 M10 0,5 - 1,5 7.5.B.V1.5
Ø32 M10 0,5 - 1,5 7.5.B.V1.6
Ø35 M10 1,0 - 2,0 7.5.B.V1.7
Ø38 M10 1,0 - 2,0 7.5.B.V1.8
Ø40 M10 1,0 - 2,0 7.5.B.V1.9
Ø42 M10 1,0 - 2,0 7.5.B.V1.10
Ø45 M10 1,0 - 2,0 7.5.B.V1.11
Ø50 M10 1,0 - 2,0 7.5.B.V1.12
Ø51 M10 1,0 - 2,0 7.5.B.V1.13
Ø60 M10 1,0 - 2,0 7.5.B.V1.14
Ø72 M10 1,0 - 2,0 7.5.B.V1.15
7.5.E.V1 - PPC - RAL 9005
Dimension (Ø) Bush Metric (D) Profile Thickness (PT)
Ø25 M8 1,0 - 2,0 7.5.E.V1.1
Ø25 M8 1,0 - 2,0 7.5.E.V1.2

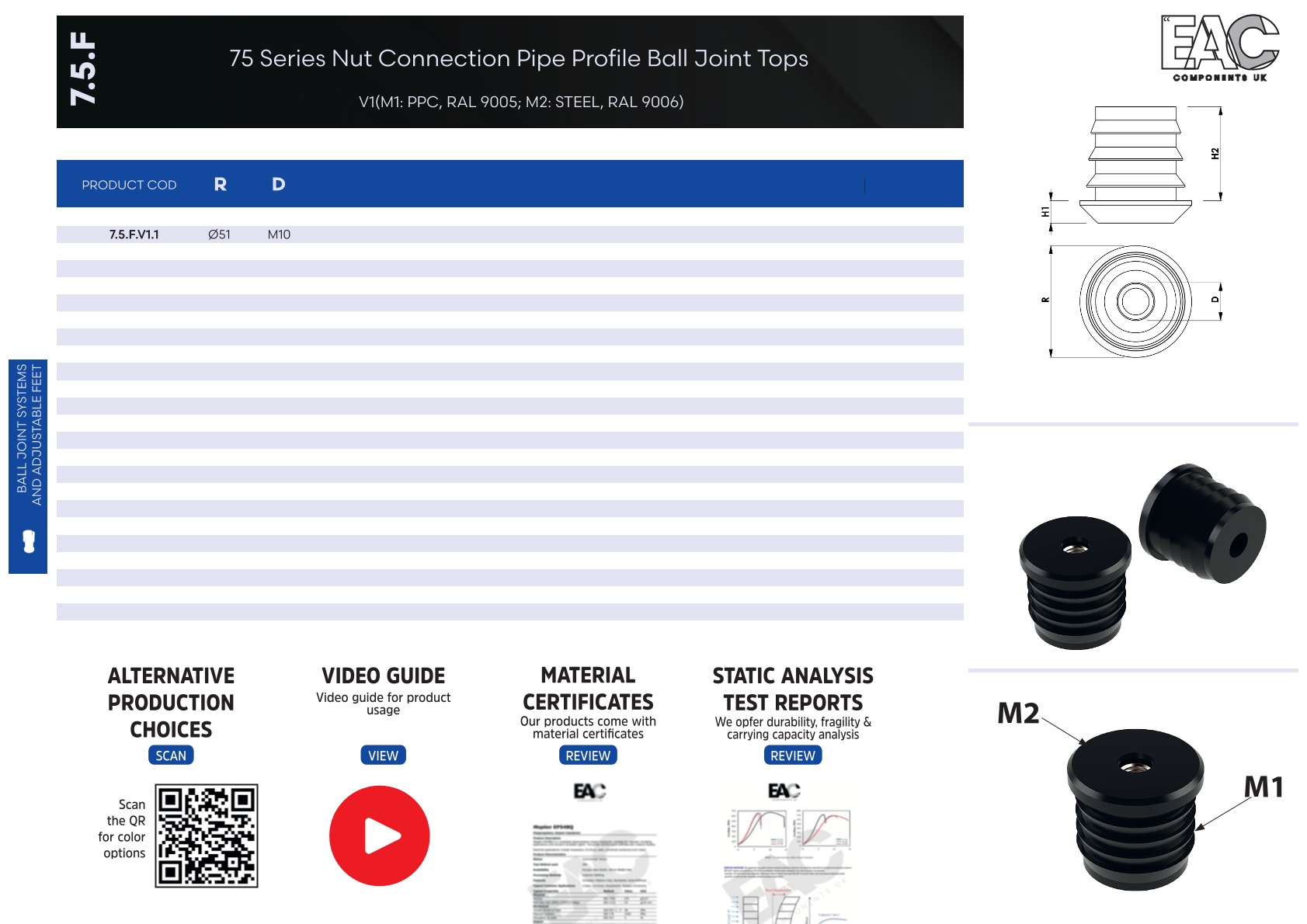

7.5.F.V1 - PPC - RAL 9005
Dimension (Ø) Bush Metric (D) Profile Thickness (PT)
Ø51 M10 1,0 - 2,0 7.5.F.V1.1

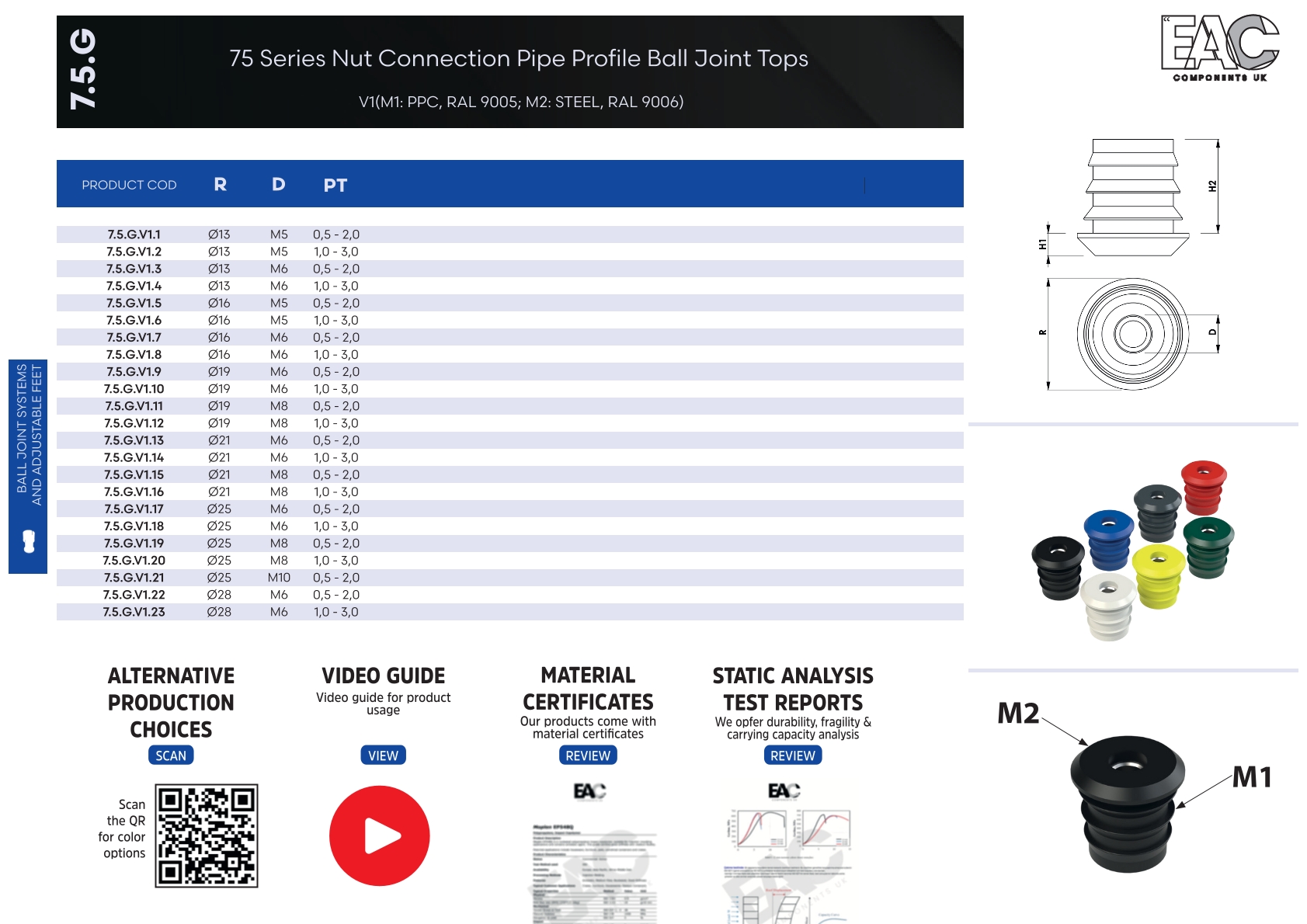

7.5.G.V1 - PPC - RAL 9005
Dimension (Ø) Bush Metric (D) Profile Thickness (PT)
Ø13 M5 0,5 - 2,0 7.5.G.V1.1
Ø13 M5 1,0 - 3,0 7.5.G.V1.2
Ø13 M6 0,5 - 2,0 7.5.G.V1.3
Ø13 M6 1,0 - 3,0 7.5.G.V1.4
Ø16 M5 0,5 - 2,0 7.5.G.V1.5
Ø16 M5 1,0 - 3,0 7.5.G.V1.6
Ø16 M6 0,5 - 2,0 7.5.G.V1.7
Ø16 M6 1,0 - 3,0 7.5.G.V1.8
Ø19 M6 0,5 - 2,0 7.5.G.V1.9
Ø19 M6 1,0 - 3,0 7.5.G.V1.10
Ø19 M8 0,5 - 2,0 7.5.G.V1.11
Ø19 M8 1,0 - 3,0 7.5.G.V1.12
Ø21 M6 0,5 - 2,0 7.5.G.V1.13
Ø21 M6 1,0 - 3,0 7.5.G.V1.14
Ø21 M8 0,5 - 2,0 7.5.G.V1.15
Ø21 M8 1,0 - 3,0 7.5.G.V1.16
Ø25 M6 0,5 - 2,0 7.5.G.V1.17
Ø25 M6 1,0 - 3,0 7.5.G.V1.18
Ø25 M8 0,5 - 2,0 7.5.G.V1.19
Ø25 M8 1,0 - 3,0 7.5.G.V1.20
Ø25 M10 0,5 - 2,0 7.5.G.V1.21
Ø28 M6 0,5 - 2,0 7.5.G.V1.22
Ø28 M6 1,0 - 3,0 7.5.G.V1.23
Ø28 M8 0,5 - 2,0 7.5.G.V1.24
Ø28 M8 1,0 - 3,0 7.5.G.V1.25
Ø30 M6 0,5 - 2,0 7.5.G.V1.26
Ø32 M8 0,5 - 2,0 7.5.G.V1.27
Ø32 M8 1,0 - 3,0 7.5.G.V1.28
Ø32 M8 3,0 - 5,0 7.5.G.V1.29
Ø32 M10 0,5 - 2,0 7.5.G.V1.30
Ø32 M10 1,0 - 3,0 7.5.G.V1.31
Ø32 M10 3,0 - 5,0 7.5.G.V1.32
Ø38 M8 1,0 - 3,0 7.5.G.V1.33
Ø38 M8 3,0 - 5,0 7.5.G.V1.34
Ø38 M10 1,0 - 3,0 7.5.G.V1.35
Ø38 M10 3,0 - 5,0 7.5.G.V1.36
Ø42 M8 1,0 - 3,0 7.5.G.V1.37
Ø42 M8 3,0 - 5,0 7.5.G.V1.38
Ø42 M10 1,0 - 3,0 7.5.G.V1.39
Ø42 M10 3,0 - 5,0 7.5.G.V1.40
Ø45 M8 1,0 - 3,0 7.5.G.V1.41
Ø45 M8 3,0 - 5,0 7.5.G.V1.42
Ø45 M10 1,0 - 3,0 7.5.G.V1.43
Ø45 M10 3,0 - 5,0 7.5.G.V1.44
Ø48 M8 1,0 - 3,0 7.5.G.V1.45
Ø48 M8 3,0 - 5,0 7.5.G.V1.46
Ø48 M10 1,0 - 3,0 7.5.G.V1.47
Ø48 M10 3,0 - 5,0 7.5.G.V1.48
Ø51 M8 1,0 - 3,0 7.5.G.V1.49
Ø51 M8 3,0 - 5,0 7.5.G.V1.50
Ø51 M10 1,0 - 3,0 7.5.G.V1.51
Ø51 M10 3,0 - 5,0 7.5.G.V1.52
Ø60 M10 1,0 - 3,0 7.5.G.V1.53
Ø60 M10 3,0 - 5,0 7.5.G.V1.54
Ø60 M12 1,0 - 3,0 7.5.G.V1.55
Ø60 M12 3,0 - 5,0 7.5.G.V1.56
Ø76 M10 1,0 - 3,0 7.5.G.V1.57
Ø76 M10 3,0 - 5,0 7.5.G.V1.58
Ø76 M12 1,0 - 3,0 7.5.G.V1.59
Ø76 M12 3,0 - 5,0 7.5.G.V1.60
Ø90 M10 1,0 - 3,0 7.5.G.V1.61
Ø90 M10 3,0 - 5,0 7.5.G.V1.62
Ø90 M12 1,0 - 3,0 7.5.G.V1.63
Ø90 M12 3,0 - 5,0 7.5.G.V1.64
Technical Drawing
