74 Series Nut Connection Pipe Profile Ball Joint Tops

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 7.4
Material and Color Options (V)

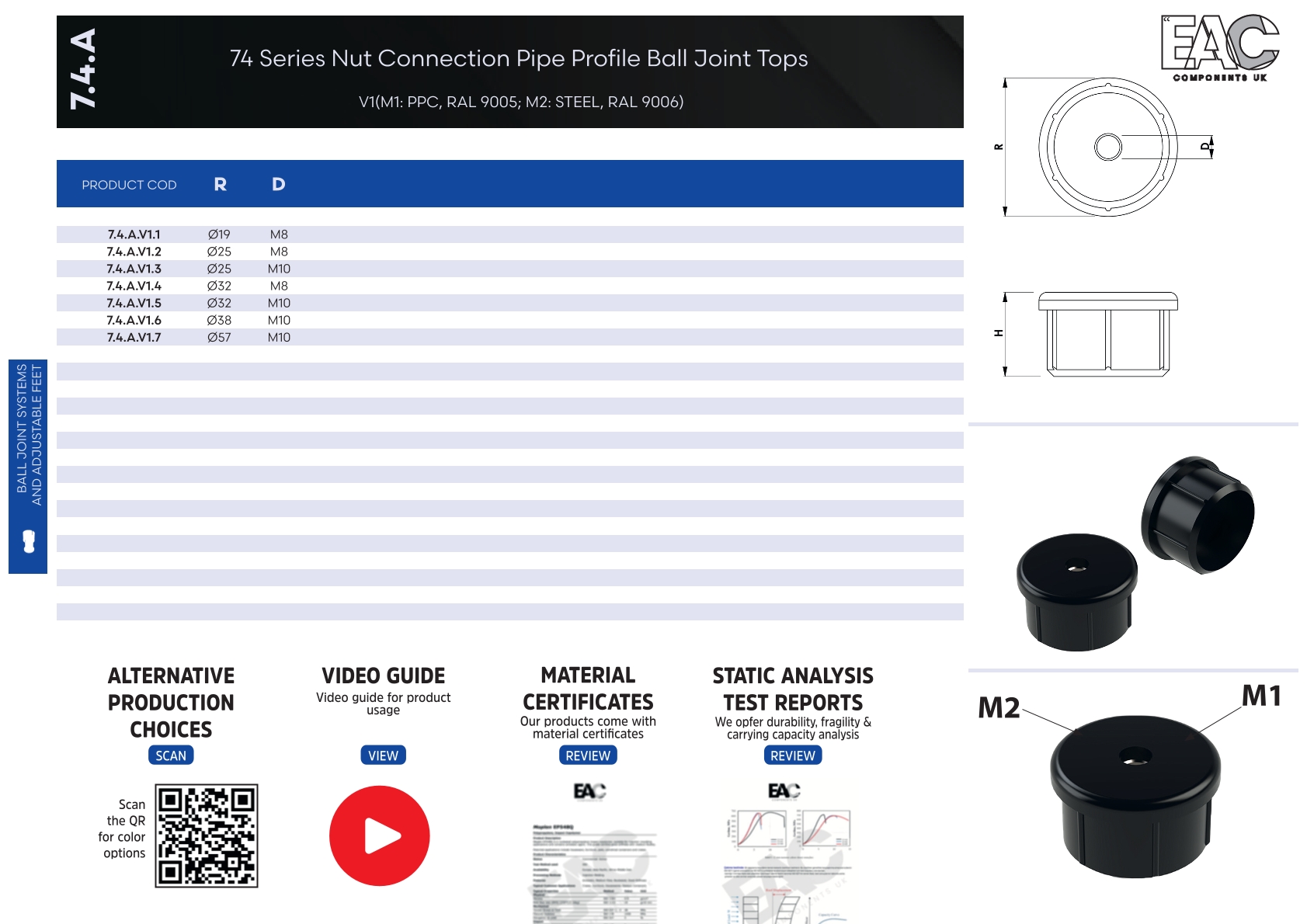

7.4.A.V1 - PPC - RAL 9005
Dimension (Ø) Bush Metric (D) Profile Thickness (PT)
Ø19 M8 0,5 - 1,5 7.4.A.V1.1
Ø25 M8 0,5 - 1,5 7.4.A.V1.2
Ø25 M10 0,5 - 1,5 7.4.A.V1.3
Ø32 M8 0,5 - 1,5 7.4.A.V1.4
Ø32 M10 0,5 - 1,5 7.4.A.V1.5
Ø38 M10 1,0 - 2,0 7.4.A.V1.6
Ø57 M10 1,0 - 2,0 7.4.A.V1.7

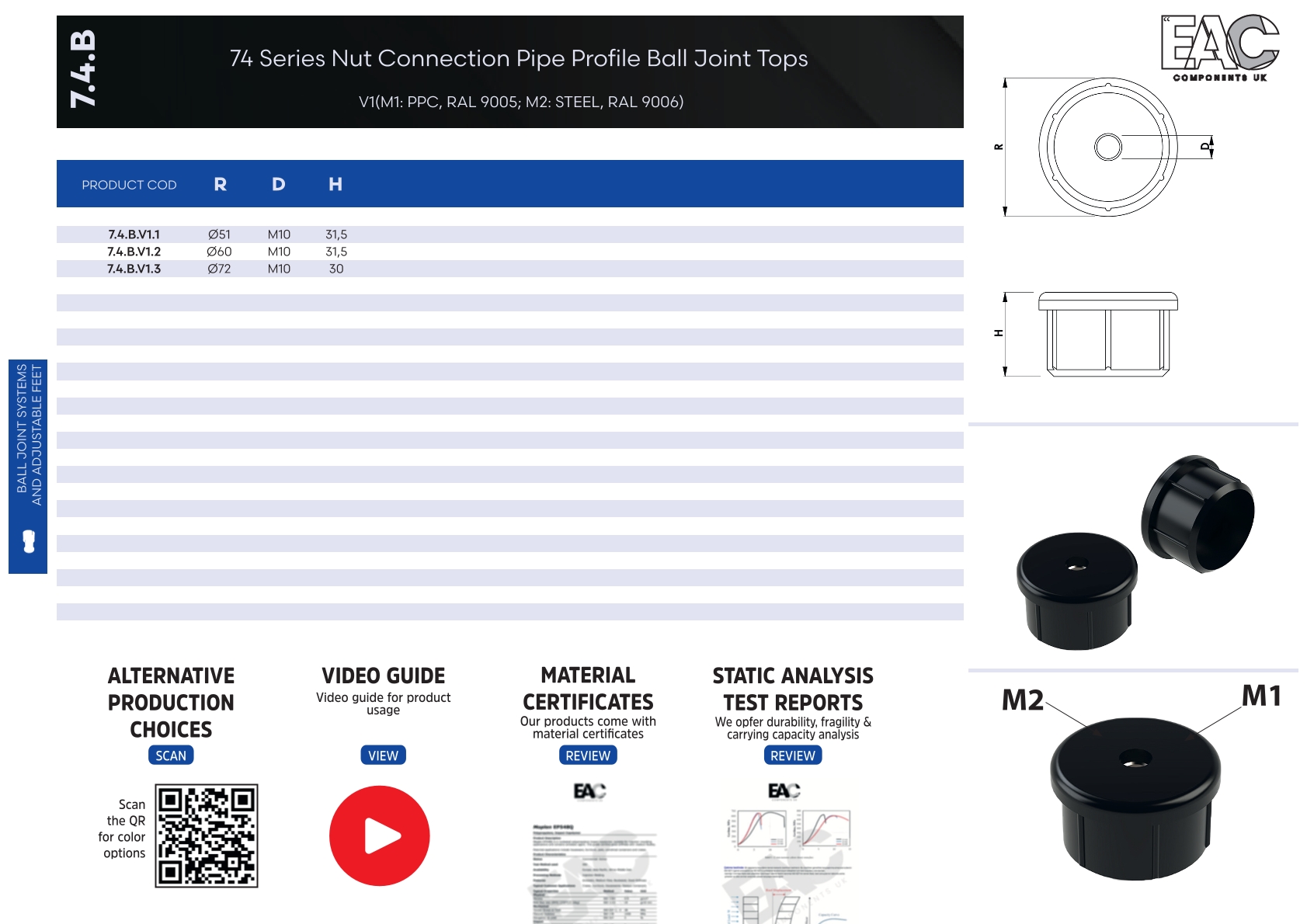

7.4.B.V1 - PPC - RAL 9005
Dimension (Ø) Bush Metric (D) Profile Thickness (PT)
Ø51 M10 1,0 - 2,0 7.4.B.V1.1
Ø60 M10 1,0 - 2,0 7.4.B.V1.2
Ø72 M10 1,0 - 2,0 7.4.B.V1.3

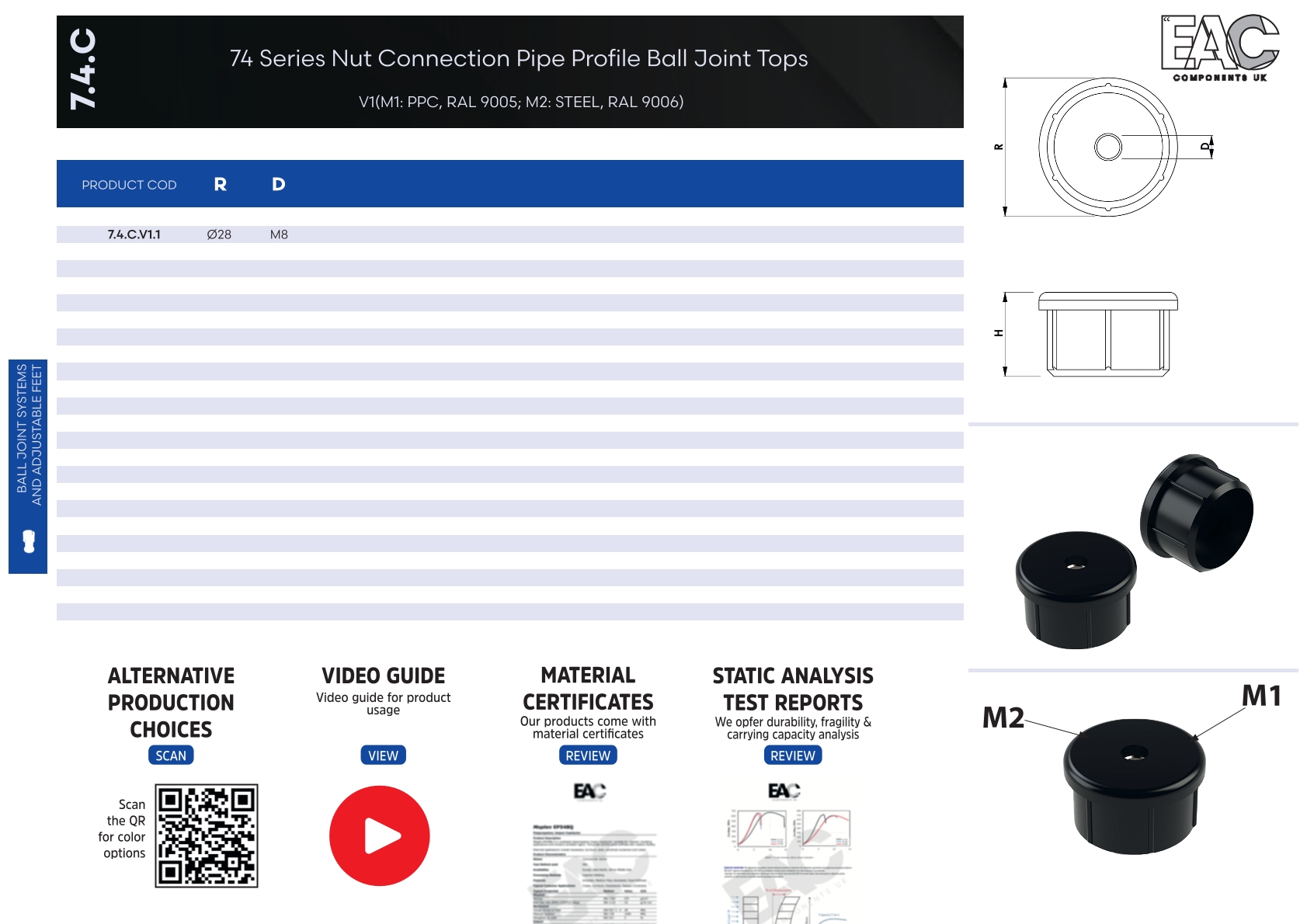

7.4.C.V1 - PPC - RAL 9005
Dimension (Ø) Bush Metric (D) Profile Thickness (PT)
Ø28 M8 0,5 - 1,5 7.4.C.V1.1
7.4.D.V1 - PPC - RAL 9005
Dimension (Ø) Bush Metric (D) Profile Thickness (PT)
Ø25 M8 0,8 - 1,5 7.4.D.V1.1
Ø25 M10 1,0 - 2,0 7.4.D.V1.2
Ø25 M10 0,8 - 1,5 7.4.D.V1.3
Ø20 M8 1,0 - 2,0 7.4.D.V1.4
Ø30 M6 0,5 - 1,5 7.4.D.V1.5

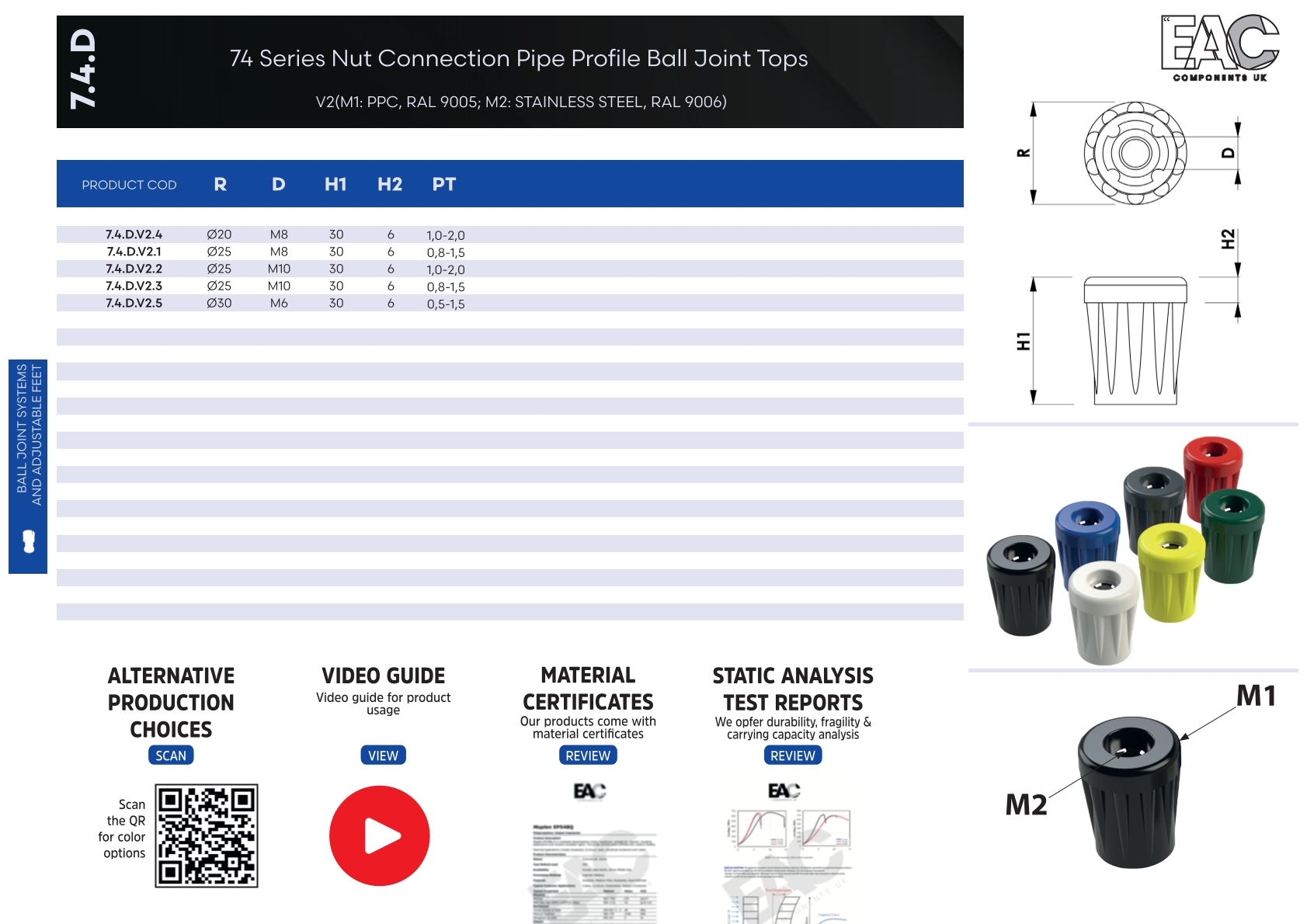

7.4.D.V2 - PPC - RAL 9005
Dimension (Ø) Bush Metric (D) Profile Thickness (PT)
Ø30 M6 0,5 - 1,5 7.4.D.V2.5
Ø20 M8 1,0 - 2,0 7.4.D.V2.4
Ø25 M10 0,8 - 1,5 7.4.D.V2.3
Ø25 M10 1,0 - 2,0 7.4.D.V2.2
Ø25 M8 0,8 - 1,5 7.4.D.V2.1
7.4.F.V1 - PPC - RAL 9005
Dimension (Ø) Bush Metric (D) Profile Thickness (PT)

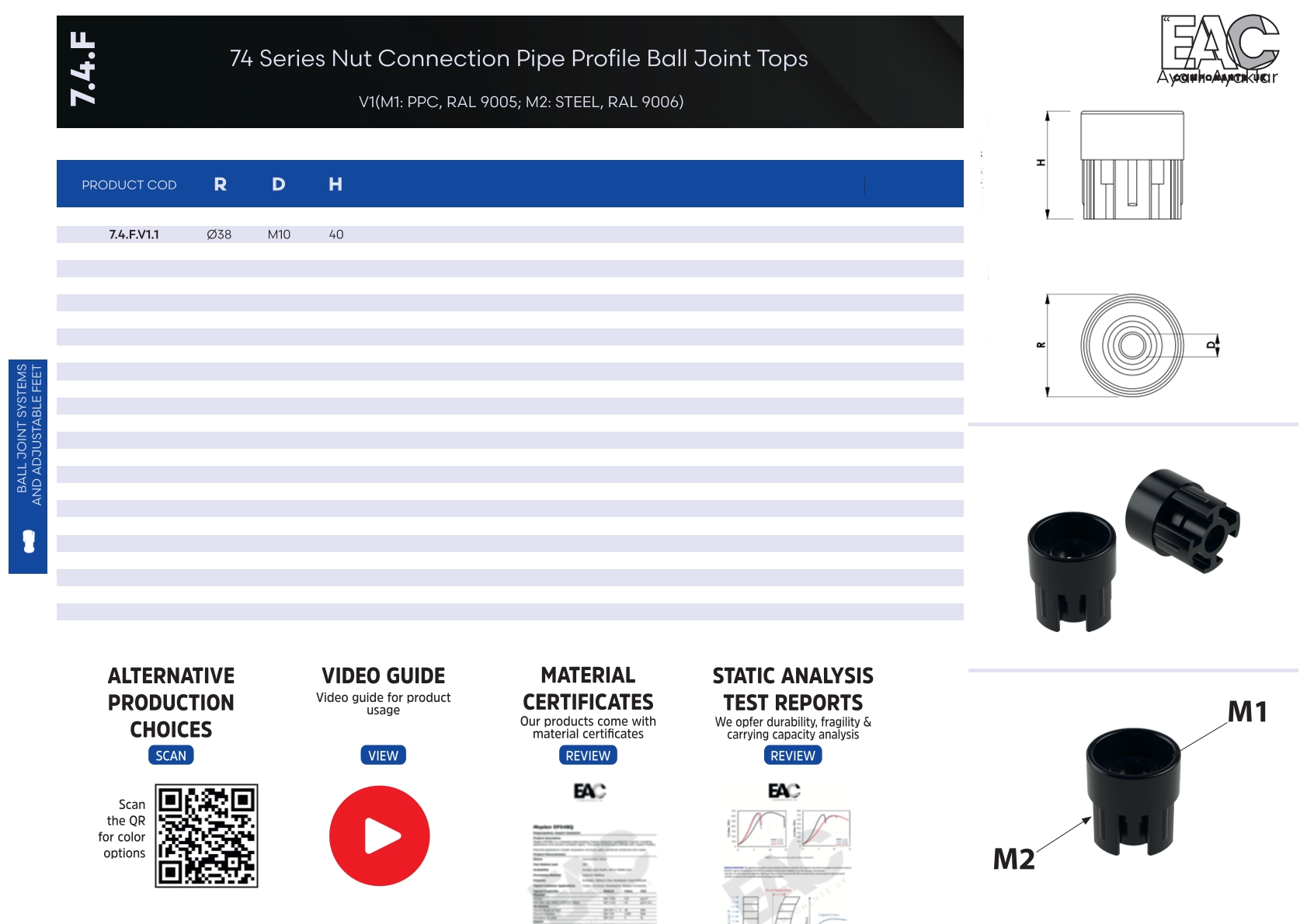

Ø38 M10 1,0 - 2,0 7.4.F.V1.1
