113 Series Bolted Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 1.13
Material and Color Options (V)
1.13.A.V1 - BAKELİTE - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Height (H1) Bolt Length (H)
Ø30 M6 38 15 1.13.A.V1.1
Ø30 M8 38 15 1.13.A.V1.2
Ø30 M10 38 15 1.13.A.V1.3
Ø30 M8 54 20 1.13.A.V1.4
Ø30 M10 54 20 1.13.A.V1.5
Ø30 M8 76 25 1.13.A.V1.6
Ø30 M10 76 25 1.13.A.V1.7
Ø30 M12 76 25 1.13.A.V1.8

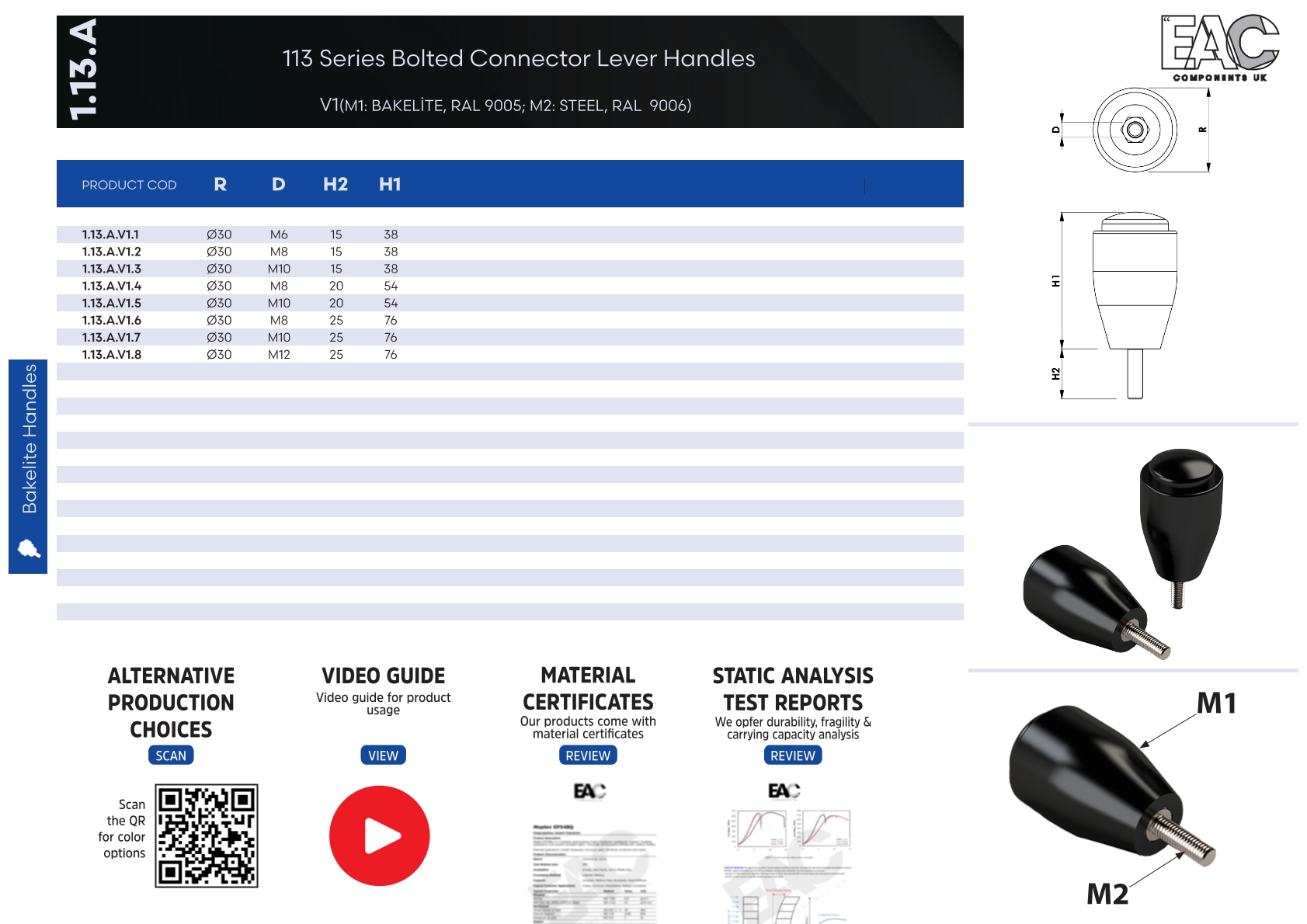

Technical Drawing
3D Modelling
3D Modelling
