12 Series Bolted Connector Knob Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 1.2
Material and Color Options (V)
1.2.A.V1 - BAKELİTE - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø20 M4 10 1.2.A.V1.1
Ø20 M5 10 1.2.A.V1.2
Ø20 M6 10 1.2.A.V1.3
Ø30 M5 15 1.2.A.V1.4
Ø30 M6 15 1.2.A.V1.5
Ø30 M8 15 1.2.A.V1.6
Ø40 M6 20 1.2.A.V1.7
Ø40 M8 20 1.2.A.V1.8
Ø40 M10 20 1.2.A.V1.9
Ø50 M6 25 1.2.A.V1.10
Ø50 M8 25 1.2.A.V1.11
Ø50 M10 25 1.2.A.V1.12
Ø50 M12 25 1.2.A.V1.13
Ø60 M8 30 1.2.A.V1.14
Ø60 M10 30 1.2.A.V1.15
Ø60 M12 30 1.2.A.V1.16
Ø70 M10 35 1.2.A.V1.17
Ø70 M12 35 1.2.A.V1.18
Ø70 M14 35 1.2.A.V1.19
Ø70 M16 35 1.2.A.V1.20
Ø20 M6 20 1.2.A.V1.21
Ø30 M6 10 1.2.A.V1.22
Ø50 M12 35 1.2.A.V1.23
Ø30 M8 20 1.2.A.V1.24
Ø30 M8 45 1.2.A.V1.25
Ø40 M6 15 1.2.A.V1.26
Ø40 M10 30 1.2.A.V1.27

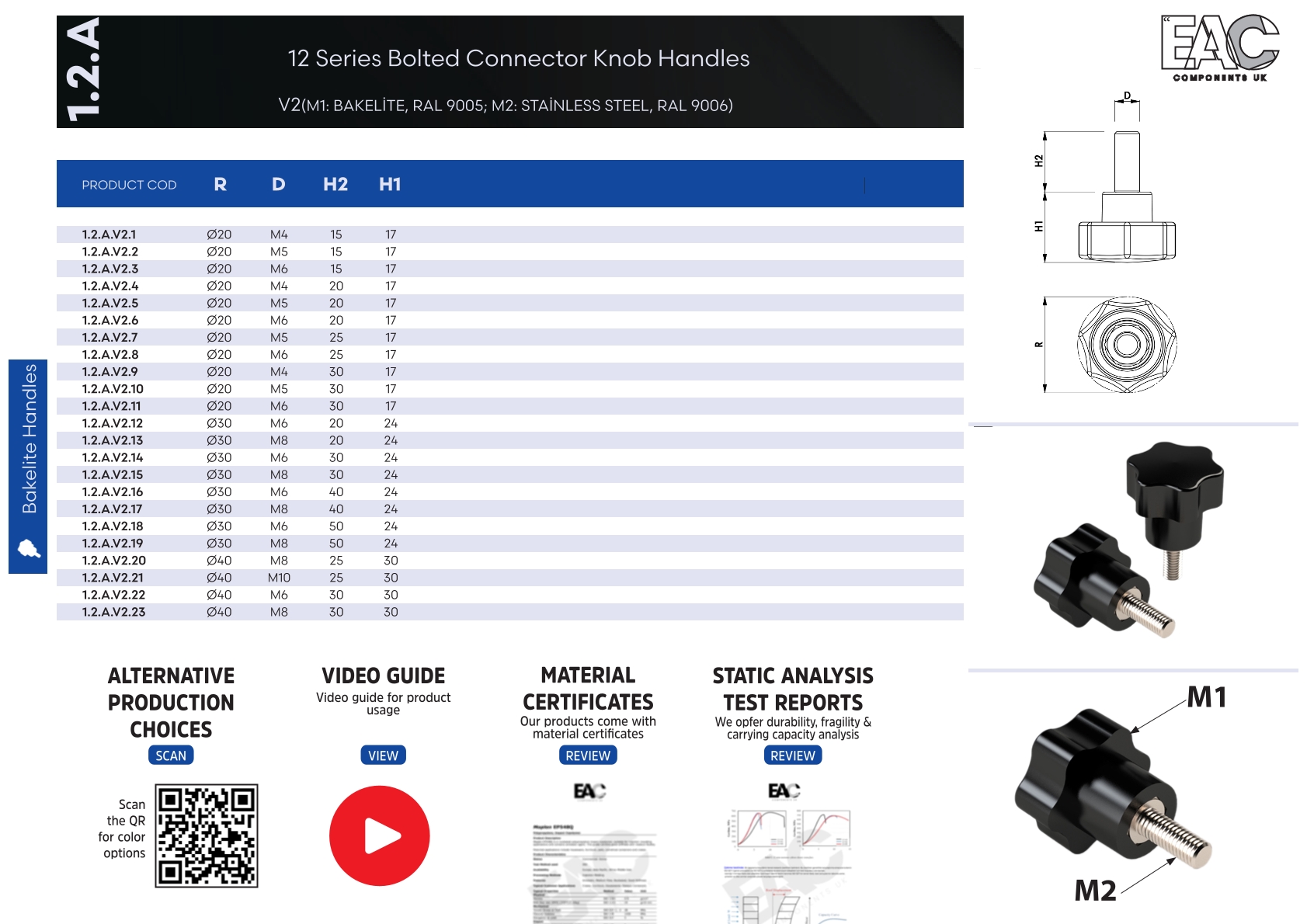

1.2.A.V2 - BAKELİTE - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø30 M6 20 1.2.A.V2.12
Ø20 M4 15 1.2.A.V2.1
Ø40 M6 30 1.2.A.V2.22
Ø40 M10 25 1.2.A.V2.21
Ø40 M8 25 1.2.A.V2.20
Ø30 M8 50 1.2.A.V2.19
Ø30 M6 50 1.2.A.V2.18
Ø30 M8 40 1.2.A.V2.17
Ø30 M6 40 1.2.A.V2.16
Ø30 M8 30 1.2.A.V2.15
Ø40 M10 30 1.2.A.V2.24
Ø30 M8 20 1.2.A.V2.13
Ø40 M6 40 1.2.A.V2.25
Ø20 M6 30 1.2.A.V2.11
Ø20 M5 30 1.2.A.V2.10
Ø20 M4 30 1.2.A.V2.9
Ø20 M6 25 1.2.A.V2.8
Ø20 M5 25 1.2.A.V2.7
Ø20 M6 20 1.2.A.V2.6
Ø20 M5 20 1.2.A.V2.5
Ø20 M4 20 1.2.A.V2.4
Ø20 M6 15 1.2.A.V2.3
Ø20 M5 15 1.2.A.V2.2
Ø30 M6 30 1.2.A.V2.14
Ø50 M10 50 1.2.A.V2.36
Ø70 M10 50 1.2.A.V2.47
Ø70 M12 45 1.2.A.V2.46
Ø70 M10 40 1.2.A.V2.45
Ø60 M12 60 1.2.A.V2.44
Ø60 M12 50 1.2.A.V2.43
Ø60 M10 50 1.2.A.V2.42
Ø60 M8 50 1.2.A.V2.41
Ø60 M12 40 1.2.A.V2.40
Ø60 M10 40 1.2.A.V2.39
Ø40 M8 30 1.2.A.V2.23
Ø60 M12 35 1.2.A.V2.37
Ø70 M12 50 1.2.A.V2.48
Ø50 M8 50 1.2.A.V2.35
Ø50 M10 40 1.2.A.V2.34
Ø50 M8 40 1.2.A.V2.33
Ø50 M10 30 1.2.A.V2.32
Ø50 M8 30 1.2.A.V2.31
Ø40 M10 50 1.2.A.V2.30
Ø40 M8 50 1.2.A.V2.29
Ø40 M6 50 1.2.A.V2.28
Ø40 M10 40 1.2.A.V2.27
Ø40 M8 40 1.2.A.V2.26
Ø60 M8 40 1.2.A.V2.38
1.2.B.V1 - BAKELİTE - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø20 M4 10 1.2.B.V1.1
Ø20 M5 10 1.2.B.V1.2
Ø20 M6 10 1.2.B.V1.3
Ø30 M5 15 1.2.B.V1.4
Ø30 M6 15 1.2.B.V1.5
Ø30 M8 15 1.2.B.V1.6
Ø40 M6 20 1.2.B.V1.7
Ø40 M8 20 1.2.B.V1.8
Ø40 M10 20 1.2.B.V1.9
Ø50 M6 25 1.2.B.V1.10
Ø50 M8 25 1.2.B.V1.11
Ø50 M10 25 1.2.B.V1.12
Ø50 M12 25 1.2.B.V1.13
Ø60 M8 30 1.2.B.V1.14
Ø60 M10 30 1.2.B.V1.15
Ø60 M12 30 1.2.B.V1.16
Ø70 M10 35 1.2.B.V1.17
Ø70 M12 35 1.2.B.V1.18
Ø70 M14 35 1.2.B.V1.19
Ø70 M16 35 1.2.B.V1.20
Ø20 M6 20 1.2.B.V1.21
Ø30 M6 10 1.2.B.V1.22
Ø50 M12 35 1.2.B.V1.23
Ø30 M8 20 1.2.B.V1.24
Ø30 M8 45 1.2.B.V1.25
Ø40 M6 15 1.2.B.V1.26
Ø40 M10 30 1.2.B.V1.27
Ø20 M6 30 1.2.B.V1.28
Ø40 M10 25 1.2.B.V1.29
Ø40 M8 60 1.2.B.V1.30
Ø20 M5 15 1.2.B.V1.31
Ø50 M6 30 1.2.B.V1.32
Technical Drawing
