17 Series Bolted Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 1.7
Material and Color Options (V)
1.7.A.V1 - BAKELİTE - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Height (H1) Bolt Length (H)
Ø25 M6 33 15 1.7.A.V1.1
Ø25 M8 33 15 1.7.A.V1.2
Ø35 M8 44 20 1.7.A.V1.3
Ø35 M10 44 20 1.7.A.V1.4
Ø40 M8 47 25 1.7.A.V1.5
Ø40 M10 47 25 1.7.A.V1.6
Ø40 M12 47 25 1.7.A.V1.7

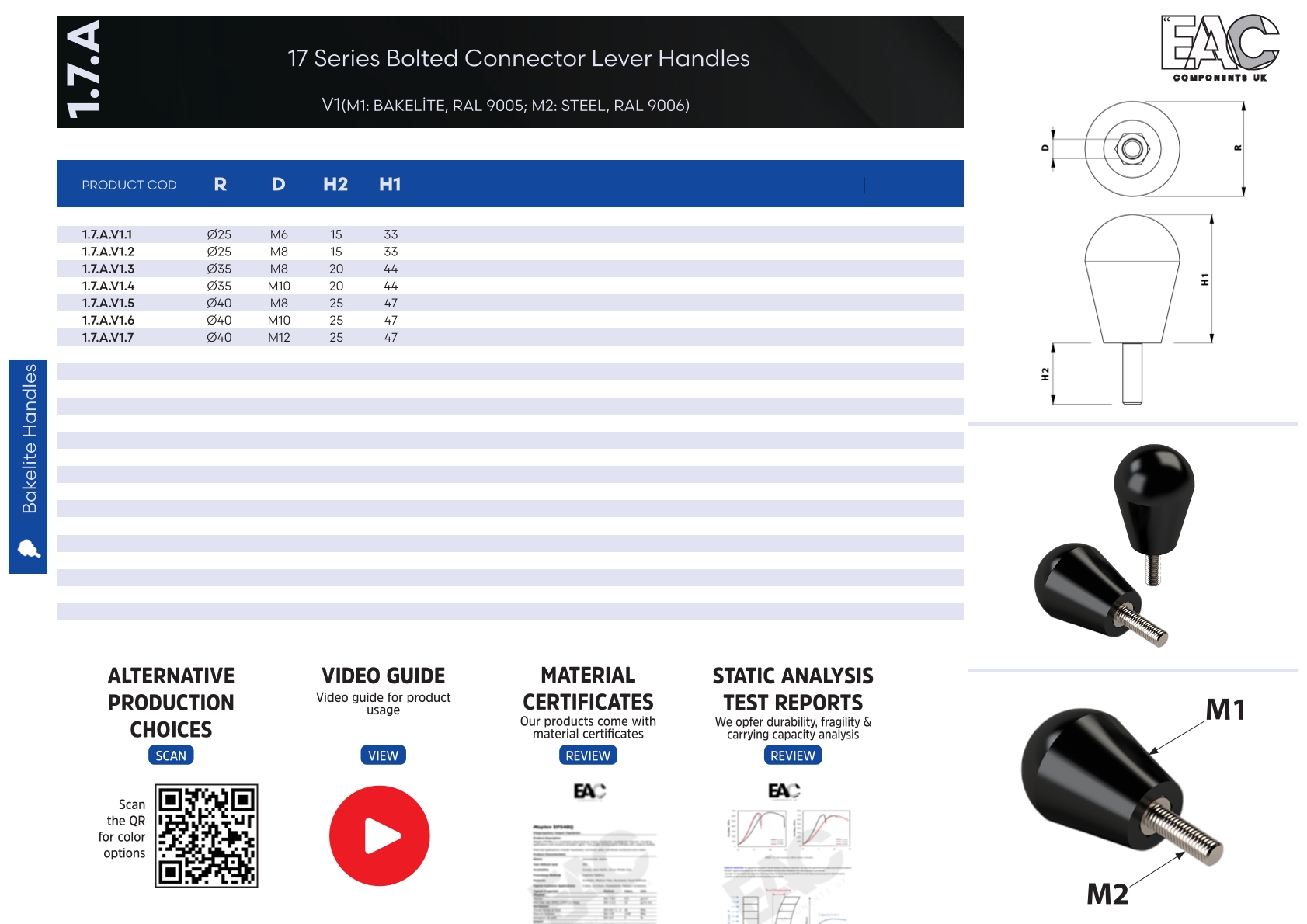

Technical Drawing
