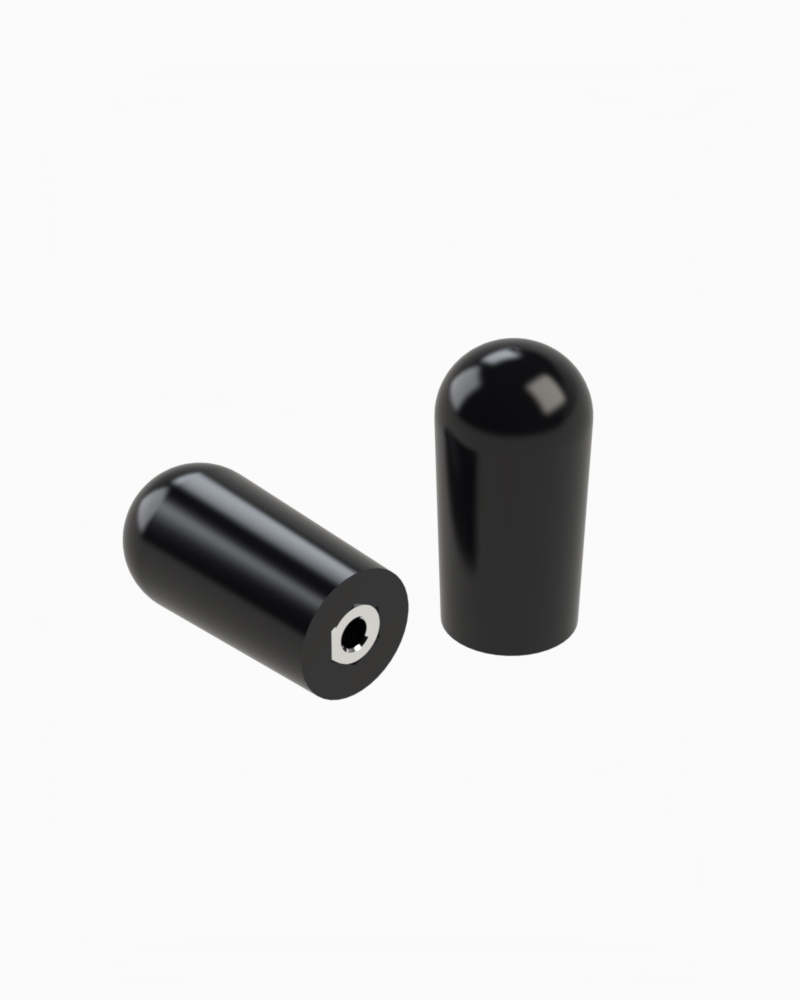

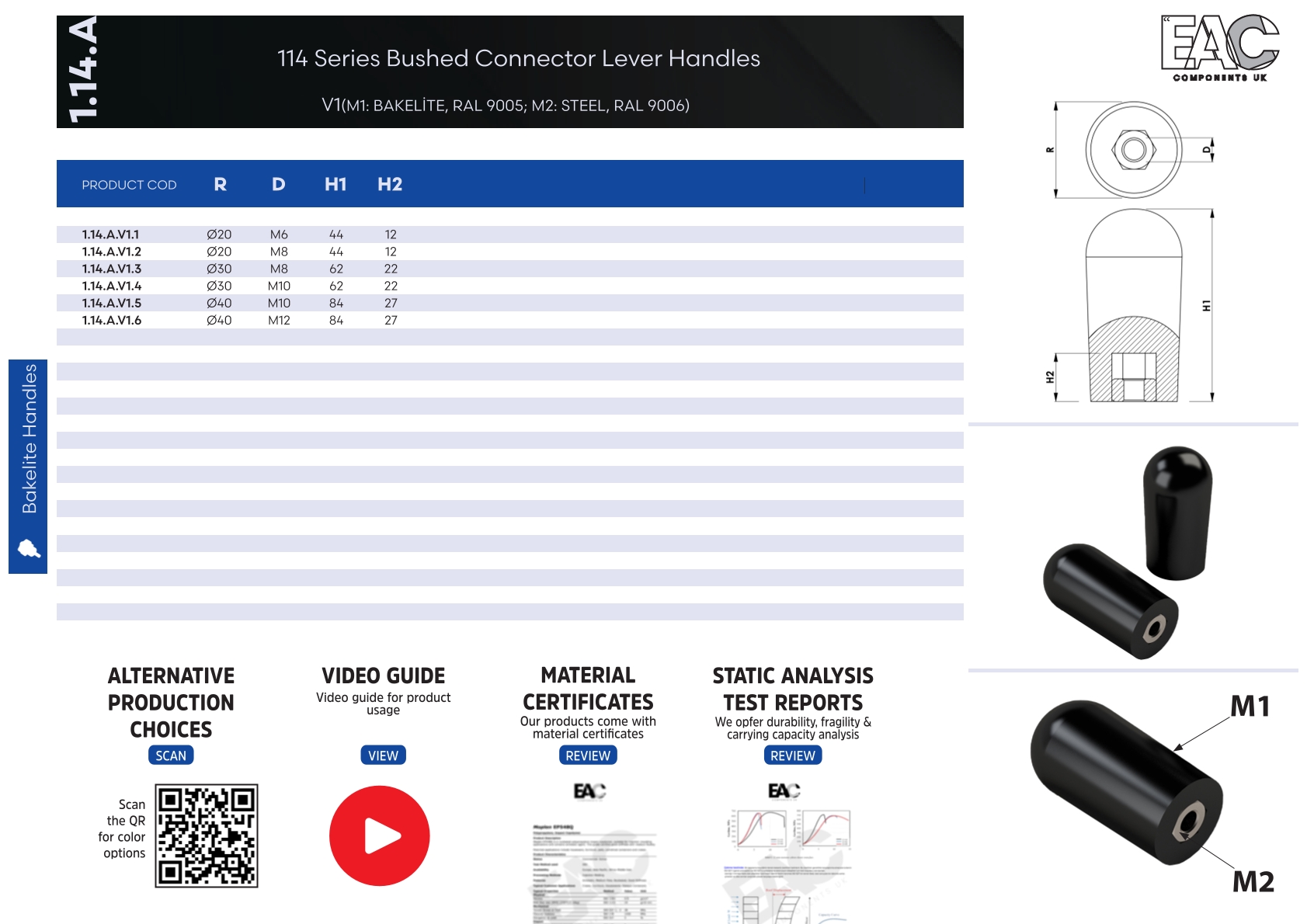

114 Series Bushed Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 1.14
Material and Color Options (V)
1.14.A.V1 - BAKELİTE - RAL 9005
Product Diameter (Ø) Bushing Metric (D) Height (H1)
Ø20 M6 44 1.14.B.V1.1
Ø20 M6 44 1.14.A.V1.1
Ø20 M8 44 1.14.A.V1.2
Ø20 M8 44 1.14.B.V1.2
Ø30 M8 62 1.14.A.V1.3
Ø30 M8 62 1.14.B.V1.3
Ø30 M10 62 1.14.A.V1.4
Ø30 M10 62 1.14.B.V1.4
Ø40 M10 84 1.14.B.V1.5
Ø40 M10 84 1.14.A.V1.5
Ø40 M12 84 1.14.A.V1.6
Ø40 M12 84 1.14.B.V1.6
Ø20 M8 50 1.14.B.V1.7
Ø25 M8 70 1.14.B.V1.8
Ø30 M8 90 1.14.B.V1.9
Ø30 M10 110 1.14.B.V1.10
Ø25 M6 70 1.14.B.V1.11
Ø17 M6 40 1.14.B.V1.12
Ø17 M8 40 1.14.B.V1.13
Ø20 M6 50 1.14.B.V1.14
Ø25 M10 70 1.14.B.V1.15
Ø30 M10 90 1.14.B.V1.16
Ø30 M8 110 1.14.B.V1.17
