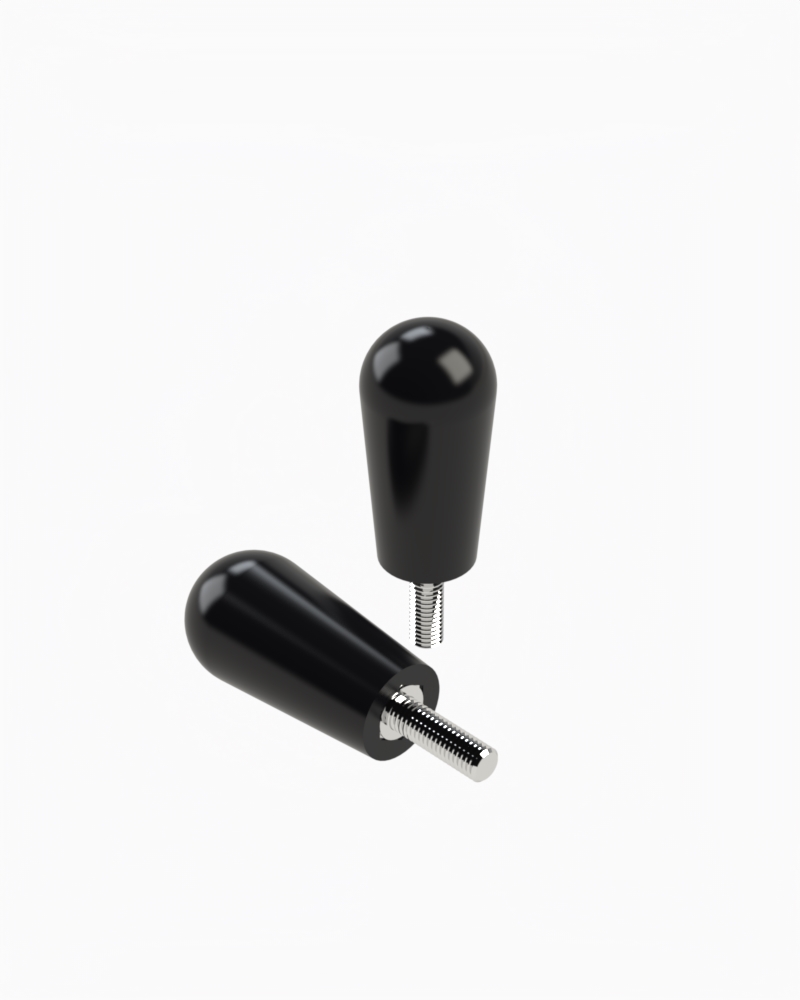

115 Series Bolted Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 1.15
Material and Color Options (V)
1.15.A.V1 - BAKELİTE - RAL 9005

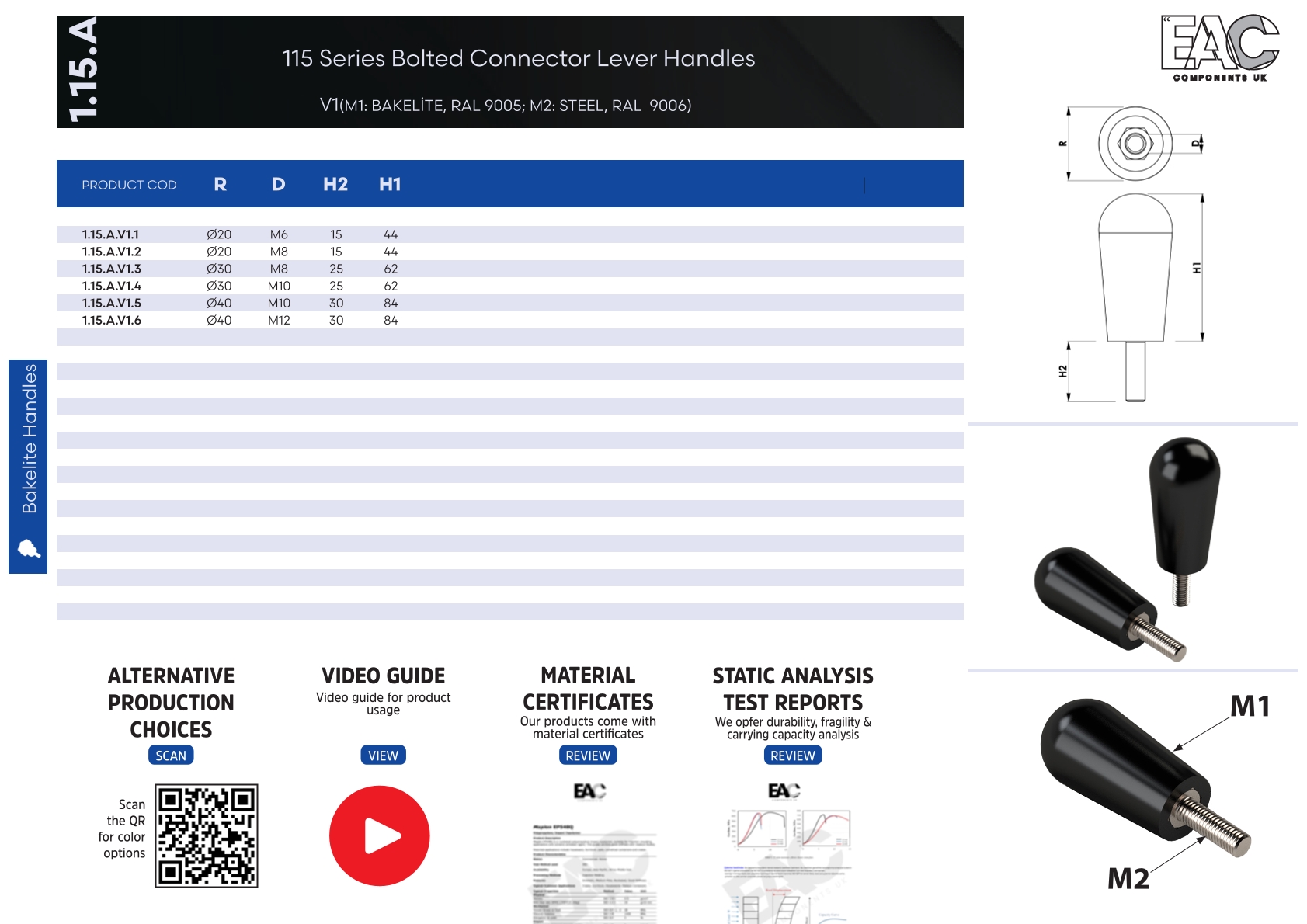

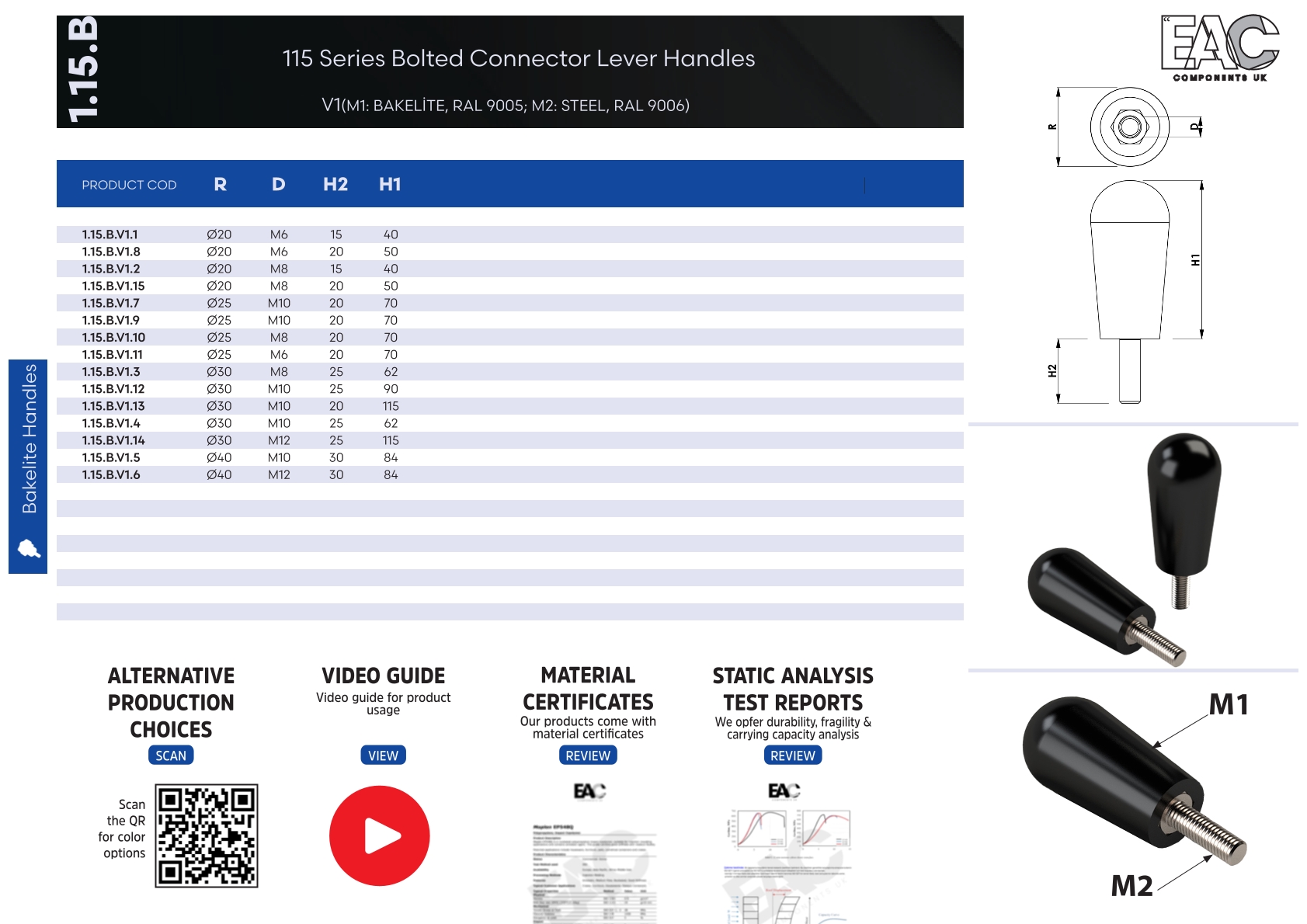

Product Diameter (Ø) Bolt Metric (D) Height (H1) Bolt Length (H)
Ø20 M6 40 15 1.15.B.V1.1
Ø20 M6 44 15 1.15.A.V1.1
Ø20 M8 44 15 1.15.A.V1.2
Ø20 M8 40 15 1.15.B.V1.2
Ø30 M8 62 25 1.15.A.V1.3
Ø30 M8 62 25 1.15.B.V1.3
Ø30 M10 62 25 1.15.B.V1.4
Ø30 M10 62 25 1.15.A.V1.4
Ø40 M10 84 30 1.15.B.V1.5
Ø40 M10 84 30 1.15.A.V1.5
Ø40 M12 84 30 1.15.A.V1.6
Ø40 M12 84 30 1.15.B.V1.6
Ø25 M10 70 20 1.15.B.V1.7
Ø20 M6 50 20 1.15.B.V1.8
Ø25 M10 70 20 1.15.B.V1.9
Ø25 M8 70 20 1.15.B.V1.10
Ø25 M6 70 20 1.15.B.V1.11
Ø30 M10 90 25 1.15.B.V1.12
Ø30 M10 115 20 1.15.B.V1.13
Ø30 M12 115 25 1.15.B.V1.14
Ø20 M8 50 20 1.15.B.V1.15
