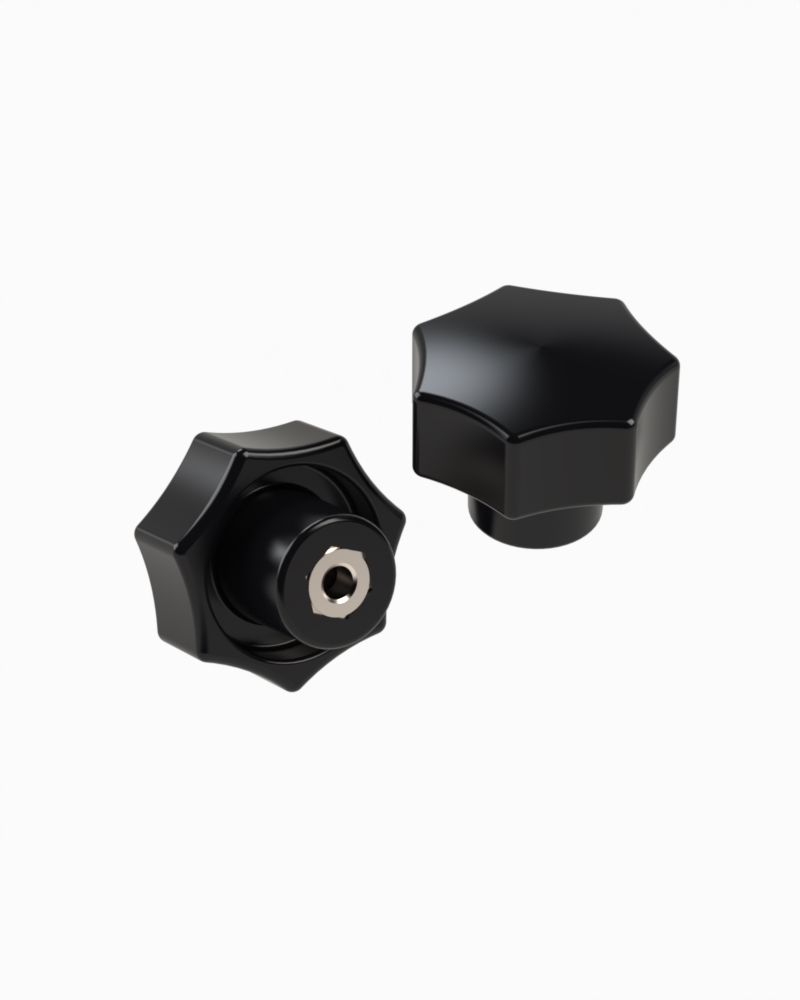

123 Series Bushed Connector Knob Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 1.23
Material and Color Options (V)
1.23.A.V1 - BAKALİTE - RAL 9005
Knob Diameter (Ø) Bush Metric (D)
Ø20 M5 1.23.A.V1.1
Ø20 M6 1.23.A.V1.2
Ø30 M5 1.23.A.V1.3
Ø30 M6 1.23.A.V1.4
Ø30 M8 1.23.A.V1.5
Ø40 M6 1.23.A.V1.6
Ø40 M8 1.23.A.V1.7
Ø40 M10 1.23.A.V1.8
Ø50 M8 1.23.A.V1.9
Ø50 M10 1.23.A.V1.10
Ø50 M12 1.23.A.V1.11
Ø63 M8 1.23.A.V1.12
Ø63 M10 1.23.A.V1.13
Ø63 M12 1.23.A.V1.14
Ø70 M10 1.23.A.V1.15
Ø70 M12 1.23.A.V1.16
Ø70 M16 1.23.A.V1.17

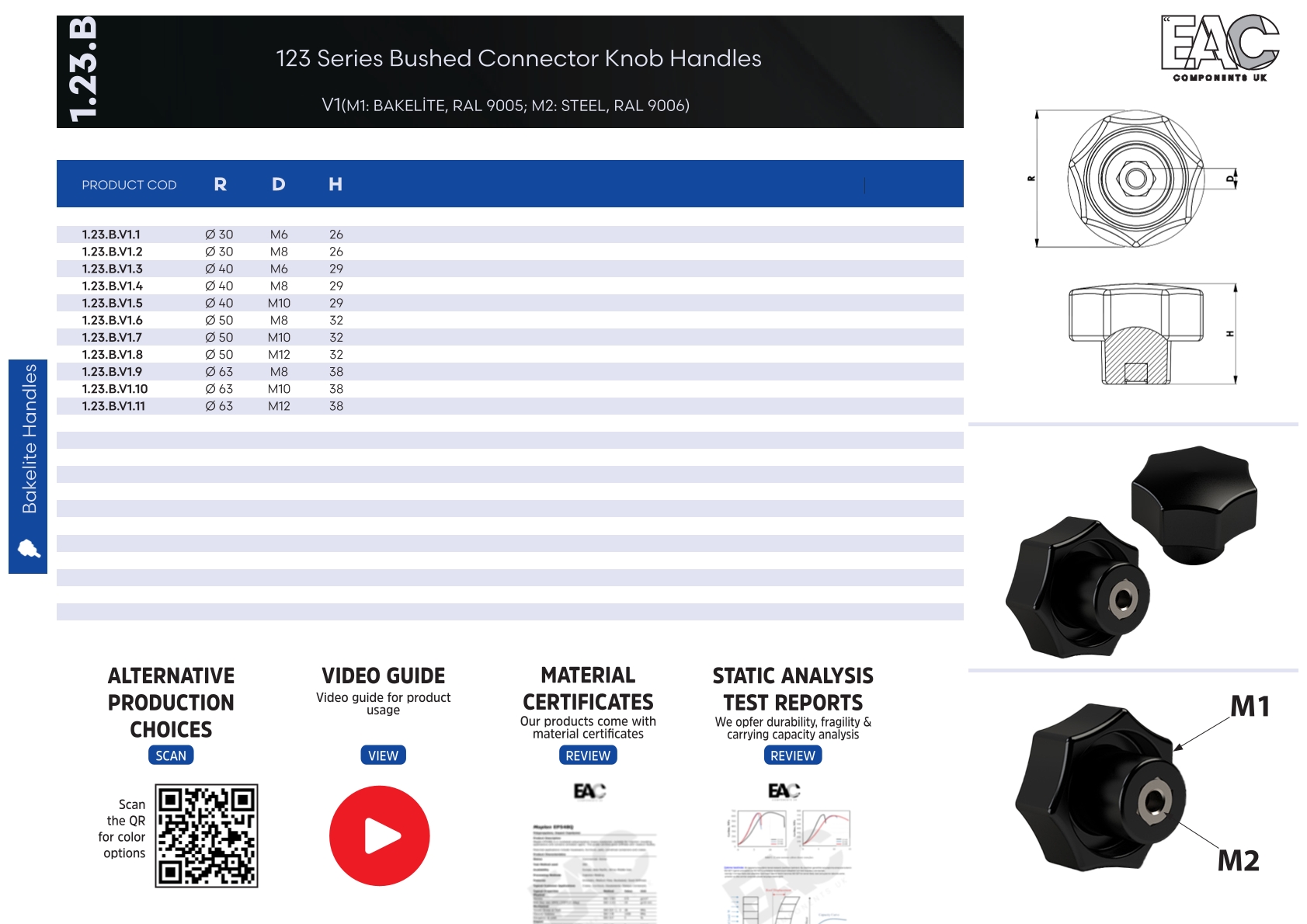

1.23.B.V1 - BAKALİTE - RAL 9005
Knob Diameter (Ø) Bush Metric (D)
Ø30 M6 1.23.B.V1.1
Ø30 M8 1.23.B.V1.2
Ø40 M6 1.23.B.V1.3
Ø40 M8 1.23.B.V1.4
Ø40 M10 1.23.B.V1.5
Ø50 M8 1.23.B.V1.6
Ø50 M10 1.23.B.V1.7
Ø50 M12 1.23.B.V1.8
Ø63 M8 1.23.B.V1.9
Ø63 M10 1.23.B.V1.10
Ø63 M12 1.23.B.V1.11
