124 Series Bolted Connector Knob Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 1.24
Material and Color Options (V)

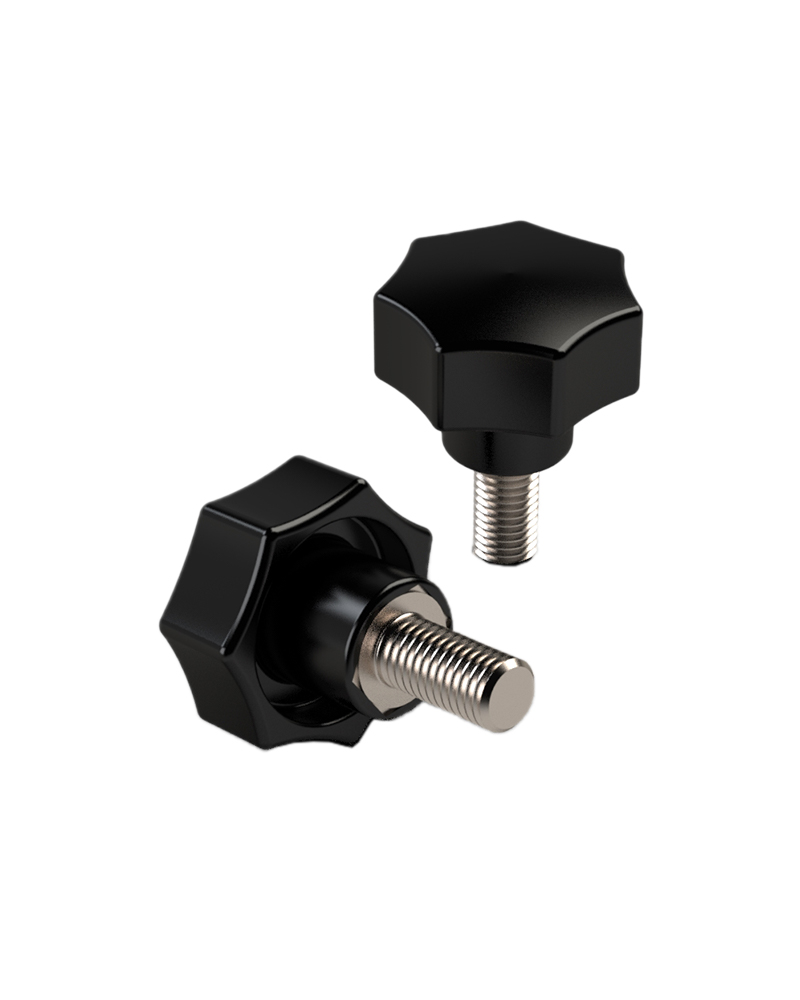

1.24.A.V1 - BAKELİTE - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø20 M5 8 1.24.A.V1.1
Ø20 M5 13 1.24.A.V1.2
Ø20 M5 20 1.24.A.V1.3
Ø20 M5 25 1.24.A.V1.4
Ø20 M6 15 1.24.A.V1.5
Ø30 M6 15 1.24.A.V1.6
Ø20 M6 20 1.24.A.V1.7
Ø20 M6 30 1.24.A.V1.8
Ø20 M6 40 1.24.A.V1.9
Ø30 M6 20 1.24.A.V1.10
Ø30 M6 30 1.24.A.V1.11
Ø30 M6 40 1.24.A.V1.12
Ø30 M6 50 1.24.A.V1.13
Ø30 M8 20 1.24.A.V1.14
Ø30 M8 25 1.24.A.V1.15
Ø30 M8 30 1.24.A.V1.16
Ø30 M8 40 1.24.A.V1.17
Ø30 M8 45 1.24.A.V1.18
Ø30 M8 50 1.24.A.V1.19
Ø30 M8 60 1.24.A.V1.20
Ø40 M6 15 1.24.A.V1.21
Ø40 M6 20 1.24.A.V1.22
Ø40 M6 30 1.24.A.V1.23
Ø40 M6 40 1.24.A.V1.24
Ø40 M6 50 1.24.A.V1.25
Ø40 M8 20 1.24.A.V1.26
Ø40 M8 30 1.24.A.V1.27
Ø40 M8 40 1.24.A.V1.28
Ø40 M8 50 1.24.A.V1.29
Ø40 M8 60 1.24.A.V1.30
Ø40 M10 25 1.24.A.V1.31
Ø40 M10 30 1.24.A.V1.32
Ø40 M10 40 1.24.A.V1.33
Ø40 M10 50 1.24.A.V1.34
Ø50 M8 25 1.24.A.V1.35
Ø50 M8 30 1.24.A.V1.36
Ø50 M8 40 1.24.A.V1.37
Ø50 M8 50 1.24.A.V1.38
Ø50 M10 25 1.24.A.V1.39
Ø50 M10 30 1.24.A.V1.40
Ø50 M10 40 1.24.A.V1.41
Ø50 M10 50 1.24.A.V1.42
Ø50 M12 35 1.24.A.V1.43
Ø50 M12 40 1.24.A.V1.44
Ø50 M12 50 1.24.A.V1.45
Ø63 M8 30 1.24.A.V1.46
Ø63 M8 40 1.24.A.V1.47
Ø63 M8 50 1.24.A.V1.48
Ø63 M10 30 1.24.A.V1.49
Ø63 M10 40 1.24.A.V1.50
Ø63 M10 50 1.24.A.V1.51
Ø63 M12 35 1.24.A.V1.52
Ø63 M12 40 1.24.A.V1.53
Ø63 M12 45 1.24.A.V1.54
Ø63 M12 50 1.24.A.V1.55
Ø70 M10 30 1.24.A.V1.56
Ø70 M10 40 1.24.A.V1.57
Ø70 M10 50 1.24.A.V1.58
Ø70 M12 35 1.24.A.V1.59
Ø70 M12 40 1.24.A.V1.60
Ø70 M12 45 1.24.A.V1.61
Ø70 M12 50 1.24.A.V1.62

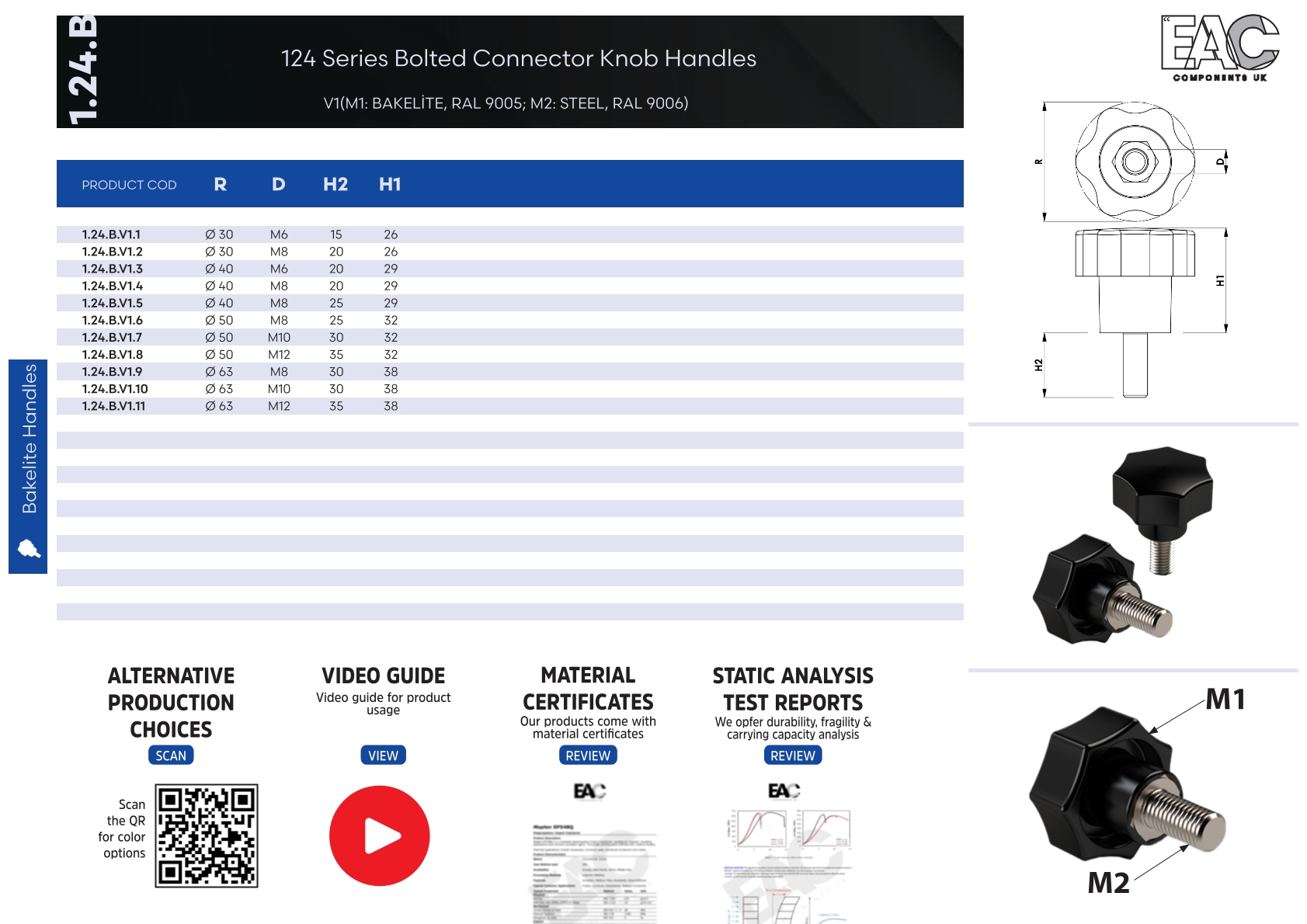

1.24.B.V1 - BAKELİTE - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø30 M6 15 1.24.B.V1.1
Ø30 M8 20 1.24.B.V1.2
Ø40 M6 20 1.24.B.V1.3
Ø40 M8 20 1.24.B.V1.4
Ø40 M8 25 1.24.B.V1.5
Ø50 M8 25 1.24.B.V1.6
Ø50 M10 30 1.24.B.V1.7
Ø50 M12 35 1.24.B.V1.8
Ø63 M8 30 1.24.B.V1.9
Ø63 M10 30 1.24.B.V1.10
Ø63 M12 35 1.24.B.V1.11
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
