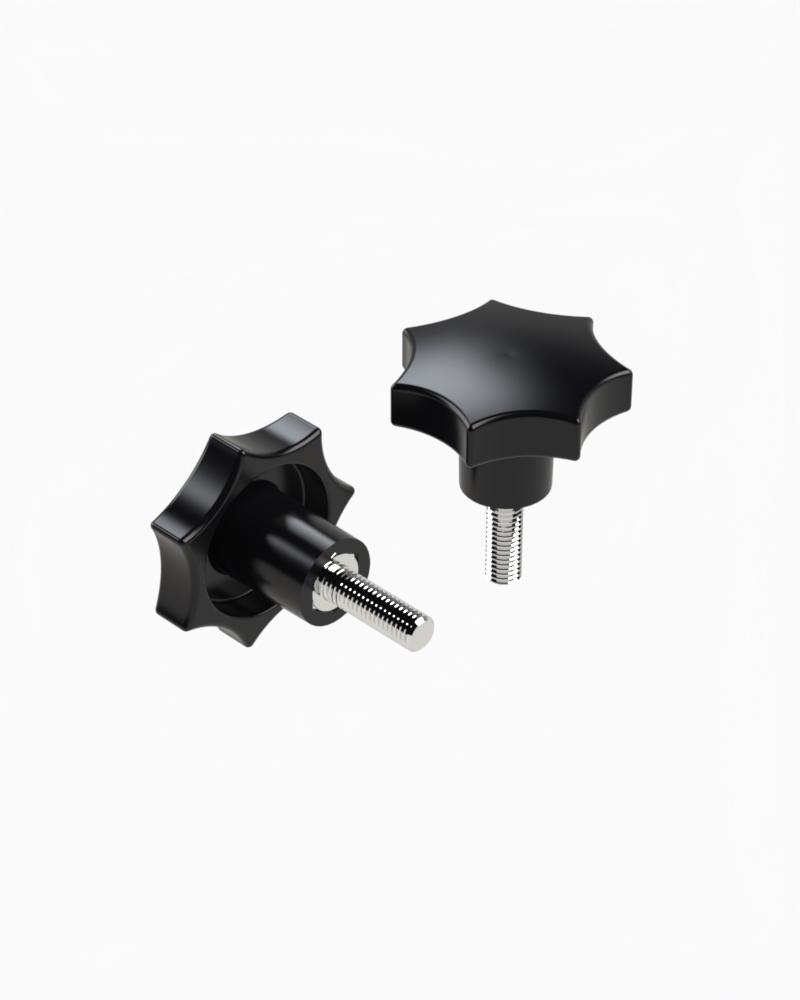

126 Series Bolted Connector Knob Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 1.26
Material and Color Options (V)
1.26.A.V1 - BAKELİTE - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø30 M6 15 1.26.A.V1.1
Ø30 M6 25 1.26.A.V1.2
Ø30 M6 30 1.26.A.V1.3
Ø30 M6 35 1.26.A.V1.4
Ø30 M8 10 1.26.A.V1.5
Ø30 M8 15 1.26.A.V1.6
Ø30 M8 20 1.26.A.V1.7
Ø30 M8 25 1.26.A.V1.8
Ø30 M8 30 1.26.A.V1.9
Ø30 M8 40 1.26.A.V1.10
Ø40 M6 15 1.26.A.V1.11
Ø40 M6 20 1.26.A.V1.12
Ø40 M8 30 1.26.A.V1.13
Ø40 M8 20 1.26.A.V1.14
Ø40 M8 30 1.26.A.V1.15
Ø40 M10 20 1.26.A.V1.16
Ø40 M10 25 1.26.A.V1.17
Ø50 M8 25 1.26.A.V1.18
Ø50 M8 35 1.26.A.V1.19
Ø50 M8 45 1.26.A.V1.20
Ø50 M10 20 1.26.A.V1.21
Ø50 M10 30 1.26.A.V1.22
Ø50 M10 40 1.26.A.V1.23
Ø63 M8 25 1.26.A.V1.24
Ø63 M8 30 1.26.A.V1.25
Ø63 M8 40 1.26.A.V1.26
Ø63 M10 30 1.26.A.V1.27
Ø63 M10 40 1.26.A.V1.28
Ø63 M12 35 1.26.A.V1.29
Ø63 M12 45 1.26.A.V1.30

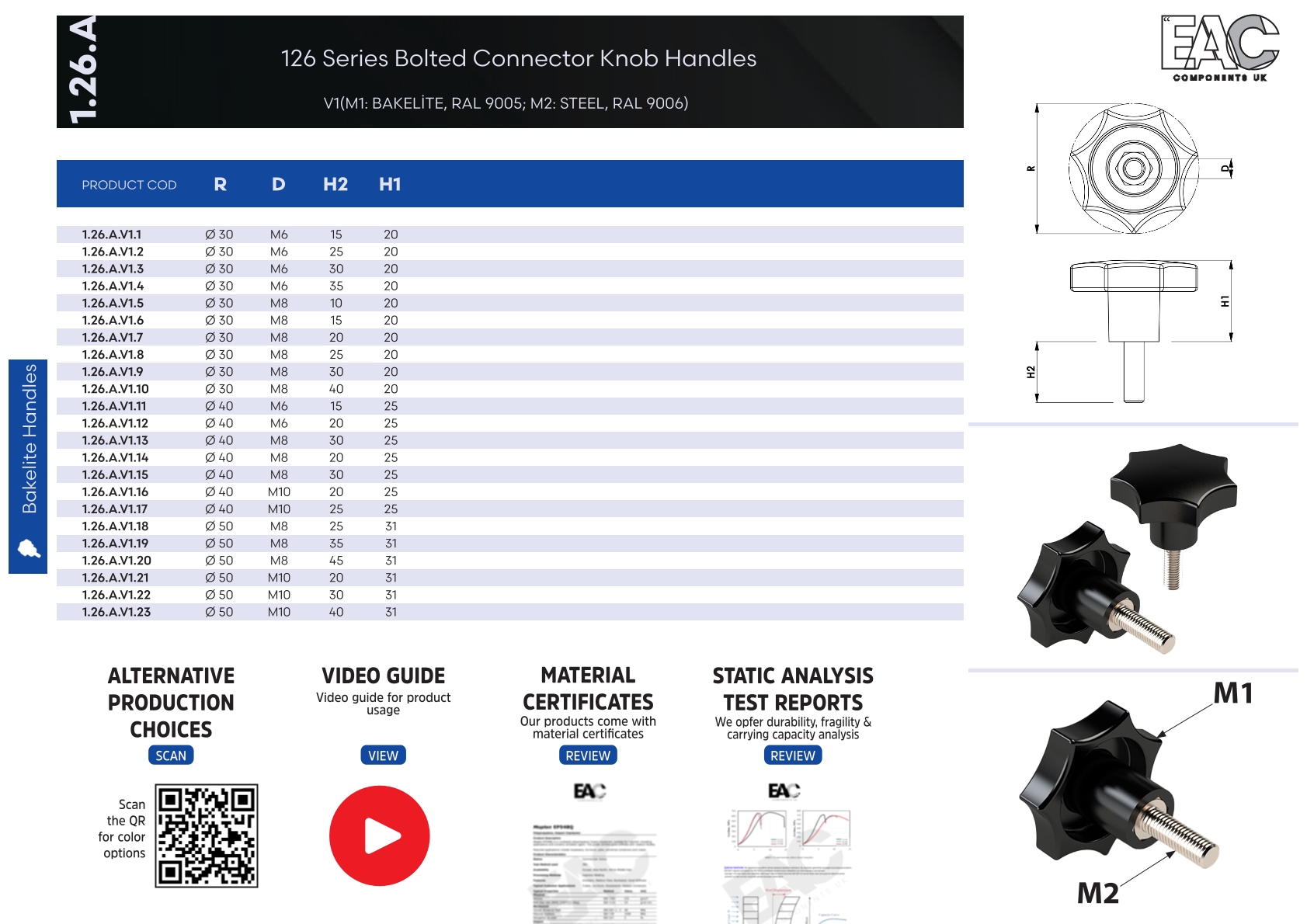

Technical Drawing
