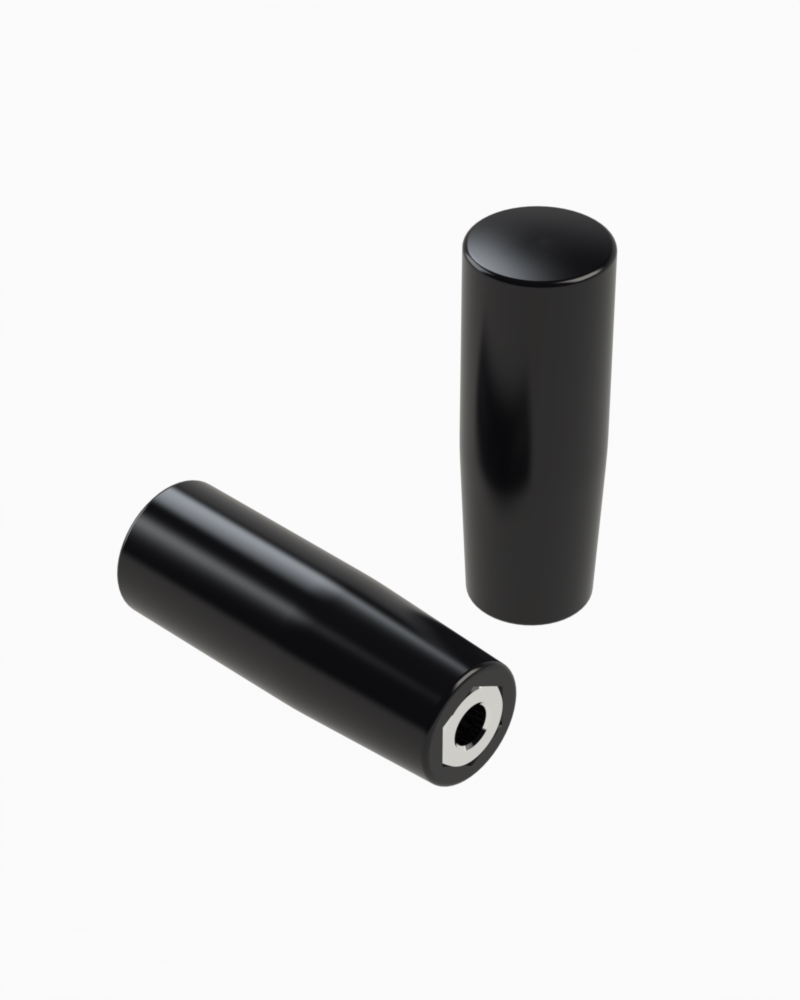

127 Series Bushed Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 1.27
Material and Color Options (V)
1.27.A.V1 - BAKELİTE - RAL 9005
Product Diameter (Ø) Bushing Metric (D) Height (H1)
Ø18 M6 40 1.27.B.V1.1
Ø18 M6 40 1.27.A.V1.1
Ø21 M8 50 1.27.B.V1.2
Ø18 M8 40 1.27.A.V1.2
Ø23 M10 60 1.27.B.V1.3
Ø21 M6 51 1.27.A.V1.3
Ø26 M10 75 1.27.B.V1.4
Ø21 M8 51 1.27.A.V1.4
Ø28 M12 90 1.27.B.V1.5
Ø21 M10 51 1.27.A.V1.5
Ø23 M6 66 1.27.A.V1.6
Ø23 M8 66 1.27.A.V1.7
Ø23 M10 66 1.27.A.V1.8
Ø26 M8 81 1.27.A.V1.9
Ø26 M10 81 1.27.A.V1.10
Ø26 M12 89 1.27.A.V1.11
Ø28 M10 91 1.27.A.V1.12
Ø28 M12 91 1.27.A.V1.13
Ø32 M12 77 1.27.A.V1.14

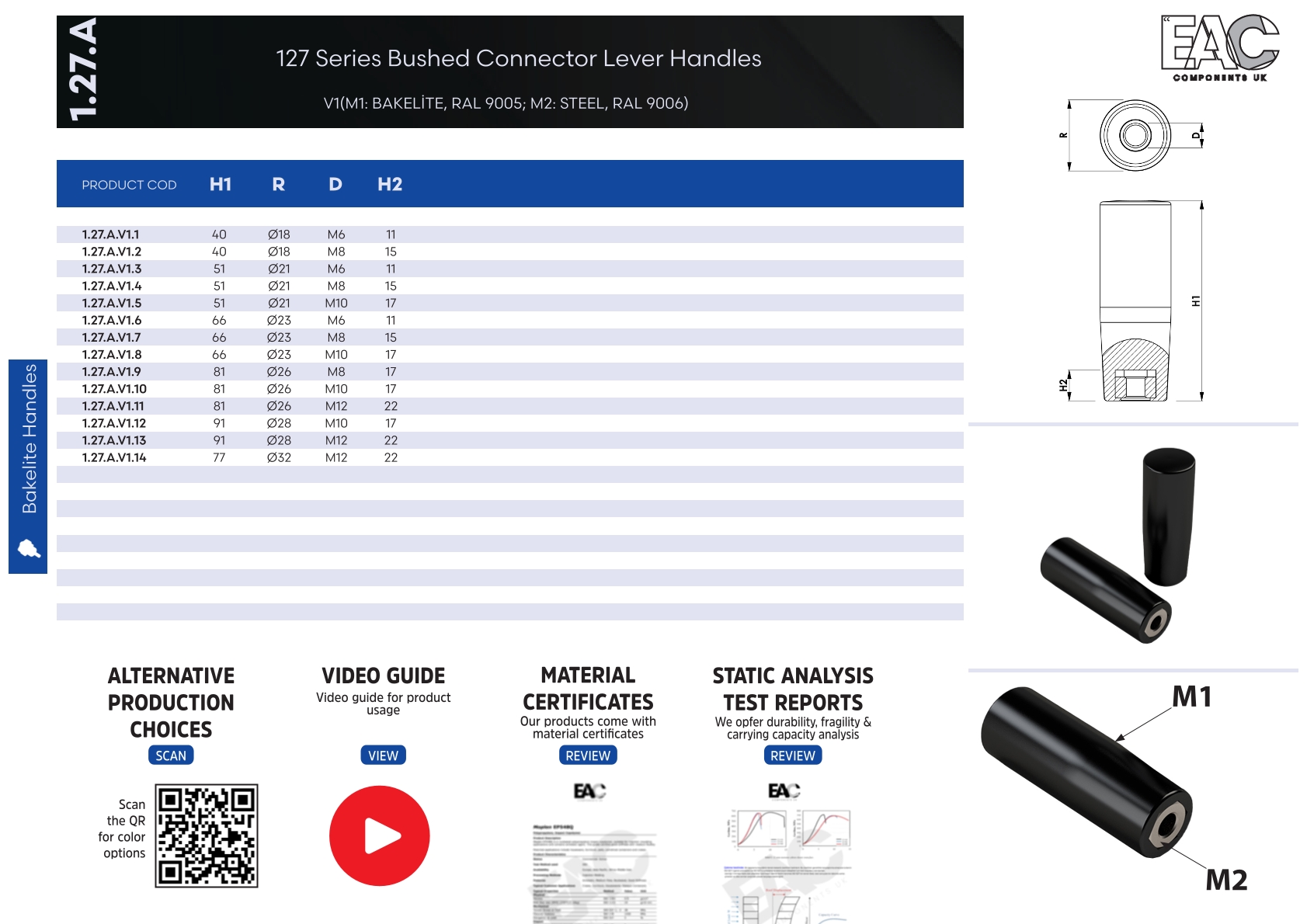

Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
