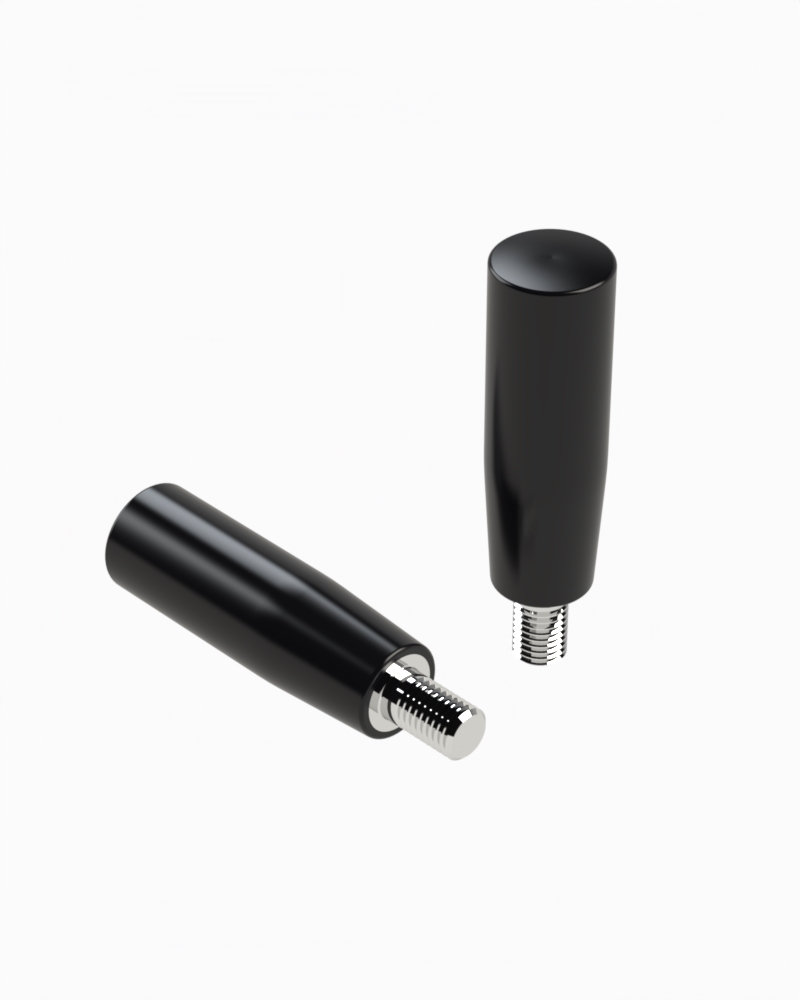

128 Series Bolted Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 1.28
Material and Color Options (V)
1.28.A.V1 - BAKELİTE - RAL 9005

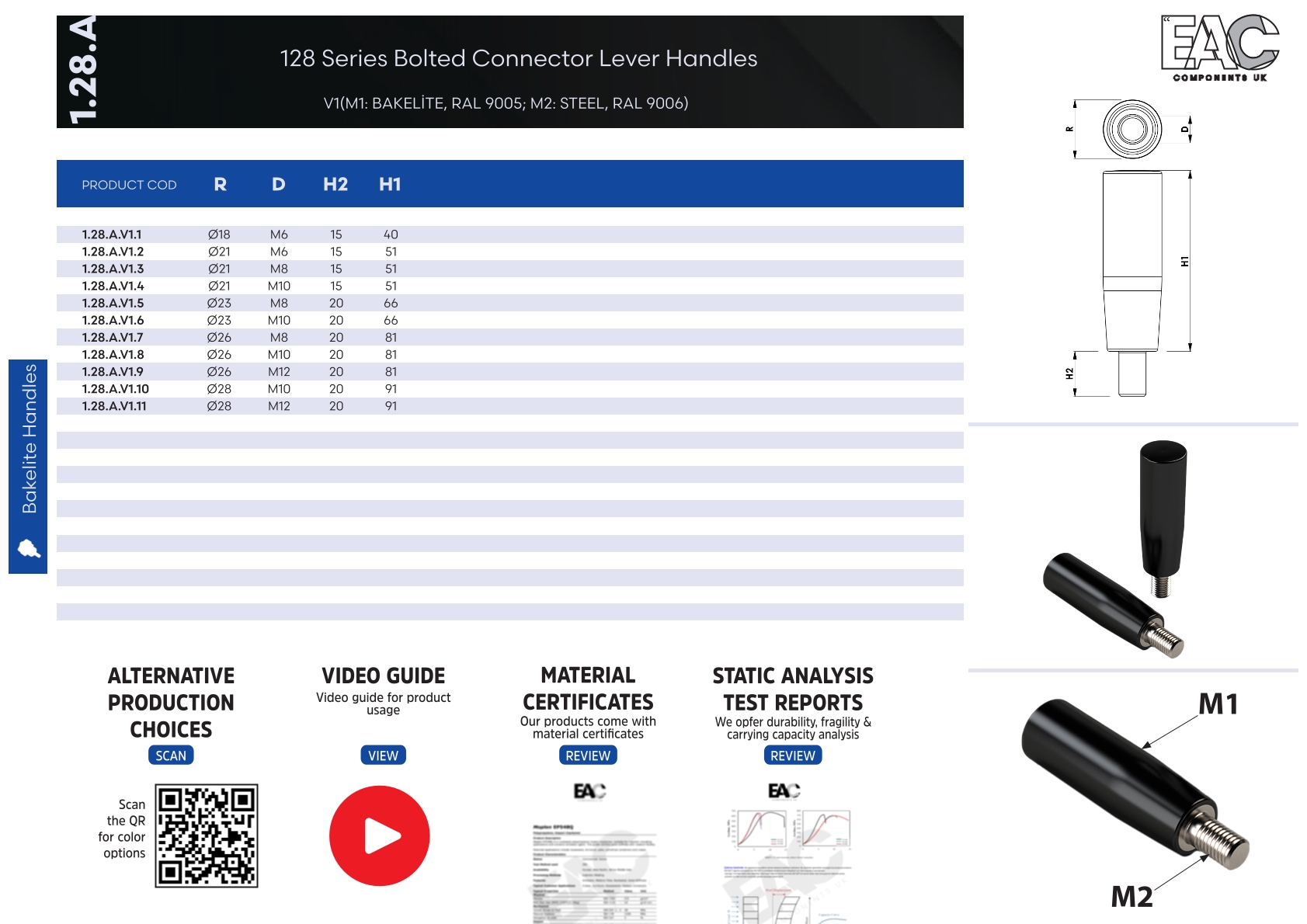

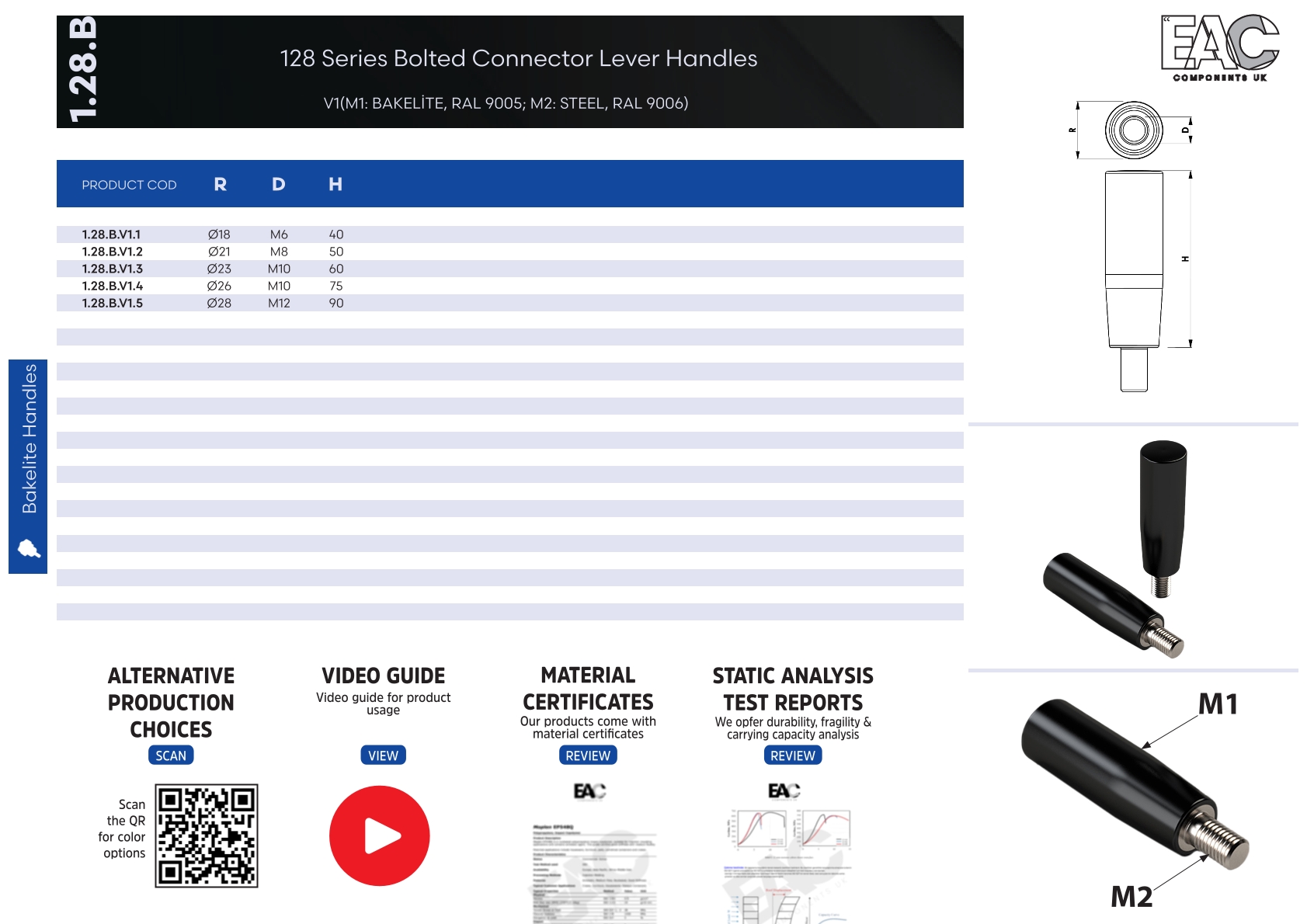

Product Diameter (Ø) Bolt Metric (D) Height (H1) Bolt Length (H)
Ø18 M6 40 20 1.28.B.V1.1
Ø18 M6 40 15 1.28.A.V1.1
Ø21 M8 50 20 1.28.B.V1.2
Ø21 M6 51 15 1.28.A.V1.2
Ø23 M10 60 20 1.28.B.V1.3
Ø21 M8 51 15 1.28.A.V1.3
Ø26 M10 75 20 1.28.B.V1.4
Ø21 M10 51 15 1.28.A.V1.4
Ø28 M12 90 20 1.28.B.V1.5
Ø23 M8 66 20 1.28.A.V1.5
Ø23 M10 66 20 1.28.A.V1.6
Ø26 M8 81 20 1.28.A.V1.7
Ø26 M10 81 20 1.28.A.V1.8
Ø26 M12 81 20 1.28.A.V1.9
Ø28 M10 91 20 1.28.A.V1.10
Ø28 M12 91 20 1.28.A.V1.11
