314 Series Bushed Connectors Knob Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 3.14
Material and Color Options (V)

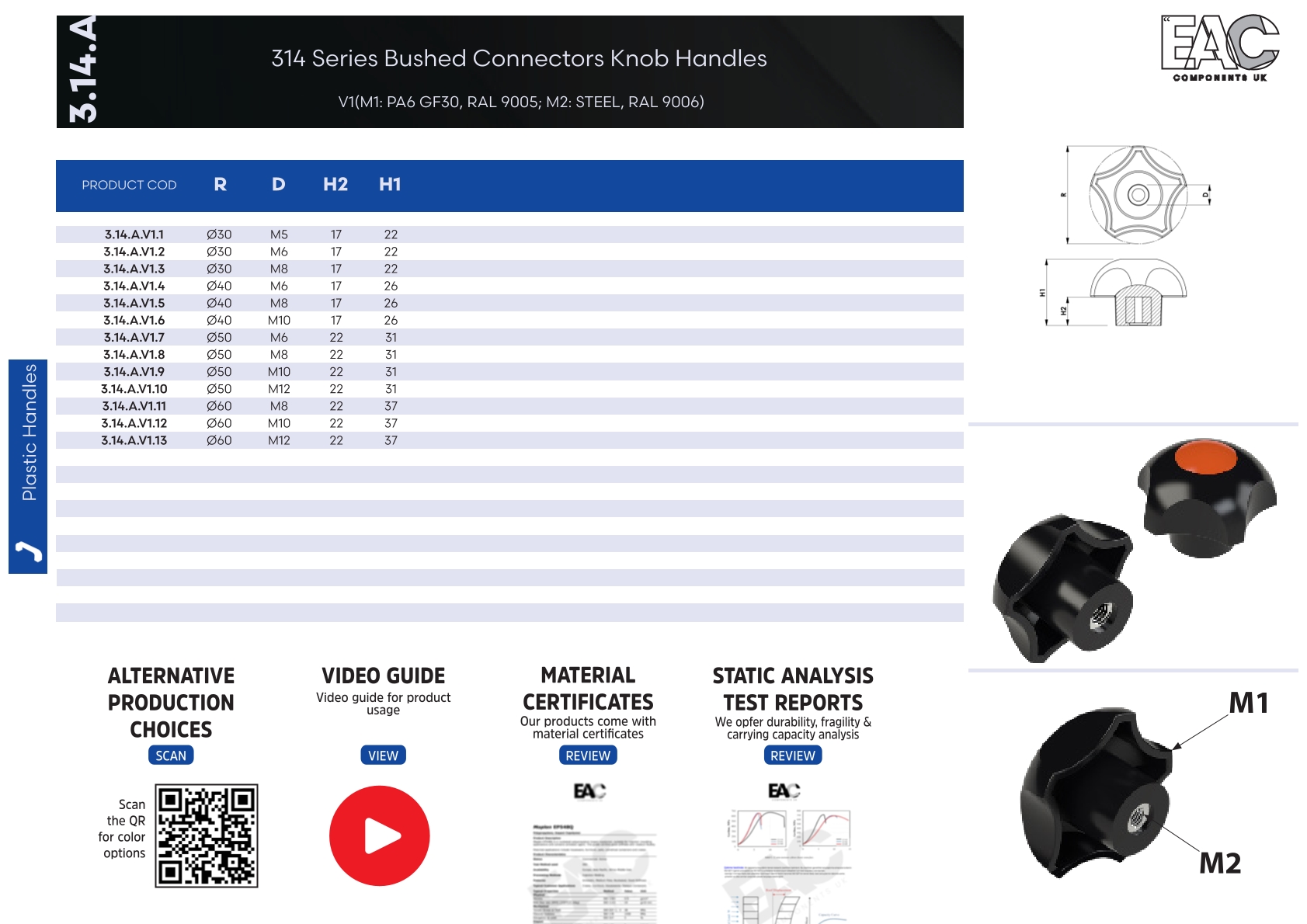

3.14.A.V1 - PA6 GF30 - RAL 9005
Knob Diameter (Ø) Bush Metric (D)
Ø30 M5 3.14.A.V1.1
Ø30 M6 3.14.A.V1.2
Ø30 M8 3.14.A.V1.3
Ø40 M6 3.14.A.V1.4
Ø40 M8 3.14.A.V1.5
Ø40 M10 3.14.A.V1.6
Ø50 M6 3.14.A.V1.7
Ø50 M8 3.14.A.V1.8
Ø50 M10 3.14.A.V1.9
Ø50 M12 3.14.A.V1.10
Ø60 M8 3.14.A.V1.11
Ø60 M10 3.14.A.V1.12
Ø60 M12 3.14.A.V1.13

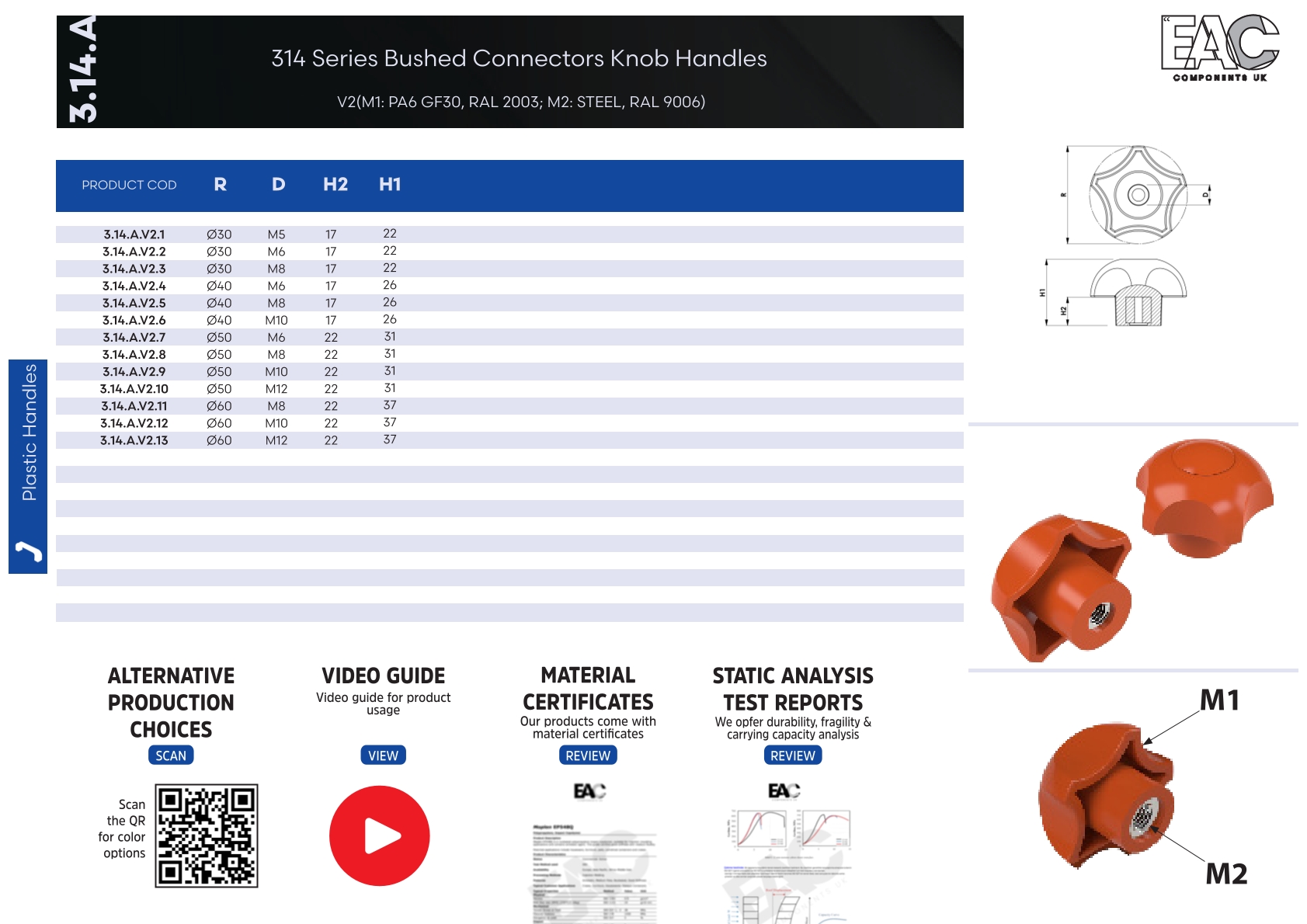

3.14.A.V2 - PA6 GF30 - RAL 2003
Knob Diameter (Ø) Bush Metric (D)
Ø60 M12 3.14.A.V2.13
Ø60 M10 3.14.A.V2.12
Ø60 M8 3.14.A.V2.11
Ø50 M12 3.14.A.V2.10
Ø50 M10 3.14.A.V2.9
Ø50 M8 3.14.A.V2.8
Ø50 M6 3.14.A.V2.7
Ø40 M10 3.14.A.V2.6
Ø40 M8 3.14.A.V2.5
Ø40 M6 3.14.A.V2.4
Ø30 M8 3.14.A.V2.3
Ø30 M6 3.14.A.V2.2
Ø30 M5 3.14.A.V2.1

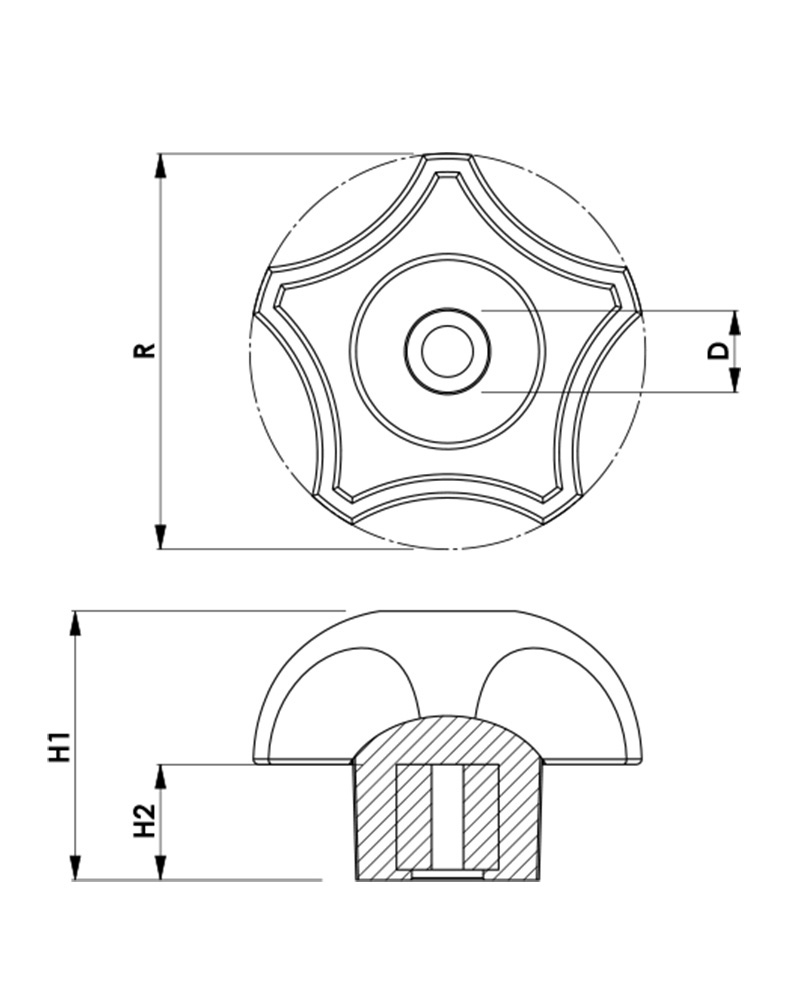

Technical Drawing
