33 Series Hole Connection Demountable Knob Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 3.3
Material and Color Options (V)

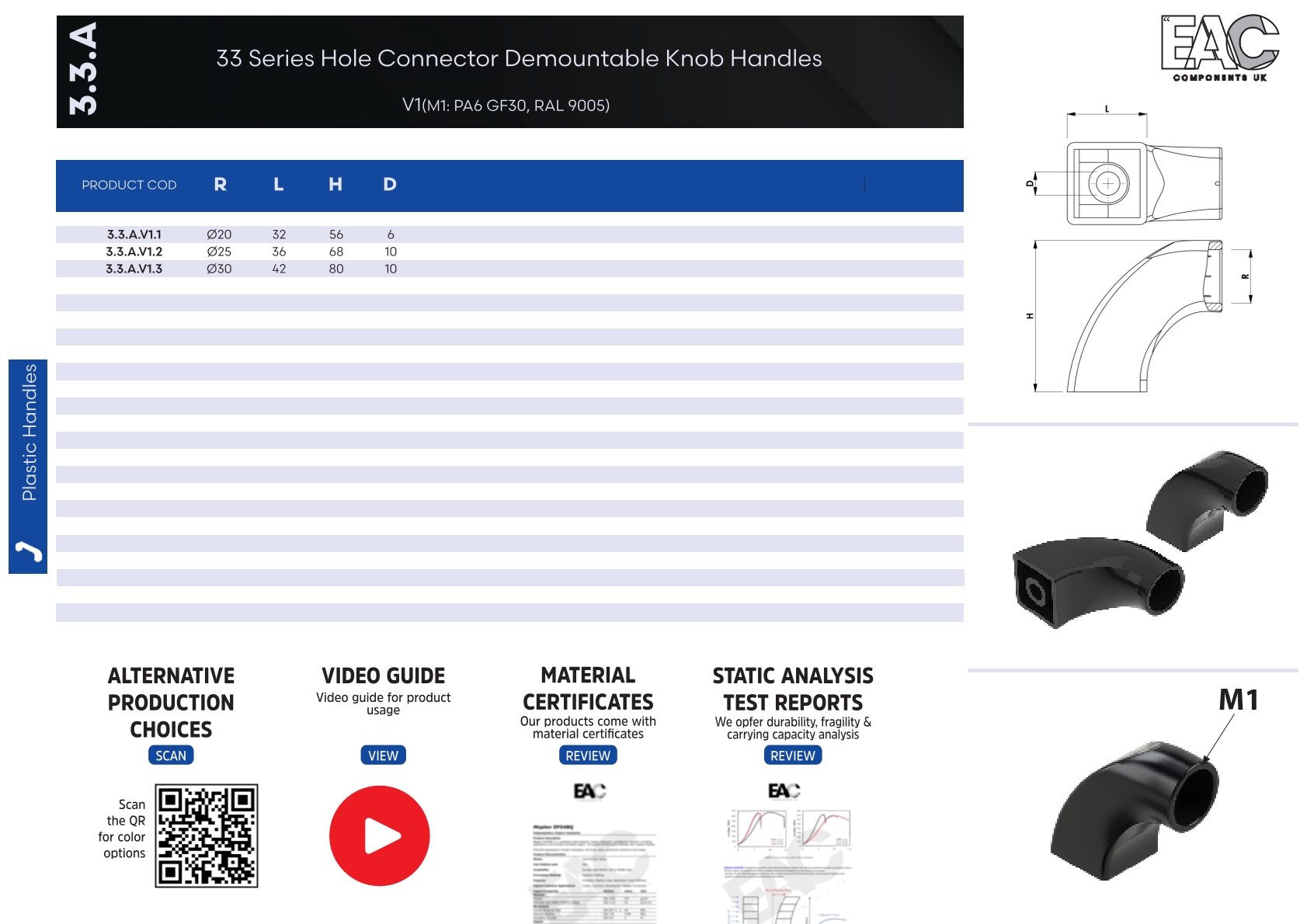

3.3.A.V1 - PA6 GF30 - RAL 9005
Pipe Diameter Hole Center (L2)
Ø20 32 3.3.A.V1.1
Ø25 36 3.3.A.V1.2
Ø30 42 3.3.A.V1.3

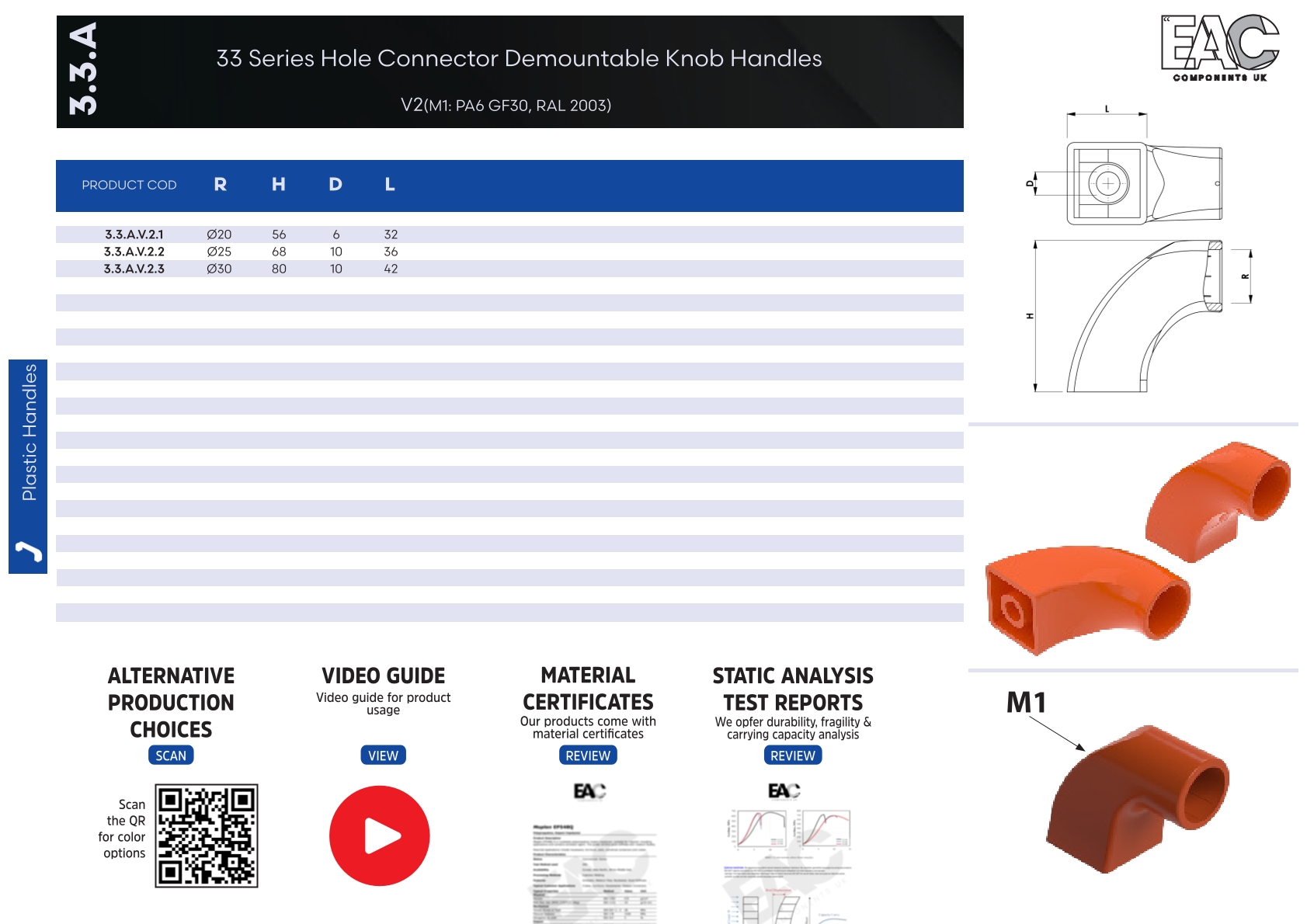

3.3.A.V2 - PA6 GF30 - RAL 2003
Pipe Diameter Hole Center (L2)
Ø30 42 3.3.A.V2.3
Ø25 36 3.3.A.V2.2
Ø20 32 3.3.A.V2.1
3.3.B.V1 - PA6 GF30 - RAL 9005
Pipe Diameter Hole Center (L2)
Ø30 42 3.3.B.V1.1
Ø25 36 3.3.B.V1.1
Ø20 32 3.3.B.V1.1

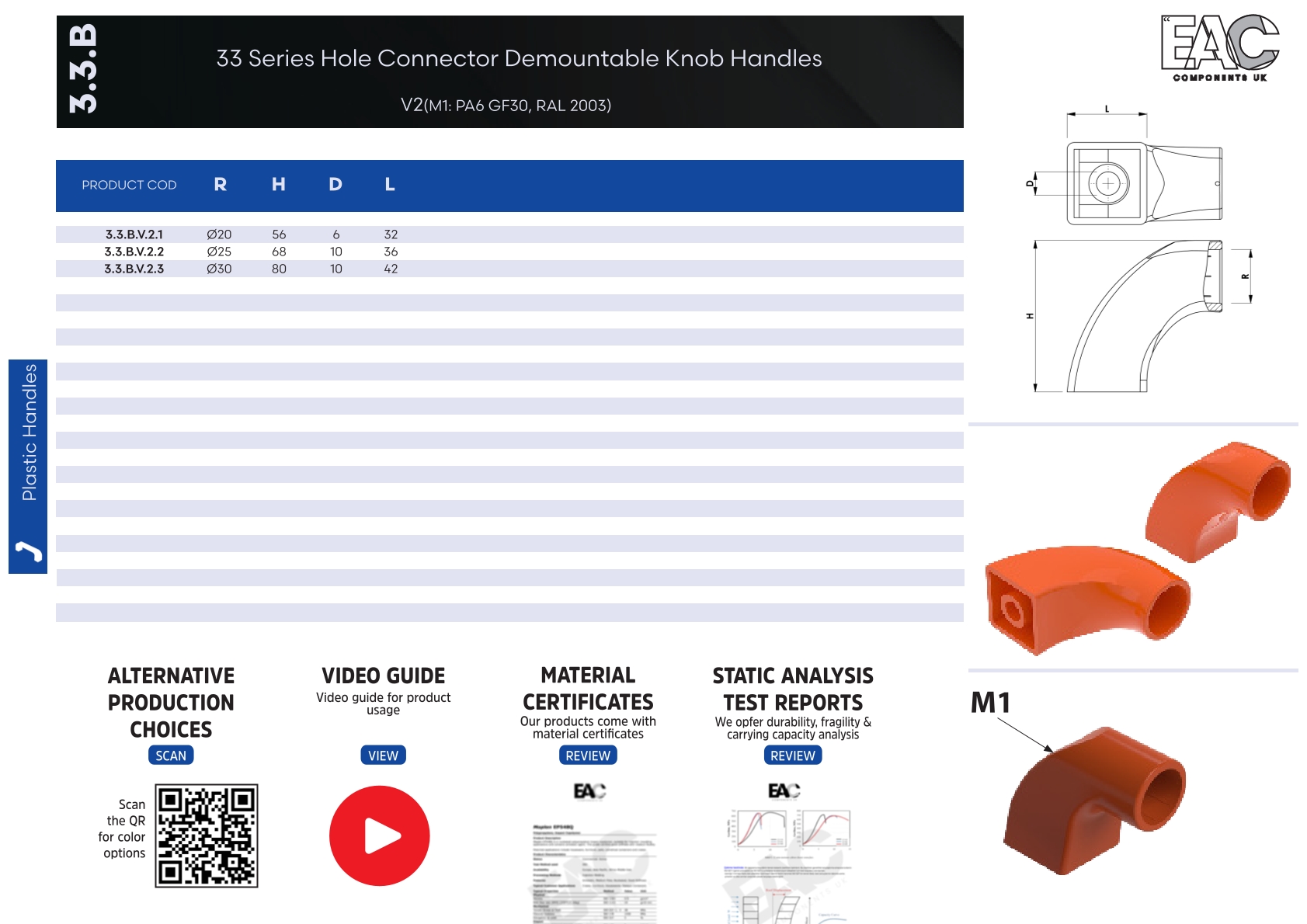

3.3.B.V2 - PA6 GF30 - RAL 2003
Pipe Diameter Hole Center (L2)
Ø30 42 3.3.B.V2.1
Ø25 36 3.3.B.V2.1
Ø20 32 3.3.B.V2.1
3.3.C.V1 - PPC - RAL 9005
Pipe Diameter Hole Center (L2)
Ø30 42 3.3.C.V1.1
Ø25 36 3.3.C.V1.1
Ø20 32 3.3.C.V1.1

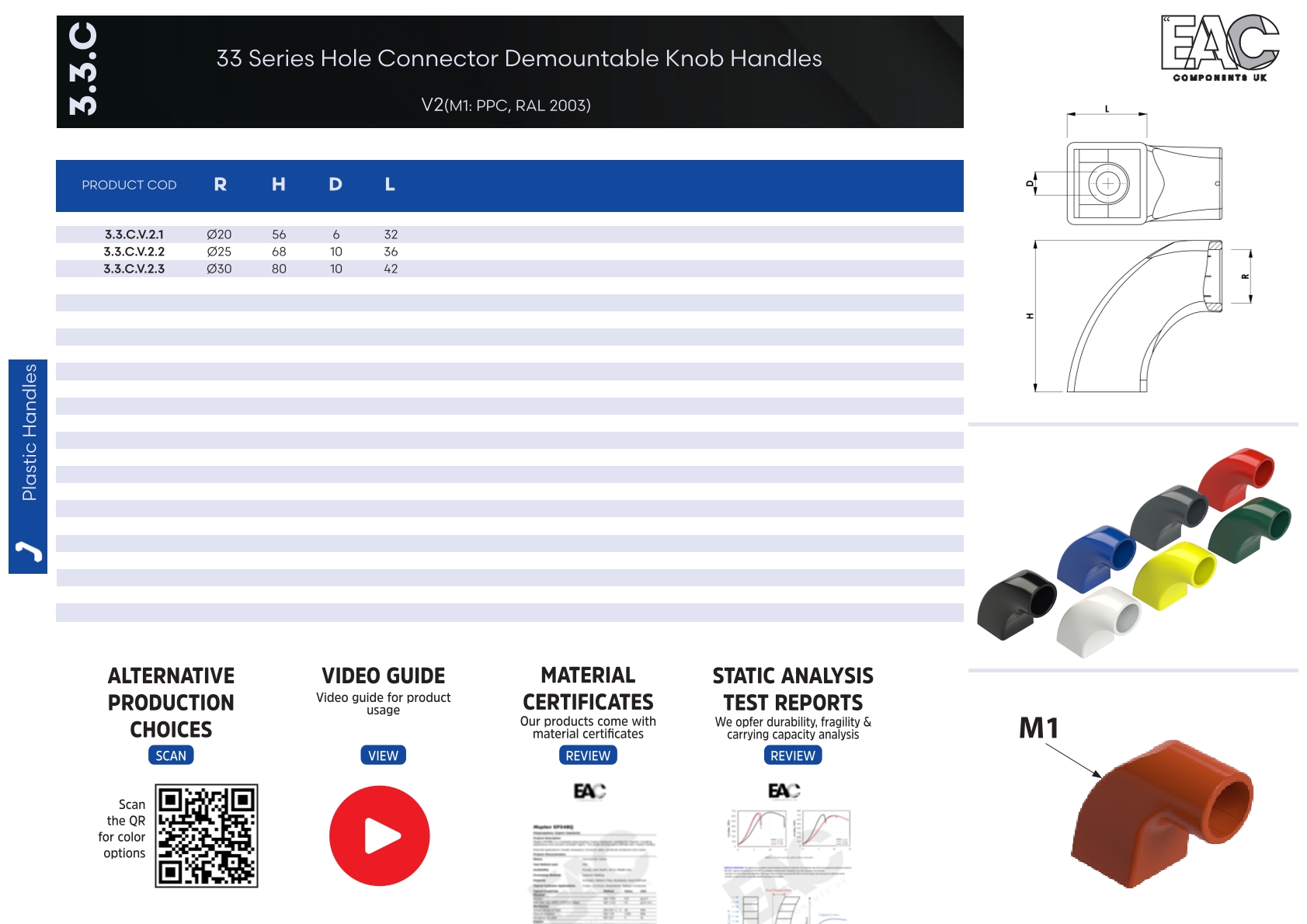

3.3.C.V2 - PPC - RAL 2003
Pipe Diameter Hole Center (L2)
Ø30 42 3.3.C.V2.1
Ø25 36 3.3.C.V2.1
Ø20 32 3.3.C.V2.1
3.3.C.V3 - PA6 GF30 - RAL 9005
Pipe Diameter Hole Center (L2)
Ø30 42 3.3.C.V3.1
Ø25 36 3.3.C.V3.1
Ø20 32 3.3.C.V3.1
3.3.C.V4 - PA6 GF30 - RAL 9005
Pipe Diameter Hole Center (L2)
Ø30 42 3.3.C.V4.1
Ø25 36 3.3.C.V4.1
Ø20 32 3.3.C.V4.1
Technical Drawing
