32 Series Bolted Switchblade Connector Lever Handles

32 Series Bolted Switchblade Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 3.2
Product Request
Contact Now
Product Raw Material Certificate
Technical Detail
Product Quality and Analysis Certificates
Technical Drawing
Montage Video
Category Introduction
3D Modelling
Material and Color Options (V)
3.2.A.V1 PA6 GF30 RAL 9005
3.2.A.V2 PA6 GF30 RAL 2003
3.2.A.V3 PA6 GF30 RAL 9005
3.2.A.V4 PA6 GF30 RAL 2003
3.2.B.V1 PPC RAL 9005
3.2.B.V2 PPC RAL 2003
3.2.B.V3 PPC RAL 9005
3.2.B.V4 PPC RAL 2003
3.2.B.V5 PA6 GF30 RAL 9005
3.2.B.V6 PA6 GF30 RAL 2003
3.2.B.V7 PA6 GF30 RAL 9005
3.2.B.V8 PA6 GF30 RAL 2003

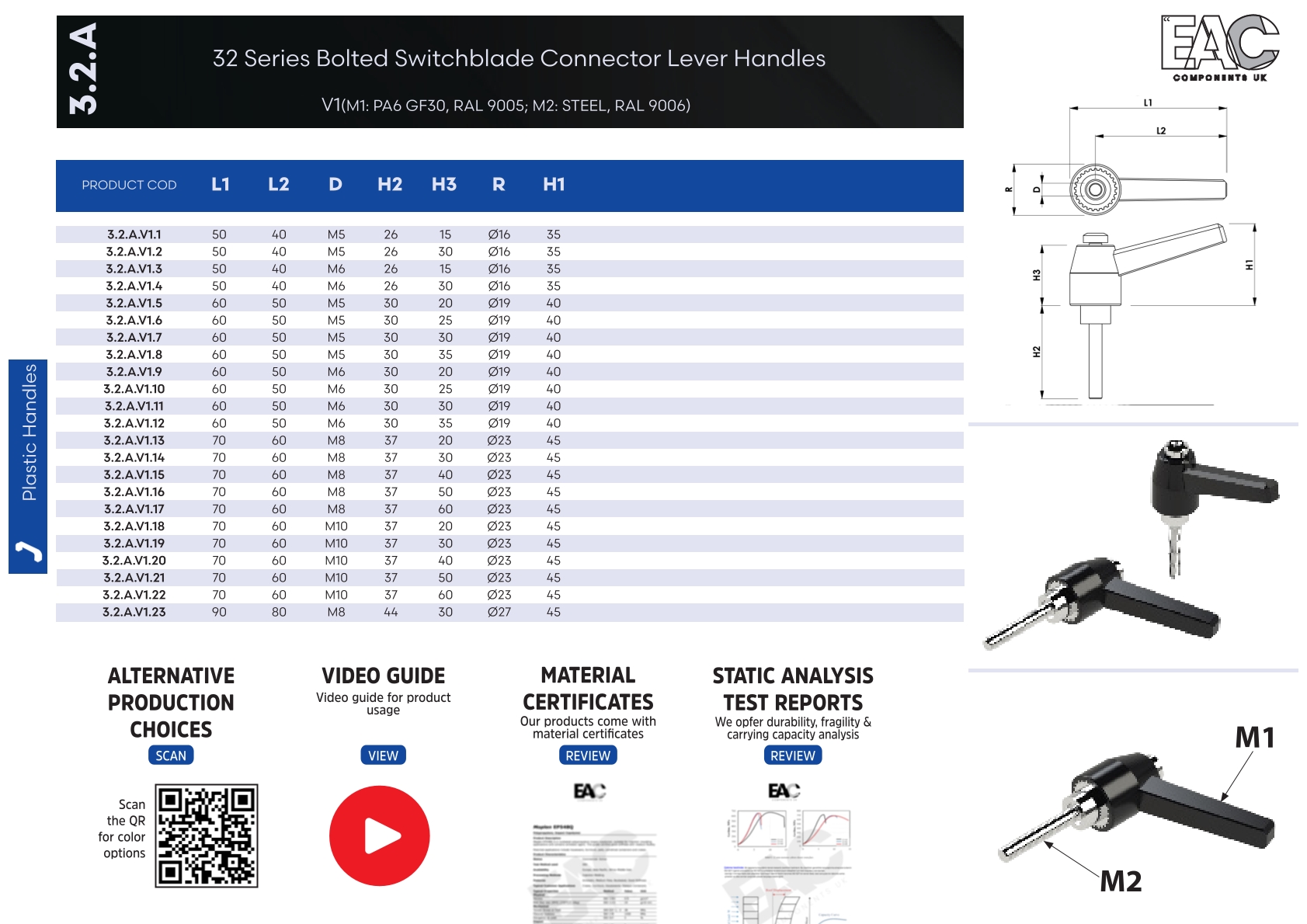

3.2.A.V1 - PA6 GF30 - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M5 50 35 26 3.2.A.V1.1
M5 50 35 26 3.2.A.V1.2
M6 50 35 26 3.2.A.V1.3
M6 50 35 26 3.2.A.V1.4
M5 60 40 30 3.2.A.V1.5
M5 60 40 30 3.2.A.V1.6
M5 60 40 30 3.2.A.V1.7
M5 60 40 30 3.2.A.V1.8
M6 60 40 30 3.2.A.V1.9
M6 60 40 30 3.2.A.V1.10
M6 60 40 30 3.2.A.V1.11
M6 60 40 30 3.2.A.V1.12
M8 70 45 37 3.2.A.V1.13
M8 70 45 37 3.2.A.V1.14
M8 70 45 37 3.2.A.V1.15
M8 70 45 37 3.2.A.V1.16
M8 70 45 37 3.2.A.V1.17
M10 70 45 37 3.2.A.V1.18
M10 70 45 37 3.2.A.V1.19
M10 70 45 37 3.2.A.V1.20
M10 70 45 37 3.2.A.V1.21
M10 70 45 37 3.2.A.V1.22
M8 90 45 44 3.2.A.V1.23
M8 90 55 44 3.2.A.V1.24
M8 90 55 44 3.2.A.V1.25
M8 90 55 44 3.2.A.V1.26
M10 90 55 44 3.2.A.V1.27
M10 90 55 44 3.2.A.V1.28
M10 90 55 44 3.2.A.V1.29
M10 90 55 44 3.2.A.V1.30
M12 90 55 44 3.2.A.V1.31
M12 90 55 44 3.2.A.V1.32
M12 90 55 44 3.2.A.V1.33
M12 90 55 44 3.2.A.V1.34
M12 120 67 50 3.2.A.V1.35
M14 120 67 50 3.2.A.V1.36
M16 120 67 50 3.2.A.V1.37
M16 120 67 50 3.2.A.V1.38
3.2.A.V2 - PA6 GF30 - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.A.V2.9
M5 50 35 26 3.2.A.V2.1
M8 70 45 37 3.2.A.V2.17
M8 70 45 37 3.2.A.V2.16
M8 70 45 37 3.2.A.V2.15
M8 70 45 37 3.2.A.V2.14
M8 70 45 37 3.2.A.V2.13
M6 60 40 30 3.2.A.V2.12
M10 70 45 37 3.2.A.V2.19
M6 60 40 30 3.2.A.V2.10
M10 70 45 37 3.2.A.V2.20
M5 60 40 30 3.2.A.V2.8
M5 60 40 30 3.2.A.V2.7
M5 60 40 30 3.2.A.V2.6
M5 60 40 30 3.2.A.V2.5
M6 50 35 26 3.2.A.V2.4
M6 50 35 26 3.2.A.V2.3
M5 50 35 26 3.2.A.V2.2
M6 60 40 30 3.2.A.V2.11
M10 90 55 44 3.2.A.V2.28
M16 120 67 50 3.2.A.V2.37
M14 120 67 50 3.2.A.V2.36
M12 120 67 50 3.2.A.V2.35
M12 90 55 44 3.2.A.V2.34
M12 90 55 44 3.2.A.V2.33
M12 90 55 44 3.2.A.V2.32
M12 90 55 44 3.2.A.V2.31
M10 70 45 37 3.2.A.V2.18
M10 90 55 44 3.2.A.V2.29
M16 120 67 50 3.2.A.V2.38
M10 90 55 44 3.2.A.V2.27
M8 90 55 44 3.2.A.V2.26
M8 90 55 44 3.2.A.V2.25
M8 90 55 44 3.2.A.V2.24
M8 90 45 44 3.2.A.V2.23
M10 70 45 37 3.2.A.V2.22
M10 70 45 37 3.2.A.V2.21
M10 90 55 44 3.2.A.V2.30
3.2.A.V3 - PA6 GF30 - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.A.V3.9
M5 50 35 26 3.2.A.V3.1
M8 70 45 37 3.2.A.V3.17
M8 70 45 37 3.2.A.V3.16
M8 70 45 37 3.2.A.V3.15
M8 70 45 37 3.2.A.V3.14
M8 70 45 37 3.2.A.V3.13
M6 60 40 30 3.2.A.V3.12
M10 70 45 37 3.2.A.V3.19
M6 60 40 30 3.2.A.V3.10
M10 70 45 37 3.2.A.V3.20
M5 60 40 30 3.2.A.V3.8
M5 60 40 30 3.2.A.V3.7
M5 60 40 30 3.2.A.V3.6
M5 60 40 30 3.2.A.V3.5
M6 50 35 26 3.2.A.V3.4
M6 50 35 26 3.2.A.V3.3
M5 50 35 26 3.2.A.V3.2
M6 60 40 30 3.2.A.V3.11
M10 90 55 44 3.2.A.V3.28
M16 120 67 50 3.2.A.V3.37
M14 120 67 50 3.2.A.V3.36
M12 120 67 50 3.2.A.V3.35
M12 90 55 44 3.2.A.V3.34
M12 90 55 44 3.2.A.V3.33
M12 90 55 44 3.2.A.V3.32
M12 90 55 44 3.2.A.V3.31
M10 70 45 37 3.2.A.V3.18
M10 90 55 44 3.2.A.V3.29
M16 120 67 50 3.2.A.V3.38
M10 90 55 44 3.2.A.V3.27
M8 90 55 44 3.2.A.V3.26
M8 90 55 44 3.2.A.V3.25
M8 90 55 44 3.2.A.V3.24
M8 90 45 44 3.2.A.V3.23
M10 70 45 37 3.2.A.V3.22
M10 70 45 37 3.2.A.V3.21
M10 90 55 44 3.2.A.V3.30
3.2.A.V4 - PA6 GF30 - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.A.V4.9
M5 50 35 26 3.2.A.V4.1
M8 70 45 37 3.2.A.V4.17
M8 70 45 37 3.2.A.V4.16
M8 70 45 37 3.2.A.V4.15
M8 70 45 37 3.2.A.V4.14
M8 70 45 37 3.2.A.V4.13
M6 60 40 30 3.2.A.V4.12
M10 70 45 37 3.2.A.V4.19
M6 60 40 30 3.2.A.V4.10
M10 70 45 37 3.2.A.V4.20
M5 60 40 30 3.2.A.V4.8
M5 60 40 30 3.2.A.V4.7
M5 60 40 30 3.2.A.V4.6
M5 60 40 30 3.2.A.V4.5
M6 50 35 26 3.2.A.V4.4
M6 50 35 26 3.2.A.V4.3
M5 50 35 26 3.2.A.V4.2
M6 60 40 30 3.2.A.V4.11
M10 90 55 44 3.2.A.V4.28
M16 120 67 50 3.2.A.V4.37
M14 120 67 50 3.2.A.V4.36
M12 120 67 50 3.2.A.V4.35
M12 90 55 44 3.2.A.V4.34
M12 90 55 44 3.2.A.V4.33
M12 90 55 44 3.2.A.V4.32
M12 90 55 44 3.2.A.V4.31
M10 70 45 37 3.2.A.V4.18
M10 90 55 44 3.2.A.V4.29
M16 120 67 50 3.2.A.V4.38
M10 90 55 44 3.2.A.V4.27
M8 90 55 44 3.2.A.V4.26
M8 90 55 44 3.2.A.V4.25
M8 90 55 44 3.2.A.V4.24
M8 90 45 44 3.2.A.V4.23
M10 70 45 37 3.2.A.V4.22
M10 70 45 37 3.2.A.V4.21
M10 90 55 44 3.2.A.V4.30
3.2.B.V1 - PPC - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M5 50 35 26 3.2.B.V1.1
M5 50 35 26 3.2.B.V1.2
M6 50 35 26 3.2.B.V1.3
M6 50 35 26 3.2.B.V1.4
M5 60 40 30 3.2.B.V1.5
M5 60 40 30 3.2.B.V1.6
M5 60 40 30 3.2.B.V1.7
M5 60 40 30 3.2.B.V1.8
M6 60 40 30 3.2.B.V1.9
M6 60 40 30 3.2.B.V1.10
M6 60 40 30 3.2.B.V1.11
M6 60 40 30 3.2.B.V1.12
M8 70 45 37 3.2.B.V1.13
M8 70 45 37 3.2.B.V1.14
M8 70 45 37 3.2.B.V1.15
M8 70 45 37 3.2.B.V1.16
M8 70 45 37 3.2.B.V1.17
M10 70 45 37 3.2.B.V1.18
M10 70 45 37 3.2.B.V1.19
M10 70 45 37 3.2.B.V1.20
M10 70 45 37 3.2.B.V1.21
M10 70 45 37 3.2.B.V1.22
M8 90 45 44 3.2.B.V1.23
M8 90 55 44 3.2.B.V1.24
M8 90 55 44 3.2.B.V1.25
M8 90 55 44 3.2.B.V1.26
M10 90 55 44 3.2.B.V1.27
M10 90 55 44 3.2.B.V1.28
M10 90 55 44 3.2.B.V1.29
M10 90 55 44 3.2.B.V1.30
M12 90 55 44 3.2.B.V1.31
M12 90 55 44 3.2.B.V1.32
M12 90 55 44 3.2.B.V1.33
M12 90 55 44 3.2.B.V1.34
M12 120 67 50 3.2.B.V1.35
M14 120 67 50 3.2.B.V1.36
M16 120 67 50 3.2.B.V1.37
M16 120 67 50 3.2.B.V1.38
3.2.B.V2 - PPC - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V2.9
M5 50 35 26 3.2.B.V2.1
M8 70 45 37 3.2.B.V2.17
M8 70 45 37 3.2.B.V2.16
M8 70 45 37 3.2.B.V2.15
M8 70 45 37 3.2.B.V2.14
M8 70 45 37 3.2.B.V2.13
M6 60 40 30 3.2.B.V2.12
M10 70 45 37 3.2.B.V2.19
M6 60 40 30 3.2.B.V2.10
M10 70 45 37 3.2.B.V2.20
M5 60 40 30 3.2.B.V2.8
M5 60 40 30 3.2.B.V2.7
M5 60 40 30 3.2.B.V2.6
M5 60 40 30 3.2.B.V2.5
M6 50 35 26 3.2.B.V2.4
M6 50 35 26 3.2.B.V2.3
M5 50 35 26 3.2.B.V2.2
M6 60 40 30 3.2.B.V2.11
M10 90 55 44 3.2.B.V2.28
M16 120 67 50 3.2.B.V2.37
M14 120 67 50 3.2.B.V2.36
M12 120 67 50 3.2.B.V2.35
M12 90 55 44 3.2.B.V2.34
M12 90 55 44 3.2.B.V2.33
M12 90 55 44 3.2.B.V2.32
M12 90 55 44 3.2.B.V2.31
M10 70 45 37 3.2.B.V2.18
M10 90 55 44 3.2.B.V2.29
M16 120 67 50 3.2.B.V2.38
M10 90 55 44 3.2.B.V2.27
M8 90 55 44 3.2.B.V2.26
M8 90 55 44 3.2.B.V2.25
M8 90 55 44 3.2.B.V2.24
M8 90 45 44 3.2.B.V2.23
M10 70 45 37 3.2.B.V2.22
M10 70 45 37 3.2.B.V2.21
M10 90 55 44 3.2.B.V2.30

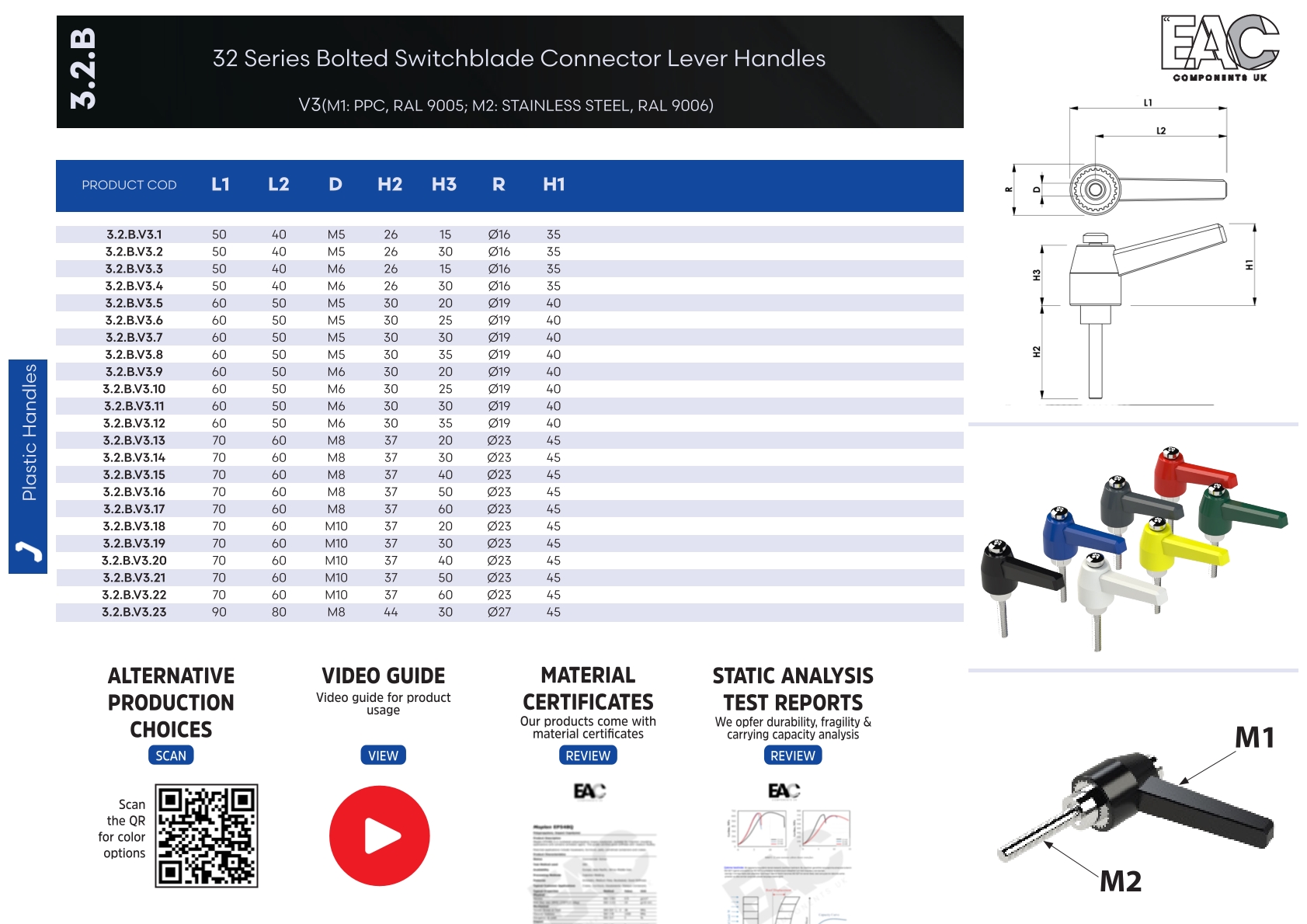

3.2.B.V3 - PPC - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V3.9
M5 50 35 26 3.2.B.V3.1
M8 70 45 37 3.2.B.V3.17
M8 70 45 37 3.2.B.V3.16
M8 70 45 37 3.2.B.V3.15
M8 70 45 37 3.2.B.V3.14
M8 70 45 37 3.2.B.V3.13
M6 60 40 30 3.2.B.V3.12
M10 70 45 37 3.2.B.V3.19
M6 60 40 30 3.2.B.V3.10
M10 70 45 37 3.2.B.V3.20
M5 60 40 30 3.2.B.V3.8
M5 60 40 30 3.2.B.V3.7
M5 60 40 30 3.2.B.V3.6
M5 60 40 30 3.2.B.V3.5
M6 50 35 26 3.2.B.V3.4
M6 50 35 26 3.2.B.V3.3
M5 50 35 26 3.2.B.V3.2
M6 60 40 30 3.2.B.V3.11
M10 90 55 44 3.2.B.V3.28
M16 120 67 50 3.2.B.V3.37
M14 120 67 50 3.2.B.V3.36
M12 120 67 50 3.2.B.V3.35
M12 90 55 44 3.2.B.V3.34
M12 90 55 44 3.2.B.V3.33
M12 90 55 44 3.2.B.V3.32
M12 90 55 44 3.2.B.V3.31
M10 70 45 37 3.2.B.V3.18
M10 90 55 44 3.2.B.V3.29
M16 120 67 50 3.2.B.V3.38
M10 90 55 44 3.2.B.V3.27
M8 90 55 44 3.2.B.V3.26
M8 90 55 44 3.2.B.V3.25
M8 90 55 44 3.2.B.V3.24
M8 90 45 44 3.2.B.V3.23
M10 70 45 37 3.2.B.V3.22
M10 70 45 37 3.2.B.V3.21
M10 90 55 44 3.2.B.V3.30

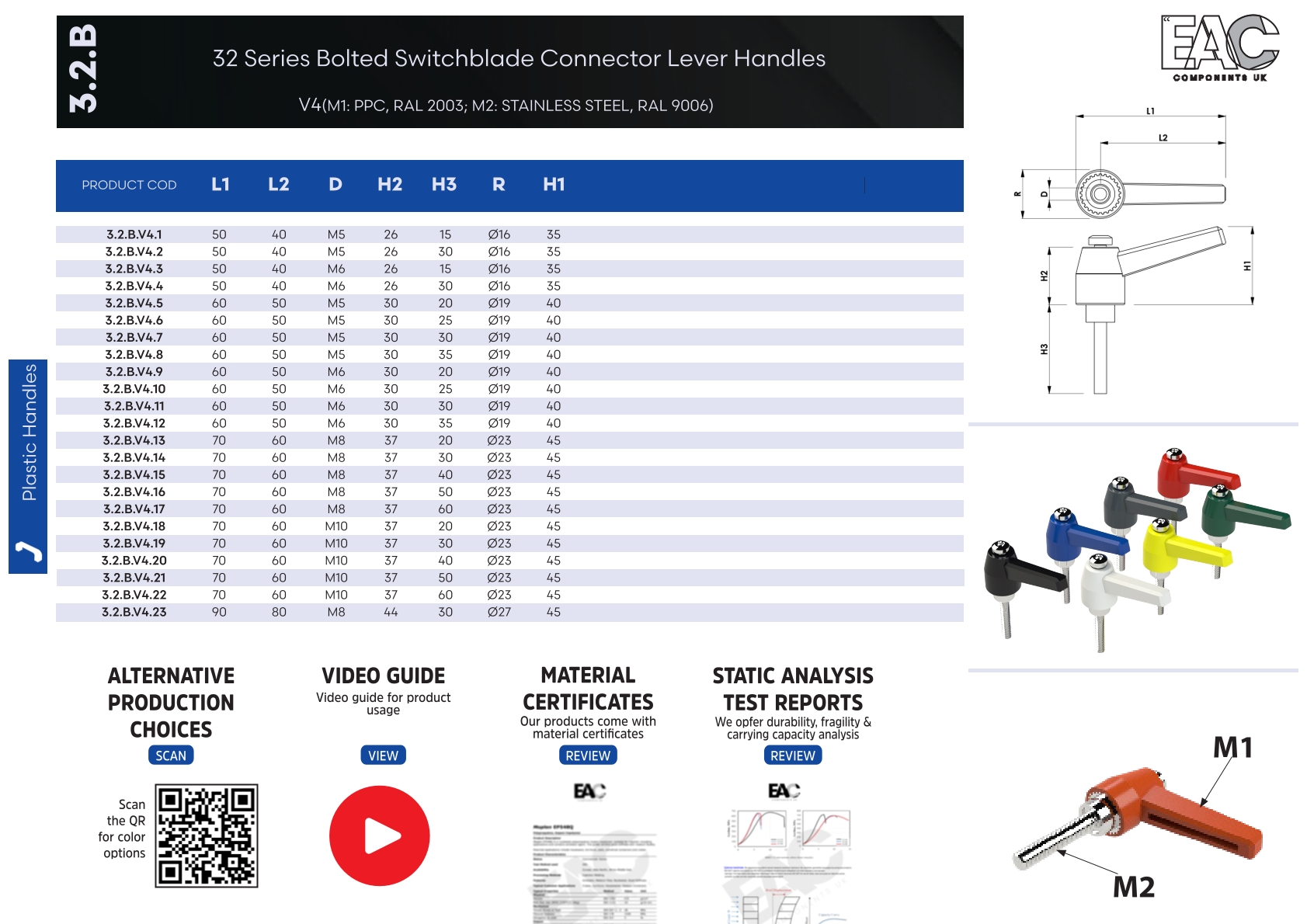

3.2.B.V4 - PPC - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V4.9
M5 50 35 26 3.2.B.V4.1
M8 70 45 37 3.2.B.V4.17
M8 70 45 37 3.2.B.V4.16
M8 70 45 37 3.2.B.V4.15
M8 70 45 37 3.2.B.V4.14
M8 70 45 37 3.2.B.V4.13
M6 60 40 30 3.2.B.V4.12
M10 70 45 37 3.2.B.V4.19
M6 60 40 30 3.2.B.V4.10
M10 70 45 37 3.2.B.V4.20
M5 60 40 30 3.2.B.V4.8
M5 60 40 30 3.2.B.V4.7
M5 60 40 30 3.2.B.V4.6
M5 60 40 30 3.2.B.V4.5
M6 50 35 26 3.2.B.V4.4
M6 50 35 26 3.2.B.V4.3
M5 50 35 26 3.2.B.V4.2
M6 60 40 30 3.2.B.V4.11
M10 90 55 44 3.2.B.V4.28
M16 120 67 50 3.2.B.V4.37
M14 120 67 50 3.2.B.V4.36
M12 120 67 50 3.2.B.V4.35
M12 90 55 44 3.2.B.V4.34
M12 90 55 44 3.2.B.V4.33
M12 90 55 44 3.2.B.V4.32
M12 90 55 44 3.2.B.V4.31
M10 70 45 37 3.2.B.V4.18
M10 90 55 44 3.2.B.V4.29
M16 120 67 50 3.2.B.V4.38
M10 90 55 44 3.2.B.V4.27
M8 90 55 44 3.2.B.V4.26
M8 90 55 44 3.2.B.V4.25
M8 90 55 44 3.2.B.V4.24
M8 90 45 44 3.2.B.V4.23
M10 70 45 37 3.2.B.V4.22
M10 70 45 37 3.2.B.V4.21
M10 90 55 44 3.2.B.V4.30

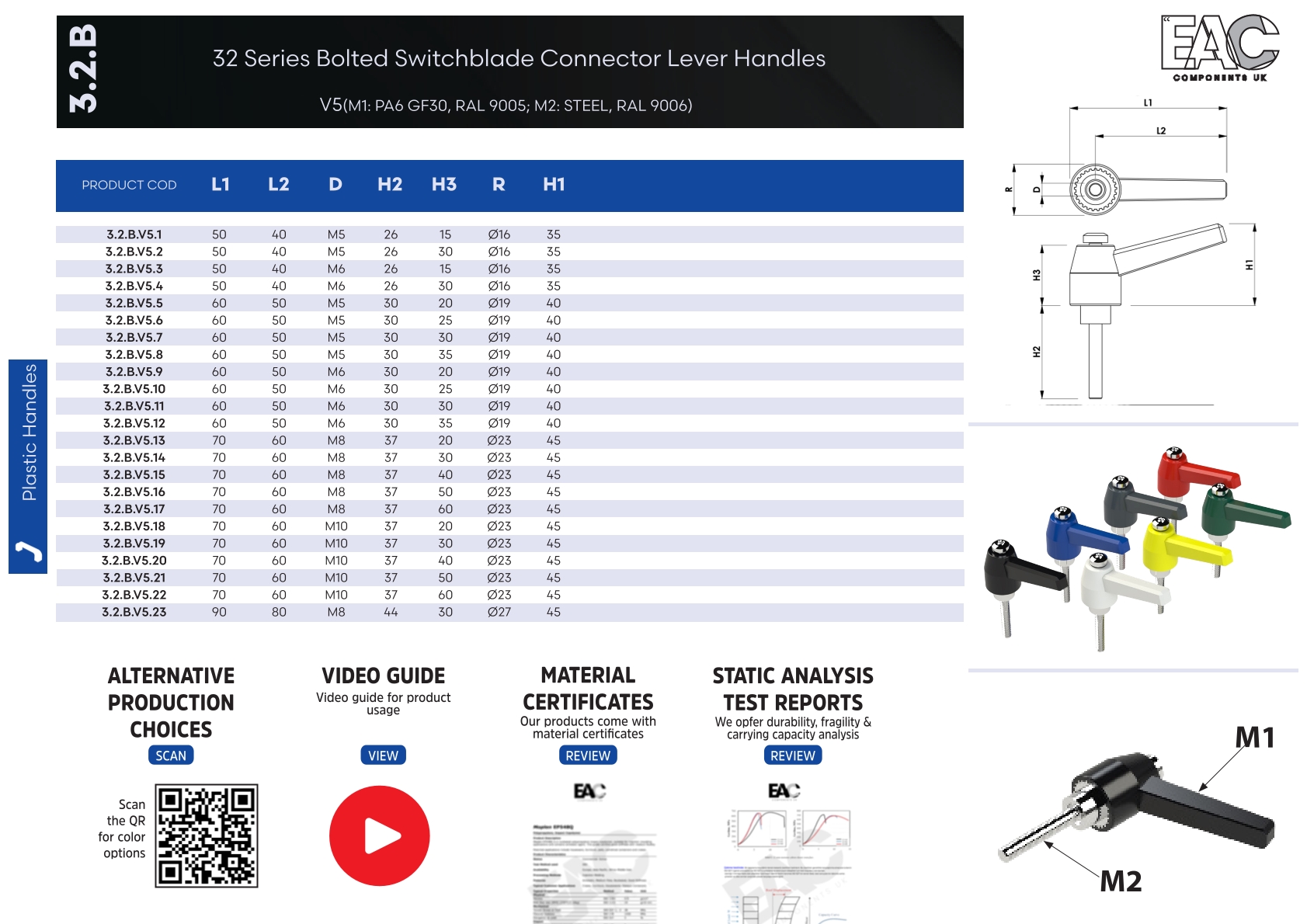

3.2.B.V5 - PA6 GF30 - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V5.9
M5 50 35 26 3.2.B.V5.1
M8 70 45 37 3.2.B.V5.17
M8 70 45 37 3.2.B.V5.16
M8 70 45 37 3.2.B.V5.15
M8 70 45 37 3.2.B.V5.14
M8 70 45 37 3.2.B.V5.13
M6 60 40 30 3.2.B.V5.12
M10 70 45 37 3.2.B.V5.19
M6 60 40 30 3.2.B.V5.10
M10 70 45 37 3.2.B.V5.20
M5 60 40 30 3.2.B.V5.8
M5 60 40 30 3.2.B.V5.7
M5 60 40 30 3.2.B.V5.6
M5 60 40 30 3.2.B.V5.5
M6 50 35 26 3.2.B.V5.4
M6 50 35 26 3.2.B.V5.3
M5 50 35 26 3.2.B.V5.2
M6 60 40 30 3.2.B.V5.11
M10 90 55 44 3.2.B.V5.28
M16 120 67 50 3.2.B.V5.37
M14 120 67 50 3.2.B.V5.36
M12 120 67 50 3.2.B.V5.35
M12 90 55 44 3.2.B.V5.34
M12 90 55 44 3.2.B.V5.33
M12 90 55 44 3.2.B.V5.32
M12 90 55 44 3.2.B.V5.31
M10 70 45 37 3.2.B.V5.18
M10 90 55 44 3.2.B.V5.29
M16 120 67 50 3.2.B.V5.38
M10 90 55 44 3.2.B.V5.27
M8 90 55 44 3.2.B.V5.26
M8 90 55 44 3.2.B.V5.25
M8 90 55 44 3.2.B.V5.24
M8 90 45 44 3.2.B.V5.23
M10 70 45 37 3.2.B.V5.22
M10 70 45 37 3.2.B.V5.21
M10 90 55 44 3.2.B.V5.30
3.2.B.V6 - PA6 GF30 - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V6.9
M5 50 35 26 3.2.B.V6.1
M8 70 45 37 3.2.B.V6.17
M8 70 45 37 3.2.B.V6.16
M8 70 45 37 3.2.B.V6.15
M8 70 45 37 3.2.B.V6.14
M8 70 45 37 3.2.B.V6.13
M6 60 40 30 3.2.B.V6.12
M10 70 45 37 3.2.B.V6.19
M6 60 40 30 3.2.B.V6.10
M10 70 45 37 3.2.B.V6.20
M5 60 40 30 3.2.B.V6.8
M5 60 40 30 3.2.B.V6.7
M5 60 40 30 3.2.B.V6.6
M5 60 40 30 3.2.B.V6.5
M6 50 35 26 3.2.B.V6.4
M6 50 35 26 3.2.B.V6.3
M5 50 35 26 3.2.B.V6.2
M6 60 40 30 3.2.B.V6.11
M10 90 55 44 3.2.B.V6.28
M16 120 67 50 3.2.B.V6.37
M14 120 67 50 3.2.B.V6.36
M12 120 67 50 3.2.B.V6.35
M12 90 55 44 3.2.B.V6.34
M12 90 55 44 3.2.B.V6.33
M12 90 55 44 3.2.B.V6.32
M12 90 55 44 3.2.B.V6.31
M10 70 45 37 3.2.B.V6.18
M10 90 55 44 3.2.B.V6.29
M16 120 67 50 3.2.B.V6.38
M10 90 55 44 3.2.B.V6.27
M8 90 55 44 3.2.B.V6.26
M8 90 55 44 3.2.B.V6.25
M8 90 55 44 3.2.B.V6.24
M8 90 45 44 3.2.B.V6.23
M10 70 45 37 3.2.B.V6.22
M10 70 45 37 3.2.B.V6.21
M10 90 55 44 3.2.B.V6.30
3.2.B.V7 - PA6 GF30 - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V7.9
M5 50 35 26 3.2.B.V7.1
M8 70 45 37 3.2.B.V7.17
M8 70 45 37 3.2.B.V7.16
M8 70 45 37 3.2.B.V7.15
M8 70 45 37 3.2.B.V7.14
M8 70 45 37 3.2.B.V7.13
M6 60 40 30 3.2.B.V7.12
M10 70 45 37 3.2.B.V7.19
M6 60 40 30 3.2.B.V7.10
M10 70 45 37 3.2.B.V7.20
M5 60 40 30 3.2.B.V7.8
M5 60 40 30 3.2.B.V7.7
M5 60 40 30 3.2.B.V7.6
M5 60 40 30 3.2.B.V7.5
M6 50 35 26 3.2.B.V7.4
M6 50 35 26 3.2.B.V7.3
M5 50 35 26 3.2.B.V7.2
M6 60 40 30 3.2.B.V7.11
M10 90 55 44 3.2.B.V7.28
M16 120 67 50 3.2.B.V7.37
M14 120 67 50 3.2.B.V7.36
M12 120 67 50 3.2.B.V7.35
M12 90 55 44 3.2.B.V7.34
M12 90 55 44 3.2.B.V7.33
M12 90 55 44 3.2.B.V7.32
M12 90 55 44 3.2.B.V7.31
M10 70 45 37 3.2.B.V7.18
M10 90 55 44 3.2.B.V7.29
M16 120 67 50 3.2.B.V7.38
M10 90 55 44 3.2.B.V7.27
M8 90 55 44 3.2.B.V7.26
M8 90 55 44 3.2.B.V7.25
M8 90 55 44 3.2.B.V7.24
M8 90 45 44 3.2.B.V7.23
M10 70 45 37 3.2.B.V7.22
M10 70 45 37 3.2.B.V7.21
M10 90 55 44 3.2.B.V7.30
3.2.B.V8 - PA6 GF30 - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 40 30 3.2.B.V8.9
M5 50 35 26 3.2.B.V8.1
M8 70 45 37 3.2.B.V8.17
M8 70 45 37 3.2.B.V8.16
M8 70 45 37 3.2.B.V8.15
M8 70 45 37 3.2.B.V8.14
M8 70 45 37 3.2.B.V8.13
M6 60 40 30 3.2.B.V8.12
M10 70 45 37 3.2.B.V8.19
M6 60 40 30 3.2.B.V8.10
M10 70 45 37 3.2.B.V8.20
M5 60 40 30 3.2.B.V8.8
M5 60 40 30 3.2.B.V8.7
M5 60 40 30 3.2.B.V8.6
M5 60 40 30 3.2.B.V8.5
M6 50 35 26 3.2.B.V8.4
M6 50 35 26 3.2.B.V8.3
M5 50 35 26 3.2.B.V8.2
M6 60 40 30 3.2.B.V8.11
M10 90 55 44 3.2.B.V8.28
M16 120 67 50 3.2.B.V8.37
M14 120 67 50 3.2.B.V8.36
M12 120 67 50 3.2.B.V8.35
M12 90 55 44 3.2.B.V8.34
M12 90 55 44 3.2.B.V8.33
M12 90 55 44 3.2.B.V8.32
M12 90 55 44 3.2.B.V8.31
M10 70 45 37 3.2.B.V8.18
M10 90 55 44 3.2.B.V8.29
M16 120 67 50 3.2.B.V8.38
M10 90 55 44 3.2.B.V8.27
M8 90 55 44 3.2.B.V8.26
M8 90 55 44 3.2.B.V8.25
M8 90 55 44 3.2.B.V8.24
M8 90 45 44 3.2.B.V8.23
M10 70 45 37 3.2.B.V8.22
M10 70 45 37 3.2.B.V8.21
M10 90 55 44 3.2.B.V8.30

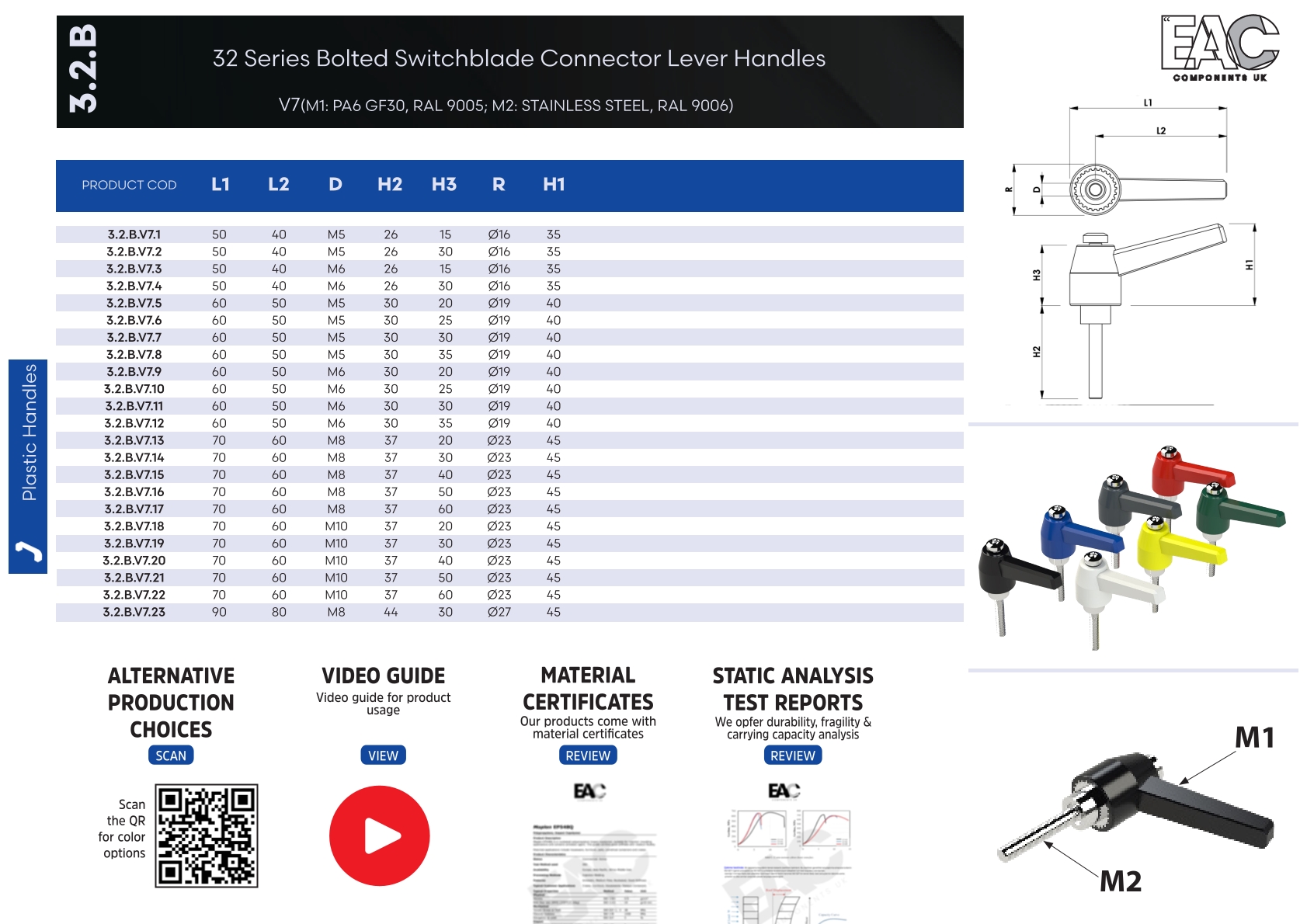

Technical Drawing
Technical Drawing
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Related Products
31 Series Bushed Switchblade Connector Lever Handles
31 Series Bushed Switchblade Connector Lever Handles
SKU: 3.1
32 Series Bolted Switchblade Connector Lever Handles
32 Series Bolted Switchblade Connector Lever Handles
SKU: 3.2
33 Series Hole Connection Demountable Knob Handles
33 Series Hole Connection Demountable Knob Handles
SKU: 3.3
34 Series Hole Connector Pull Handles
34 Series Hole Connector Pull Handles
SKU: 3.4
35 Serisi Bağlantı Yuvalı Kulp Tipi Plastik Tutamaklar
35 Serisi Bağlantı Yuvalı Kulp Tipi Plastik Tutamaklar
SKU: 3.5
36 Serisi Bağlantı Yuvalı Kulp Tipi Plastik Tutamaklar
36 Serisi Bağlantı Yuvalı Kulp Tipi Plastik Tutamaklar
SKU: 3.6
37 Series Hole Connector Pull Handles
37 Series Hole Connector Pull Handles
SKU: 3.7
38 Series Bushed Connectors Knob Handles
38 Series Bushed Connectors Knob Handles
SKU: 3.8
39 Series Bolted Connectors Knob Handles
39 Series Bolted Connectors Knob Handles
SKU: 3.9
310 Series Bolted Connectors Knob Handles
310 Series Bolted Connectors Knob Handles
SKU: 3.10
311 Series Bushed Connectors Knob Handles
311 Series Bushed Connectors Knob Handles
SKU: 3.11
312 Series Bushed Connectors Knob Handles
312 Series Bushed Connectors Knob Handles
SKU: 3.12
