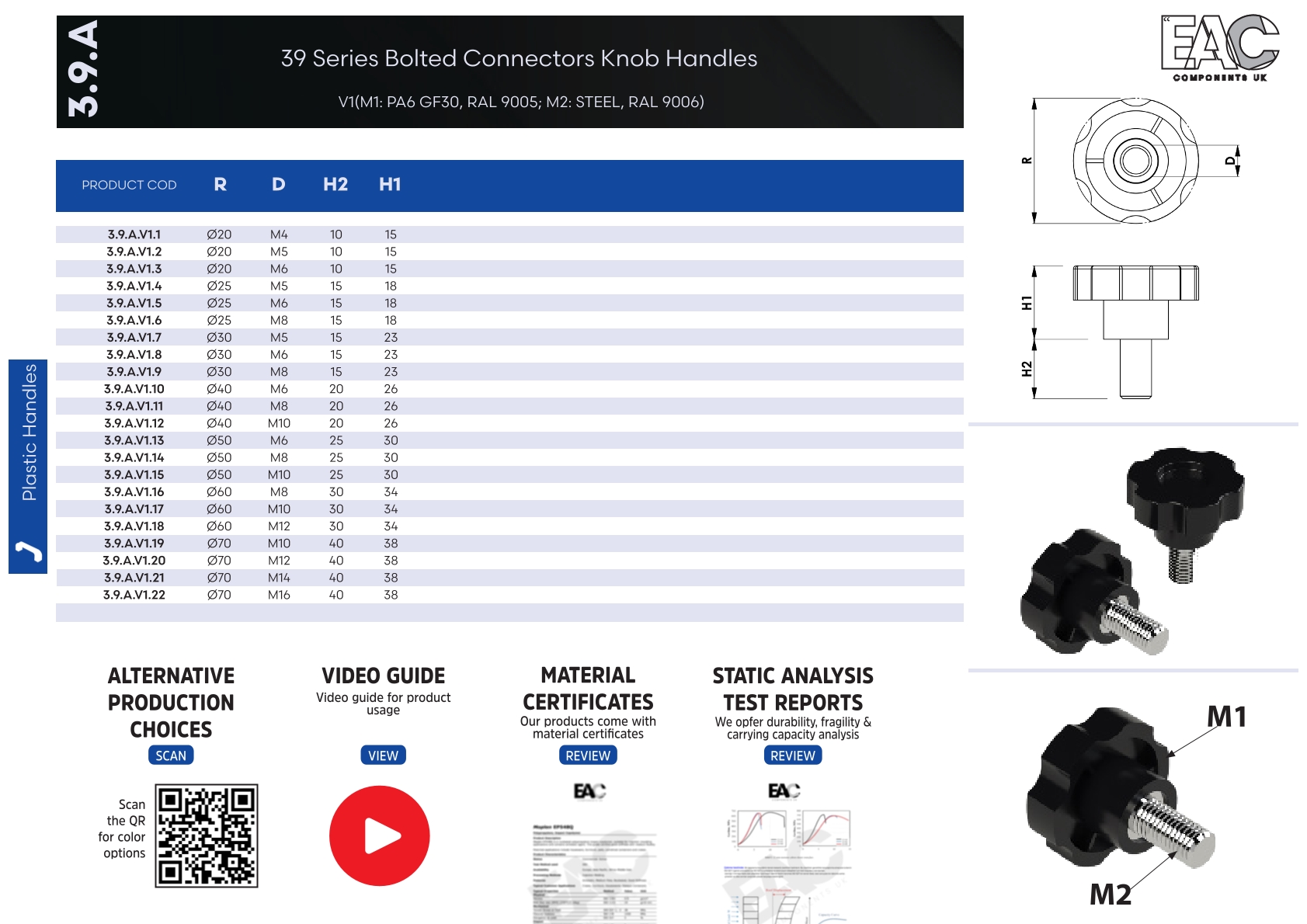

39 Series Bolted Connectors Knob Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 3.9
Material and Color Options (V)
3.9.A.V1 - PA6 GF30 - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø20 M4 10 3.9.A.V1.1
Ø20 M5 10 3.9.A.V1.2
Ø20 M6 10 3.9.A.V1.3
Ø25 M5 15 3.9.A.V1.4
Ø25 M6 15 3.9.A.V1.5
Ø25 M8 15 3.9.A.V1.6
Ø30 M5 15 3.9.A.V1.7
Ø30 M6 15 3.9.A.V1.8
Ø30 M8 15 3.9.A.V1.9
Ø40 M6 20 3.9.A.V1.10
Ø40 M8 20 3.9.A.V1.11
Ø40 M10 20 3.9.A.V1.12
Ø50 M6 25 3.9.A.V1.13
Ø50 M8 25 3.9.A.V1.14
Ø50 M10 25 3.9.A.V1.15
Ø60 M8 30 3.9.A.V1.16
Ø60 M10 30 3.9.A.V1.17
Ø60 M12 30 3.9.A.V1.18
Ø70 M10 40 3.9.A.V1.19
Ø70 M12 40 3.9.A.V1.20
Ø70 M14 40 3.9.A.V1.21
Ø70 M16 40 3.9.A.V1.22
