318 Series Bushed Connectors Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 3.18
Material and Color Options (V)
3.18.A.V1 - PA6 GF30 - RAL 9005
Product Diameter (Ø) Bushing Metric (D) Height (H1)
Ø20 M6 60 3.18.A.V1.1
Ø20 M8 60 3.18.A.V1.2
Ø25 M8 80 3.18.A.V1.3
Ø25 M10 80 3.18.A.V1.4
Ø30 M8 100 3.18.A.V1.5
Ø30 M10 100 3.18.A.V1.6
Ø30 M12 100 3.18.A.V1.7

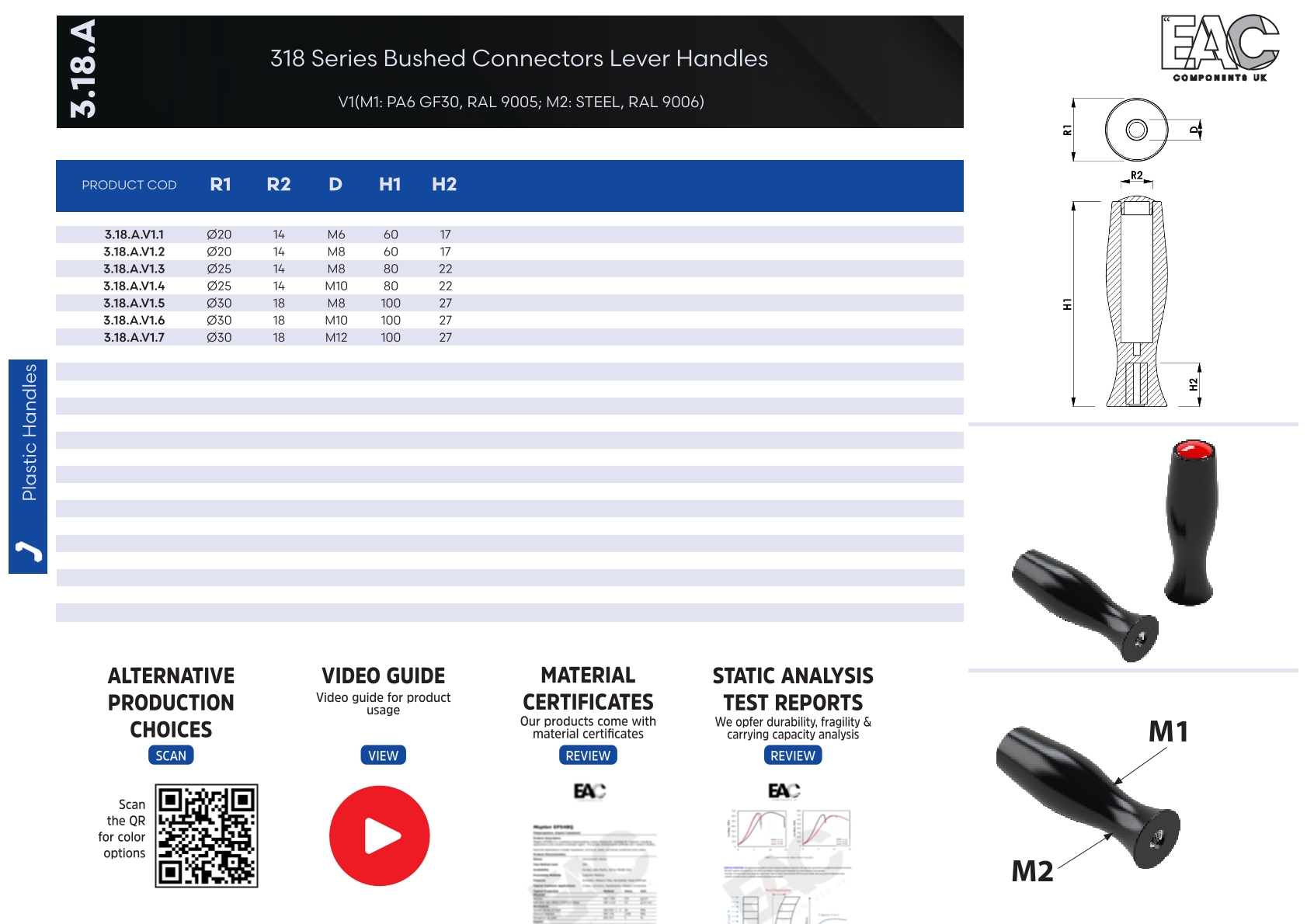

Technical Drawing
