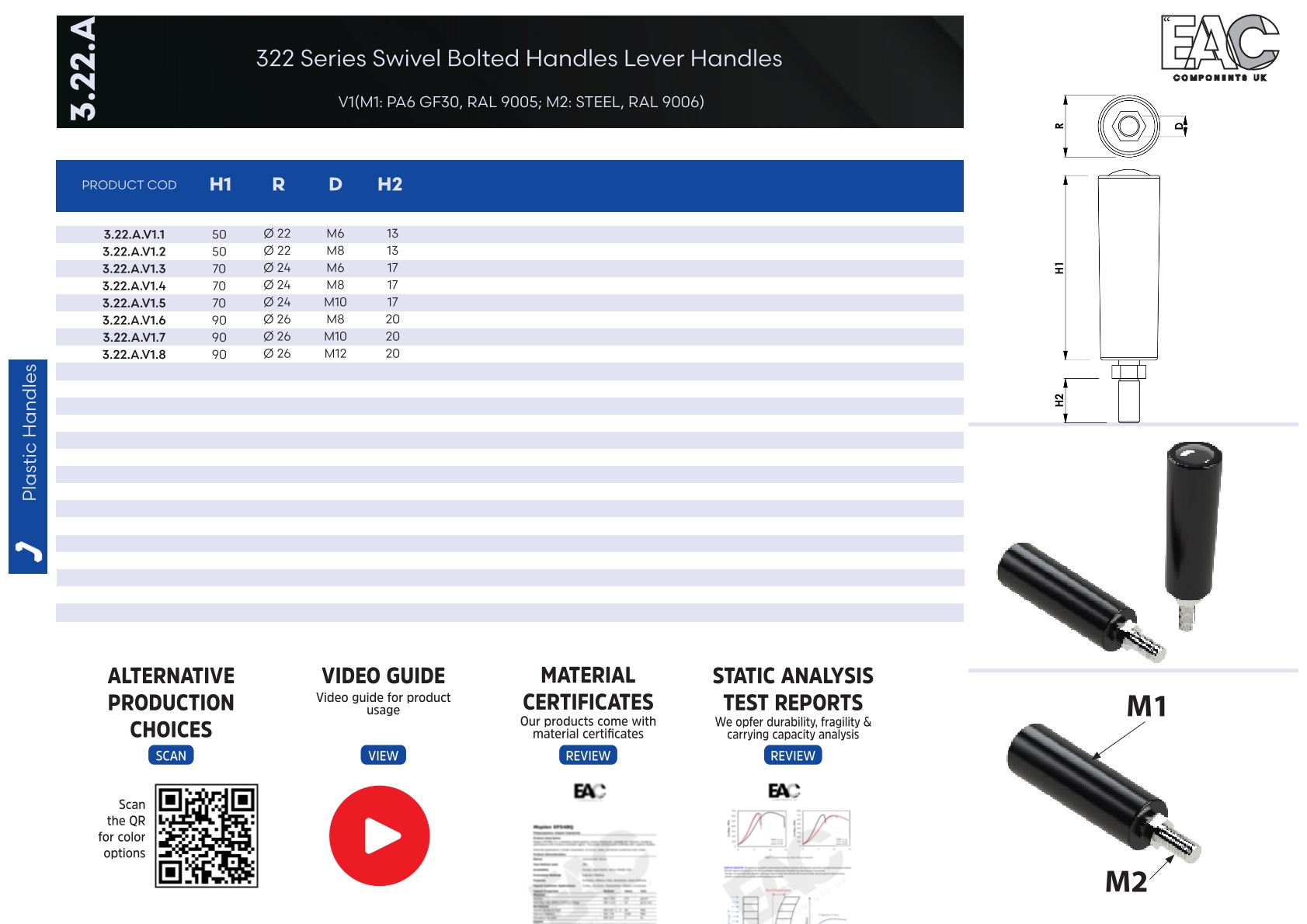

322 Series Swivel Bolted Handles Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 3.22
Material and Color Options (V)
3.22.A.V1 - PA6 GF30 - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Height (H1) Bolt Length (H)
Ø22 M6 50 13 3.22.A.V1.1
Ø22 M8 50 13 3.22.A.V1.2
Ø24 M6 70 17 3.22.A.V1.3
Ø24 M8 70 17 3.22.A.V1.4
Ø24 M10 70 17 3.22.A.V1.5
Ø26 M8 90 20 3.22.A.V1.6
Ø26 M10 90 20 3.22.A.V1.7
Ø26 M12 90 20 3.22.A.V1.8
