341 Series Bolted Connectors Knob Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 3.41
Material and Color Options (V)

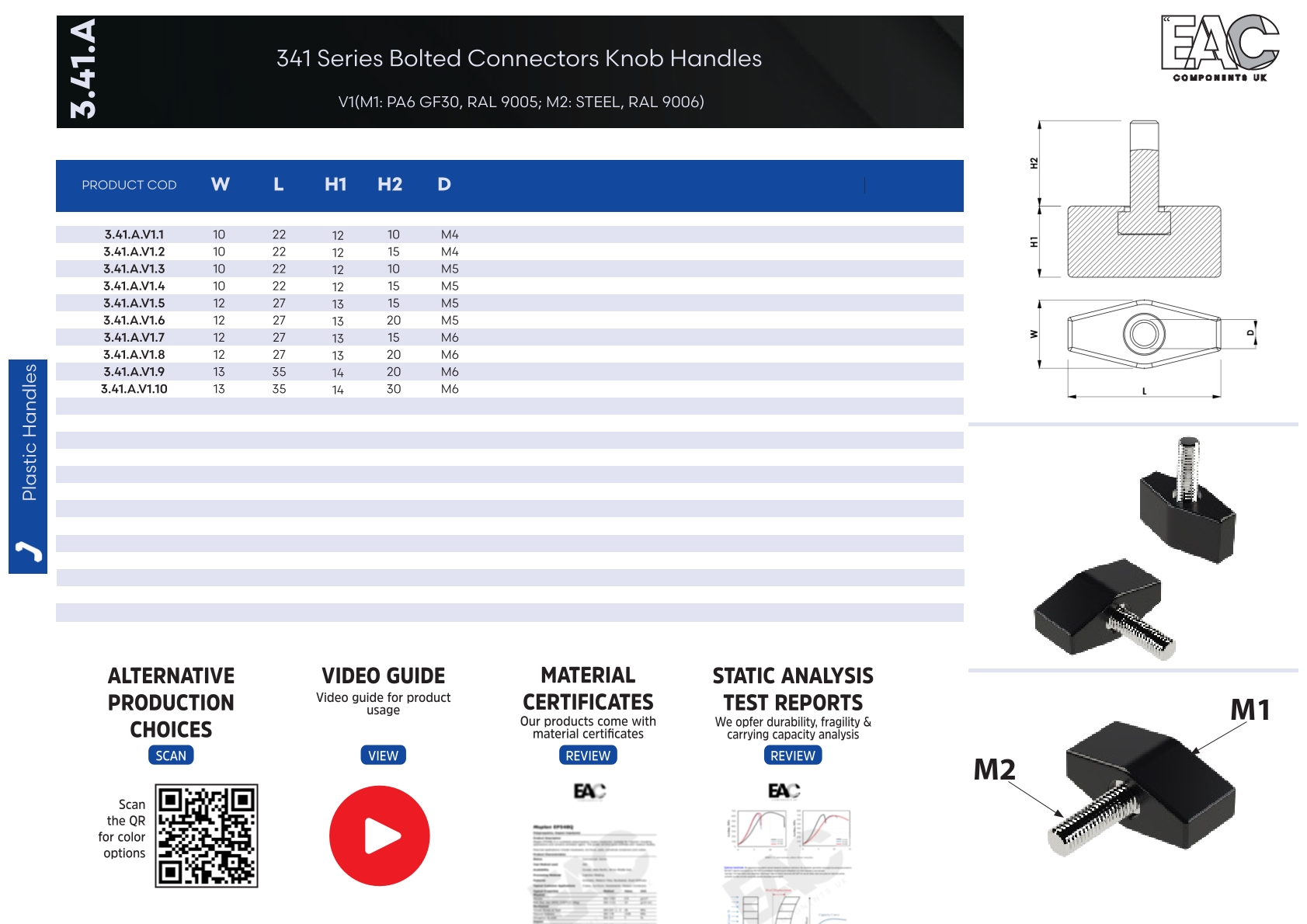

3.41.A.V1 - M4 - PA6 GF30
Knob Width (W) Knob Length (L) Bolt Length (H) Bolt Metric (D)
10 22 10 M4 3.41.A.V1.1
10 22 15 M4 3.41.A.V1.2
10 22 10 M5 3.41.A.V1.3
10 22 15 M5 3.41.A.V1.4
12 27 15 M5 3.41.A.V1.5
12 27 20 M5 3.41.A.V1.6
12 27 15 M6 3.41.A.V1.7
12 27 20 M6 3.41.A.V1.8
13 35 20 M6 3.41.A.V1.9
13 35 30 M6 3.41.A.V1.10
3.41.A.V1 - M5 - PA6 GF30
Knob Width (W) Knob Length (L) Bolt Length (H) Bolt Metric (D)
10 22 10 M4 3.41.A.V1.1
10 22 15 M4 3.41.A.V1.2
10 22 10 M5 3.41.A.V1.3
10 22 15 M5 3.41.A.V1.4
12 27 15 M5 3.41.A.V1.5
12 27 20 M5 3.41.A.V1.6
12 27 15 M6 3.41.A.V1.7
12 27 20 M6 3.41.A.V1.8
13 35 20 M6 3.41.A.V1.9
13 35 30 M6 3.41.A.V1.10
3.41.A.V1 - M6 - PA6 GF30
Knob Width (W) Knob Length (L) Bolt Length (H) Bolt Metric (D)
10 22 10 M4 3.41.A.V1.1
10 22 15 M4 3.41.A.V1.2
10 22 10 M5 3.41.A.V1.3
10 22 15 M5 3.41.A.V1.4
12 27 15 M5 3.41.A.V1.5
12 27 20 M5 3.41.A.V1.6
12 27 15 M6 3.41.A.V1.7
12 27 20 M6 3.41.A.V1.8
13 35 20 M6 3.41.A.V1.9
13 35 30 M6 3.41.A.V1.10
3.41.B.V1 - M6 - PPC
Knob Width (W) Knob Length (L) Bolt Length (H) Bolt Metric (D)
12 27 15 M6 3.41.B.V1.1
12 27 20 M6 3.41.B.V1.2
13 35 20 M6 3.41.B.V1.3
13 35 30 M6 3.41.B.V1.4
3.41.B.V2 - M6 - PA6 GF30
Knob Width (W) Knob Length (L) Bolt Length (H) Bolt Metric (D)
13 35 30 M6 3.41.B.V2.4
13 35 20 M6 3.41.B.V2.3
12 27 20 M6 3.41.B.V2.2
12 27 15 M6 3.41.B.V2.1
3.41.C.V1 - M4 - PPC
Knob Width (W) Knob Length (L) Bolt Length (H) Bolt Metric (D)
10 22 10 M4 3.41.C.V1.1
10 22 15 M4 3.41.C.V1.2
10 22 10 M5 3.41.C.V1.3
10 22 15 M5 3.41.C.V1.4
12 27 15 M5 3.41.C.V1.5
12 27 20 M5 3.41.C.V1.6
12 27 15 M6 3.41.C.V1.7
12 27 20 M6 3.41.C.V1.8
13 35 20 M6 3.41.C.V1.9
13 35 30 M6 3.41.C.V1.10
3.41.C.V1 - M5 - PPC
Knob Width (W) Knob Length (L) Bolt Length (H) Bolt Metric (D)
10 22 10 M4 3.41.C.V1.1
10 22 15 M4 3.41.C.V1.2
10 22 10 M5 3.41.C.V1.3
10 22 15 M5 3.41.C.V1.4
12 27 15 M5 3.41.C.V1.5
12 27 20 M5 3.41.C.V1.6
12 27 15 M6 3.41.C.V1.7
12 27 20 M6 3.41.C.V1.8
13 35 20 M6 3.41.C.V1.9
13 35 30 M6 3.41.C.V1.10
3.41.C.V1 - M6 - PPC
Knob Width (W) Knob Length (L) Bolt Length (H) Bolt Metric (D)
10 22 10 M4 3.41.C.V1.1
10 22 15 M4 3.41.C.V1.2
10 22 10 M5 3.41.C.V1.3
10 22 15 M5 3.41.C.V1.4
12 27 15 M5 3.41.C.V1.5
12 27 20 M5 3.41.C.V1.6
12 27 15 M6 3.41.C.V1.7
12 27 20 M6 3.41.C.V1.8
13 35 20 M6 3.41.C.V1.9
13 35 30 M6 3.41.C.V1.10

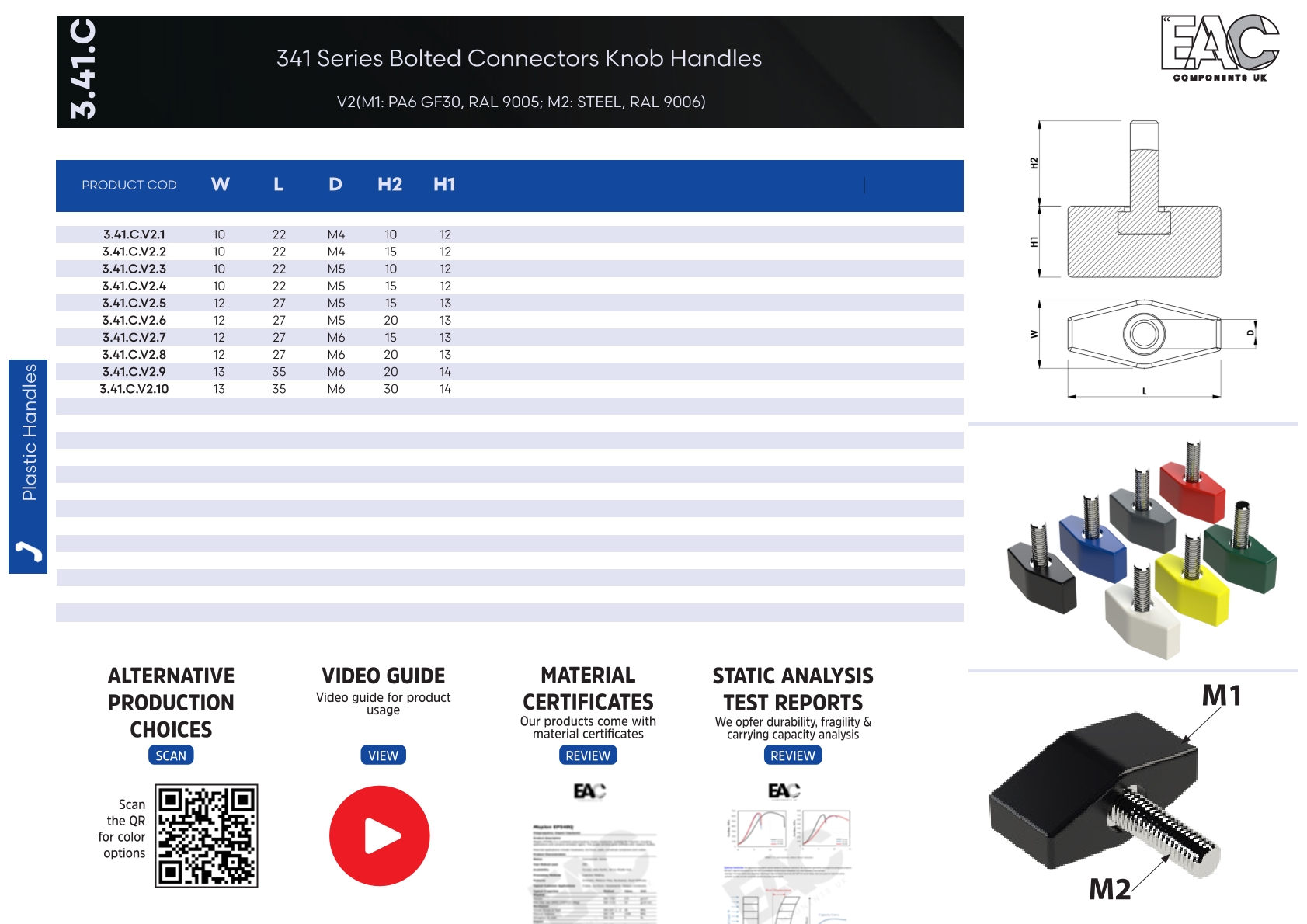

3.41.C.V2 - M4 - PPC
Knob Width (W) Knob Length (L) Bolt Length (H) Bolt Metric (D)
13 35 30 M6 3.41.C.V2.10
13 35 20 M6 3.41.C.V2.9
12 27 20 M6 3.41.C.V2.8
12 27 15 M6 3.41.C.V2.7
12 27 20 M5 3.41.C.V2.6
12 27 15 M5 3.41.C.V2.5
10 22 15 M5 3.41.C.V2.4
10 22 10 M5 3.41.C.V2.3
10 22 15 M4 3.41.C.V2.2
10 22 10 M4 3.41.C.V2.1
3.41.C.V2 - M5 - PPC
Knob Width (W) Knob Length (L) Bolt Length (H) Bolt Metric (D)
13 35 30 M6 3.41.C.V2.10
13 35 20 M6 3.41.C.V2.9
12 27 20 M6 3.41.C.V2.8
12 27 15 M6 3.41.C.V2.7
12 27 20 M5 3.41.C.V2.6
12 27 15 M5 3.41.C.V2.5
10 22 15 M5 3.41.C.V2.4
10 22 10 M5 3.41.C.V2.3
10 22 15 M4 3.41.C.V2.2
10 22 10 M4 3.41.C.V2.1
3.41.C.V2 - M6 - PPC
Knob Width (W) Knob Length (L) Bolt Length (H) Bolt Metric (D)
13 35 30 M6 3.41.C.V2.10
13 35 20 M6 3.41.C.V2.9
12 27 20 M6 3.41.C.V2.8
12 27 15 M6 3.41.C.V2.7
12 27 20 M5 3.41.C.V2.6
12 27 15 M5 3.41.C.V2.5
10 22 15 M5 3.41.C.V2.4
10 22 10 M5 3.41.C.V2.3
10 22 15 M4 3.41.C.V2.2
10 22 10 M4 3.41.C.V2.1
Technical Drawing
