343 Series Bolted Connectors Knob Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 3.43
Material and Color Options (V)

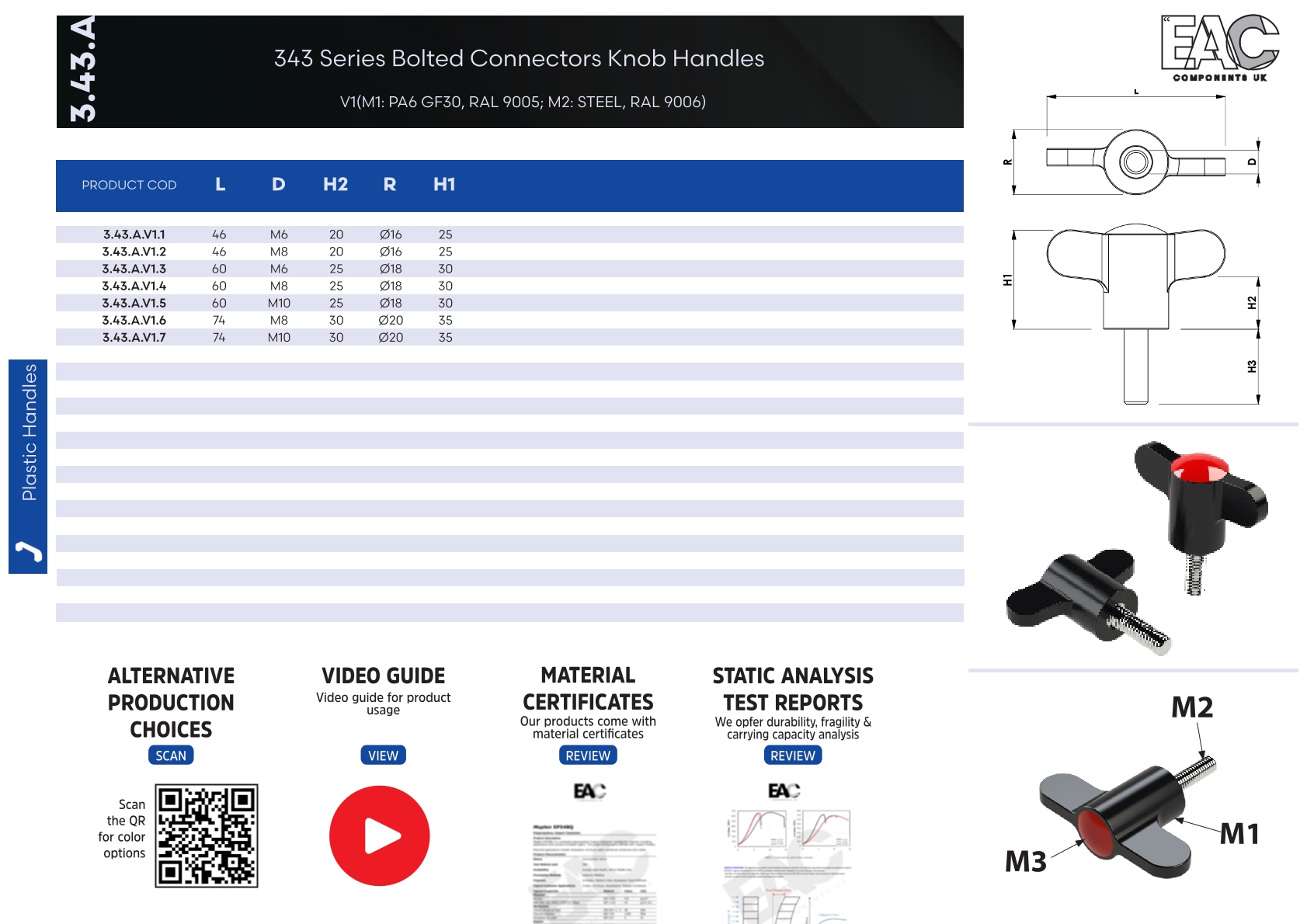

3.43.A.V1 - PA6 GF30 - RAL 9005
Bolt Metric (D) Bolt Length (H2) Length (L)
M6 20 46 3.43.A.V1.1
M8 20 46 3.43.A.V1.2
M6 25 60 3.43.A.V1.3
M8 25 60 3.43.A.V1.4
M10 25 60 3.43.A.V1.5
M8 30 74 3.43.A.V1.6
M10 30 74 3.43.A.V1.7

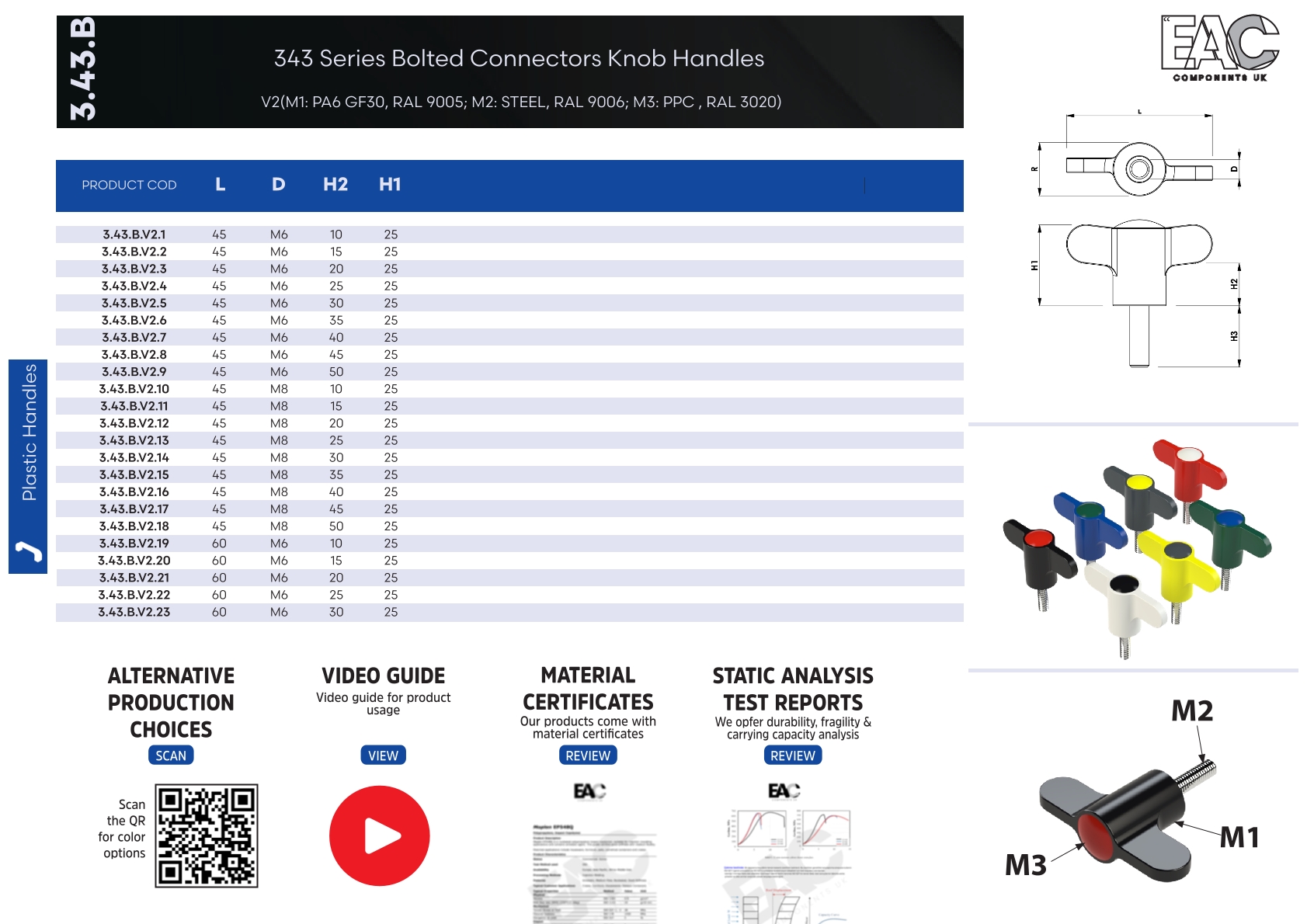

3.43.B.V1 - PPC - RAL 9005
Bolt Metric (D) Bolt Length (H2) Length (L)
M6 10 45 3.43.B.V1.1
M6 15 45 3.43.B.V1.2
M6 20 45 3.43.B.V1.3
M6 25 45 3.43.B.V1.4
M6 30 45 3.43.B.V1.5
M6 35 45 3.43.B.V1.6
M6 40 45 3.43.B.V1.7
M6 45 45 3.43.B.V1.8
M6 50 45 3.43.B.V1.9
M8 10 45 3.43.B.V1.10
M8 15 45 3.43.B.V1.11
M8 20 45 3.43.B.V1.12
M8 25 45 3.43.B.V1.13
M8 30 45 3.43.B.V1.14
M8 35 45 3.43.B.V1.15
M8 40 45 3.43.B.V1.16
M8 45 45 3.43.B.V1.17
M8 50 45 3.43.B.V1.18
M6 10 60 3.43.B.V1.19
M6 15 60 3.43.B.V1.20
M6 20 60 3.43.B.V1.21
M6 25 60 3.43.B.V1.22
M6 30 60 3.43.B.V1.23
M6 35 60 3.43.B.V1.24
M6 40 60 3.43.B.V1.25
M6 45 60 3.43.B.V1.26
M6 50 60 3.43.B.V1.27
M8 10 60 3.43.B.V1.28
M8 15 60 3.43.B.V1.29
M8 20 60 3.43.B.V1.30
M8 25 60 3.43.B.V1.31
M8 30 60 3.43.B.V1.32
M8 35 60 3.43.B.V1.33
M8 40 60 3.43.B.V1.34
M8 45 60 3.43.B.V1.35
M8 50 60 3.43.B.V1.36
M10 10 60 3.43.B.V1.37
M10 15 60 3.43.B.V1.38
M10 20 60 3.43.B.V1.39
M10 25 60 3.43.B.V1.40
M10 30 60 3.43.B.V1.41
M10 35 60 3.43.B.V1.42
M10 40 60 3.43.B.V1.43
M10 45 60 3.43.B.V1.44
M10 50 60 3.43.B.V1.45
M6 10 75 3.43.B.V1.46
M6 15 75 3.43.B.V1.47
M6 20 75 3.43.B.V1.48
M6 25 75 3.43.B.V1.49
M6 30 75 3.43.B.V1.50
M6 35 75 3.43.B.V1.51
M6 40 75 3.43.B.V1.52
M6 45 75 3.43.B.V1.53
M6 50 75 3.43.B.V1.54
M8 10 75 3.43.B.V1.55
M8 15 75 3.43.B.V1.56
M8 20 75 3.43.B.V1.57
M8 25 75 3.43.B.V1.58
M8 30 75 3.43.B.V1.59
M8 35 75 3.43.B.V1.60
M8 40 75 3.43.B.V1.61
M8 45 75 3.43.B.V1.62
M8 50 75 3.43.B.V1.63
M10 10 75 3.43.B.V1.64
M10 15 75 3.43.B.V1.65
M10 20 75 3.43.B.V1.66
M10 25 75 3.43.B.V1.67
M10 30 75 3.43.B.V1.68
M10 35 75 3.43.B.V1.69
M10 40 75 3.43.B.V1.70
M10 45 75 3.43.B.V1.71
M10 50 75 3.43.B.V1.72
3.43.B.V2 - PA6 GF30 - RAL 9005
Bolt Metric (D) Bolt Length (H2) Length (L)
M8 10 60 3.43.B.V2.28
M8 50 60 3.43.B.V2.36
M6 20 60 3.43.B.V2.21
M6 25 60 3.43.B.V2.22
M6 30 60 3.43.B.V2.23
M6 35 60 3.43.B.V2.24
M6 40 60 3.43.B.V2.25
M6 10 60 3.43.B.V2.19
M6 50 60 3.43.B.V2.27
M8 50 45 3.43.B.V2.18
M8 15 60 3.43.B.V2.29
M8 20 60 3.43.B.V2.30
M8 25 60 3.43.B.V2.31
M8 30 60 3.43.B.V2.32
M8 35 60 3.43.B.V2.33
M8 40 60 3.43.B.V2.34
M6 10 45 3.43.B.V2.1
M6 45 60 3.43.B.V2.26
M8 10 45 3.43.B.V2.10
M6 15 45 3.43.B.V2.2
M6 20 45 3.43.B.V2.3
M6 25 45 3.43.B.V2.4
M6 30 45 3.43.B.V2.5
M6 35 45 3.43.B.V2.6
M6 40 45 3.43.B.V2.7
M6 15 60 3.43.B.V2.20
M6 50 45 3.43.B.V2.9
M10 10 60 3.43.B.V2.37
M8 15 45 3.43.B.V2.11
M8 20 45 3.43.B.V2.12
M8 25 45 3.43.B.V2.13
M8 30 45 3.43.B.V2.14
M8 35 45 3.43.B.V2.15
M8 40 45 3.43.B.V2.16
M8 45 45 3.43.B.V2.17
M6 45 45 3.43.B.V2.8
M10 10 75 3.43.B.V2.64
M8 45 60 3.43.B.V2.35
M8 20 75 3.43.B.V2.57
M8 25 75 3.43.B.V2.58
M8 30 75 3.43.B.V2.59
M8 35 75 3.43.B.V2.60
M8 40 75 3.43.B.V2.61
M8 10 75 3.43.B.V2.55
M8 50 75 3.43.B.V2.63
M6 50 75 3.43.B.V2.54
M10 15 75 3.43.B.V2.65
M10 20 75 3.43.B.V2.66
M10 25 75 3.43.B.V2.67
M10 30 75 3.43.B.V2.68
M10 35 75 3.43.B.V2.69
M10 40 75 3.43.B.V2.70
M10 45 75 3.43.B.V2.71
M8 45 75 3.43.B.V2.62
M6 10 75 3.43.B.V2.46
M10 15 60 3.43.B.V2.38
M10 20 60 3.43.B.V2.39
M10 25 60 3.43.B.V2.40
M10 30 60 3.43.B.V2.41
M10 35 60 3.43.B.V2.42
M10 40 60 3.43.B.V2.43
M8 15 75 3.43.B.V2.56
M10 50 60 3.43.B.V2.45
M10 50 75 3.43.B.V2.72
M6 15 75 3.43.B.V2.47
M6 20 75 3.43.B.V2.48
M6 25 75 3.43.B.V2.49
M6 30 75 3.43.B.V2.50
M6 35 75 3.43.B.V2.51
M6 40 75 3.43.B.V2.52
M6 45 75 3.43.B.V2.53
M10 45 60 3.43.B.V2.44
