344 Series Bushed Connectors Knob Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 3.44
Material and Color Options (V)

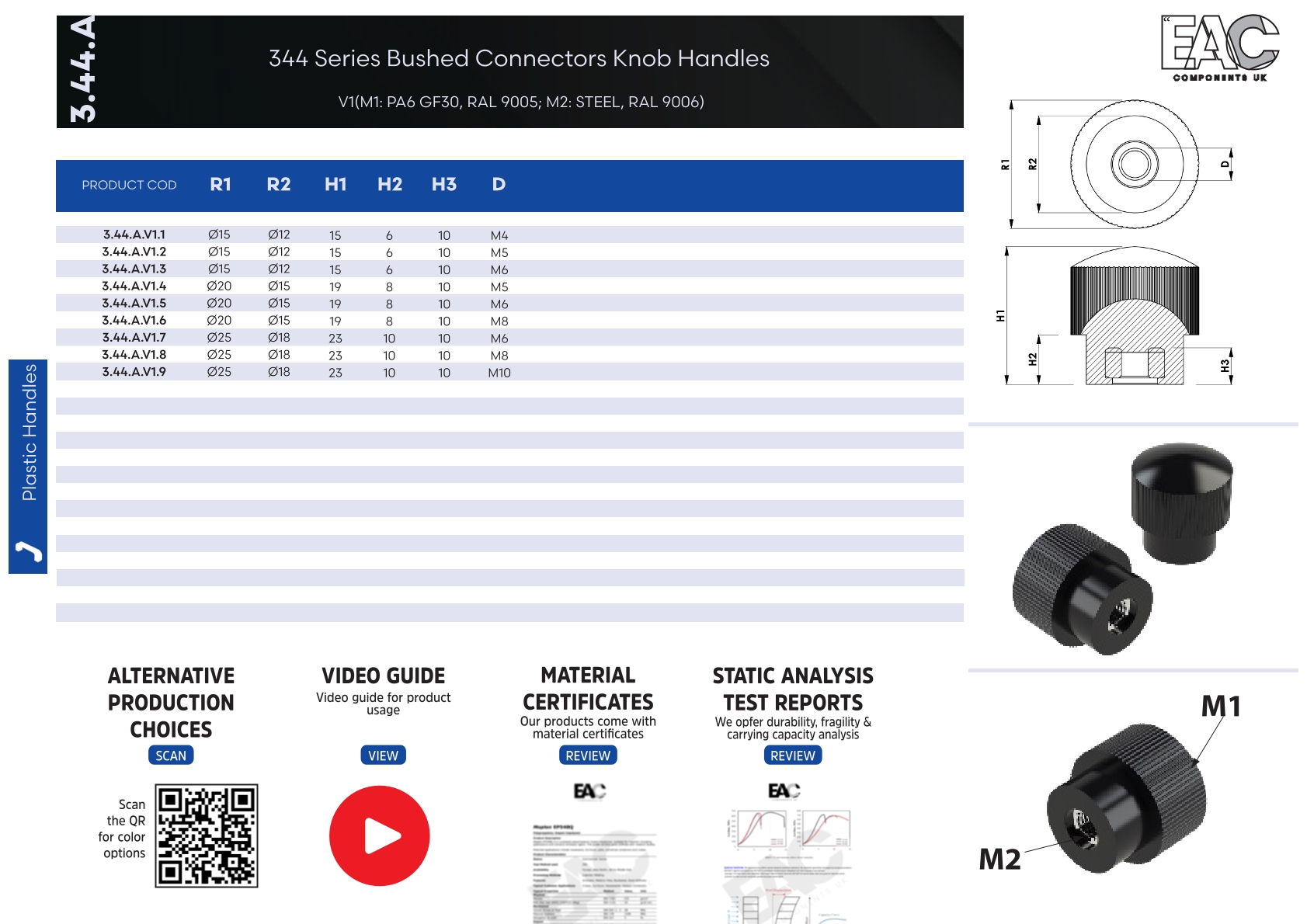

3.44.A.V1 - PA6 GF30 - RAL 9005
Knob Diameter (Ø) Bush Metric (D)
Ø15 M4 3.44.A.V1.1
Ø15 M5 3.44.A.V1.2
Ø15 M6 3.44.A.V1.3
Ø20 M5 3.44.A.V1.4
Ø20 M6 3.44.A.V1.5
Ø20 M8 3.44.A.V1.6
Ø25 M6 3.44.A.V1.7
Ø25 M8 3.44.A.V1.8
Ø25 M10 3.44.A.V1.9

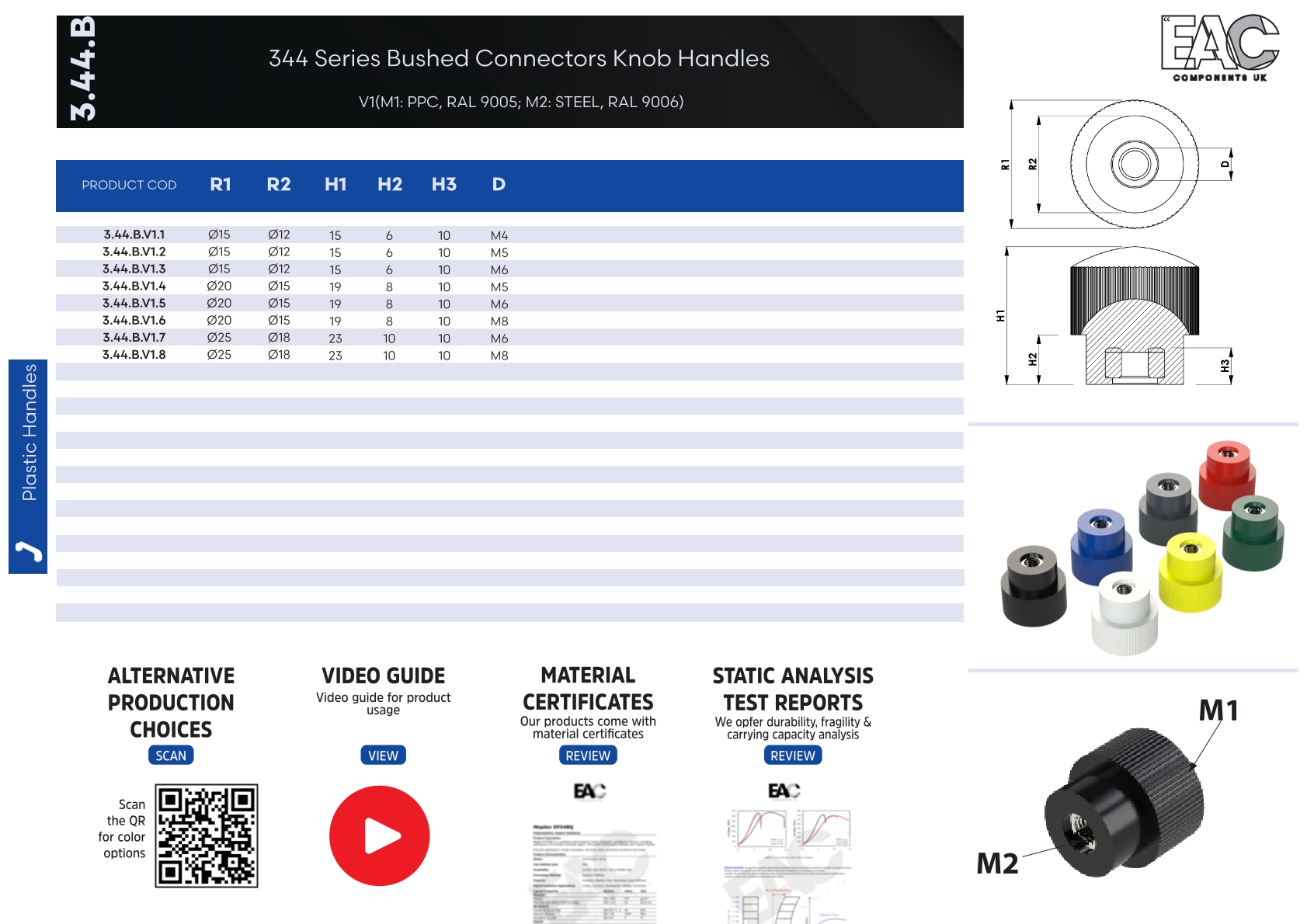

3.44.B.V1 - PPC - RAL 9005
Knob Diameter (Ø) Bush Metric (D)
Ø15 M4 3.44.B.V1.1
Ø15 M5 3.44.B.V1.2
Ø15 M6 3.44.B.V1.3
Ø20 M5 3.44.B.V1.4
Ø20 M6 3.44.B.V1.5
Ø20 M8 3.44.B.V1.6
Ø25 M6 3.44.B.V1.7
Ø25 M8 3.44.B.V1.8
3.44.B.V2 - PA6 GF30 - RAL 9005
Knob Diameter (Ø) Bush Metric (D)
Ø25 M8 3.44.B.V2.8
Ø25 M6 3.44.B.V2.7
Ø20 M8 3.44.B.V2.6
Ø20 M6 3.44.B.V2.5
Ø20 M5 3.44.B.V2.4
Ø15 M6 3.44.B.V2.3
Ø15 M5 3.44.B.V2.2
Ø15 M4 3.44.B.V2.1
Technical Drawing
