345 Series Bolted Connectors Knob Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 3.45
Material and Color Options (V)

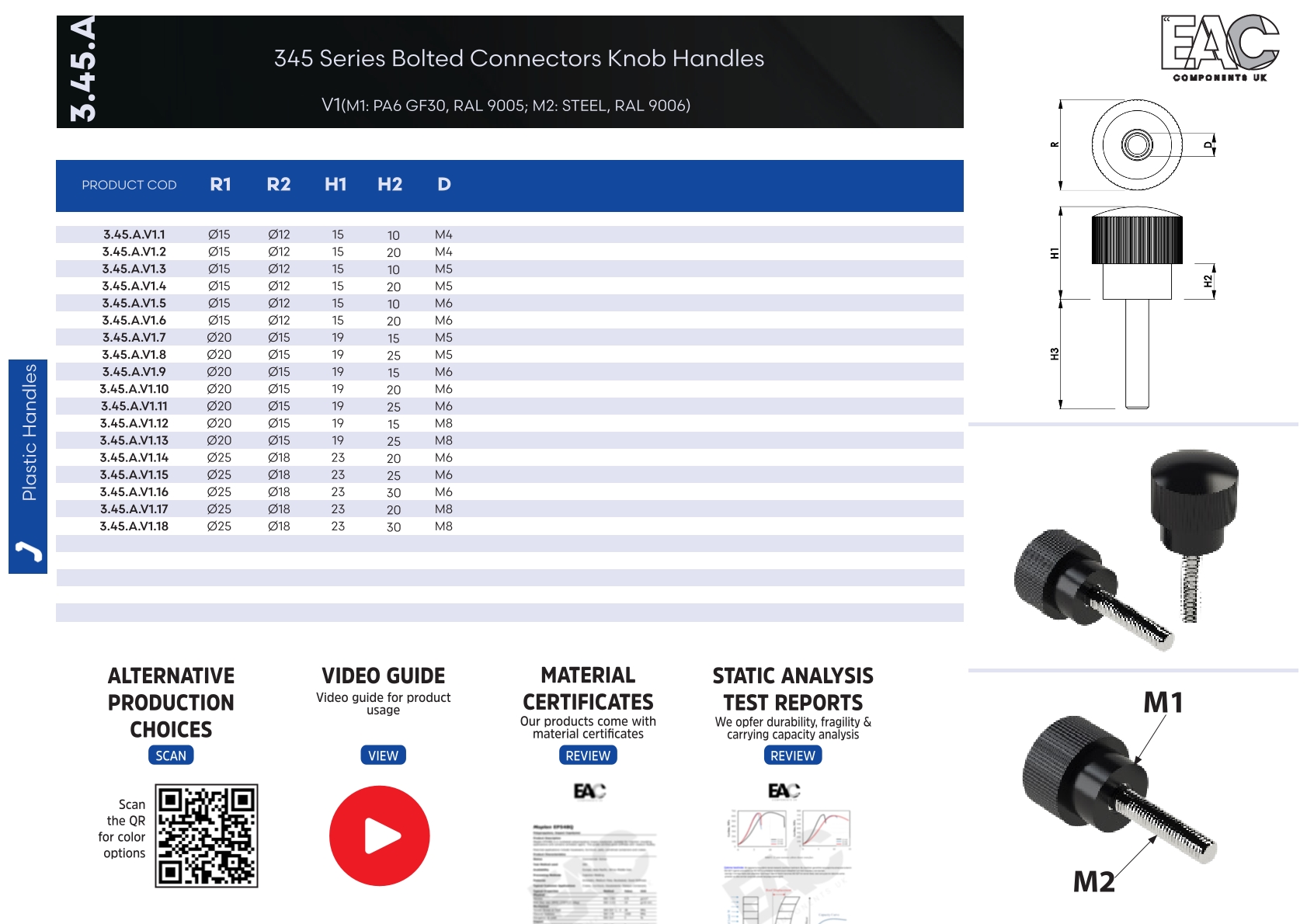

3.45.A.V1 - PA6 GF30 - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø15 M4 10 3.45.A.V1.1
Ø15 M4 20 3.45.A.V1.2
Ø15 M5 10 3.45.A.V1.3
Ø15 M5 20 3.45.A.V1.4
Ø15 M6 10 3.45.A.V1.5
Ø15 M6 20 3.45.A.V1.6
Ø20 M5 15 3.45.A.V1.7
Ø20 M5 25 3.45.A.V1.8
Ø20 M6 15 3.45.A.V1.9
Ø20 M6 20 3.45.A.V1.10
Ø20 M6 25 3.45.A.V1.11
Ø20 M8 15 3.45.A.V1.12
Ø20 M8 25 3.45.A.V1.13
Ø25 M6 20 3.45.A.V1.14
Ø25 M6 25 3.45.A.V1.15
Ø25 M6 30 3.45.A.V1.16
Ø25 M8 20 3.45.A.V1.17
Ø25 M8 30 3.45.A.V1.18

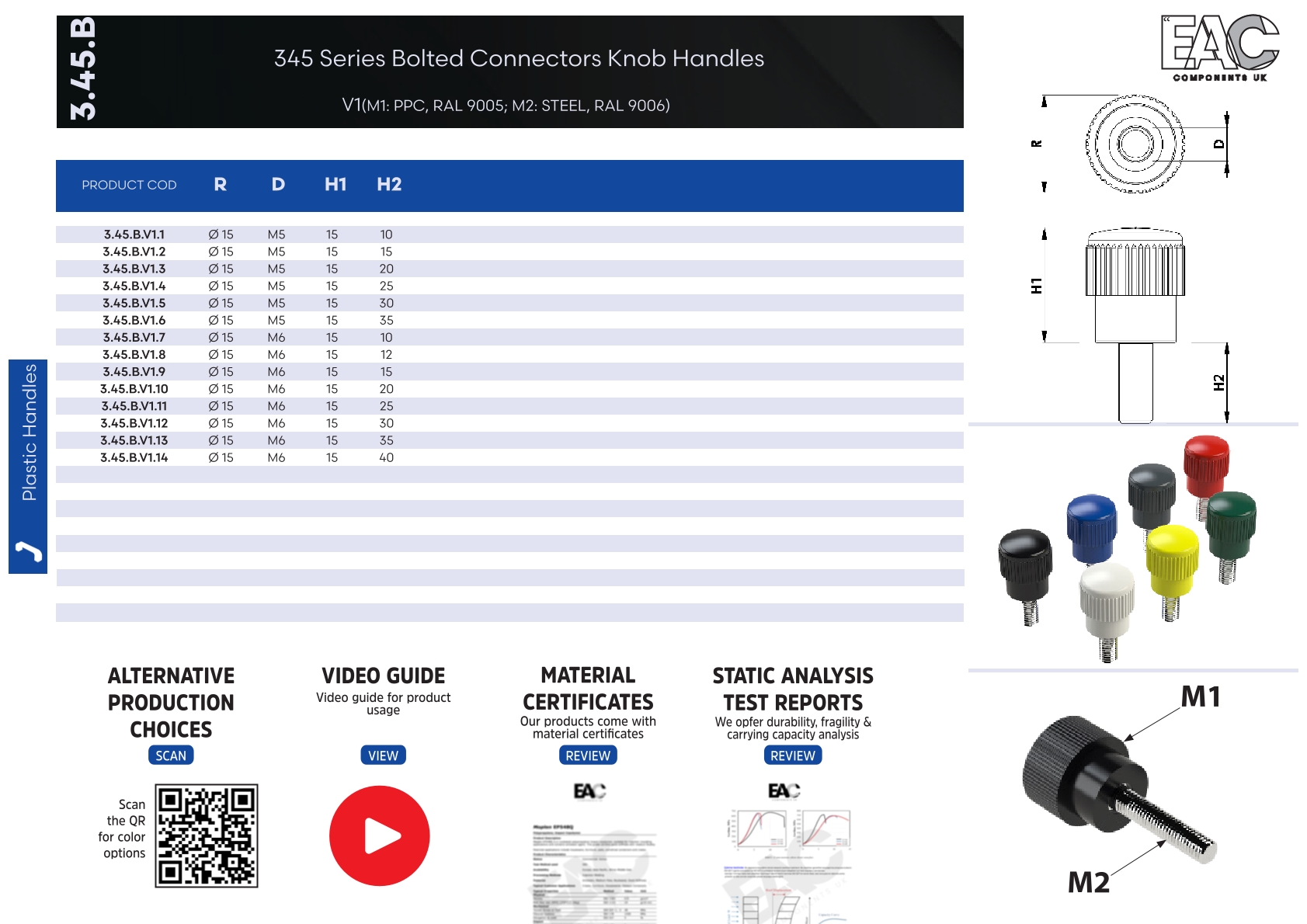

3.45.B.V1 - PPC - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø 15 M5 10 3.45.B.V2.1
Ø 15 M5 10 3.45.B.V1.1
Ø 15 M5 15 3.45.B.V1.2
Ø 15 M5 20 3.45.B.V1.3
Ø 15 M5 25 3.45.B.V1.4
Ø 15 M5 30 3.45.B.V1.5
Ø 15 M5 35 3.45.B.V1.6
Ø 15 M6 10 3.45.B.V1.7
Ø 15 M6 12 3.45.B.V1.8
Ø 15 M6 15 3.45.B.V1.9
Ø 15 M6 20 3.45.B.V1.10
Ø 17 M6 20 3.45.B.V1.11
Ø 15 M6 25 3.45.B.V1.12
Ø 15 M6 30 3.45.B.V1.13
Ø 15 M6 35 3.45.B.V1.14

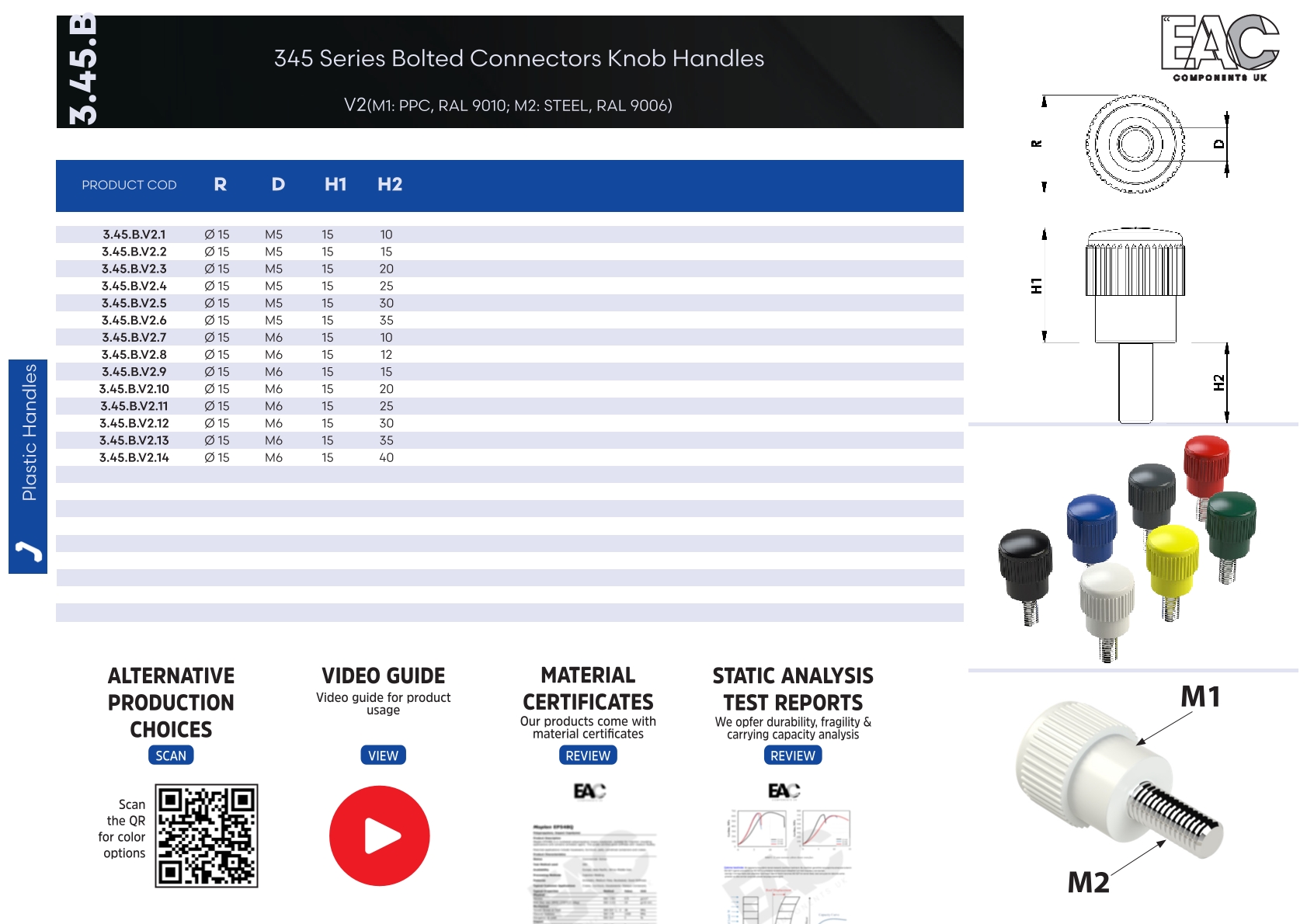

3.45.B.V2 - PPC - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø 15 M6 35 3.45.B.V2.14
Ø 15 M6 30 3.45.B.V2.13
Ø 15 M6 25 3.45.B.V2.12
Ø 17 M6 20 3.45.B.V2.11
Ø 15 M6 20 3.45.B.V2.10
Ø 15 M6 15 3.45.B.V2.9
Ø 15 M6 12 3.45.B.V2.8
Ø 15 M6 10 3.45.B.V2.7
Ø 15 M5 35 3.45.B.V2.6
Ø 15 M5 30 3.45.B.V2.5
Ø 15 M5 25 3.45.B.V2.4
Ø 15 M5 20 3.45.B.V2.3
Ø 15 M5 15 3.45.B.V2.2
3.45.B.V3 - PA6 GF30 - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø 15 M6 35 3.45.B.V3.14
Ø 15 M6 30 3.45.B.V3.13
Ø 15 M6 25 3.45.B.V3.12
Ø 17 M6 20 3.45.B.V3.11
Ø 15 M6 20 3.45.B.V3.10
Ø 15 M6 15 3.45.B.V3.9
Ø 15 M6 12 3.45.B.V3.8
Ø 15 M6 10 3.45.B.V3.7
Ø 15 M5 35 3.45.B.V3.6
Ø 15 M5 30 3.45.B.V3.5
Ø 15 M5 25 3.45.B.V3.4
Ø 15 M5 20 3.45.B.V3.3
Ø 15 M5 15 3.45.B.V3.2
Ø 15 M5 10 3.45.B.V3.1

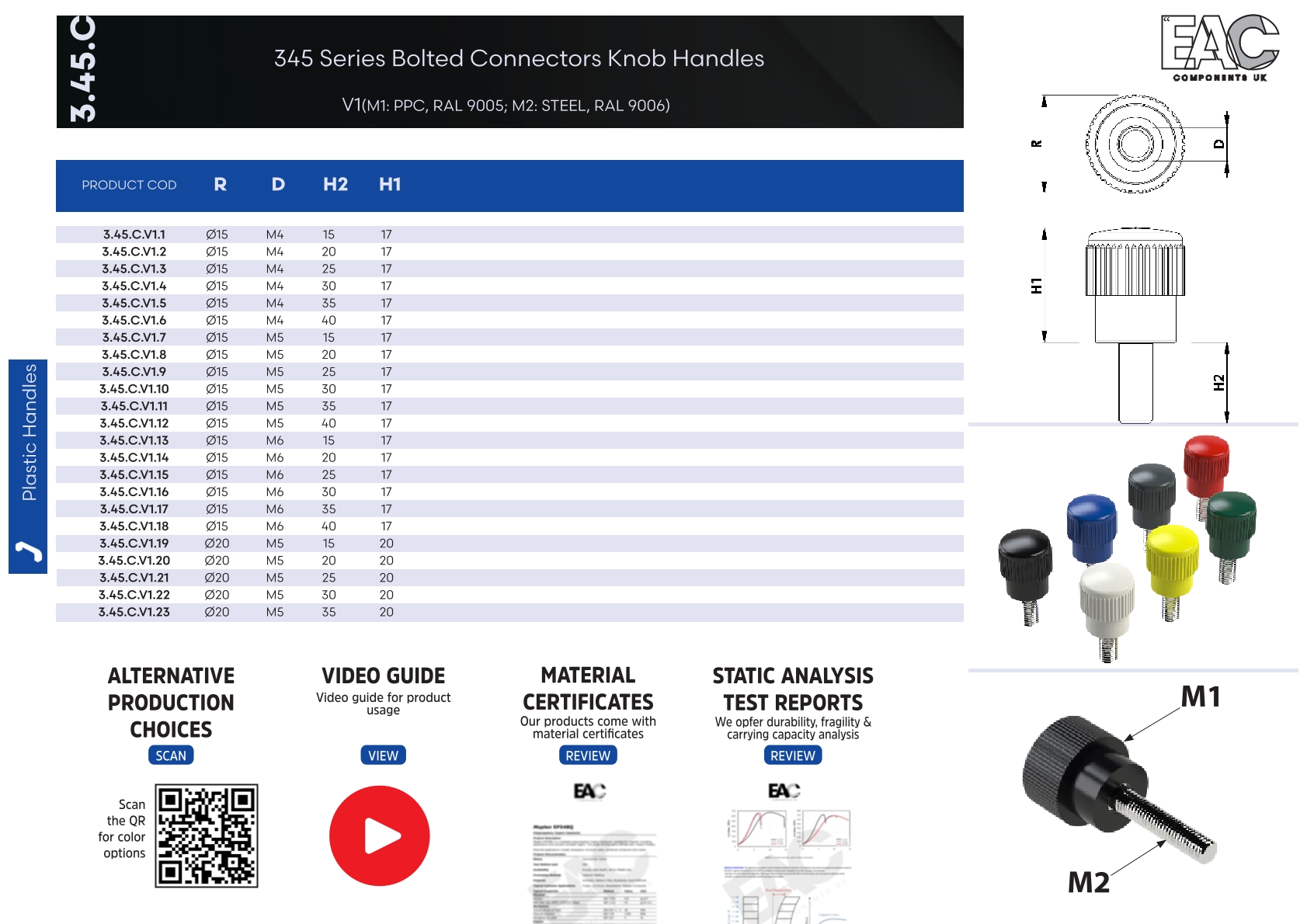

3.45.C.V1 - PPC - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø15 M4 15 3.45.C.V1.1
Ø15 M4 20 3.45.C.V1.2
Ø15 M4 25 3.45.C.V1.3
Ø15 M4 30 3.45.C.V1.4
Ø15 M4 35 3.45.C.V1.5
Ø15 M4 40 3.45.C.V1.6
Ø15 M5 15 3.45.C.V1.7
Ø15 M5 20 3.45.C.V1.8
Ø15 M5 25 3.45.C.V1.9
Ø15 M5 30 3.45.C.V1.10
Ø15 M5 35 3.45.C.V1.11
Ø15 M5 40 3.45.C.V1.12
Ø15 M6 15 3.45.C.V1.13
Ø15 M6 20 3.45.C.V1.14
Ø15 M6 25 3.45.C.V1.15
Ø15 M6 30 3.45.C.V1.16
Ø15 M6 35 3.45.C.V1.17
Ø15 M6 40 3.45.C.V1.18
Ø20 M5 15 3.45.C.V1.19
Ø20 M5 20 3.45.C.V1.20
Ø20 M5 25 3.45.C.V1.21
Ø20 M5 30 3.45.C.V1.22
Ø20 M5 35 3.45.C.V1.23
Ø20 M5 40 3.45.C.V1.24
Ø20 M6 15 3.45.C.V1.25
Ø20 M6 20 3.45.C.V1.26
Ø20 M6 25 3.45.C.V1.27
Ø20 M6 30 3.45.C.V1.28
Ø20 M6 35 3.45.C.V1.29
Ø20 M6 40 3.45.C.V1.30
Ø20 M8 15 3.45.C.V1.31
Ø20 M8 20 3.45.C.V1.32
Ø20 M8 25 3.45.C.V1.33
Ø20 M8 30 3.45.C.V1.34
Ø20 M8 35 3.45.C.V1.35
Ø20 M8 40 3.45.C.V1.36
Ø25 M6 15 3.45.C.V1.37
Ø25 M6 20 3.45.C.V1.38
Ø25 M6 25 3.45.C.V1.39
Ø25 M6 30 3.45.C.V1.40
Ø25 M6 35 3.45.C.V1.41
Ø25 M6 40 3.45.C.V1.42
Ø25 M8 15 3.45.C.V1.43
Ø25 M8 20 3.45.C.V1.44
Ø25 M8 25 3.45.C.V1.45
Ø25 M8 30 3.45.C.V1.46
Ø25 M8 35 3.45.C.V1.47
Ø25 M8 40 3.45.C.V1.48
3.45.C.V2 - PA6 GF30 - RAL 9005
Knob Diameter (Ø) Bolt Metric (D) Bolt Length (H2)
Ø15 M5 40 3.45.C.V2.12
Ø15 M4 15 3.45.C.V2.1
Ø20 M5 30 3.45.C.V2.22
Ø20 M5 25 3.45.C.V2.21
Ø20 M5 20 3.45.C.V2.20
Ø20 M5 15 3.45.C.V2.19
Ø15 M6 40 3.45.C.V2.18
Ø15 M6 35 3.45.C.V2.17
Ø15 M6 30 3.45.C.V2.16
Ø15 M6 25 3.45.C.V2.15
Ø20 M5 40 3.45.C.V2.24
Ø15 M6 15 3.45.C.V2.13
Ø20 M6 15 3.45.C.V2.25
Ø15 M5 35 3.45.C.V2.11
Ø15 M5 30 3.45.C.V2.10
Ø15 M5 25 3.45.C.V2.9
Ø15 M5 20 3.45.C.V2.8
Ø15 M5 15 3.45.C.V2.7
Ø15 M4 40 3.45.C.V2.6
Ø15 M4 35 3.45.C.V2.5
Ø15 M4 30 3.45.C.V2.4
Ø15 M4 25 3.45.C.V2.3
Ø15 M4 20 3.45.C.V2.2
Ø15 M6 20 3.45.C.V2.14
Ø20 M8 40 3.45.C.V2.36
Ø25 M8 35 3.45.C.V2.47
Ø25 M8 30 3.45.C.V2.46
Ø25 M8 25 3.45.C.V2.45
Ø25 M8 20 3.45.C.V2.44
Ø25 M8 15 3.45.C.V2.43
Ø25 M6 40 3.45.C.V2.42
Ø25 M6 35 3.45.C.V2.41
Ø25 M6 30 3.45.C.V2.40
Ø25 M6 25 3.45.C.V2.39
Ø20 M5 35 3.45.C.V2.23
Ø25 M6 15 3.45.C.V2.37
Ø25 M8 40 3.45.C.V2.48
Ø20 M8 35 3.45.C.V2.35
Ø20 M8 30 3.45.C.V2.34
Ø20 M8 25 3.45.C.V2.33
Ø20 M8 20 3.45.C.V2.32
Ø20 M8 15 3.45.C.V2.31
Ø20 M6 40 3.45.C.V2.30
Ø20 M6 35 3.45.C.V2.29
Ø20 M6 30 3.45.C.V2.28
Ø20 M6 25 3.45.C.V2.27
Ø20 M6 20 3.45.C.V2.26
Ø25 M6 20 3.45.C.V2.38
Technical Drawing
