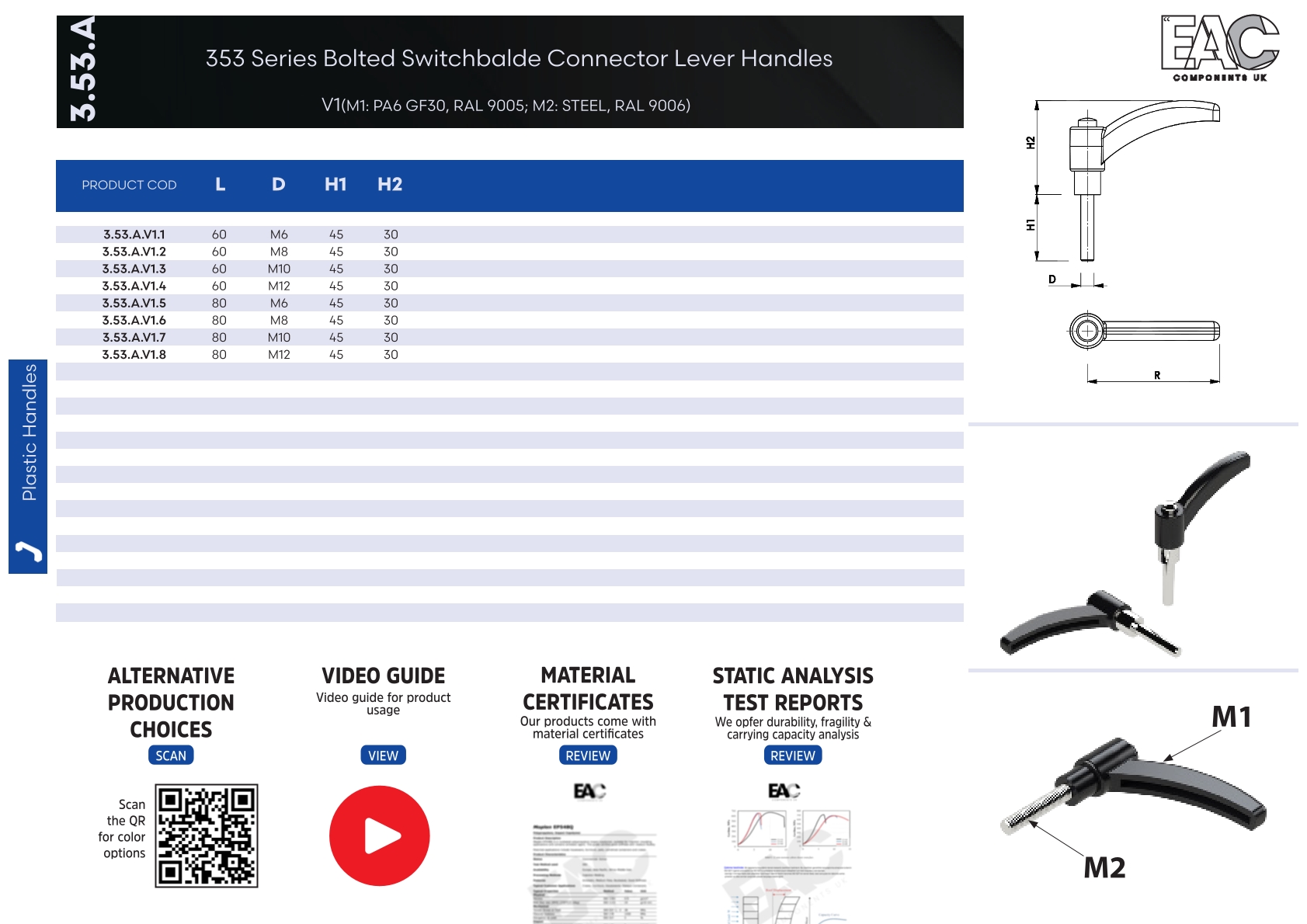

353 Series Bolted Switchbalde Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 3.53
Material and Color Options (V)
3.53.A.V1 - PA6 GF30 - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 45 30 3.53.A.V1.1
M8 60 46 30 3.53.A.V1.2
M10 60 47 30 3.53.A.V1.3
M12 60 48 30 3.53.A.V1.4
M6 80 49 30 3.53.A.V1.5
M8 80 50 30 3.53.A.V1.6
M10 80 51 30 3.53.A.V1.7
M12 80 52 30 3.53.A.V1.8
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
