361 Series Bolted Switchblade Connector Lever Handles

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 3.61
Material and Color Options (V)

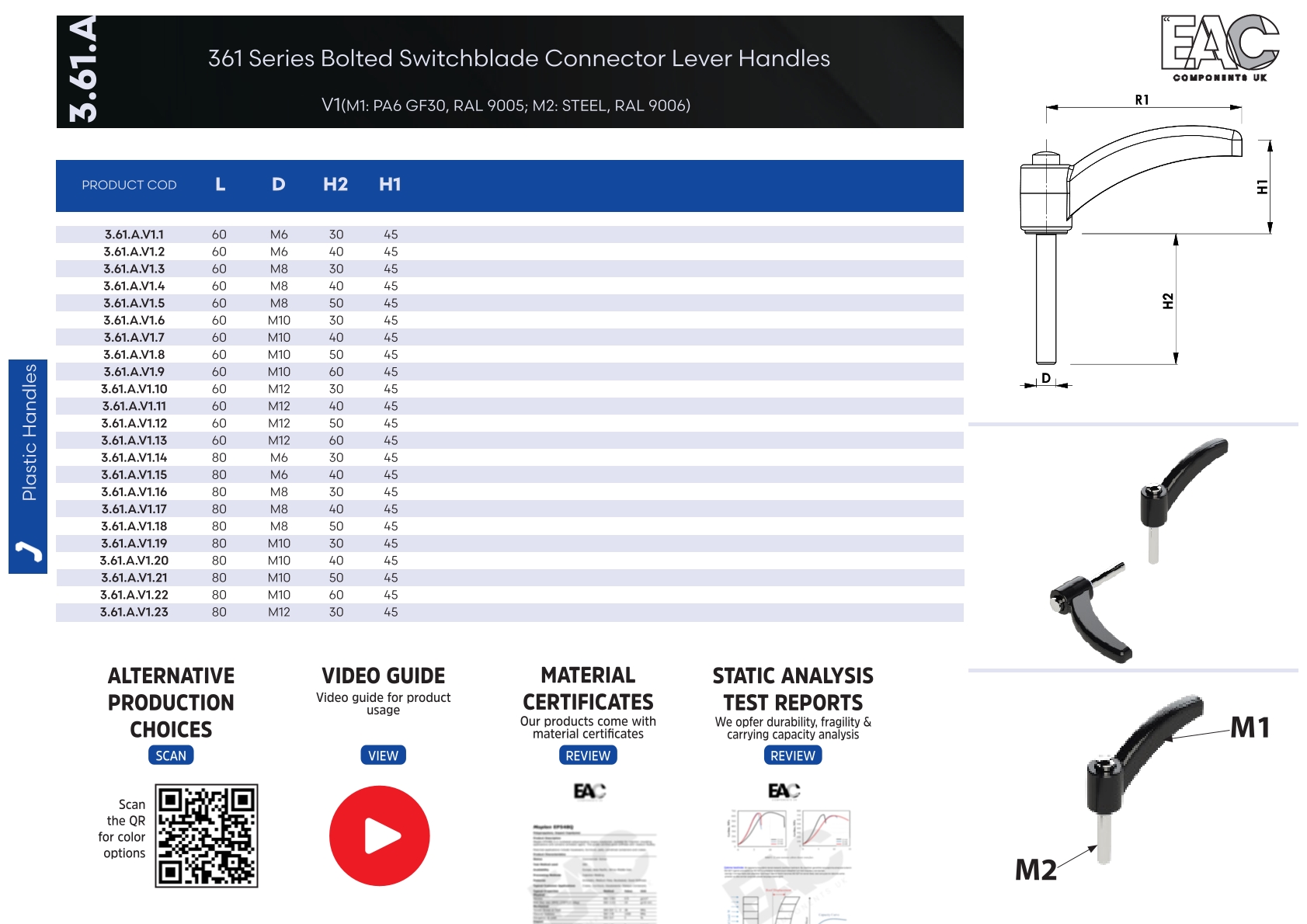

3.61.A.V1 - PA6 GF30 - RAL 9005
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 60 45 30 3.61.A.V1.1
M6 60 45 40 3.61.A.V1.2
M8 60 45 30 3.61.A.V1.3
M8 60 45 40 3.61.A.V1.4
M8 60 45 50 3.61.A.V1.5
M10 60 45 30 3.61.A.V1.6
M10 60 45 40 3.61.A.V1.7
M10 60 45 50 3.61.A.V1.8
M10 60 45 60 3.61.A.V1.9
M12 60 45 30 3.61.A.V1.10
M12 60 45 40 3.61.A.V1.11
M12 60 45 50 3.61.A.V1.12
M12 60 45 60 3.61.A.V1.13
M6 80 45 30 3.61.A.V1.14
M6 80 45 40 3.61.A.V1.15
M8 80 45 30 3.61.A.V1.16
M8 80 45 40 3.61.A.V1.17
M8 80 45 50 3.61.A.V1.18
M10 80 45 30 3.61.A.V1.19
M10 80 45 40 3.61.A.V1.20
M10 80 45 50 3.61.A.V1.21
M10 80 45 60 3.61.A.V1.22
M12 80 45 30 3.61.A.V1.23
M12 80 45 40 3.61.A.V1.24
M12 80 45 50 3.61.A.V1.25
M12 80 45 60 3.61.A.V1.26

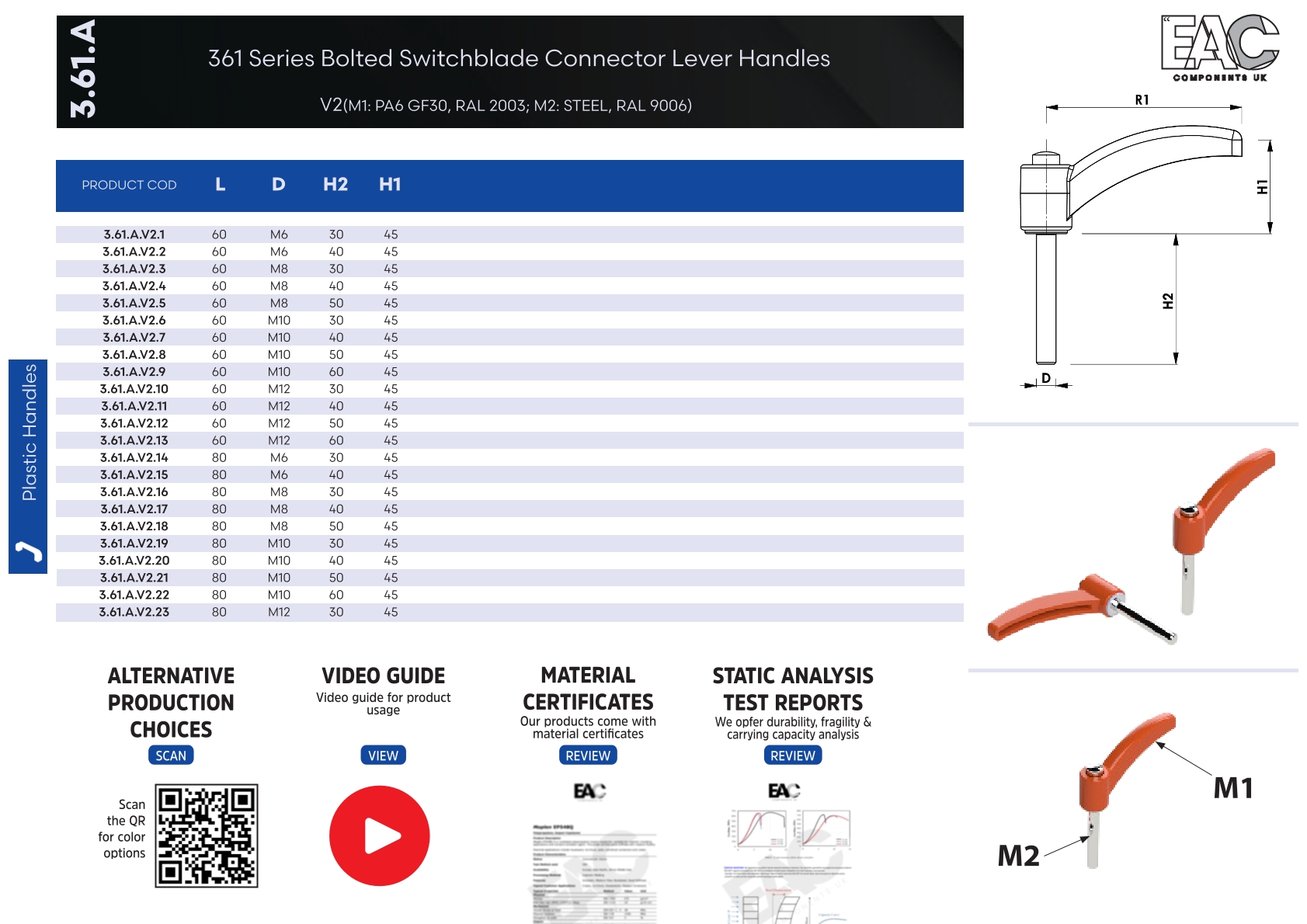

3.61.A.V2 - PA6 GF30 - RAL 2003
Bolt Metric (D) Handles Length (L) Height (H1) Bolt Length (H)
M6 80 45 30 3.61.A.V2.14
M6 60 45 40 3.61.A.V2.2
M8 60 45 30 3.61.A.V2.3
M8 60 45 40 3.61.A.V2.4
M8 60 45 50 3.61.A.V2.5
M10 60 45 30 3.61.A.V2.6
M10 60 45 40 3.61.A.V2.7
M10 60 45 50 3.61.A.V2.8
M10 60 45 60 3.61.A.V2.9
M12 60 45 30 3.61.A.V2.10
M12 60 45 40 3.61.A.V2.11
M6 60 45 30 3.61.A.V2.1
M12 60 45 60 3.61.A.V2.13
M12 80 45 60 3.61.A.V2.26
M6 80 45 40 3.61.A.V2.15
M8 80 45 30 3.61.A.V2.16
M8 80 45 40 3.61.A.V2.17
M8 80 45 50 3.61.A.V2.18
M10 80 45 30 3.61.A.V2.19
M10 80 45 40 3.61.A.V2.20
M10 80 45 50 3.61.A.V2.21
M10 80 45 60 3.61.A.V2.22
M12 80 45 30 3.61.A.V2.23
M12 80 45 40 3.61.A.V2.24
M12 80 45 50 3.61.A.V2.25
M12 60 45 50 3.61.A.V2.12
