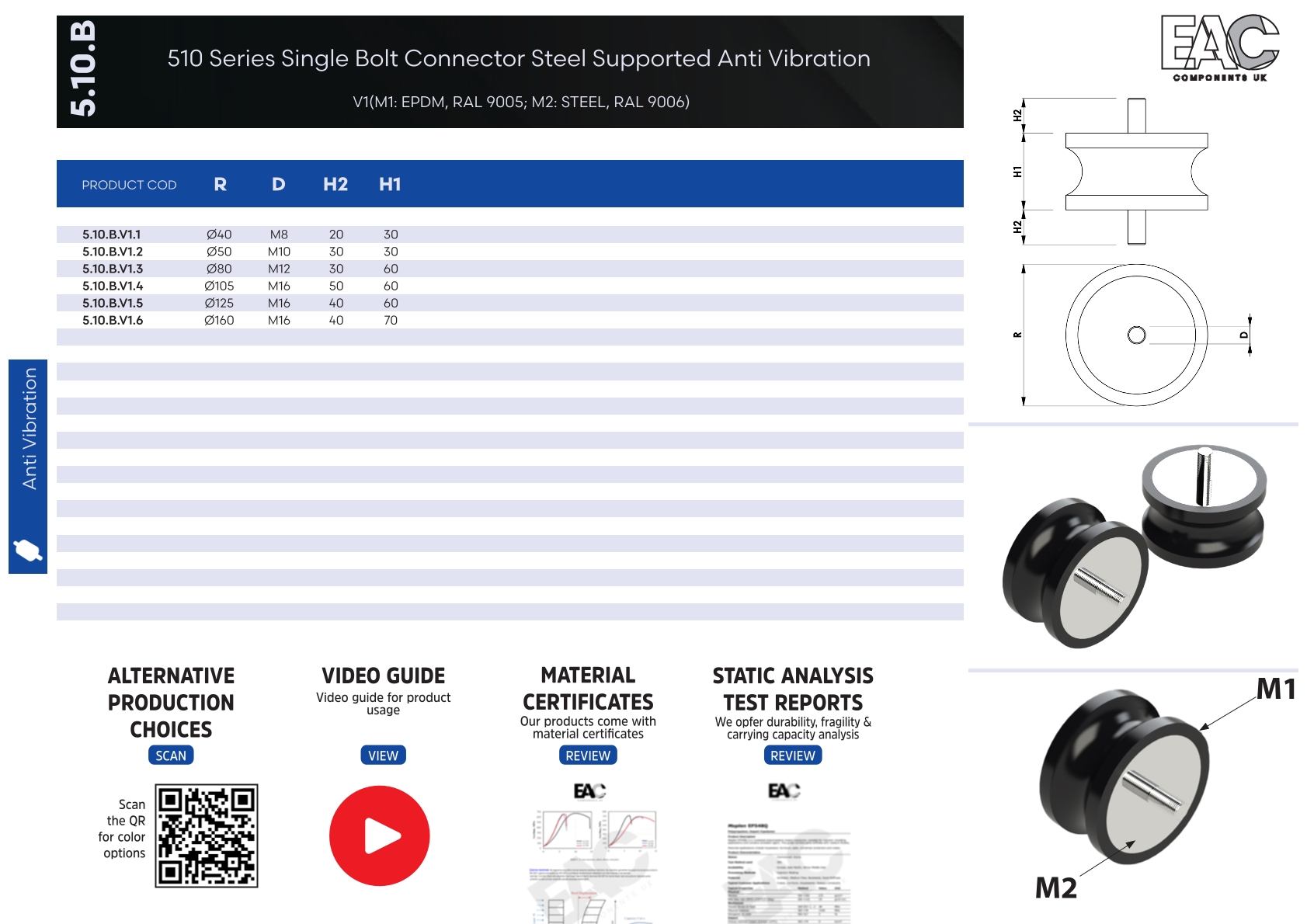

510 Series Single Bolt Connector Steel Supported Anti Vibration

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 5.10
Material and Color Options (V)
5.10.A.V1 * EPDM * RAL 9005
Wedge Diameter (Ø1) Bolt Metric (D1) Wedge Height (H1) Bolt Length (H2)
Ø43 M8 27 20 5.10.A.V1.1
Ø55 M10 35 30 5.10.A.V1.2
Ø80 M12 65 30 5.10.A.V1.3
5.10.B.V1 * EPDM * RAL 9005
Wedge Diameter (Ø1) Bolt Metric (D1) Wedge Height (H1) Bolt Length (H2)
Ø40 M8 30 20 5.10.B.V1.1
Ø50 M10 30 30 5.10.B.V1.2
Ø80 M12 60 30 5.10.B.V1.3
Ø105 M16 60 50 5.10.B.V1.4
Ø125 M16 60 40 5.10.B.V1.5
Ø160 M16 70 40 5.10.B.V1.6
Technical Drawing
