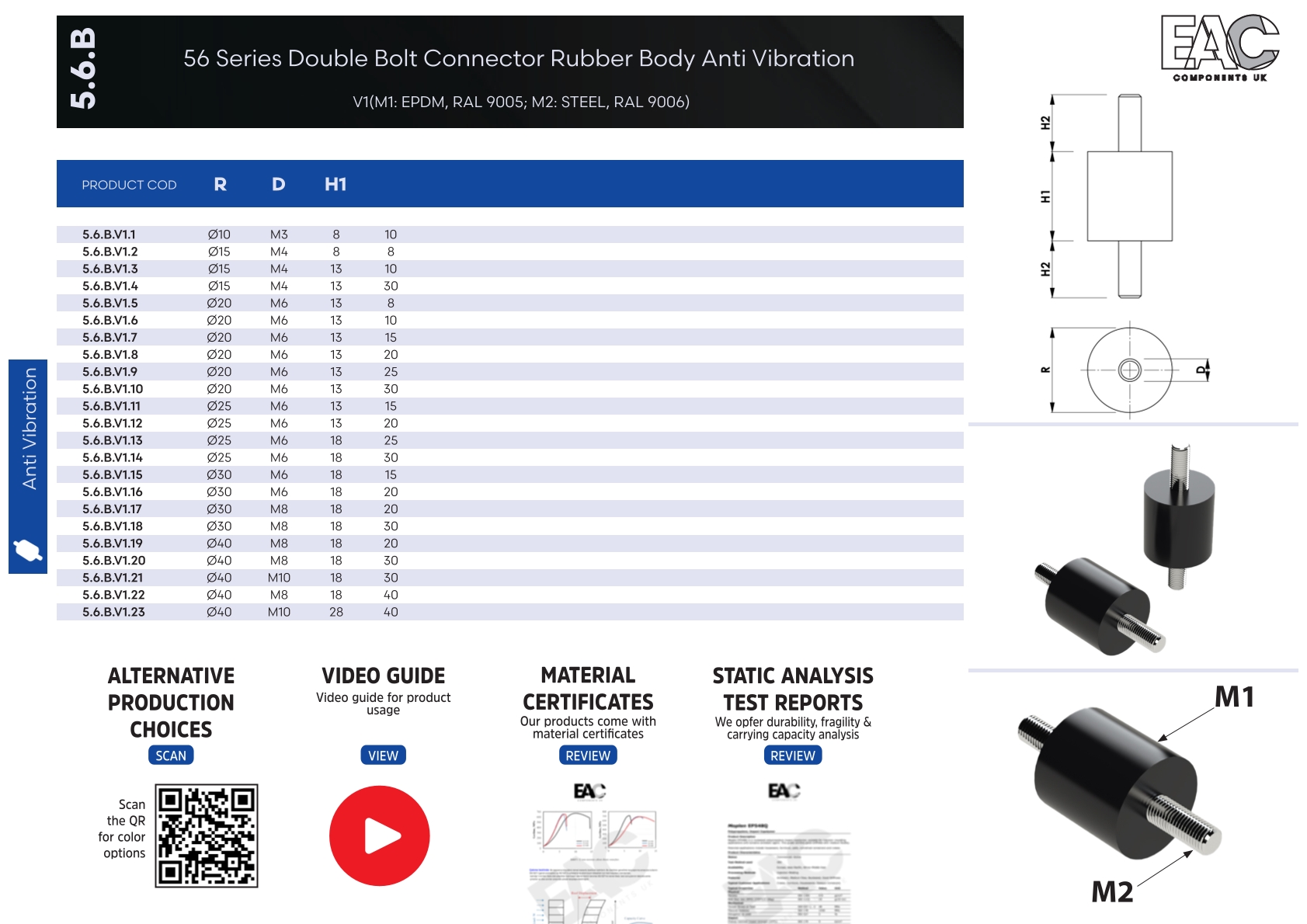

56 Series Double Bolt Connector Rubber Body Anti Vibration

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 5.6
Material and Color Options (V)
5.6.A.V1 * EPDM * RAL 9005
Wedge Diameter (Ø1) Bolt Metric (D1) Wedge Height (H1) Bolt Length (H2)
Ø15 M4 10 8 5.6.A.V1.1
Ø15 M4 15 13 5.6.A.V1.2
Ø15 M4 30 13 5.6.A.V1.3
Ø20 M6 10 13 5.6.A.V1.4
Ø20 M6 15 13 5.6.A.V1.5
Ø20 M6 20 13 5.6.A.V1.6
Ø20 M6 20 20 5.6.A.V1.7
Ø20 M6 25 13 5.6.A.V1.8
Ø20 M6 30 13 5.6.A.V1.9
Ø25 M6 15 13 5.6.A.V1.10
Ø25 M6 20 13 5.6.A.V1.11
Ø25 M6 20 22 5.6.A.V1.12
Ø25 M6 30 18 5.6.A.V1.13
Ø30 M8 15 18 5.6.A.V1.14
Ø30 M8 20 18 5.6.A.V1.15
Ø30 M8 25 18 5.6.A.V1.16
Ø30 M8 30 18 5.6.A.V1.17
Ø40 M8 20 18 5.6.A.V1.18
Ø40 M8 30 18 5.6.A.V1.19
Ø40 M8 40 18 5.6.A.V1.20
Ø40 M10 40 18 5.6.A.V1.21
Ø50 M10 20 28 5.6.A.V1.22
Ø50 M10 30 28 5.6.A.V1.23
Ø50 M10 35 28 5.6.A.V1.24
Ø50 M10 40 28 5.6.A.V1.25
Ø50 M10 50 28 5.6.A.V1.26
Ø55 M10 35 28 5.6.A.V1.27
Ø60 M12 30 38 5.6.A.V1.28
Ø60 M12 40 38 5.6.A.V1.29
Ø60 M12 50 38 5.6.A.V1.30
Ø60 M12 60 38 5.6.A.V1.31
Ø70 M12 40 38 5.6.A.V1.32
Ø70 M12 50 38 5.6.A.V1.33
Ø75 M12 40 38 5.6.A.V1.34
Ø75 M12 50 38 5.6.A.V1.35
Ø80 M12 30 38 5.6.A.V1.36
Ø80 M12 40 38 5.6.A.V1.37
Ø80 M12 50 38 5.6.A.V1.38
Ø80 M12 60 38 5.6.A.V1.39
Ø100 M16 30 47 5.6.A.V1.40
Ø100 M16 40 47 5.6.A.V1.41
Ø100 M16 50 47 5.6.A.V1.42
Ø100 M16 55 47 5.6.A.V1.43
Ø100 M16 65 47 5.6.A.V1.44
Ø100 M16 75 47 5.6.A.V1.45
Ø150 M20 50 47 5.6.A.V1.46
5.6.B.V1 * EPDM * RAL 9005
Wedge Diameter (Ø1) Bolt Metric (D1) Wedge Height (H1) Bolt Length (H2)
Ø10 M3 8 10 5.6.B.V1.1
Ø15 M4 8 8 5.6.B.V1.2
Ø15 M4 13 10 5.6.B.V1.3
Ø15 M4 13 30 5.6.B.V1.4
Ø20 M6 13 8 5.6.B.V1.5
Ø20 M6 13 10 5.6.B.V1.6
Ø20 M6 13 15 5.6.B.V1.7
Ø20 M6 13 20 5.6.B.V1.8
Ø20 M6 13 25 5.6.B.V1.9
Ø20 M6 13 30 5.6.B.V1.10
Ø25 M6 13 15 5.6.B.V1.11
Ø25 M6 13 20 5.6.B.V1.12
Ø25 M6 18 25 5.6.B.V1.13
Ø25 M6 18 30 5.6.B.V1.14
Ø30 M6 18 15 5.6.B.V1.15
Ø30 M6 18 20 5.6.B.V1.16
Ø30 M8 18 20 5.6.B.V1.17
Ø30 M8 18 30 5.6.B.V1.18
Ø40 M8 18 20 5.6.B.V1.19
Ø40 M8 18 30 5.6.B.V1.20
Ø40 M10 18 30 5.6.B.V1.21
Ø40 M8 18 40 5.6.B.V1.22
Ø40 M10 28 40 5.6.B.V1.23
