55 Series Single Nut Connector Steel Supported Anti Vibration

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 5.5
Material and Color Options (V)
5.5.A.V1 * EPDM * RAL 9005
Product Diameter (Ø) Metric (D) Height (H)
Ø15 M4 10 5.5.A.V1.1
Ø15 M4 15 5.5.A.V1.2
Ø20 M6 8 5.5.A.V1.3
Ø20 M6 10 5.5.A.V1.4
Ø20 M6 15 5.5.A.V1.5
Ø20 M6 20 5.5.A.V1.6
Ø20 M6 25 5.5.A.V1.7
Ø20 M6 30 5.5.A.V1.8
Ø25 M6 15 5.5.A.V1.9
Ø25 M6 20 5.5.A.V1.10
Ø25 M6 25 5.5.A.V1.11
Ø25 M6 30 5.5.A.V1.12
Ø30 M8 15 5.5.A.V1.13
Ø30 M8 20 5.5.A.V1.14
Ø30 M8 25 5.5.A.V1.15
Ø30 M8 30 5.5.A.V1.16
Ø40 M8 20 5.5.A.V1.17
Ø40 M8 25 5.5.A.V1.18
Ø40 M8 30 5.5.A.V1.19
Ø40 M8 35 5.5.A.V1.20
Ø40 M8 40 5.5.A.V1.21
Ø50 M10 20 5.5.A.V1.22
Ø50 M10 25 5.5.A.V1.23
Ø50 M10 30 5.5.A.V1.24
Ø50 M10 35 5.5.A.V1.25
Ø50 M10 40 5.5.A.V1.26
Ø50 M10 45 5.5.A.V1.27
Ø50 M10 50 5.5.A.V1.28
Ø55 M10 35 5.5.A.V1.29
Ø60 M12 20 5.5.A.V1.30
Ø60 M12 25 5.5.A.V1.31
Ø60 M12 30 5.5.A.V1.32
Ø60 M12 35 5.5.A.V1.33
Ø60 M12 40 5.5.A.V1.34
Ø60 M12 50 5.5.A.V1.35
Ø60 M12 60 5.5.A.V1.36
Ø70 M12 20 5.5.A.V1.37
Ø70 M12 25 5.5.A.V1.38
Ø70 M12 30 5.5.A.V1.39
Ø70 M12 35 5.5.A.V1.40
Ø70 M12 40 5.5.A.V1.41
Ø70 M12 50 5.5.A.V1.42
Ø70 M12 55 5.5.A.V1.43
Ø75 M12 25 5.5.A.V1.44
Ø75 M12 30 5.5.A.V1.45
Ø75 M12 35 5.5.A.V1.46
Ø75 M12 40 5.5.A.V1.47
Ø75 M12 50 5.5.A.V1.48
Ø75 M12 55 5.5.A.V1.49
Ø75 M12 60 5.5.A.V1.50
Ø80 M12 30 5.5.A.V1.51
Ø80 M12 40 5.5.A.V1.52
Ø80 M12 50 5.5.A.V1.53
Ø80 M12 60 5.5.A.V1.54
Ø100 M16 30 5.5.A.V1.55
Ø100 M16 35 5.5.A.V1.56
Ø100 M16 40 5.5.A.V1.57
Ø100 M16 45 5.5.A.V1.58
Ø100 M16 50 5.5.A.V1.59
Ø100 M16 55 5.5.A.V1.60
Ø100 M16 60 5.5.A.V1.61
Ø100 M16 75 5.5.A.V1.62
Ø100 M16 80 5.5.A.V1.63
Ø130 M16 35 5.5.A.V1.64
Ø130 M16 50 5.5.A.V1.65
Ø150 M20 50 5.5.A.V1.66
Ø15 M20 100 5.5.A.V1.67
5.5.B.V1 * EPDM * RAL 9005
Product Diameter (Ø) Metric (D) Height (H)
Ø15 M4 10 5.5.B.V1.1
Ø15 M4 15 5.5.B.V1.2
Ø20 M6 8 5.5.B.V1.3
Ø20 M6 10 5.5.B.V1.4
Ø20 M6 15 5.5.B.V1.5
Ø20 M6 20 5.5.B.V1.6
Ø20 M6 25 5.5.B.V1.7
Ø20 M6 30 5.5.B.V1.8
Ø25 M6 15 5.5.B.V1.9
Ø25 M6 20 5.5.B.V1.10
Ø25 M6 25 5.5.B.V1.11
Ø25 M6 30 5.5.B.V1.12
Ø30 M8 15 5.5.B.V1.13
Ø30 M8 20 5.5.B.V1.14
Ø30 M8 25 5.5.B.V1.15
Ø30 M8 30 5.5.B.V1.16
Ø40 M8 20 5.5.B.V1.17
Ø40 M8 25 5.5.B.V1.18
Ø40 M8 30 5.5.B.V1.19
Ø40 M8 35 5.5.B.V1.20
Ø40 M8 40 5.5.B.V1.21
Ø50 M10 20 5.5.B.V1.22
Ø50 M10 25 5.5.B.V1.23
Ø50 M10 30 5.5.B.V1.24
Ø50 M10 35 5.5.B.V1.25
Ø50 M10 40 5.5.B.V1.26
Ø50 M10 45 5.5.B.V1.27
Ø50 M10 50 5.5.B.V1.28
Ø55 M10 35 5.5.B.V1.29
Ø60 M12 20 5.5.B.V1.30
Ø60 M12 25 5.5.B.V1.31
Ø60 M12 30 5.5.B.V1.32
Ø60 M12 35 5.5.B.V1.33
Ø60 M12 40 5.5.B.V1.34
Ø60 M12 50 5.5.B.V1.35
Ø60 M12 60 5.5.B.V1.36
Ø70 M12 20 5.5.B.V1.37
Ø70 M12 25 5.5.B.V1.38
Ø70 M12 30 5.5.B.V1.39
Ø70 M12 35 5.5.B.V1.40
Ø70 M12 40 5.5.B.V1.41
Ø70 M12 50 5.5.B.V1.42
Ø70 M12 55 5.5.B.V1.43
Ø75 M12 25 5.5.B.V1.44
Ø75 M12 30 5.5.B.V1.45
Ø75 M12 35 5.5.B.V1.46
Ø75 M12 40 5.5.B.V1.47
Ø75 M12 50 5.5.B.V1.48
Ø75 M12 55 5.5.B.V1.49
Ø75 M12 60 5.5.B.V1.50
Ø80 M12 30 5.5.B.V1.51
Ø80 M12 40 5.5.B.V1.52
Ø80 M12 50 5.5.B.V1.53
Ø80 M12 60 5.5.B.V1.54
Ø100 M16 30 5.5.B.V1.55
Ø100 M16 35 5.5.B.V1.56
Ø100 M16 40 5.5.B.V1.57
Ø100 M16 45 5.5.B.V1.58
Ø100 M16 50 5.5.B.V1.59
Ø100 M16 55 5.5.B.V1.60
Ø100 M16 60 5.5.B.V1.61
Ø100 M16 75 5.5.B.V1.62
Ø100 M16 80 5.5.B.V1.63
Ø130 M16 35 5.5.B.V1.64
Ø130 M16 50 5.5.B.V1.65
Ø150 M16 35 5.5.B.V1.66
Ø150 M16 50 5.5.B.V1.67
Ø200 M20 100 5.5.B.V1.68

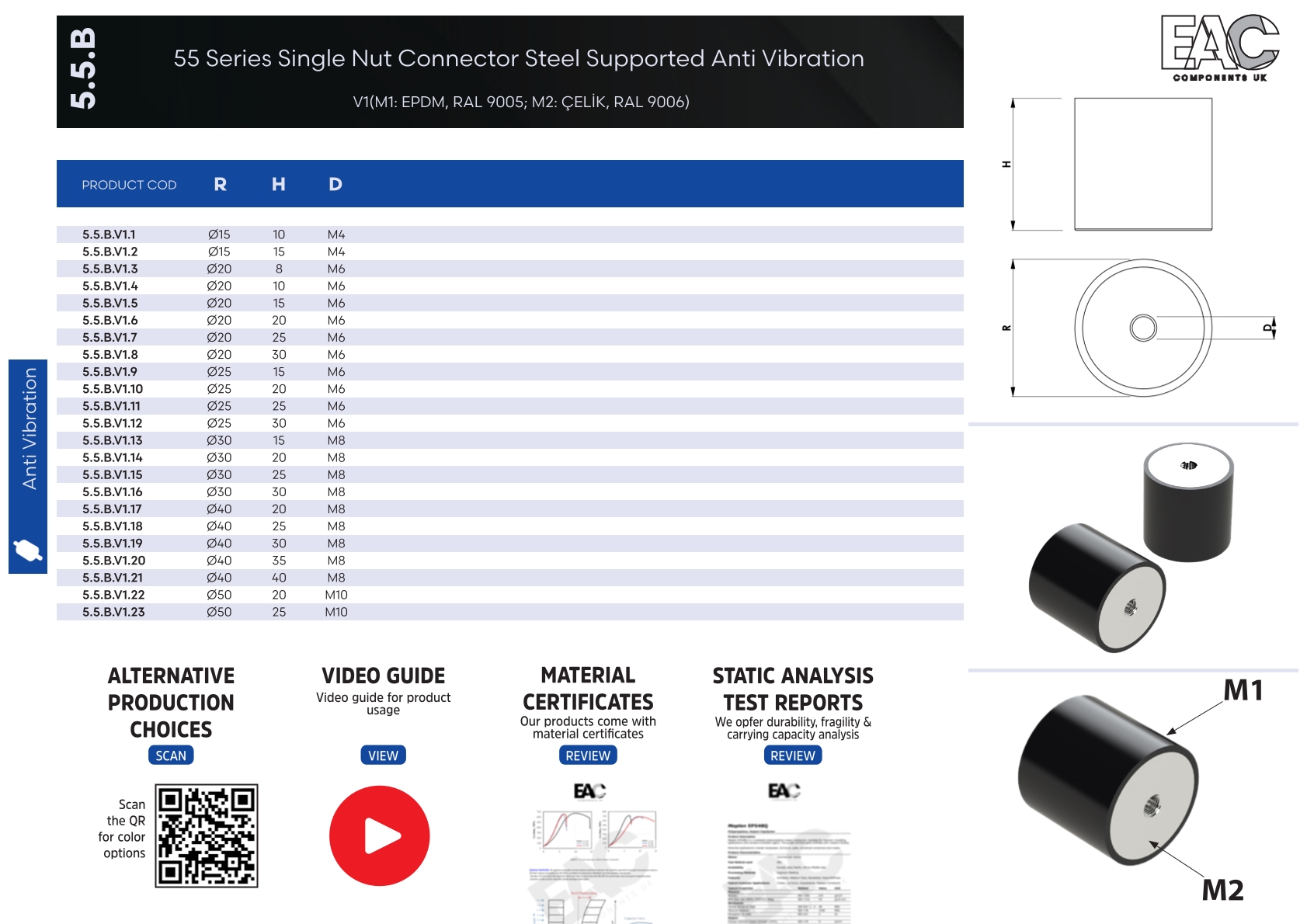

Technical Drawing
