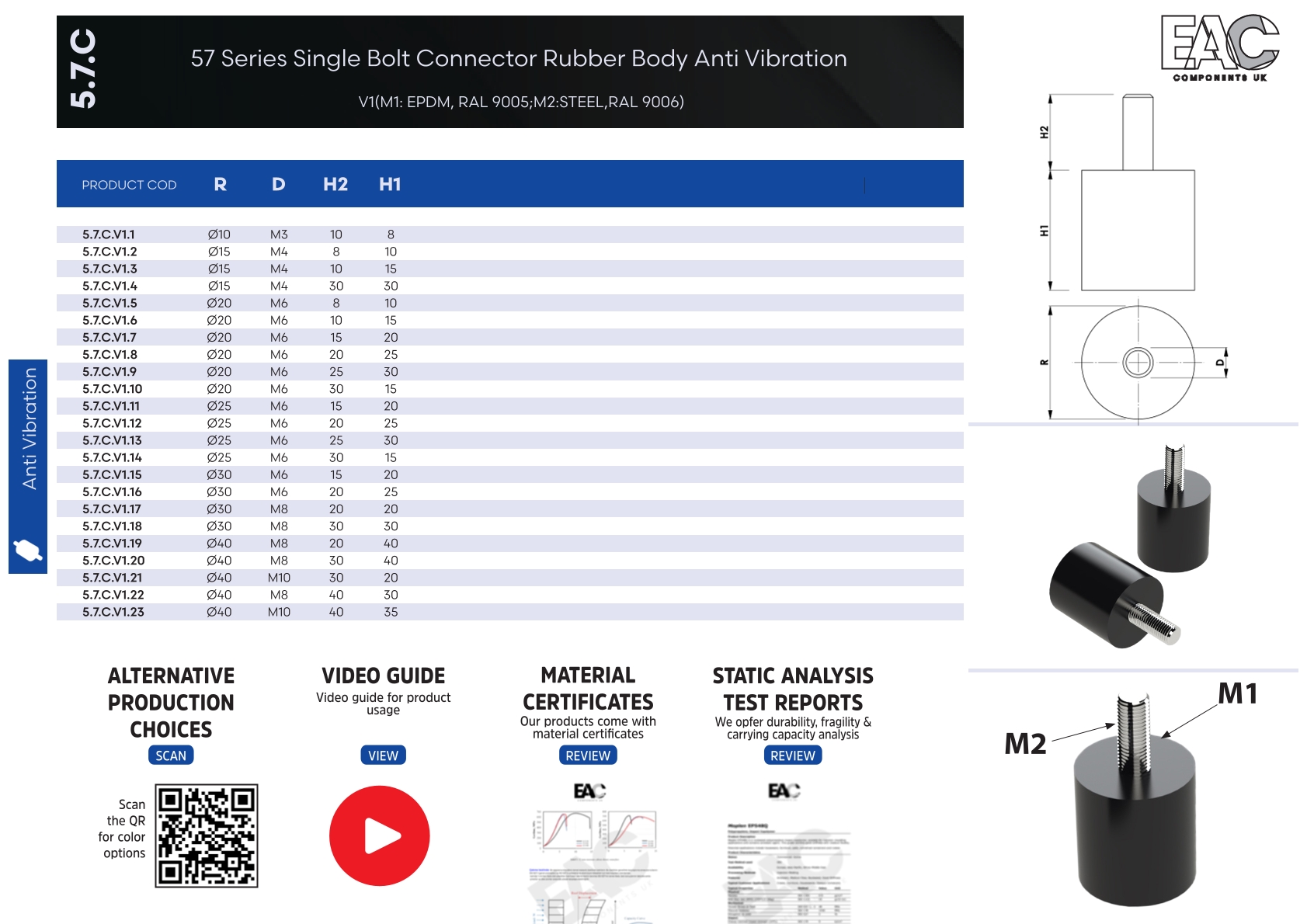

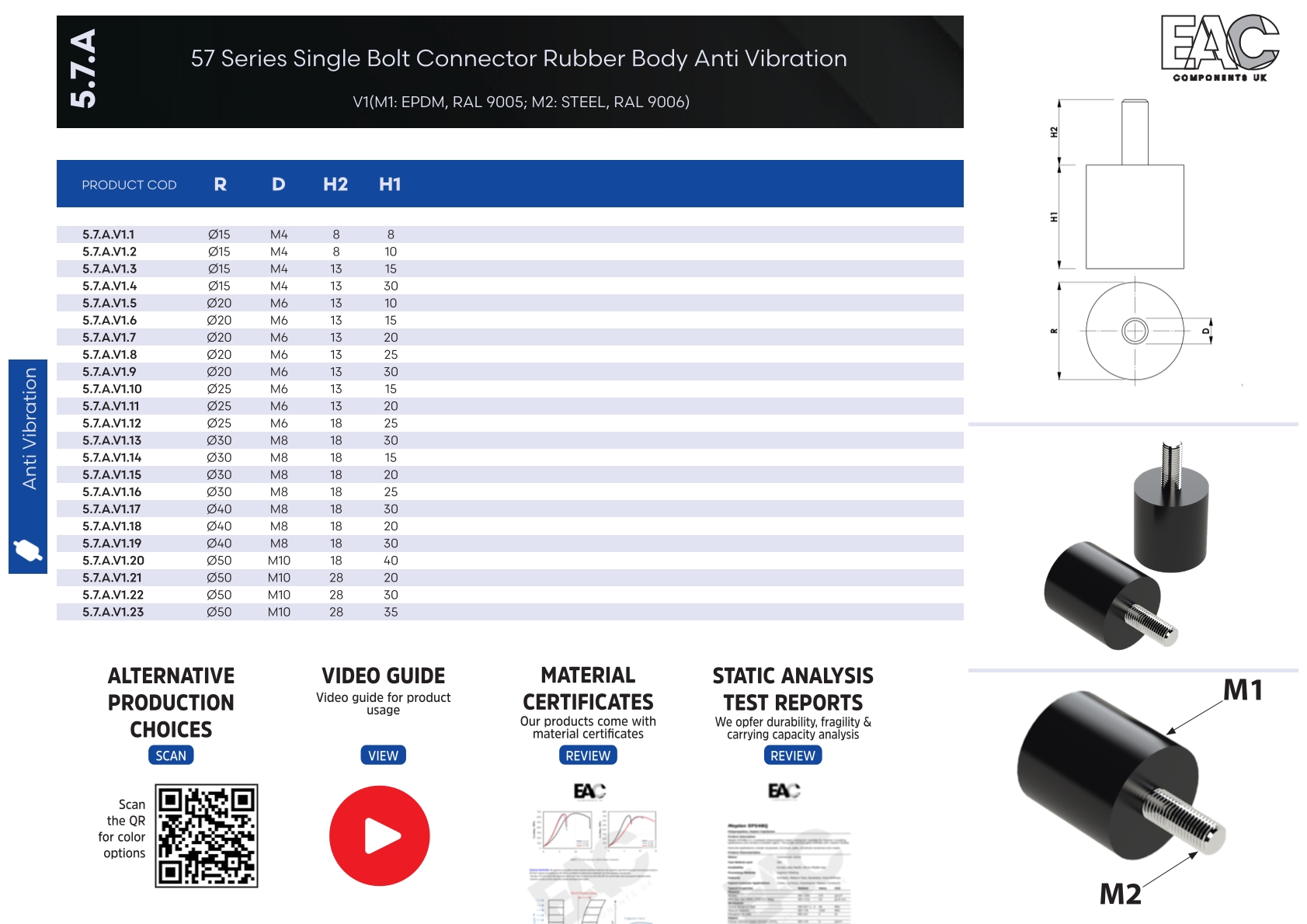

57 Series Single Bolt Connector Rubber Body Anti Vibration

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 5.7
Material and Color Options (V)
5.7.A.V1 * EPDM * RAL 9005
Wedge Diameter (Ø1) Bolt Metric (D1) Wedge Height (H1) Bolt Length (H2)
Ø15 M4 8 8 5.7.A.V1.1
Ø15 M4 10 8 5.7.A.V1.2
Ø15 M4 15 13 5.7.A.V1.3
Ø15 M4 30 13 5.7.A.V1.4
Ø20 M6 10 13 5.7.A.V1.5
Ø20 M6 15 13 5.7.A.V1.6
Ø20 M6 20 13 5.7.A.V1.7
Ø20 M6 25 13 5.7.A.V1.8
Ø20 M6 30 13 5.7.A.V1.9
Ø25 M6 15 13 5.7.A.V1.10
Ø25 M6 20 13 5.7.A.V1.11
Ø25 M6 25 18 5.7.A.V1.12
Ø30 M8 30 18 5.7.A.V1.13
Ø30 M8 15 18 5.7.A.V1.14
Ø30 M8 20 18 5.7.A.V1.15
Ø30 M8 25 18 5.7.A.V1.16
Ø40 M8 20 18 5.7.A.V1.17
Ø40 M8 30 18 5.7.A.V1.18
Ø40 M8 40 18 5.7.A.V1.19
Ø50 M10 40 18 5.7.A.V1.20
Ø50 M10 20 28 5.7.A.V1.21
Ø50 M10 30 28 5.7.A.V1.22
Ø50 M10 35 28 5.7.A.V1.23
Ø50 M10 40 28 5.7.A.V1.24
Ø55 M10 50 28 5.7.A.V1.25
Ø60 M12 35 28 5.7.A.V1.26
Ø60 M12 30 38 5.7.A.V1.27
Ø60 M12 40 38 5.7.A.V1.28
Ø60 M12 20 38 5.7.A.V1.29
Ø70 M12 40 38 5.7.A.V1.30
Ø70 M12 50 38 5.7.A.V1.31
Ø75 M12 40 38 5.7.A.V1.32
Ø75 M12 50 38 5.7.A.V1.33
Ø80 M12 30 38 5.7.A.V1.34
Ø80 M12 40 38 5.7.A.V1.35
Ø80 M12 50 38 5.7.A.V1.36
Ø80 M12 60 38 5.7.A.V1.37
Ø100 M16 30 47 5.7.A.V1.38
Ø100 M16 40 47 5.7.A.V1.39
Ø100 M16 50 47 5.7.A.V1.40
Ø100 M16 55 47 5.7.A.V1.41
Ø100 M16 60 47 5.7.A.V1.42
Ø100 M16 75 47 5.7.A.V1.43
Ø150 M20 50 47 5.7.A.V1.44
5.7.B.V1 * EPDM * RAL 9005
Wedge Diameter (Ø1) Bolt Metric (D1) Wedge Height (H1) Bolt Length (H2)
Ø10 M3 10 8 5.7.B.V1.1
Ø15 M4 8 8 5.7.B.V1.2
Ø15 M4 10 13 5.7.B.V1.3
Ø15 M4 30 13 5.7.B.V1.4
Ø20 M6 8 13 5.7.B.V1.5
Ø20 M6 10 13 5.7.B.V1.6
Ø20 M6 15 13 5.7.B.V1.7
Ø20 M6 20 13 5.7.B.V1.8
Ø20 M6 25 13 5.7.B.V1.9
Ø20 M6 30 13 5.7.B.V1.10
Ø25 M6 15 13 5.7.B.V1.11
Ø25 M6 20 18 5.7.B.V1.12
Ø25 M6 25 18 5.7.B.V1.13
Ø25 M6 30 18 5.7.B.V1.14
Ø30 M6 15 18 5.7.B.V1.15
Ø30 M6 20 18 5.7.B.V1.16
Ø30 M8 20 18 5.7.B.V1.17
Ø30 M8 30 18 5.7.B.V1.18
Ø40 M8 20 18 5.7.B.V1.19
Ø40 M8 30 18 5.7.B.V1.20
Ø40 M10 30 28 5.7.B.V1.21
Ø40 M8 40 28 5.7.B.V1.22
Ø40 M10 40 28 5.7.B.V1.23
Ø40 M8 80 40 5.7.B.V1.24
Ø50 M8 20 50 5.7.B.V1.25
Ø50 M10 30 35 5.7.B.V1.26
Ø50 M10 40 30 5.7.B.V1.27
Ø50 M10 50 40 5.7.B.V1.28
Ø50 M10 35 20 5.7.B.V1.29
Ø55 M12 35 40 5.7.B.V1.30
Ø60 M10 40 50 5.7.B.V1.31
Ø60 M12 55 40 5.7.B.V1.32
Ø80 M12 40 50 5.7.B.V1.33
Ø80 M12 60 30 5.7.B.V1.34
Ø75 M12 55 40 5.7.B.V1.35
Ø100 M12 25 50 5.7.B.V1.36
Ø100 M16 50 60 5.7.B.V1.37
Ø100 M16 100 30 5.7.B.V1.38
Ø135 M16 50 40 5.7.B.V1.39
Ø150 M16 50 50 5.7.B.V1.40
5.7.C.V1 * EPDM * RAL 9005
Wedge Diameter (Ø1) Bolt Metric (D1) Wedge Height (H1) Bolt Length (H2)
Ø15 M4 8 8 5.7.C.V1.1
Ø15 M4 10 8 5.7.C.V1.2
Ø15 M4 15 13 5.7.C.V1.3
Ø15 M4 30 13 5.7.C.V1.4
Ø20 M6 10 13 5.7.C.V1.5
Ø20 M6 15 13 5.7.C.V1.6
Ø20 M6 20 13 5.7.C.V1.7
Ø20 M6 25 13 5.7.C.V1.8
Ø20 M6 30 13 5.7.C.V1.9
Ø25 M6 15 13 5.7.C.V1.10
Ø25 M6 20 13 5.7.C.V1.11
Ø25 M6 25 18 5.7.C.V1.12
Ø30 M8 30 18 5.7.C.V1.13
Ø30 M8 15 18 5.7.C.V1.14
Ø30 M8 20 18 5.7.C.V1.15
Ø30 M8 25 18 5.7.C.V1.16
Ø40 M8 20 18 5.7.C.V1.17
Ø40 M8 30 18 5.7.C.V1.18
Ø40 M8 40 18 5.7.C.V1.19
Ø50 M10 40 18 5.7.C.V1.20
Ø50 M10 20 28 5.7.C.V1.21
Ø50 M10 30 28 5.7.C.V1.22
Ø50 M10 35 28 5.7.C.V1.23
Ø50 M10 40 28 5.7.C.V1.24
Ø55 M10 50 28 5.7.C.V1.25
Ø60 M12 35 28 5.7.C.V1.26
Ø60 M12 30 38 5.7.C.V1.27
Ø60 M12 40 38 5.7.C.V1.28
Ø60 M12 20 38 5.7.C.V1.29
Ø70 M12 40 38 5.7.C.V1.30
Ø70 M12 50 38 5.7.C.V1.31
Ø75 M12 40 38 5.7.C.V1.32
Ø75 M12 50 38 5.7.C.V1.33
Ø80 M12 30 38 5.7.C.V1.34
Ø80 M12 40 38 5.7.C.V1.35
Ø80 M12 50 38 5.7.C.V1.36
Ø80 M12 60 38 5.7.C.V1.37
Ø100 M16 30 47 5.7.C.V1.38
Ø100 M16 40 47 5.7.C.V1.39
Ø100 M16 50 47 5.7.C.V1.40
Ø100 M16 55 47 5.7.C.V1.41
Ø100 M16 60 47 5.7.C.V1.42
Ø100 M16 75 47 5.7.C.V1.43
Ø150 M20 50 47 5.7.C.V1.44
Ø40 M8 20 25 5.7.C.V1.45
