59 Series Single Bolt Connector Steel Supported Anti Vibration

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 5.9
Material and Color Options (V)
5.9.A.V1 * EPDM * RAL 9005
Wedge Diameter (Ø1) Bolt Metric (D1) Wedge Height (H1) Bolt Length (H2)
Ø70 M10 40 27 5.9.A.V1.1
Ø100 M12 50 27 5.9.A.V1.2
Ø140 M12 70 27 5.9.A.V1.3
5.9.B.V1 * EPDM * RAL 9005
Wedge Diameter (Ø1) Bolt Metric (D1) Wedge Height (H1) Bolt Length (H2)
Ø70 M10 40 27 5.9.B.V1.1
Ø110 M10 50 27 5.9.B.V1.2
Ø140 M12 65 27 5.9.B.V1.3
Ø200 M16 80 37 5.9.B.V1.4
5.9.C.V1 * EPDM * RAL 9005
Wedge Diameter (Ø1) Bolt Metric (D1) Wedge Height (H1) Bolt Length (H2)
Ø110 M12 50 28 5.9.C.V1.1
Ø150 M12 60 28 5.9.C.V1.2
5.9.D.V1 * EPDM * RAL 9005
Wedge Diameter (Ø1) Bolt Metric (D1) Wedge Height (H1) Bolt Length (H2)
Ø70 M10 40 27 5.9.D.V1.1
Ø110 M12 50 27 5.9.D.V1.2

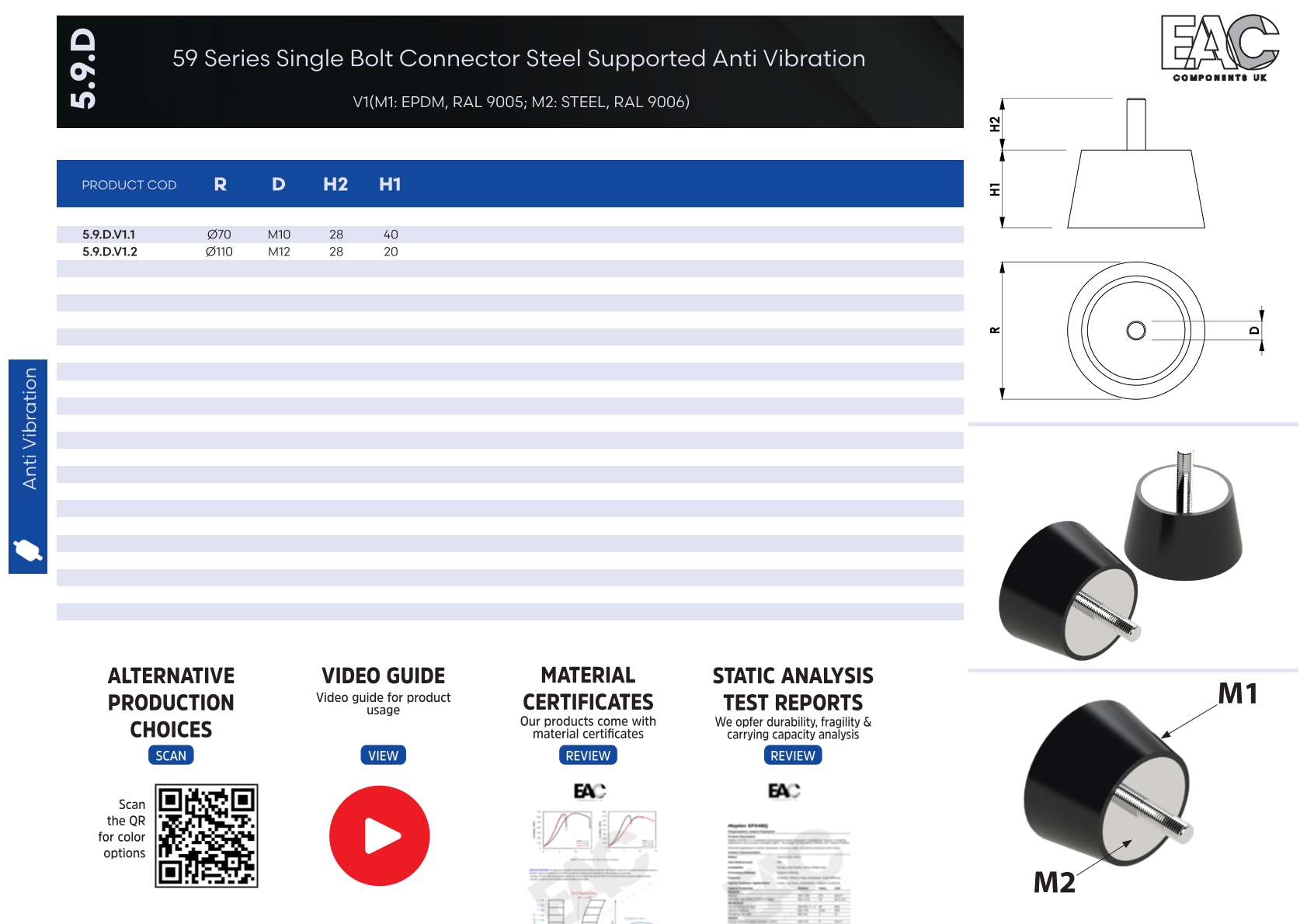

Technical Drawing
