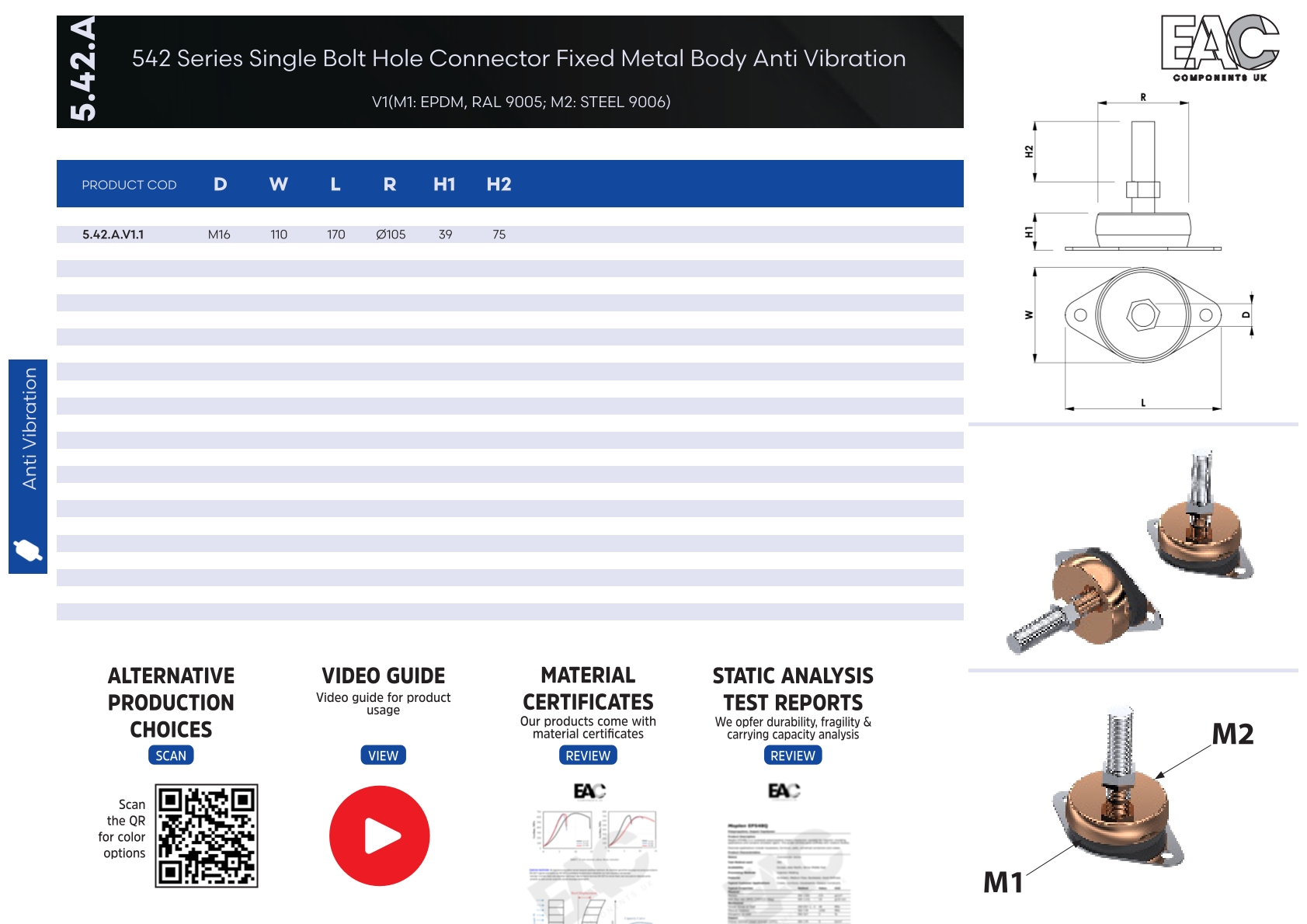

542 Series Single Bolt Hole Connector Fixed Metal Body Anti Vibration

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 5.42
Material and Color Options (V)
5.42.A.V1 * EPDM * RAL 9005
Wedge Diameter (Ø1) Bolt Metric (D1) Wedge Height (H1) Bolt Length (H2)
Ø105 M16 39 75 5.42.A.V1.1
Technical Drawing
