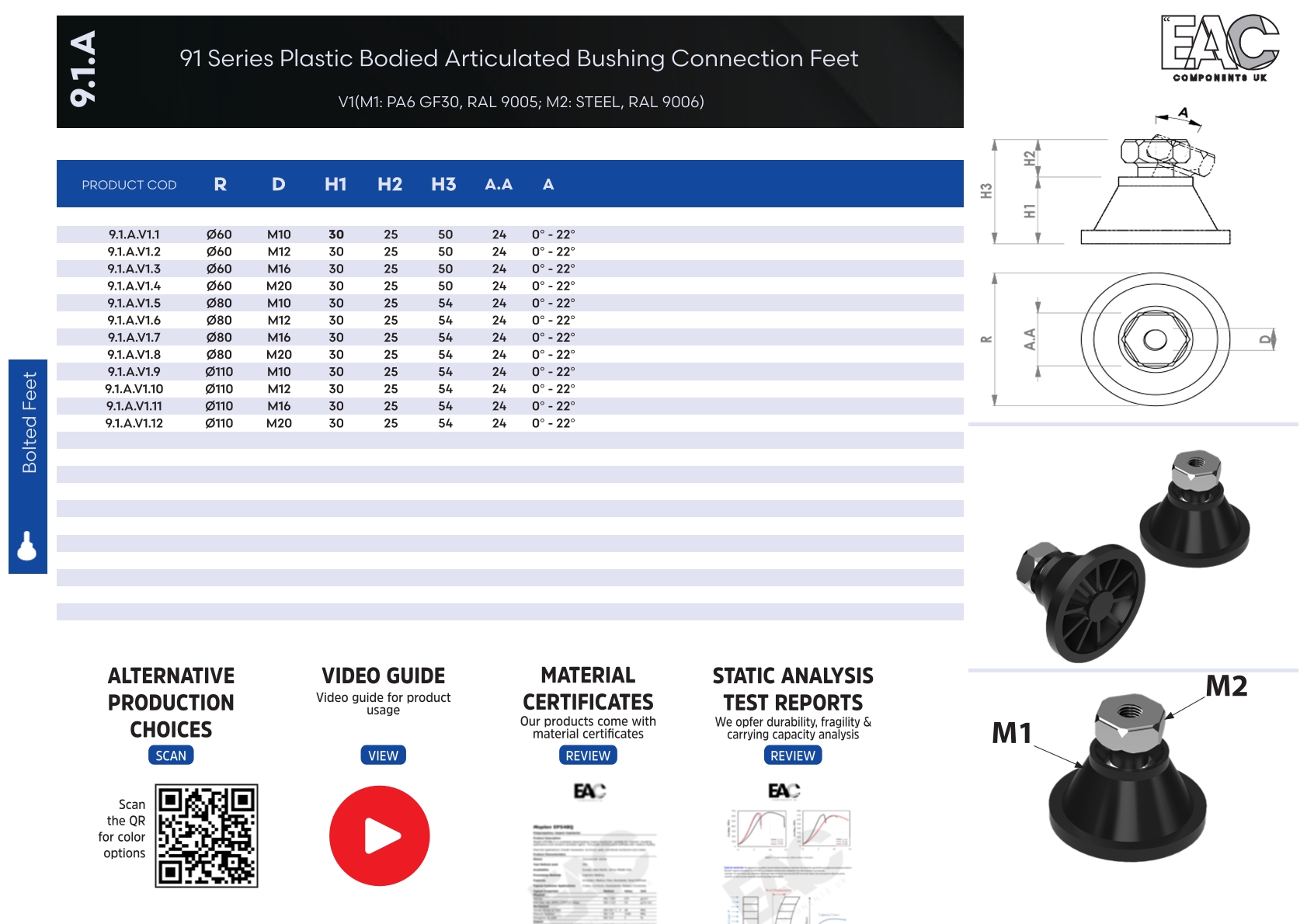

91 Series Plastic Bodied Articulated Bushing Connection Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.1
Material and Color Options (V)
9.1.A.V1 - PA6 GF30 - RAL 9005
Diameter (Ø) Nut Metric (D) Heightt (H)
Ø60 M10 30 9.1.A.V1.1
Ø60 M12 30 9.1.A.V1.2
Ø60 M16 30 9.1.A.V1.3
Ø60 M20 30 9.1.A.V1.4
Ø80 M10 30 9.1.A.V1.5
Ø80 M12 30 9.1.A.V1.6
Ø80 M16 30 9.1.A.V1.7
Ø80 M20 30 9.1.A.V1.8
Ø110 M10 30 9.1.A.V1.9
Ø110 M12 30 9.1.A.V1.10
Ø110 M16 30 9.1.A.V1.11
Ø110 M20 30 9.1.A.V1.12

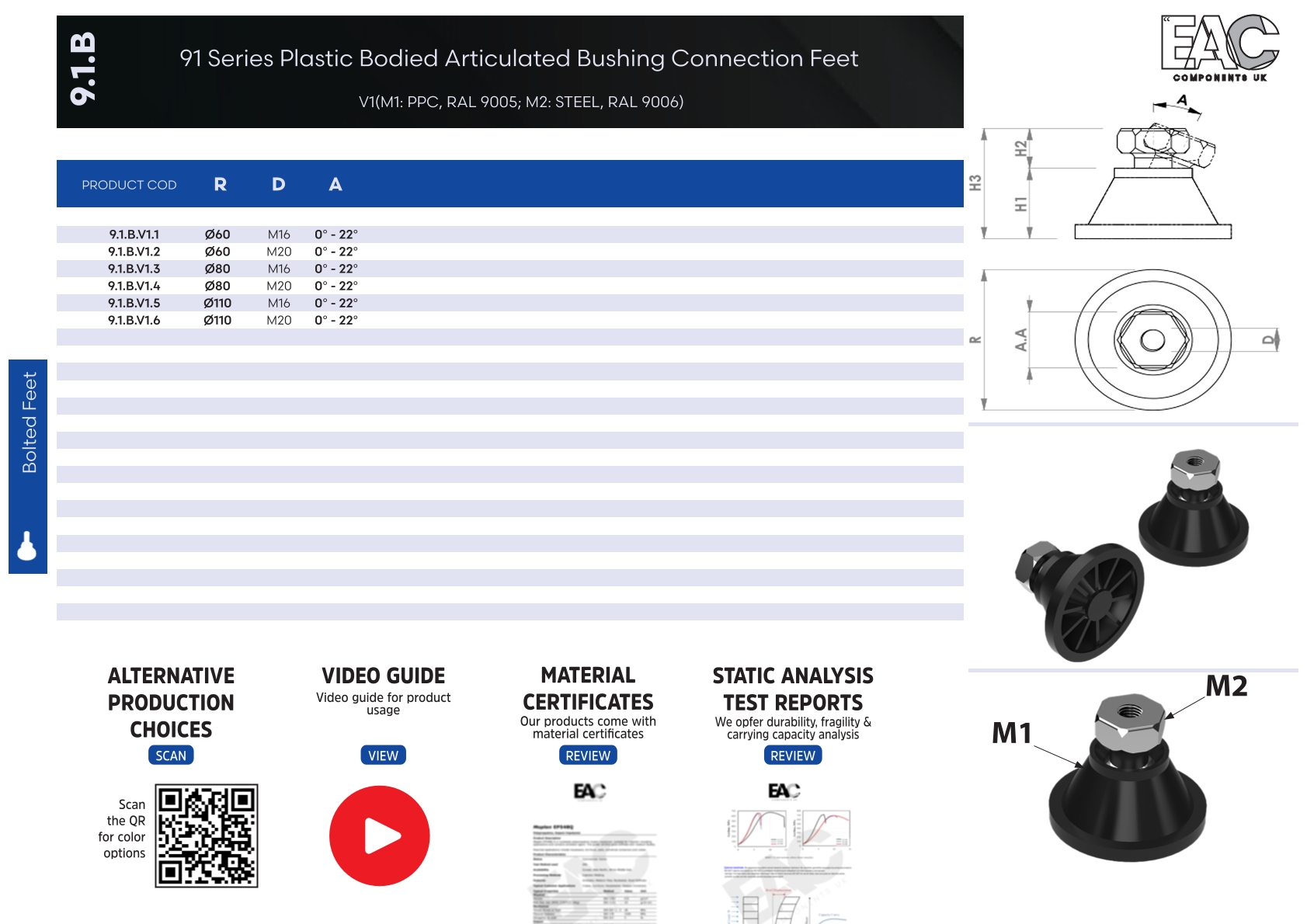

9.1.B.V1 - PPC - RAL 9005
Diameter (Ø) Nut Metric (D) Heightt (H)
Ø60 M16 Heightt (H) 9.1.B.V1.1
Ø60 M20 Heightt (H) 9.1.B.V1.2
Ø80 M16 Heightt (H) 9.1.B.V1.3
Ø80 M20 Heightt (H) 9.1.B.V1.4
Ø110 M16 Heightt (H) 9.1.B.V1.5
Ø110 M20 Heightt (H) 9.1.B.V1.6

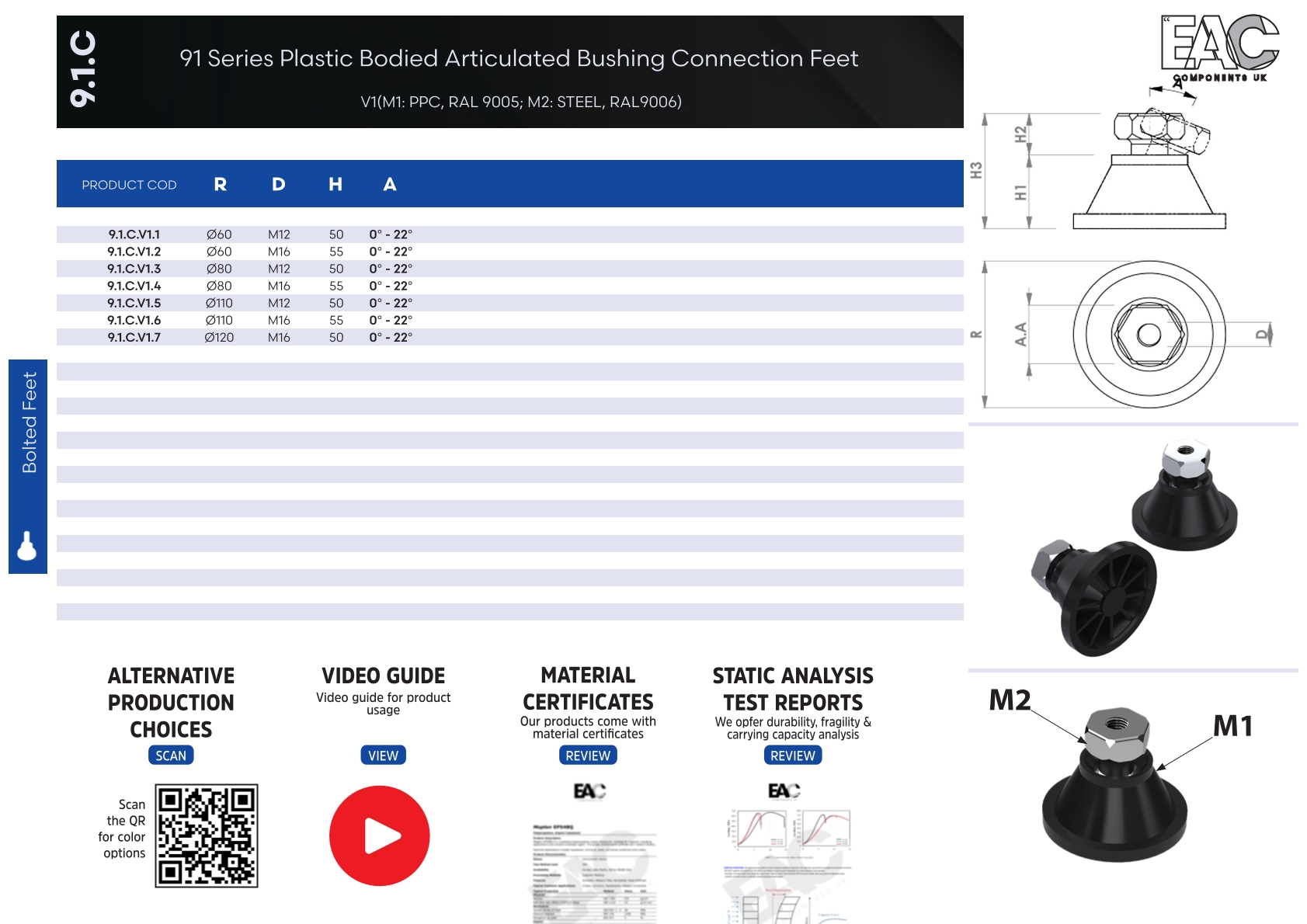

9.1.C.V1 - PPC - RAL 9005
Diameter (Ø) Nut Metric (D) Heightt (H)
Ø60 M12 Heightt (H) 9.1.C.V1.1
Ø60 M16 Heightt (H) 9.1.C.V1.2
Ø80 M12 Heightt (H) 9.1.C.V1.3
Ø80 M16 Heightt (H) 9.1.C.V1.4
Ø110 M12 Heightt (H) 9.1.C.V1.5
Ø110 M16 Heightt (H) 9.1.C.V1.6
Ø120 M16 Heightt (H) 9.1.C.V1.7
