98 Series Plastic Bodied Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.8

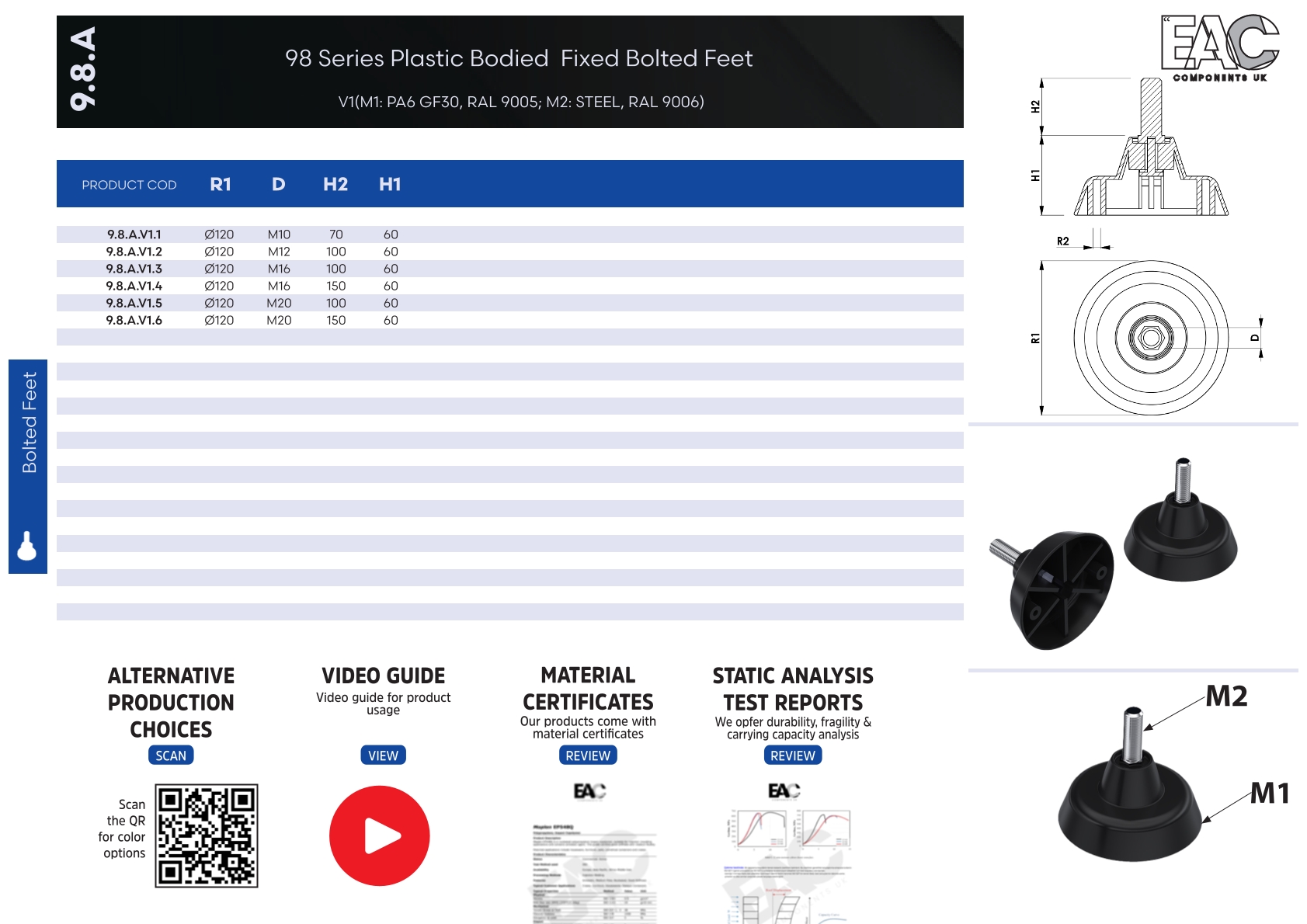

Material and Color Options (V)
9.8.A.V1 - PA6 GF30 - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø120 M10 70 9.8.A.V1.1
Ø120 M12 100 9.8.A.V1.2
Ø120 M16 100 9.8.A.V1.3
Ø120 M16 150 9.8.A.V1.4
Ø120 M20 100 9.8.A.V1.5
Ø120 M20 150 9.8.A.V1.6
9.8.A.V2 - PA6 GF30 - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø120 M20 100 9.8.A.V2.4
Ø120 M16 100 9.8.A.V2.3
Ø120 M12 100 9.8.A.V2.2
Ø120 M10 100 9.8.A.V2.1

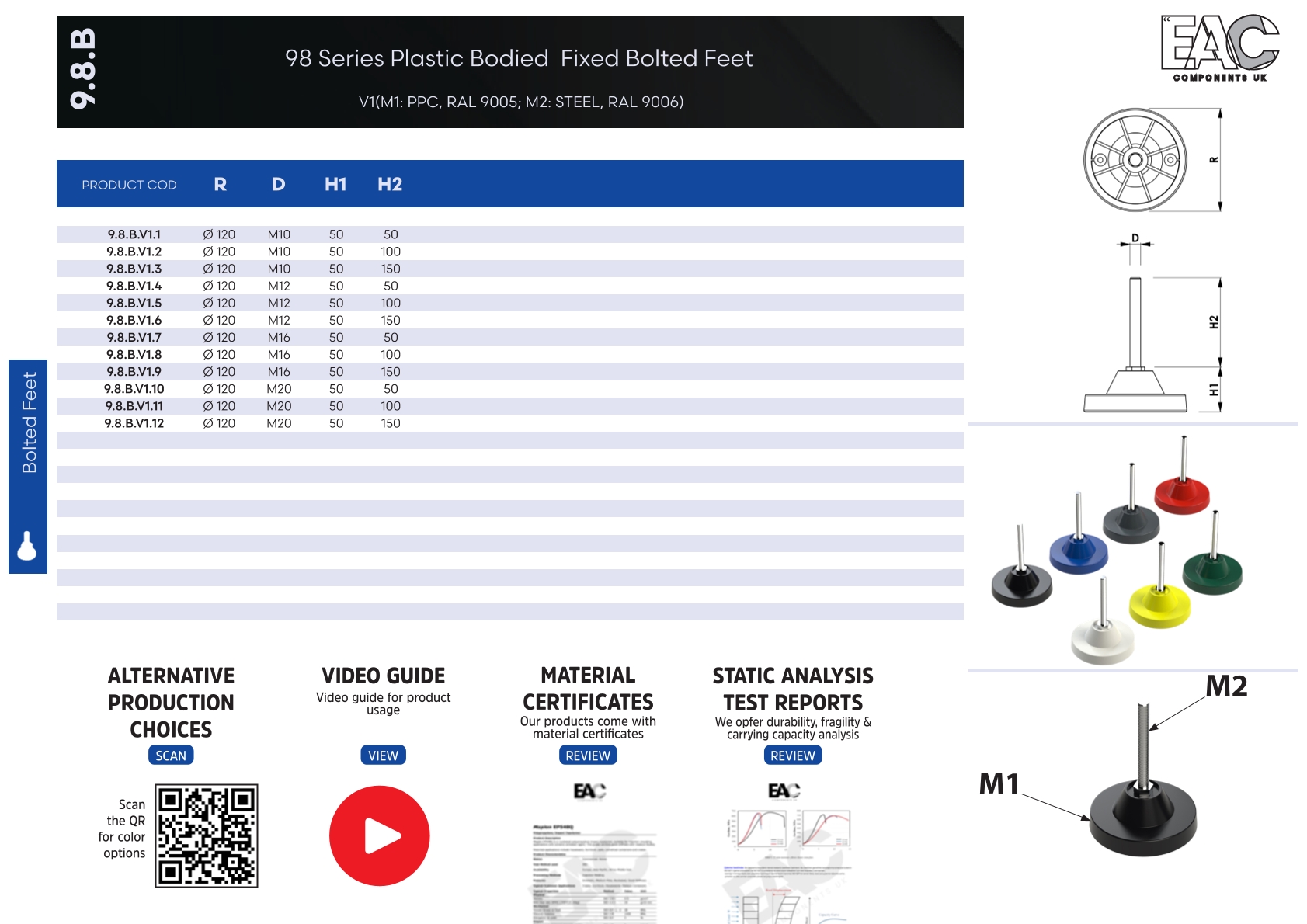

9.8.B.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø 120 M10 50 9.8.B.V1.1
Ø 120 M10 100 9.8.B.V1.2
Ø 120 M10 150 9.8.B.V1.3
Ø 120 M12 50 9.8.B.V1.4
Ø 120 M12 100 9.8.B.V1.5
Ø 120 M12 150 9.8.B.V1.6
Ø 120 M16 50 9.8.B.V1.7
Ø 120 M16 100 9.8.B.V1.8
Ø 120 M16 150 9.8.B.V1.9
Ø 120 M20 50 9.8.B.V1.10
Ø 120 M20 100 9.8.B.V1.11
Ø 120 M20 150 9.8.B.V1.12

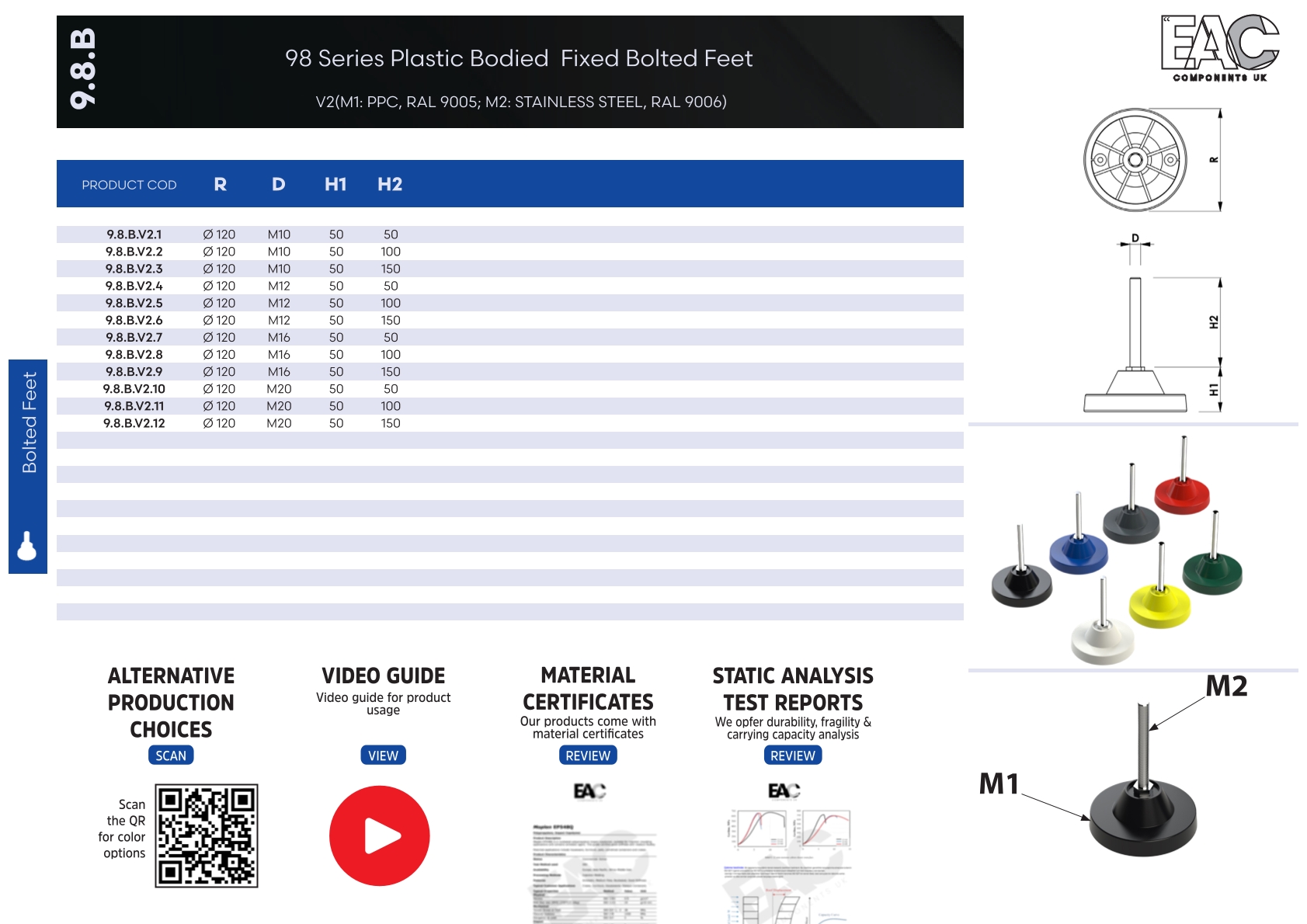

9.8.B.V2 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø 120 M20 150 9.8.B.V2.12
Ø 120 M20 100 9.8.B.V2.11
Ø 120 M20 50 9.8.B.V2.10
Ø 120 M16 150 9.8.B.V2.9
Ø 120 M16 100 9.8.B.V2.8
Ø 120 M16 50 9.8.B.V2.7
Ø 120 M12 150 9.8.B.V2.6
Ø 120 M12 100 9.8.B.V2.5
Ø 120 M12 50 9.8.B.V2.4
Ø 120 M10 150 9.8.B.V2.3
Ø 120 M10 100 9.8.B.V2.2
Ø 120 M10 50 9.8.B.V2.1

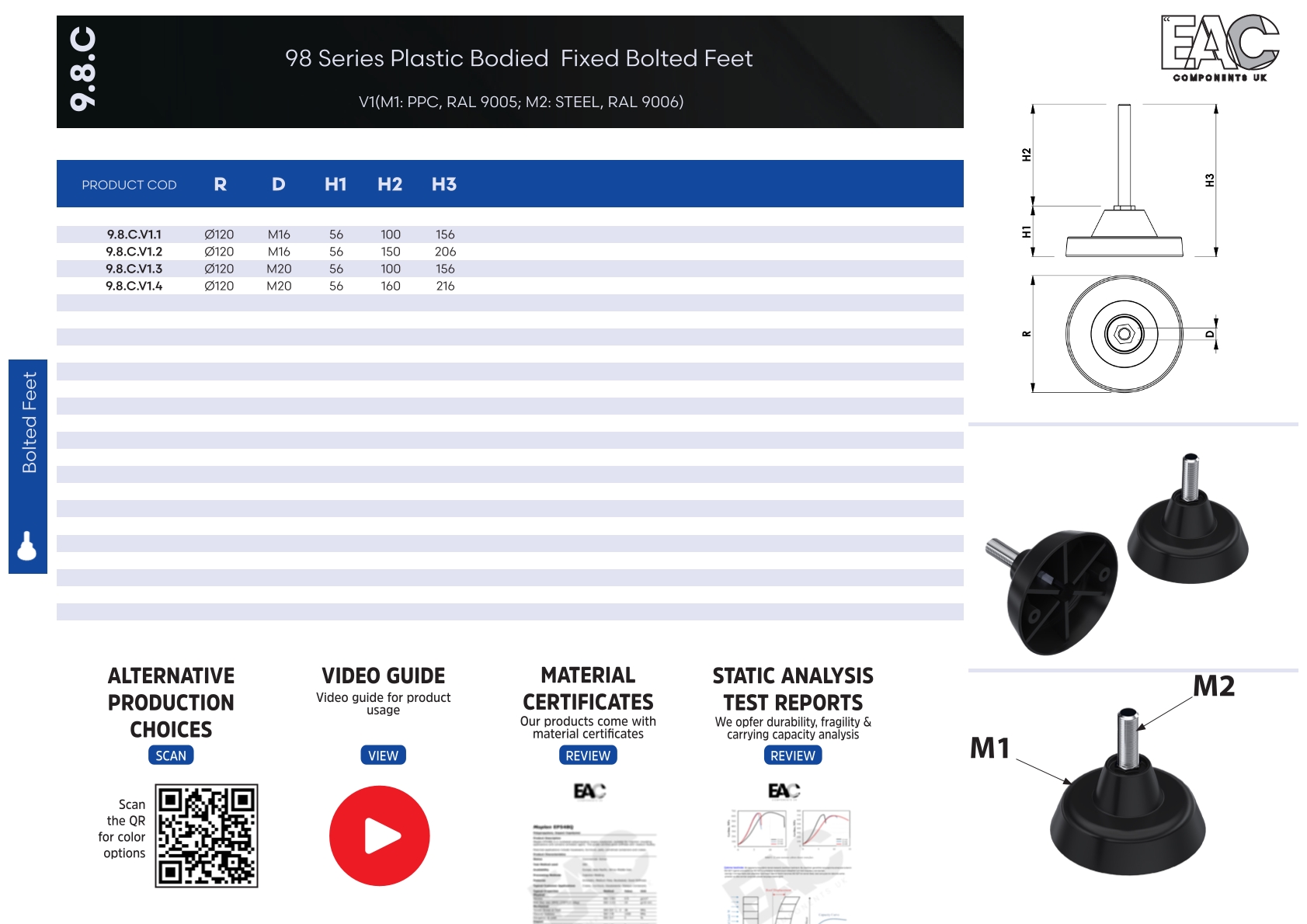

9.8.C.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø120 M16 100 9.8.C.V1.1
Ø120 M16 150 9.8.C.V1.2
Ø120 M20 100 9.8.C.V1.3
Ø120 M20 160 9.8.C.V1.4
9.8.D.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø120 M16 100 9.8.D.V1.1
Ø120 M16 150 9.8.D.V1.2
Ø120 M20 100 9.8.D.V1.3
Ø120 M20 160 9.8.D.V1.4
