912 Series Sheet Metal Body Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.12
Material and Color Options (V)

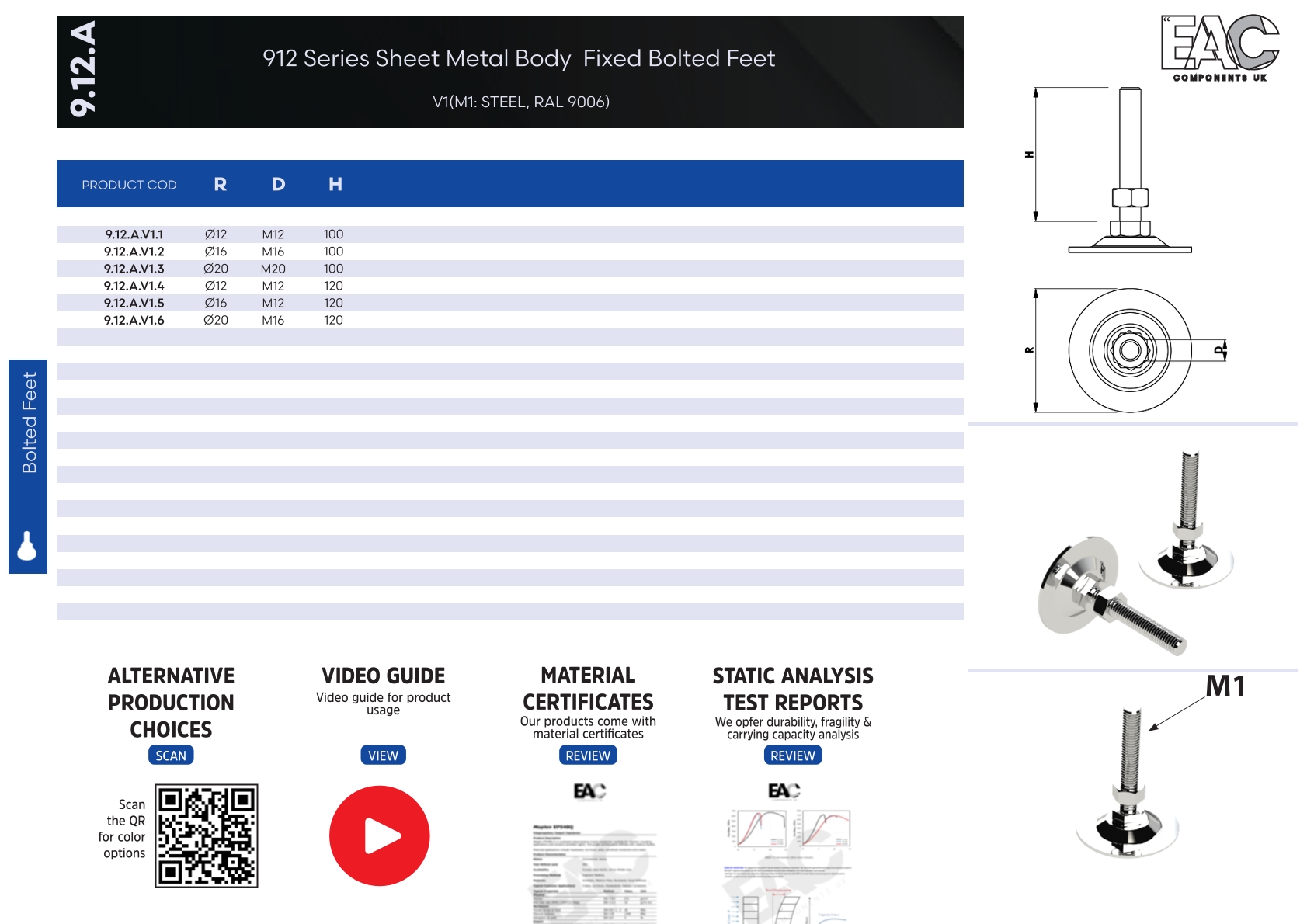

9.12.A.V1 - ÇELİK - RAL 9006
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø12 M12 100 9.12.A.V1.1
Ø12 M12 120 9.12.A.V1.2
Ø16 M12 100 9.12.A.V1.3
Ø16 M16 120 9.12.A.V1.4
Ø20 M16 100 9.12.A.V1.5
Ø20 M20 120 9.12.A.V1.6

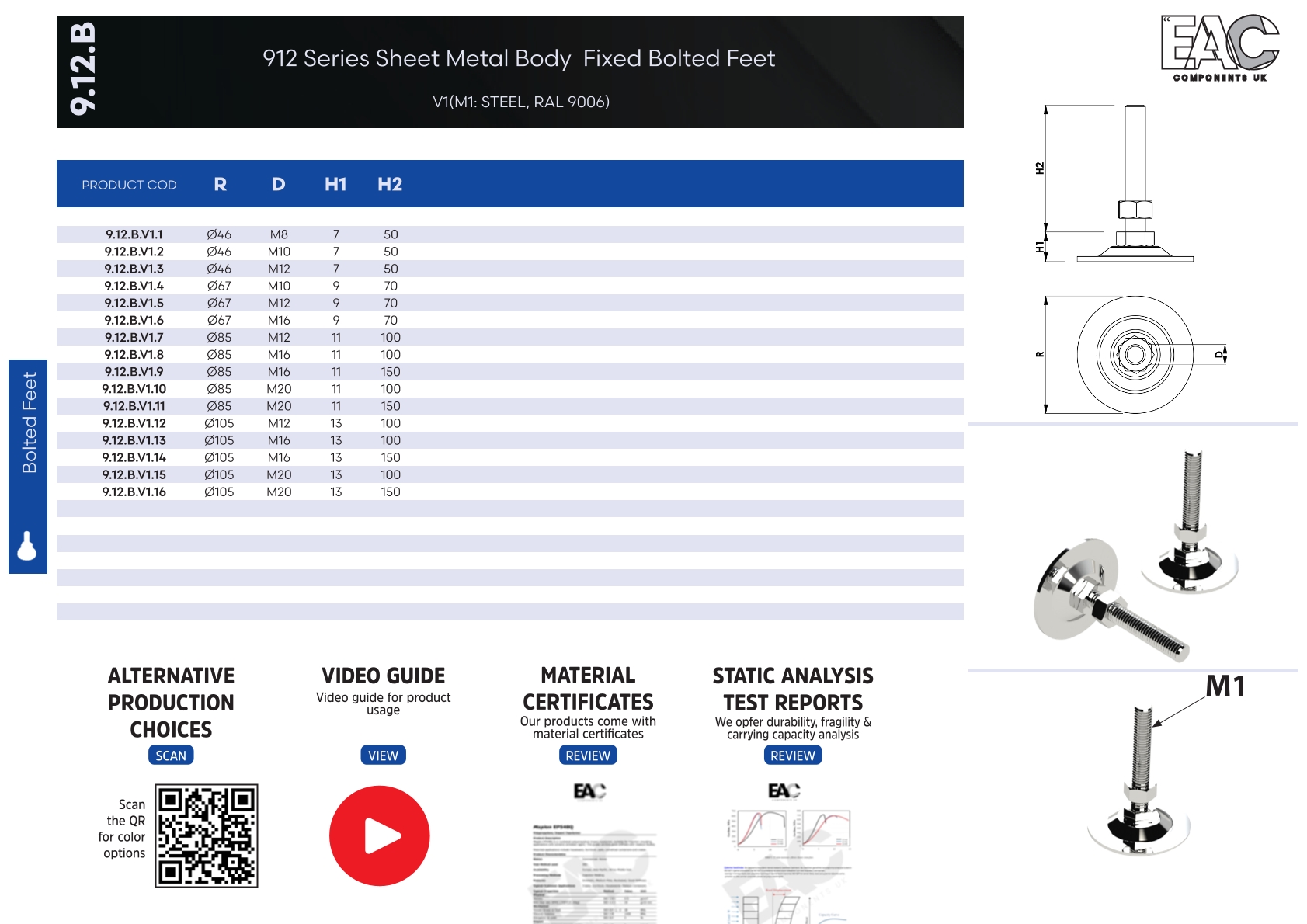

9.12.B.V1 - ÇELİK - RAL 9006
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø46 M8 50 9.12.B.V1.1
Ø46 M10 50 9.12.B.V1.2
Ø46 M12 50 9.12.B.V1.3
Ø67 M10 70 9.12.B.V1.4
Ø67 M12 70 9.12.B.V1.5
Ø67 M16 70 9.12.B.V1.6
Ø85 M12 100 9.12.B.V1.7
Ø85 M16 100 9.12.B.V1.8
Ø85 M16 150 9.12.B.V1.9
Ø85 M20 100 9.12.B.V1.10
Ø85 M20 150 9.12.B.V1.11
Ø105 M12 100 9.12.B.V1.12
Ø105 M16 100 9.12.B.V1.13
Ø105 M16 150 9.12.B.V1.14
Ø105 M20 100 9.12.B.V1.15
Ø105 M20 150 9.12.B.V1.16
9.12.C.V1 - ÇELİK - RAL 9006
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M12 100 9.12.C.V1.1
Ø100 M16 100 9.12.C.V1.2
Ø100 M20 150 9.12.C.V1.3

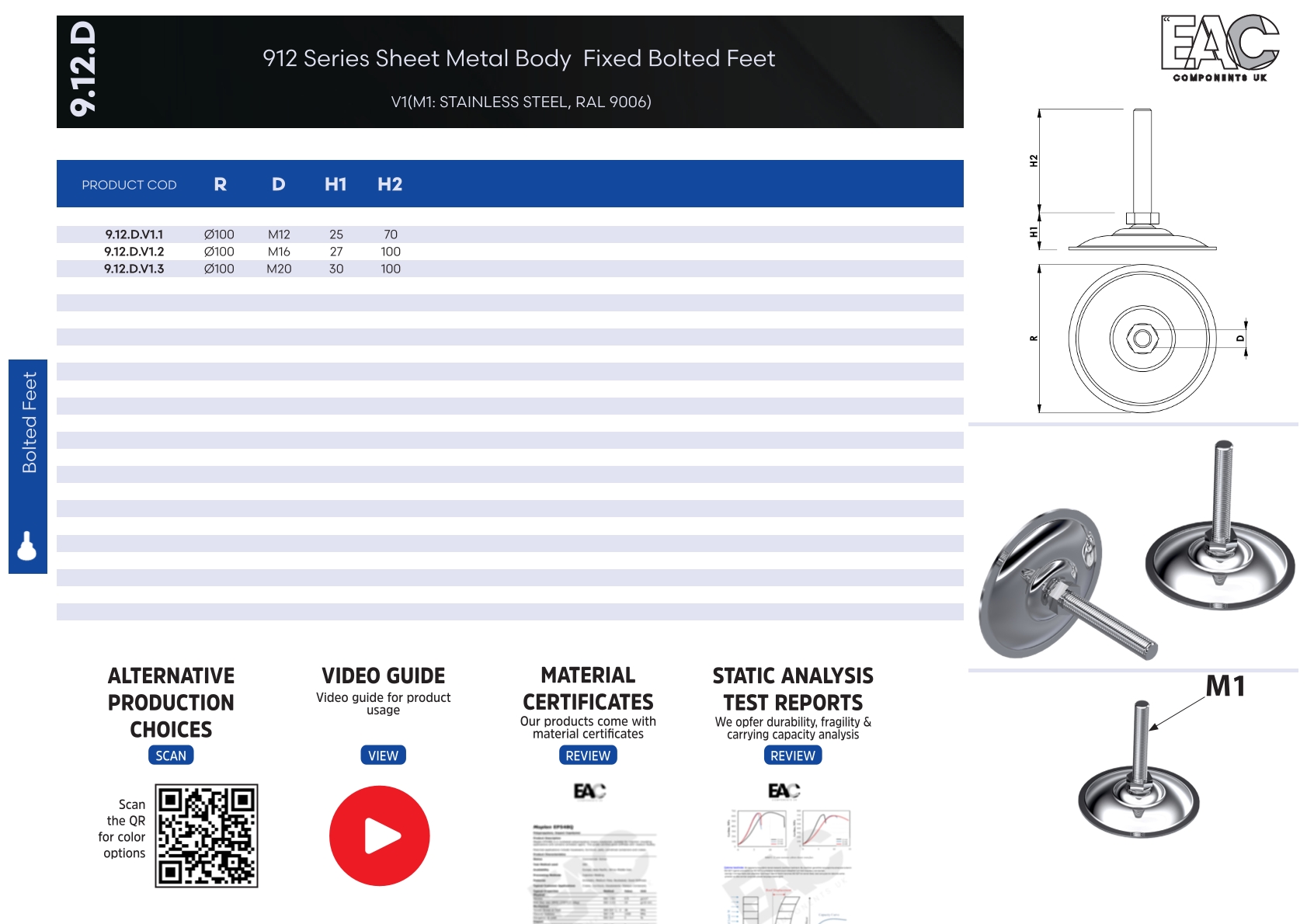

9.12.D.V1 - PASLANMAZ ÇELİK - RAL 9006
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø100 M12 70 9.12.D.V1.1
Ø100 M16 100 9.12.D.V1.2
Ø100 M20 100 9.12.D.V1.3
