911 Series Plastic Bodied Fixed Bolted Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.11
Material and Color Options (V)

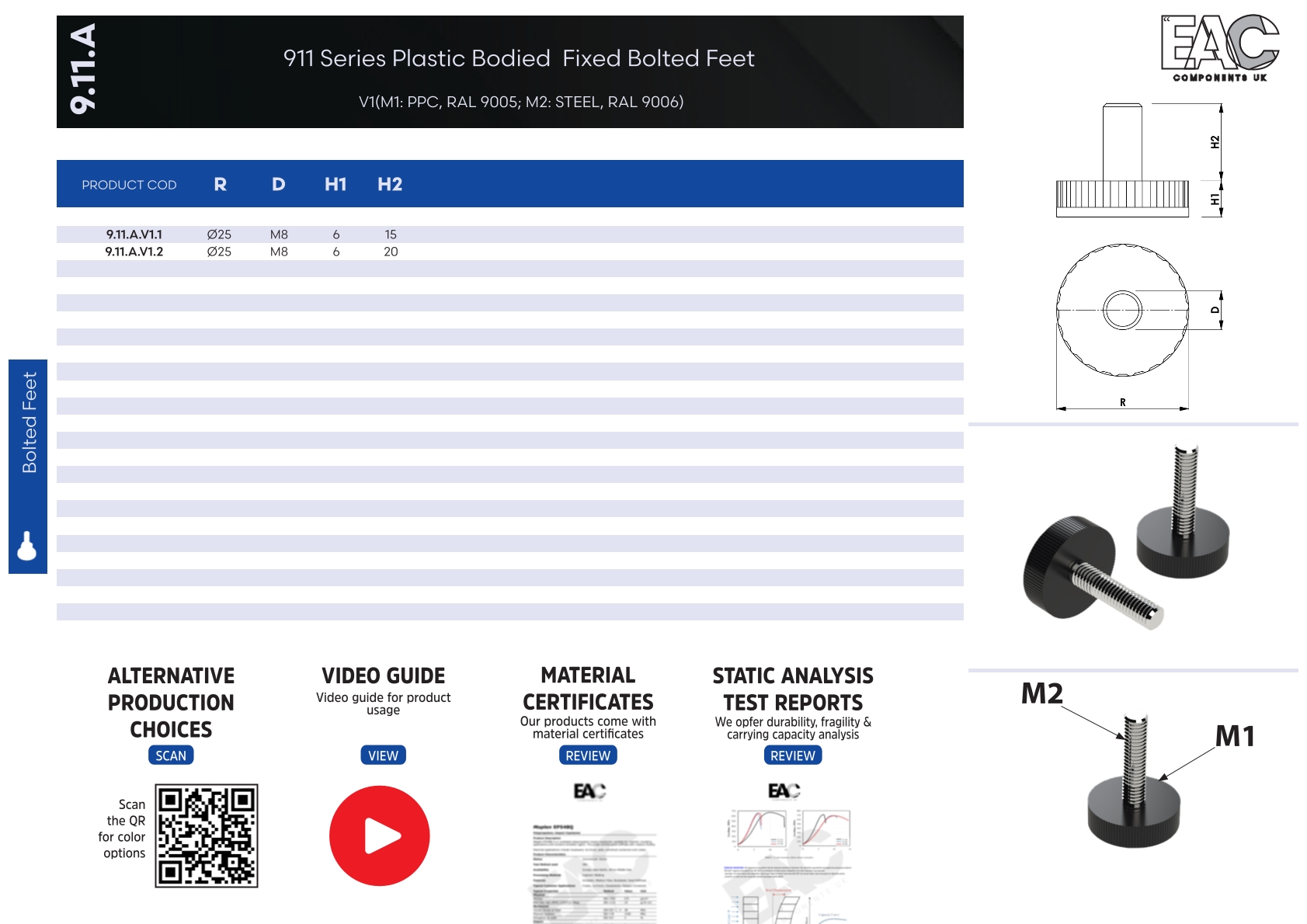

9.11.A.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø25 M8 15 9.11.A.V1.1
Ø25 M8 20 9.11.A.V1.2

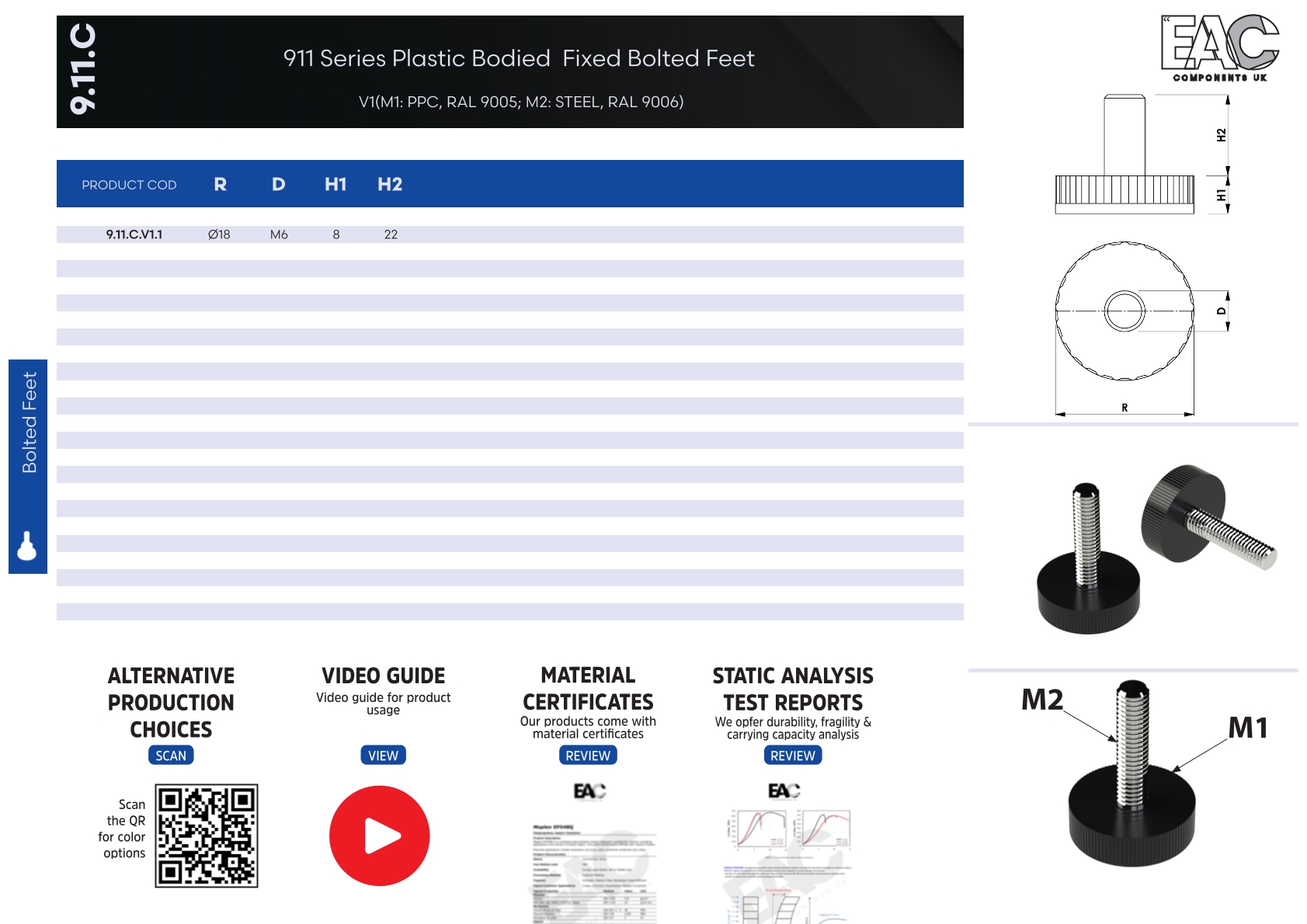

9.11.C.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø18 M6 22 9.11.C.V1.1

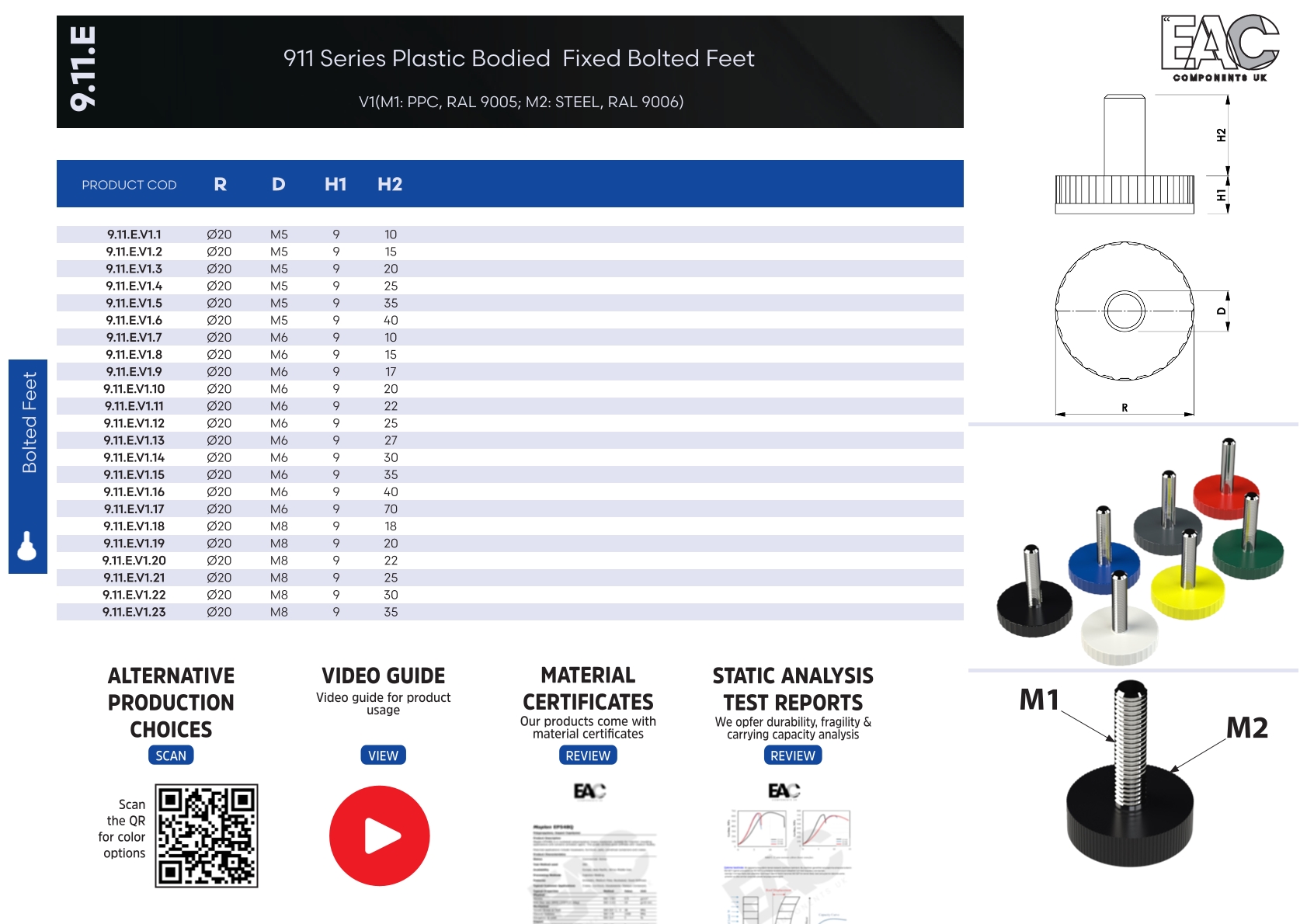

9.11.E.V1 - PPC - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø20 M5 10 9.11.E.V1.1
Ø20 M5 15 9.11.E.V1.2
Ø20 M5 20 9.11.E.V1.3
Ø20 M5 25 9.11.E.V1.4
Ø20 M5 35 9.11.E.V1.5
Ø20 M5 40 9.11.E.V1.6
Ø20 M6 10 9.11.E.V1.7
Ø20 M6 15 9.11.E.V1.8
Ø20 M6 17 9.11.E.V1.9
Ø20 M6 20 9.11.E.V1.10
Ø20 M6 22 9.11.E.V1.11
Ø20 M6 25 9.11.E.V1.12
Ø20 M6 27 9.11.E.V1.13
Ø20 M6 30 9.11.E.V1.14
Ø20 M6 35 9.11.E.V1.15
Ø20 M6 40 9.11.E.V1.16
Ø20 M6 70 9.11.E.V1.17
Ø20 M8 18 9.11.E.V1.18
Ø20 M8 20 9.11.E.V1.19
Ø20 M8 22 9.11.E.V1.20
Ø20 M8 25 9.11.E.V1.21
Ø20 M8 30 9.11.E.V1.22
Ø20 M8 35 9.11.E.V1.23
Ø32 M8 15 9.11.E.V1.24
Ø32 M8 20 9.11.E.V1.25
Ø32 M8 25 9.11.E.V1.26
Ø32 M8 30 9.11.E.V1.27
Ø32 M8 35 9.11.E.V1.28
Ø32 M8 40 9.11.E.V1.29
Ø32 M10 15 9.11.E.V1.30
Ø32 M10 18 9.11.E.V1.31
Ø32 M10 20 9.11.E.V1.32
Ø32 M10 22 9.11.E.V1.33
Ø32 M10 25 9.11.E.V1.34
Ø32 M10 28 9.11.E.V1.35
Ø32 M10 32 9.11.E.V1.36
9.11.F.V2 - PPC - RAL 9002
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø32 M10 25 9.11.F.V2.1
