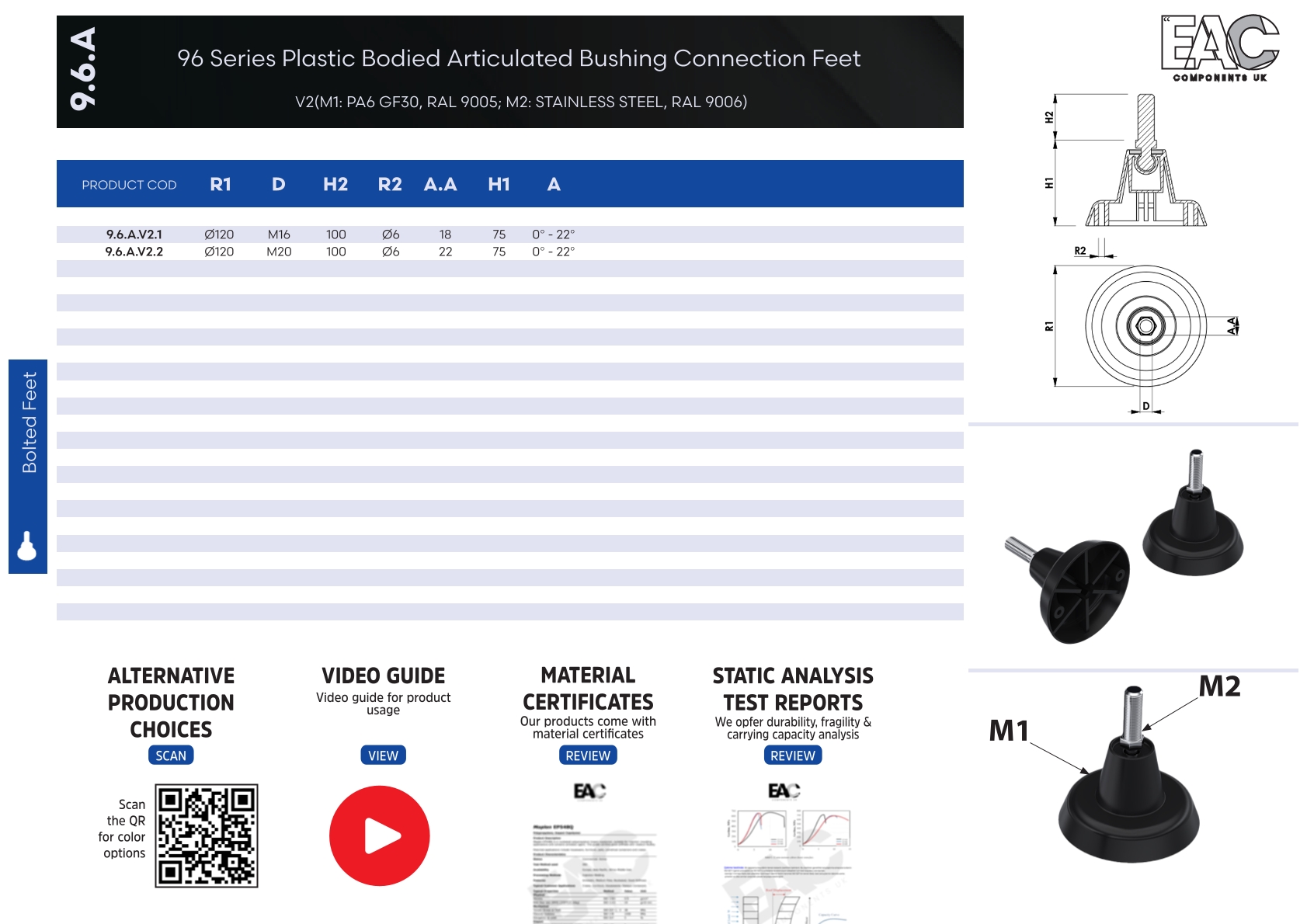

96 Series Plastic Bodied Articulated Bushing Connection Feet

You can easily access comprehensive information about the dimensioning and E-Catalogue page of our products, product material contents, quality and analysis documents, certificates, assembly videos and category introductions.

Catalogue Code: 9.6
Material and Color Options (V)
9.6.A.V1 - PA6 GF30 - RAL 9005
Product Diameter (Ø) Bolt Metric (D) Bolt Length (H)
Ø120 M20 100 9.6.A.V2.2
Ø120 M16 100 9.6.A.V2.1
Ø120 M16 50 9.6.A.V1.1
Ø120 M16 100 9.6.A.V1.2
Ø120 M16 150 9.6.A.V1.3
Ø120 M16 200 9.6.A.V1.4
Ø120 M20 50 9.6.A.V1.5
Ø120 M20 100 9.6.A.V1.6
Ø120 M20 150 9.6.A.V1.7
Ø120 M20 200 9.6.A.V1.8
Technical Drawing
3D Modelling
3D Modelling

To access the product file, you can click on the "Download 3D Model" button below, fill out the form and send it.

Download 3D Model
Montage Video

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Technical Detail

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Raw Material Certificate

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Product Quality and Analysis Certificates

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
Category Introduction

To access the product file, you can click on the "Request" button below, fill out the form and send it.

Request
